DF12.ABD6F150C0.5310.1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF12.ABD6F150C0.5310.1

DF12.ABD6F150C0.5310.1: DescriptionMains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

DF12.ABD6F150C0.5310.1 Overview

Mains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

DF12.ABD6F150C0.5310.1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN 60320-1; IEC/EN 60950; UL 94V-0; CSA; VDE; QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN/TIN COPPER
Contact completed and terminated	TIN/TIN COPPER
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3/e2
MIL compliance	NO
Power Connector Ratings	6A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

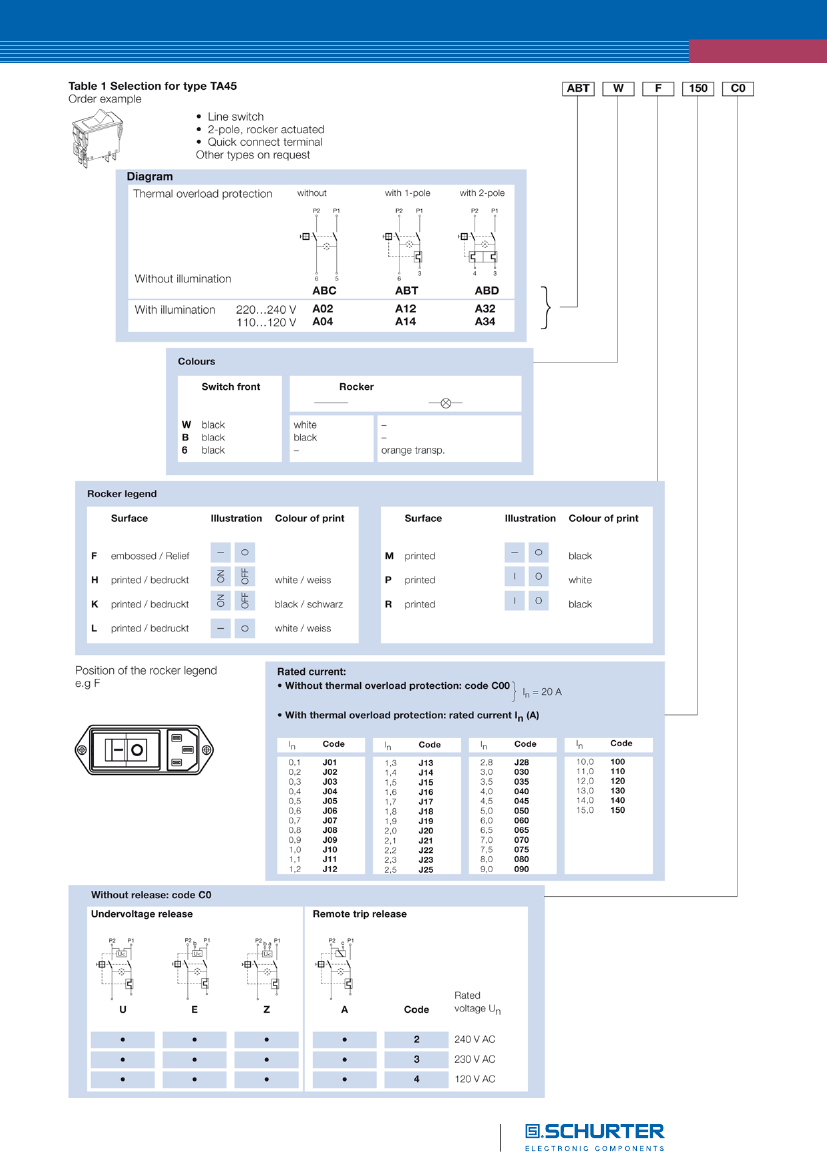

Power Entry Modules with Line Filter

www.schurter.com/pg06

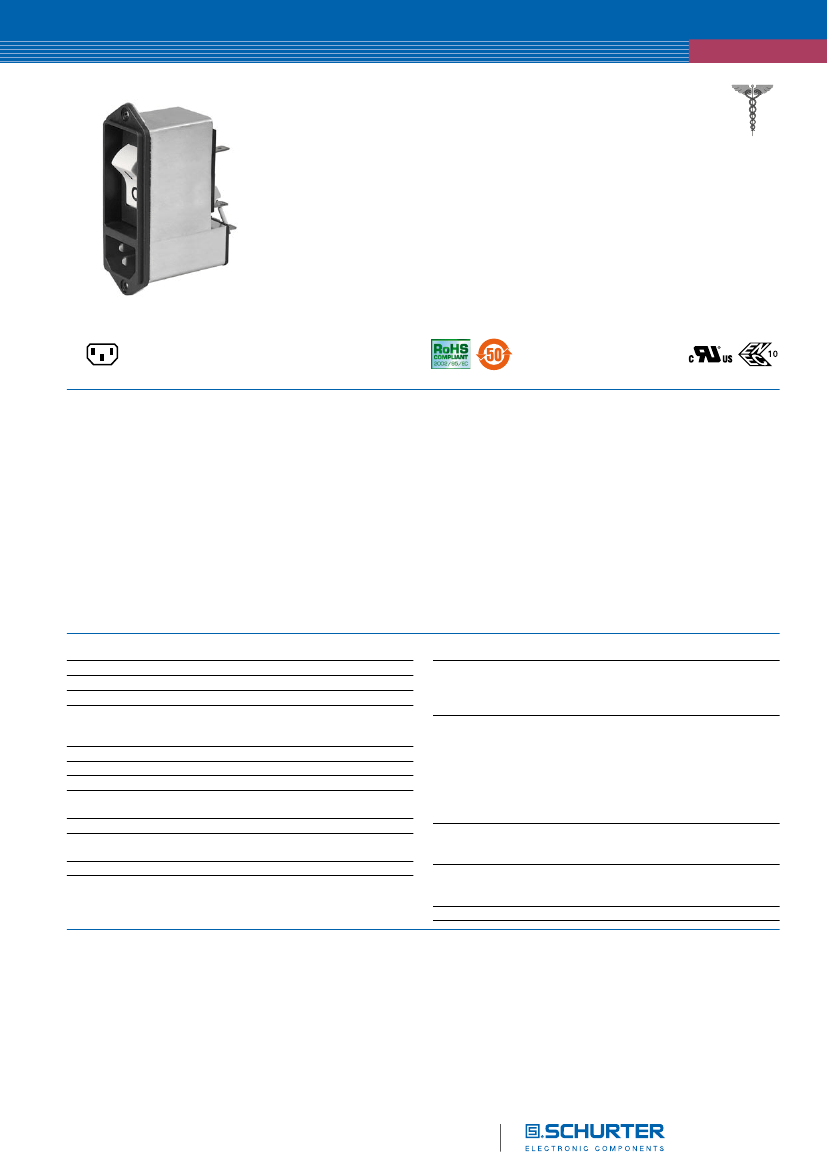

IEC Appliance Inlet C14 with Filter, Circuit Breaker TA45 (recessed)

DF2

Medical version

C14

70° C

- Panel Mount:

Screw-on mounting from front side

- 3 Functions:

Appliance Inlet Protection class I, circuit breaker type TA45 2-

pole, Line filter in standard and medical version

- Quick connect terminals 6.3 x 0.8 mm

- Alternative: version without line filter DF11

- Substitute for type 5145

- Alternative: Standard version DF12

Description

Characteristics

- All single elements are already wired

- Line switch non-illuminated or illuminated

Thermal overload protection

Optional with undervoltage- or remote trip release

- Qualified for use in equipment according IEC/EN 60950

Other versions on request

- Unwired versions

- Line switch 1-pole

- Other rocker marking

- Medical version M80

- Capacitance CX1

Approvals

- VDE License Number: 40012935

- UL License Number: E72928

References

Weblinks

General Product Information

Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,

Distributor-Stock-Check, Accessories

Technical Data

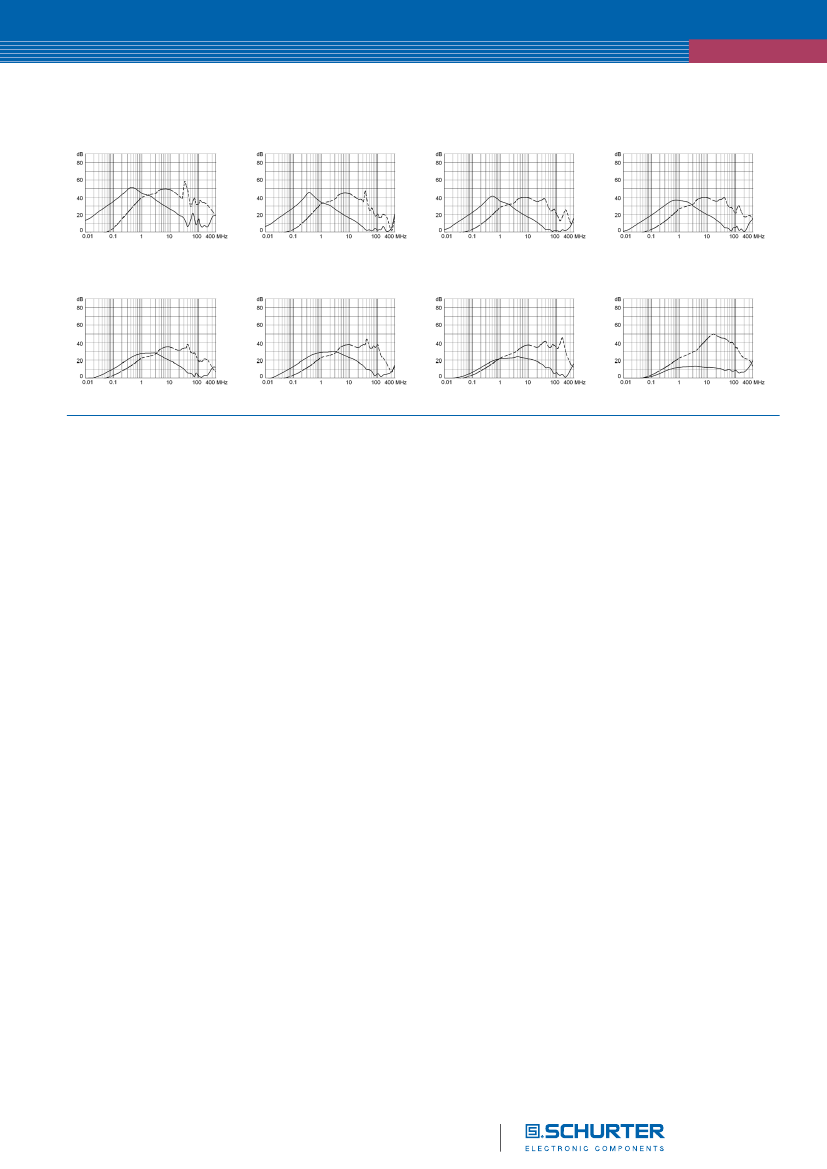

Ratings IEC

Ratings UL/CSA

Leakage Current

Dielectric Strength

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz

medical < 5 µA (250 V / 60 Hz)

> 1.7 kVDC between L-N

> 2.7 kVDC between L/N-PE

Test voltage (2 sec)

-10 °C to 55 °C

10/055/21 acc. to IEC 60068-1

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

Quick connect terminals 6.3 x 0.8 mm

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance-Inlet/-Outlet

C14 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

Acc. IEC/EN 60934, UL 1077, CSA

22.2 no. 235

2-pole rocker switch, illuminated or non-

illuminated. Optional with undervoltage-

or remote trip release

Short circuit capacity Icn:

at In < 3A/240VAC : 10 x In

at In ≥ 3A/240VAC : 300A

Rocker switch 2-pole non-illuminated or

illuminated acc. to IEC 61058-1

Technical details

IEC 60939, IEC 60601-1, UL 1283, UL

544, EN 133 200, CSA C22.2 no. 8

Technical details

> 100'000 h acc. to MIL-HB-217 F

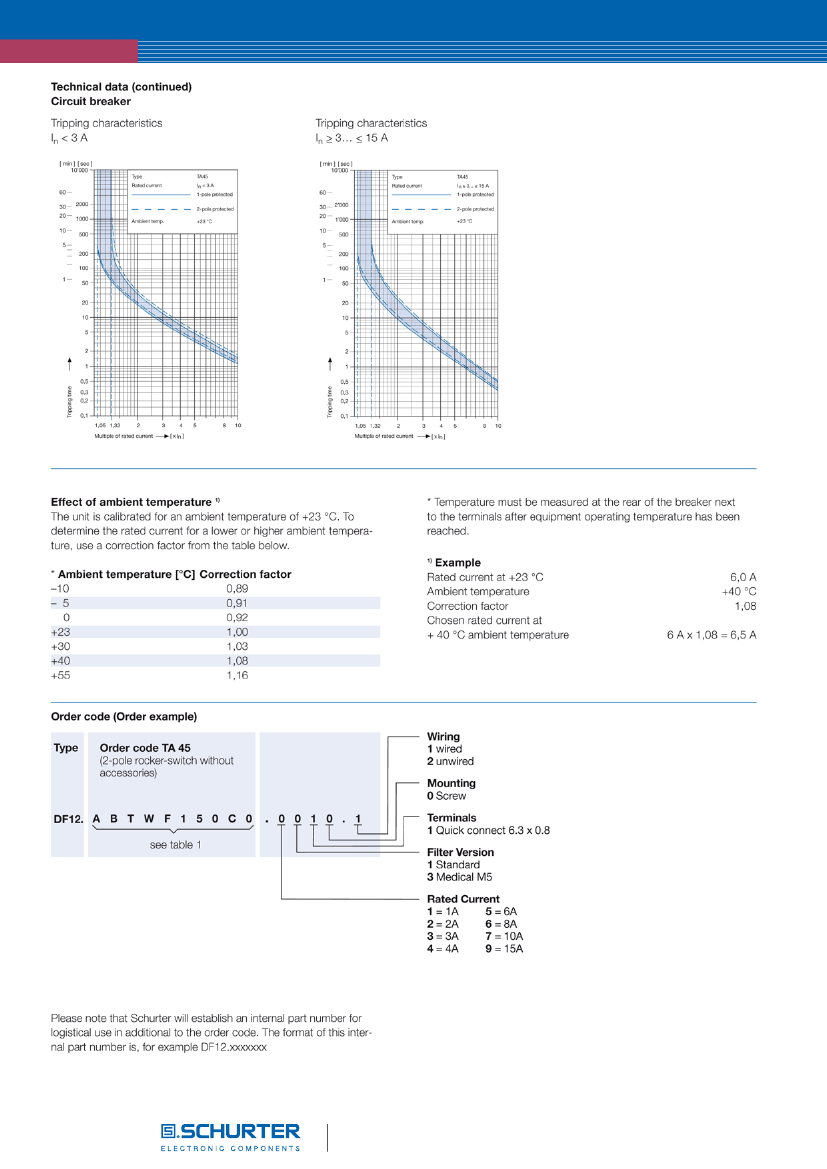

Circuit Breakers

Allowable Operation Temp.

Climatic Category

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Line Switch

Line Filter

MTBF

EMC Products
