DBU-25SADT datasheet, PDF - EEWORLD Datasheet

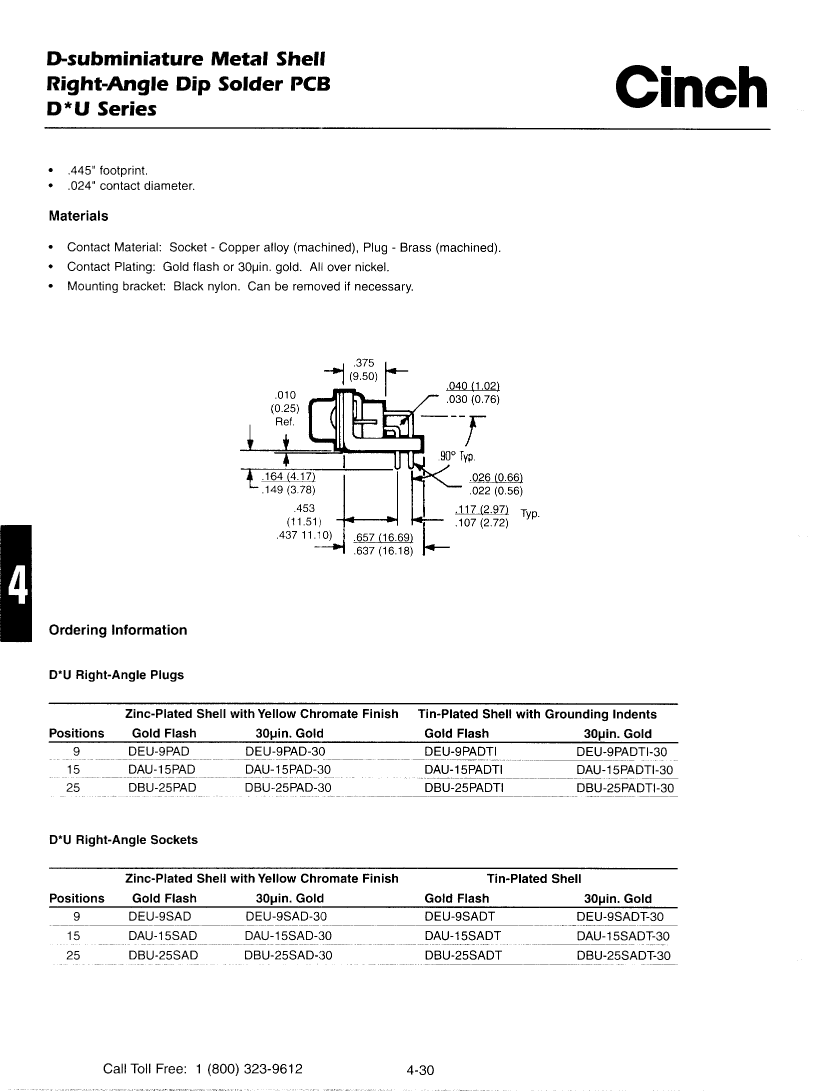

DBU-25SADT: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

DBU-25SADT Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	PANEL MOUNTABLE
body width	0.494 inch
subject depth	0.648 inch
body length	2.088 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DBU
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.156 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1
