DDPV50P564TXLF: DescriptionD Subminiature Connector, 50 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size154KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

DDPV50P564TXLF Overview

D Subminiature Connector, 50 Contact(s), Male, Solder Terminal,

DDPV50P564TXLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

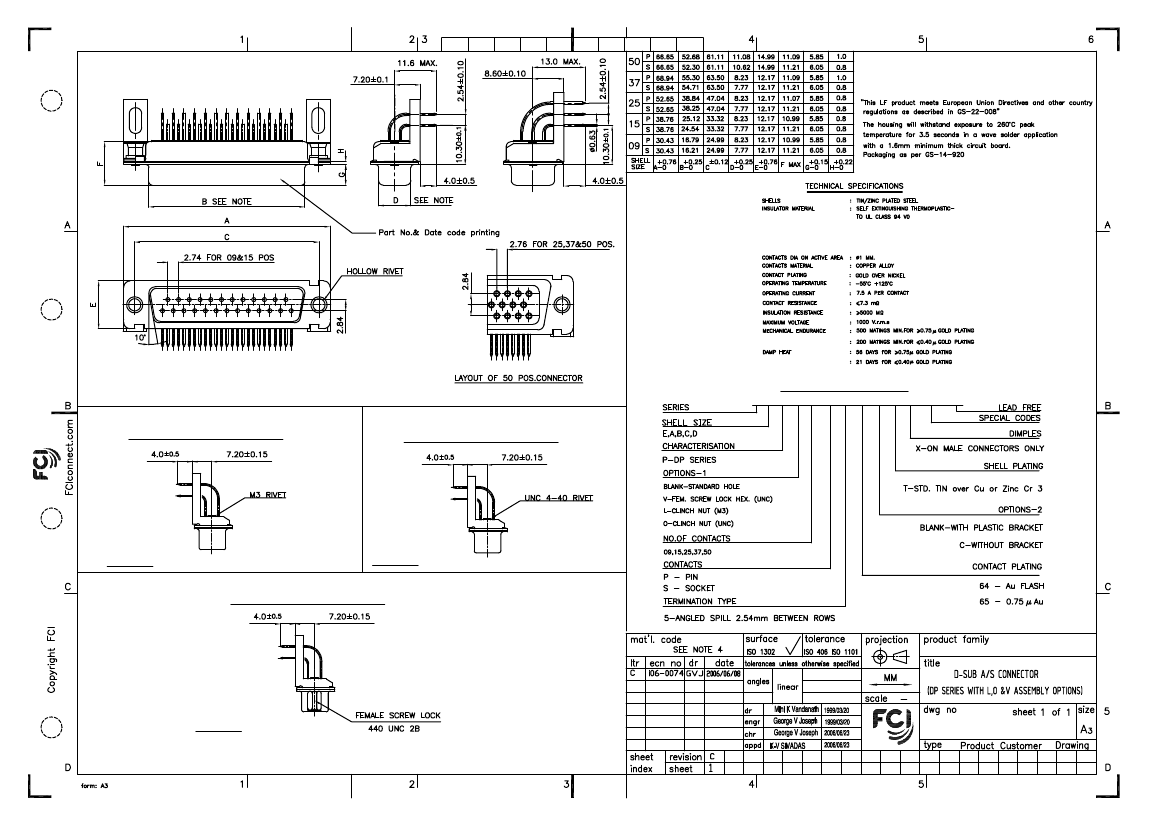

NOTE:-INSIDE DIMENSIONS OF MALE AND OUTSIDE

DIMENSIONS OF THE FEMALE CONNECTOR.

INSULATOR MATERIAL

:

SELF EXTINGUISHING THERMOPLASTIC-

TO UL CLASS 94 V0

THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C

IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)

OR PROTECTIVE METALLIC DEVICE

ORDERING INFORMATION

D B P V 25 P 5 64

T X XXX LF

M3 RIVET WITH PLASTIC BRACKET

AND HEXAGONAL FRONT SHELL

UNC 4-40 RIVET WITH PLASTIC BRACKET

AND HEXAGONAL FRONT SHELL

OPTION : L

OPTION : O

FEMALE SCREW WITH PLASTIC BRACKET

AND HEXAGONAL FRONT SHELL

OPTION : V

C-DSUB-0148

6

PDM: Rev:C

STATUS:

Released

Printed: Jan 23, 2008

.
