MT5LC2568DJ-25L datasheet, PDF

Datasheet> All Categories > storage> storage> MT5LC2568DJ-25L

MT5LC2568DJ-25L: DescriptionStandard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28; Categorystorage storage; File Size178KB，8 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT5LC2568DJ-25L Overview

Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28

MT5LC2568DJ-25L Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
length	18.44 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	235
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	3.68 mm
Maximum standby current	0.0005 A
Minimum standby current	2 V
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.67 mm

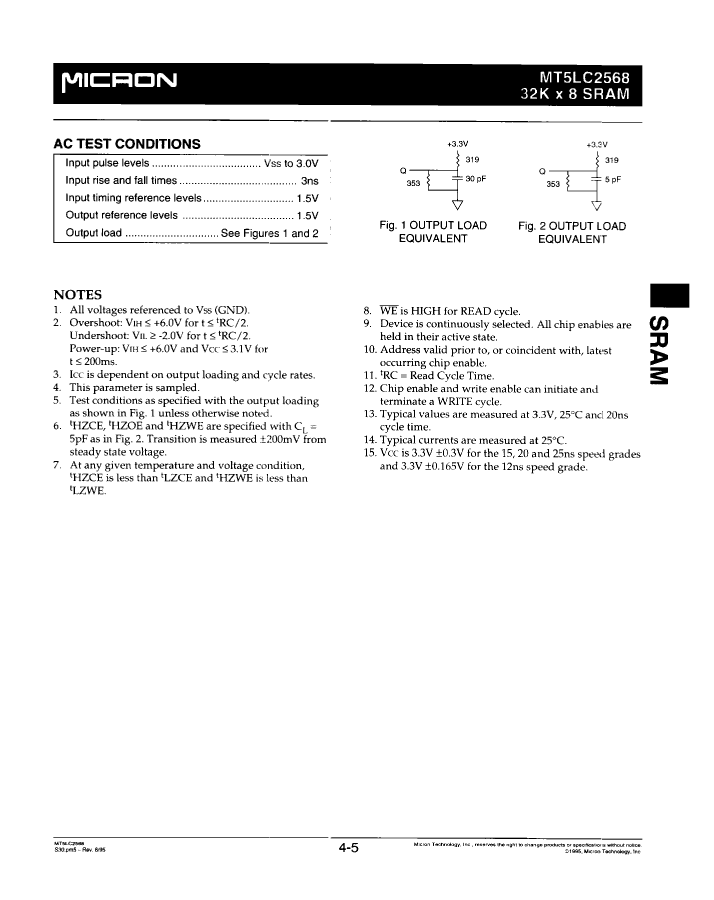

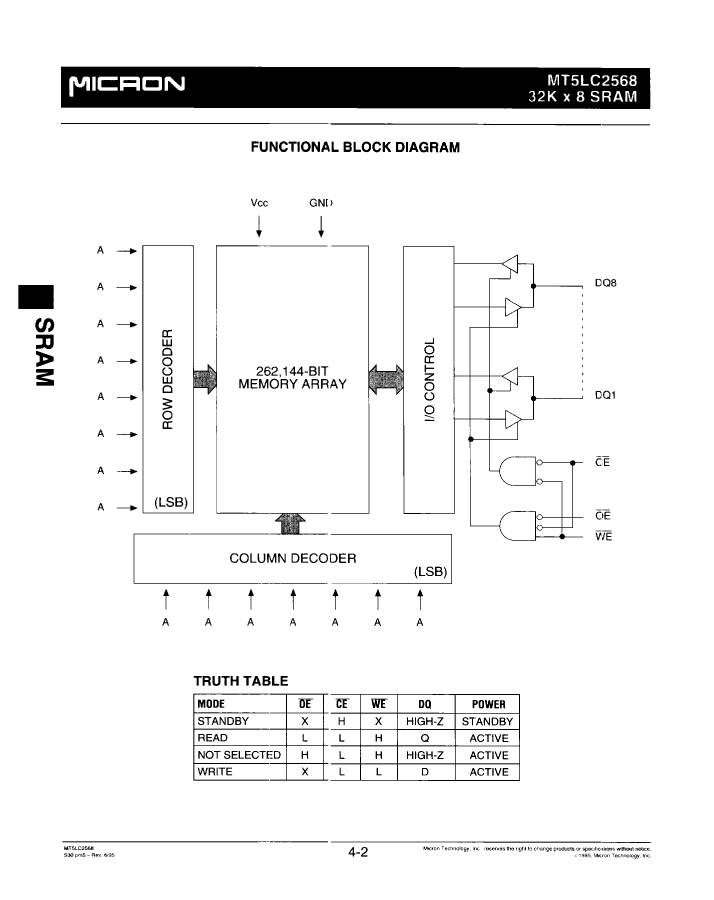

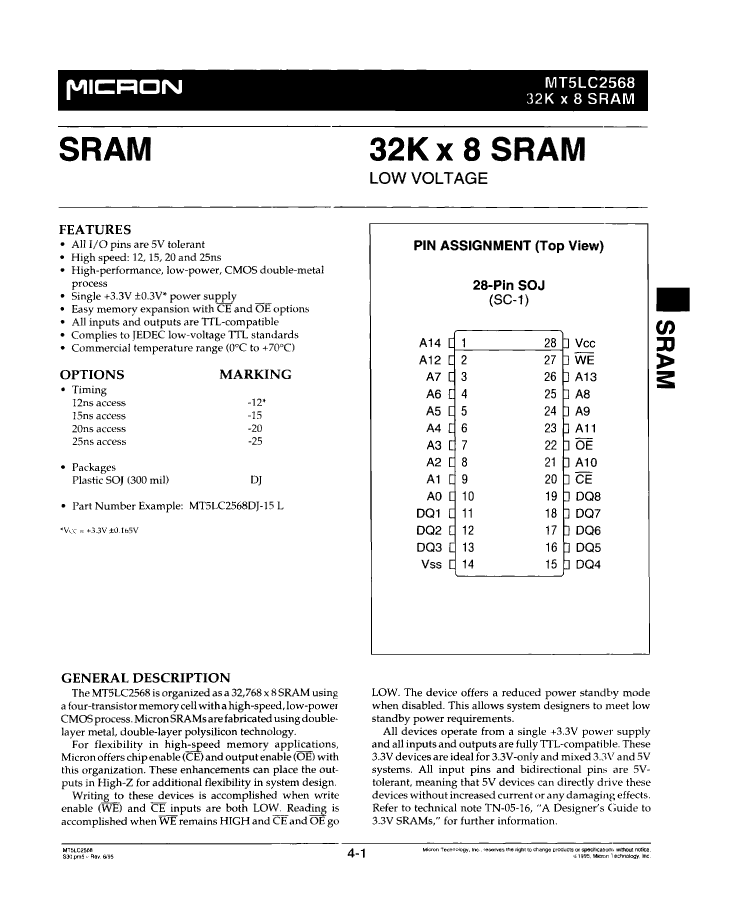

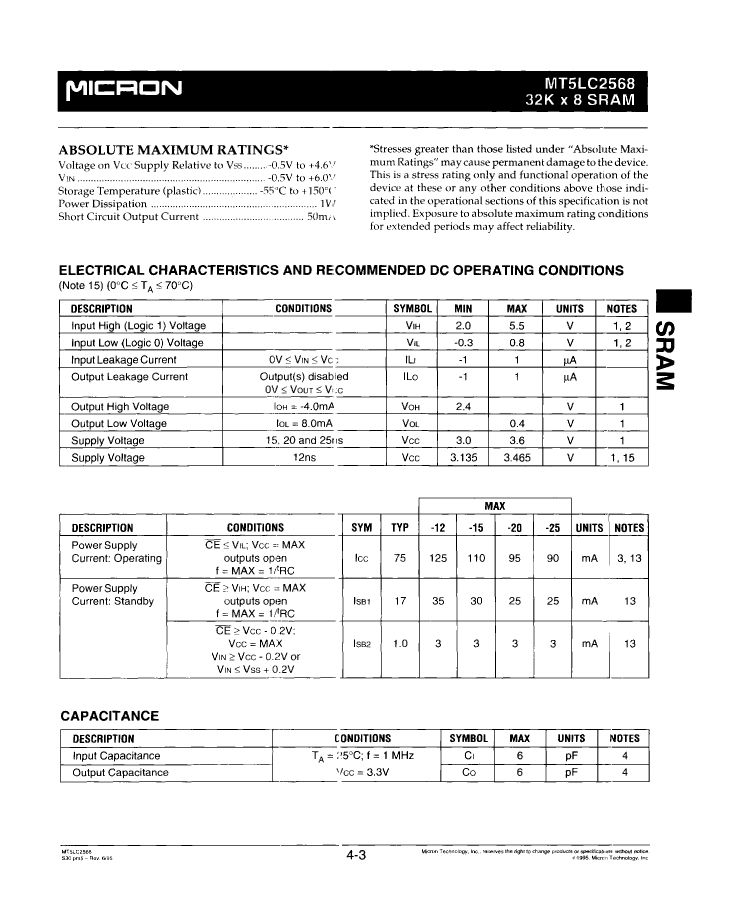

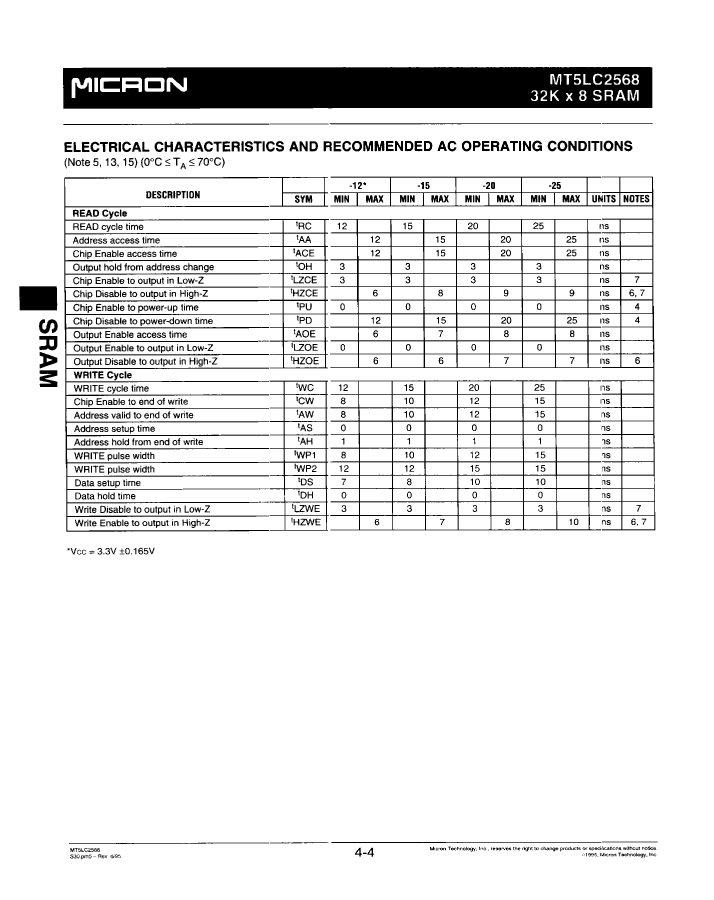

Preview

Download Datasheet

View All

MT5LC2568DJ-25L Related Products

	MT5LC2568DJ-25L	MT5LC2568DJ-12LTR	MT5LC2568DJ-12L	MT5LC2568DJ-20L	MT5LC2568DJ-20LTR	MT5LC2568DJ-25LTR	MT5LC2568DJ-15LTR	MT5LC2568DJ-15L
Description	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-28	SOJ,	0.300 INCH, PLASTIC, SOJ-28	0.300 INCH, PLASTIC, SOJ-28	SOJ,	SOJ,	SOJ,	0.300 INCH, PLASTIC, SOJ-28
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	not_compliant	unknown	unknown	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	25 ns	12 ns	12 ns	20 ns	20 ns	25 ns	15 ns	15 ns
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
length	18.44 mm	18.44 mm	18.44 mm	18.44 mm	18.44 mm	18.44 mm	18.44 mm	18.44 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.68 mm	3.68 mm	3.68 mm	3.68 mm	3.68 mm	3.68 mm	3.68 mm	3.68 mm
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum supply voltage (Vsup)	3.6 V	3.465 V	3.465 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3.135 V	3.135 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm	7.67 mm
Maker	Micron Technology	Micron Technology	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
