D37S80C4PA00: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

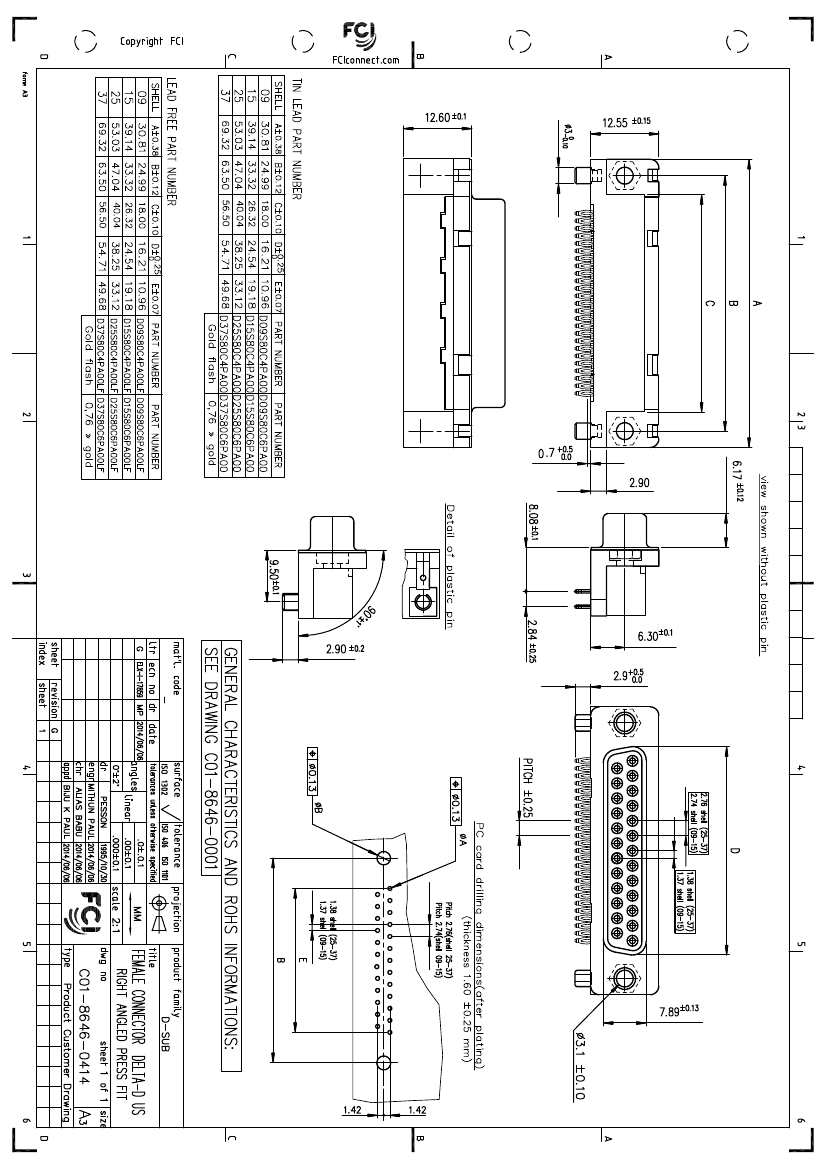

D37S80C4PA00 Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking

D37S80C4PA00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.496 inch
body length	2.729 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

PDS: Rev :G

STATUS:Released

Printed: Jun 09, 2014

D37S80C4PA00 Related Products

	D37S80C4PA00	D09S80C6PA00LF	P0302C2641WNTA	D25S80C4PA00LF	D15S80C4PA00	D37S80C4PA00LF	D25S80C6PA00LF	D37S80C6PA00LF
Description	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking	CONN DSUB RCPT 9POS R/A PRESSFIT	Fixed Resistor, Thin Film, 0.04W, 2640ohm, 25V, 0.05% +/-Tol, 5ppm/Cel, Surface Mount, 0302, CHIP	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Locking	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Locking, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Maximum operating temperature	125 °C	125 °C	155 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maker	Amphenol	Amphenol	-	Amphenol	-	Amphenol	Amphenol	Amphenol
body width	0.494 inch	0.494 inch	-	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.496 inch	0.496 inch	-	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
body length	2.729 inch	1.213 inch	-	2.088 inch	1.541 inch	2.729 inch	2.088 inch	2.729 inch
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH	NOT SPECIFIED	-	GOLD FLASH	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	-	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	-	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	-	NO	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO	NO
maximum insertion force	4.8928 N	4.8928 N	-	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	-	POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	-	NO	NO	NO	NO	NO
Plug contact pitch	0.109 inch	0.108 inch	-	0.109 inch	0.108 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	-	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	-	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	-	2	2	2	2	2
Number of rows loaded	2	2	-	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	-	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	30u inch	-	FLASH inch	FLASH inch	FLASH inch	30u inch	30u inch
Rated current (signal)	5 A	5 A	-	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	-	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN OVER COPPER	-	TIN OVER COPPER	TIN	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Housing size	4/C	1/E	-	3/B	2/A	4/C	3/B	4/C
Terminal length	0.114 inch	0.114 inch	-	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
Terminal pitch	2.7686 mm	2.7432 mm	-	2.7686 mm	2.7432 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	PRESS FIT	PRESS FIT	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	37	9	-	25	15	37	25	37
Evacuation force-minimum value	.3058 N	.3058 N	-	.3058 N	.3058 N	.3058 N	.3058 N	.3058 N
Base Number Matches	1	-	-	1	1	1	1	-
package instruction	-	LEAD FREE	CHIP	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Manufacturer's serial number	-	-	-	D	D	D	D	D
