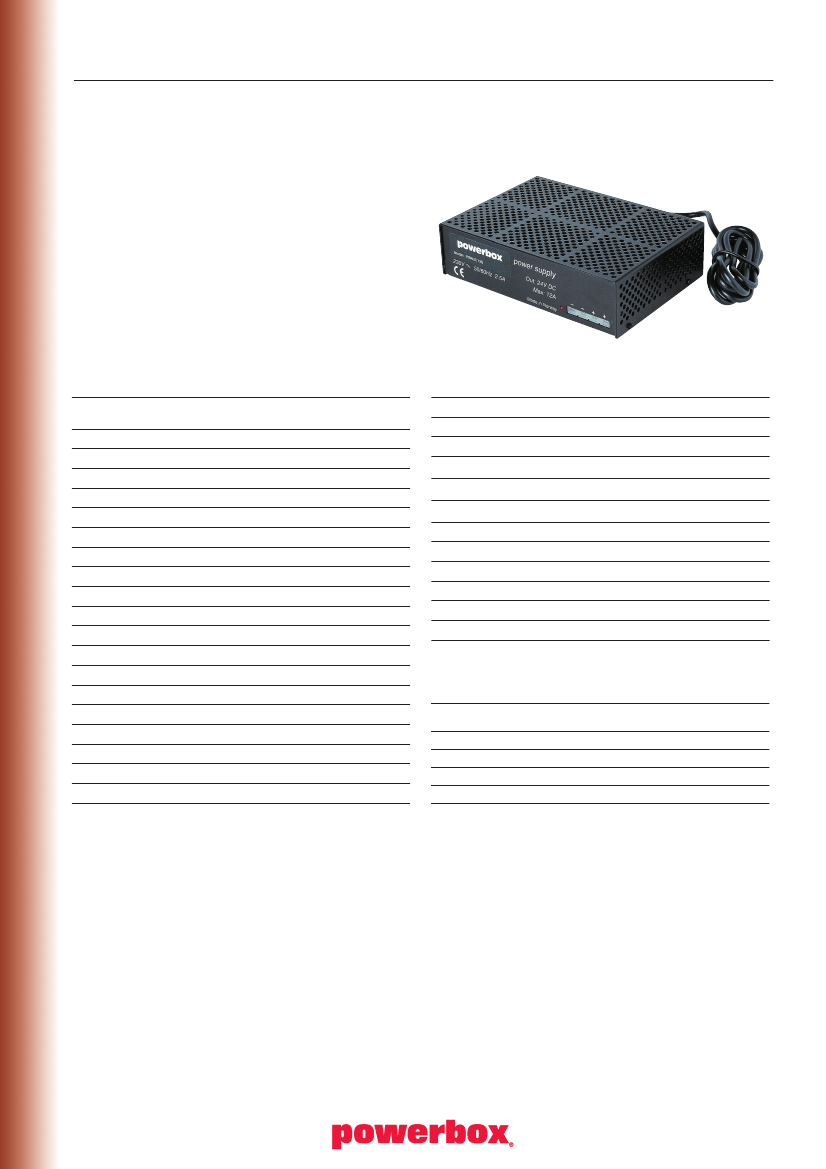

EXTERNAL
PBN3C
2 7 0
W AT T S
SINGLE OUTPUT AC/DC GENERAL
Features
•
•
•
•
•
•
•
•
Low output ripple and noise.
Wide output voltage adjustment.
Current limit adjustment.
Short circuit protected.
Current limited.
Metal case.
CE compliant.
C-Tick.
SPECIFICATIONS
INPUT
Input voltage
Frequency
190–264Vac
50Hz–60Hz
STANDARDS AND APPROVALS
Safety
Department of Fair Trading
C-Tick
EMC standards
EMI standards
EN60950, CE LVD 73/23/EEC, N16171
N16171
AS/NZS CISPR11 Group 1 Class A
EN0082-1 Immunity
EN50081-1 Emission
OUTPUT
Output voltage
Output voltage adjustment
Output current
Output current adjustment
Output power
Ripple
Line regulation
Load regulation
Short circuit protection
13.5, 24 or 48Vdc
See table
See table
70%–120%
270W
See table
0.05%
0.15%
Yes
MECHANICAL
Dimensions
Weight
Connector
Type
Brackets (option)
148x210x58mm
1.55kg
Input – 3 core flex
Output – 6.3mm push on spade
Type FCS available for wall or panel mounting
OPERATING
Efficiency
Switching frequency
Thermal protection
83%–86%
67kHz
Yes
PBN3C-12S
-10°C to 40°C @ FL
Convection cooled
PBN3C-24S
PBN3C-48S
13.5V
24V
48V
12–15Vdc
22–30Vdc
40–60Vdc
20A
12A
6A
20mV pk-pk
20mV pk-pk
80mV pk-pk
MODEL
DC
VOLTAGE
OUTPUT RIPPLE AT
NUMBER OUTPUT ADJUSTMENT CURRENT 67KHZ
ENVIRONMENTAL
Operating temperature
Cooling
270
