0402NPO151GT2AT: DescriptionCeramic Capacitor, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00015uF, Surface Mount, 0402, CHIP; CategoryPassive components capacitor; File Size43KB，2 Pages; ManufacturerATC [American Technical Ceramics]; Environmental Compliance

Download Datasheet Parametric Compare View All

0402NPO151GT2AT Overview

Ceramic Capacitor, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00015uF, Surface Mount, 0402, CHIP

0402NPO151GT2AT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.61 mm
JESD-609 code	e3
length	1.02 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	2%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

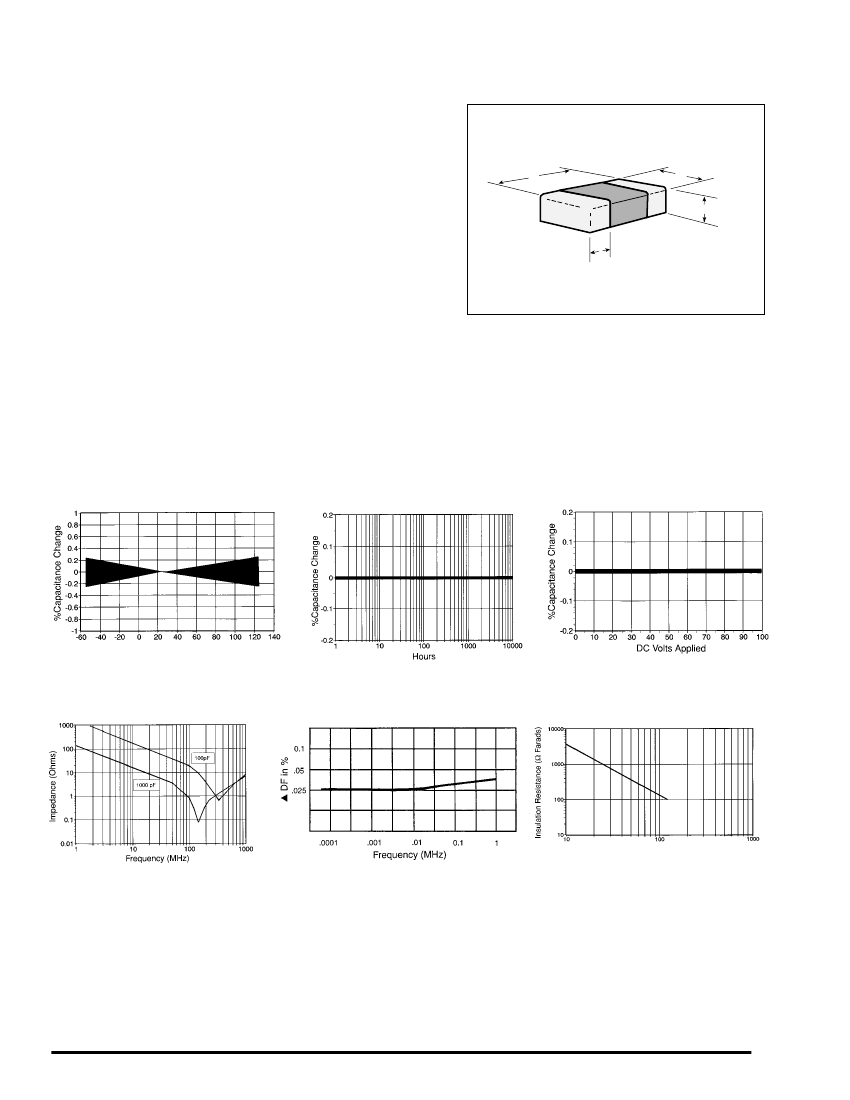

ATC GENERAL PURPOSE CAPACITORS: NPO (COG) DIELECTRIC

ELECTRICAL CHARACTERISTICS

CAPACITANCE RANGE:

0.5 pF to 0.10 µF.

TEMPERATURE CHARACTERISTIC:

0 ± 30ppm/°C.

OPERATING TEMPERATURE RANGE:

-55°C to +125°C.

DISSIPATION FACTOR:

0.1% (max.) @ + 25°C and + 125°C @ 1.0 Vrms

and 1 KHz for >1000 pF. 1 MHz < 1000 pF.

INSULATION RESISTANCE

@ + 25°C and rated Vdc:

100,000 megohms (min.) or 1000 ohm-farads (min.),

whichever is less.

INSULATION RESISTANCE

@ + 125°C and rated Vdc:

10,000 megohms (min.) or 100 ohm-farads (min.), whichever is less.

DIELECTRIC WITHSTANDING VOLTAGE:

250% of rated voltage for 5 ± 1 seconds, 50 milliamps (max.).

Unless otherwise specified all test data is at + 25°C.

T (MAX.)

Temperature Coefficient

Aging Rate

Voltage Coefficient of Capacitance

Temperature (Celsius)

Impedance vs. Frequency

Dissipation Factor vs. Frequency

Minimum IR vs. Temperature

Temperature (Celsius)

Sales of ATC products are subject to the ter ms and conditions contained in American Technical Ceramics Cor p. Ter ms and Conditions of Sale

(ATC document #001-992 Rev. A 10/03). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at

www.atceramics.com/aboutatc/terms_conditions_sale.html

ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of

third parties which may result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
