eight-pin version and accepts one reference input and
drives out five low-skew clocks.
All parts have on-chip PLLs that lock to an input clock on
the CLKIN pin. The PLL feedback is on-chip and is
obtained from the CLKOUT pad, internal to the device.
Multiple PCS5P23Z05B/09B devices can accept the same
input clock and distribute it. In this case, the skew between
the outputs of the two devices is guaranteed to be less than
700pS.
All outputs have less than 200pS of cycle-to-cycle jitter.
The input and output propagation delay is guaranteed to be
less than
±350pS,
and the output-to-output skew is
guaranteed to be less than 250pS.
Refer
“
Spread Spectrum Control and Input-Output Skew
Functional Description
PCS5P23Z05B/09B is a versatile, 3.3V zero-delay buffer
designed to distribute high-speed Timing-Safe™ clocks
with Peak EMI Reduction. PCS5P23Z09B accepts one
reference input and drives out nine low-skew clocks. It is
available in a 16pin Package. The PCS5P23Z05B is the
Table”
for
deviations
and
Input-Output
Skew for
PCS5P23Z05B and PCS5P23Z09B devices
The PCS5P23Z05B and PCS5P23Z09B are available in
two different packages, as shown in the ordering
information table.

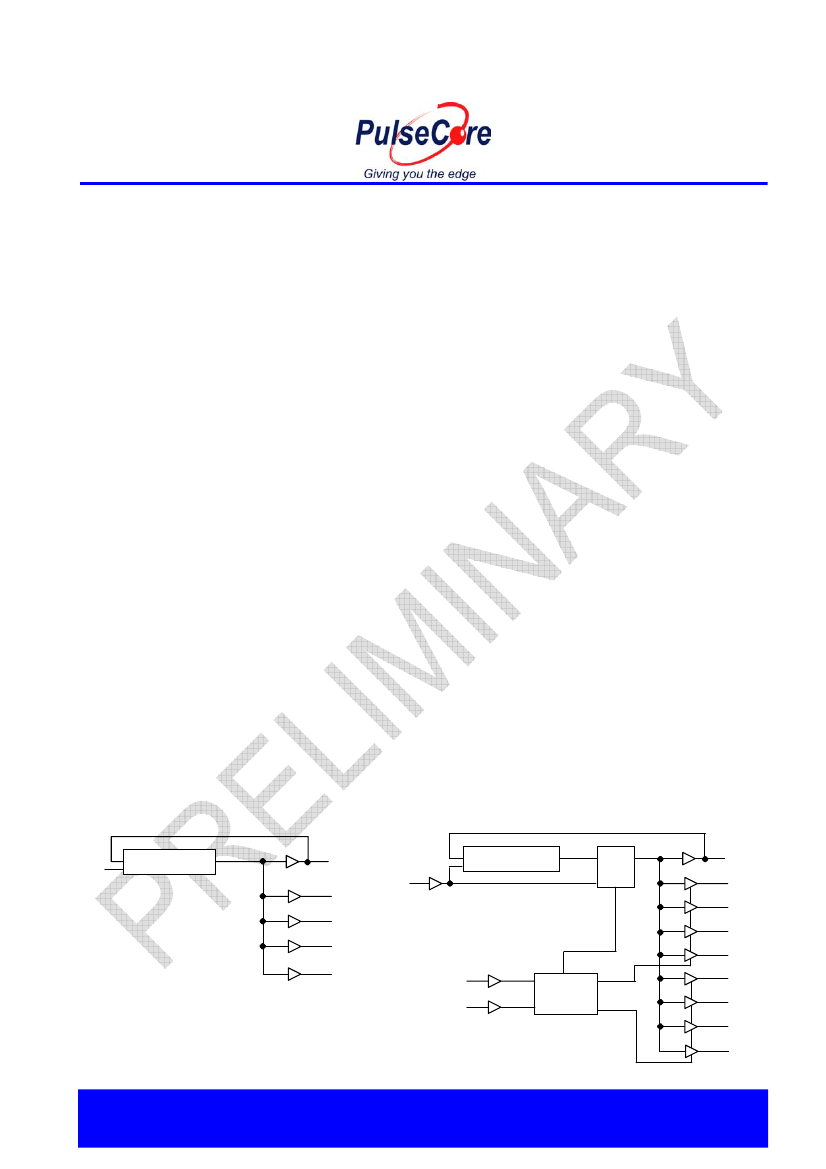

Block Diagram
CLKIN
PLL
CLKOUT
CLKIN
CLK1
CLK2
CLK3
PLL
MUX
CLKOUT
CLKA1
CLKA2
CLKA3
CLKA4
PCS5P23Z05B
CLK4
S2
S1
Select Input
Decoding
CLKB1
CLKB2
CLKB3
PCS5P23Z09B
CLKB4
PulseCore Semiconductor Corporation
1715 S. Bascom Ave Suite 200 Campbell, CA 95008
•
Tel: 408-879-9077
•
Fax: 408-879-9018
www.pulsecoresemi.com
Notice: The information in this document is subject to change without notice.
May 2007
rev 0.2
Spread Spectrum Frequency Generation
The clocks in digital systems are typically square waves
with a 50% duty cycle and as frequencies increase the
edge rates also get faster. Analysis shows that a square
wave is composed of fundamental frequency and
harmonics. The fundamental frequency and harmonics
generate the energy peaks that become the source of
EMI. Regulatory agencies test electronic equipment by
measuring the amount of peak energy radiated from the
equipment. In fact, the peak level allowed decreases as
the frequency increases. The standard methods of
reducing EMI are to use shielding, filtering, multi-layer
PCS5P23Z05B/09B
PCBs etc. These methods are expensive. Spread
spectrum clocking reduces the peak energy by reducing
the Q factor of the clock. This is done by slowly
modulating the clock frequency. The PCS5P23Z05B/09B
uses the center modulation spread spectrum technique in
which the modulated output frequency varies above and
below
the
reference
frequency
with
a
specified
modulation rate. With center modulation, the average
frequency is the same as the unmodulated frequency and
there is no performance degradation
Timing-Safe™ technology
Timing-Safe™ technology is the ability to modulate a
clock source with Spread Spectrum technology and
maintain synchronization with any associated data path.

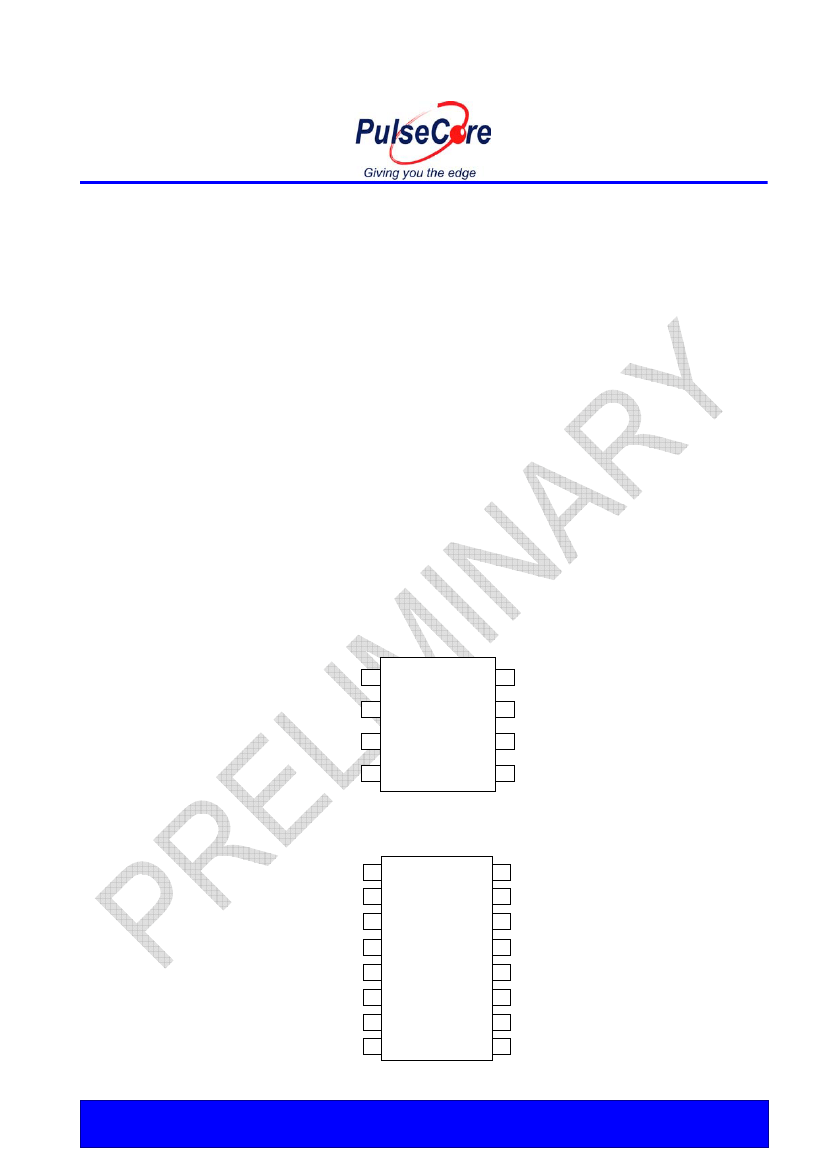

Pin Configuration ( 8 Pin Device )
CLKIN
1
8
7
6
5
CLKOUT
CLK4
V
DD
CLK3
CLK1
2
CLK2
3
GND
4
PCS5P23Z05B
Pin Configuration ( 16 Pin Device )
CLKIN
CLKA1
CLKA2
V
DD
1
2
3
4
16
15
14
CLKOUT
CLKA4
CLKA3
V
DD
GND
CLKB4
CLKB3
S1
PCS5P23Z09B
13
12
11
10
9
GND
5
CLKB1
6
CLKB2
7
S2
8
Timing-Safe™ Peak EMI Reduction IC
Notice: The information in this document is subject to change without notice.
2 of 14
May 2007
rev 0.2
Pin Description for PCS5P23Z05B
Pin #
1
2
3
4
5
6
7
8
PCS5P23Z05B/09B
Pin Name
CLKIN
CLK1
1
CLK2
1
GND
CLK3
1
V
DD
CLK4
1
CLKOUT
1,2
Buffered clock output
Buffered clock output
Ground
Buffered clock output
3.3V supply
Buffered clock output
Description
Input reference frequency, 5V-tolerant input
Buffered clock output, internal feedback on this pin
Notes: 1. Weak pull-down on these outputs.
2. This output is driven and has an internal feedback for the PLL.
3. All Buffered clock outputs are Timing-Safe™.
Pin Description for PCS5P23Z09B
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Pin Name
CLKIN
CLKA1
1
CLKA2
1
V
DD
GND
CLKB1
1
CLKB2
1
S2
2
S1
2
CLKB3
1
CLKB4
1
GND
V
DD
CLKA3
1
CLKA4
1
CLKOUT
1,3
Description
Input reference frequency, 5V tolerant input
Buffered clock output
Buffered clock output
3.3V supply
Ground
Buffered clock output
Buffered clock output
Select Input, bit 2
Select Input, bit 1
Buffered clock output
Buffered clock output
Ground
3.3V supply
Buffered clock output
Buffered clock output
Buffered output, Internal feedback on this pin
Notes: 1. Weak pull-down on all outputs.
2. Weak pull-up on these Inputs.
3. This output is driven and has an internal feedback for the PLL.
4. All Buffered clock outputs are Timing-Safe™.
Timing-Safe™ Peak EMI Reduction IC
Notice: The information in this document is subject to change without notice.
3 of 14
May 2007
rev 0.2
Spread Spectrum Control and Input-Output Skew Table
(Note: The values given in the table are for an input frequency of 32MHz)
PCS5P23Z05B/09B
Device
PCS5P23Z05B
PCS5P23Z09B
Deviation
±0.25 %
±0.25 %
Input-Output Skew(±T
SKEW
)
0.125
0.125
Note: T
SKEW
is measured in units of the Clock Period
Absolute Maximum Ratings
Symbol
VDD
T
STG
T
s
T
J
T
DV
Storage temperature
Max. Soldering Temperature (10 sec)
Junction Temperature
Static Discharge Voltage (As per JEDEC STD22- A114-B)
Parameter
Voltage on any pin with respect to Ground
Rating
-0.5 to +4.6
-65 to +125
260
150
2
Unit
V
°C
°C
°C
KV
Note: These are stress ratings only and are not implied for functional use. Exposure to absolute maximum ratings for prolonged periods of time may affect
device reliability.
Operating Conditions for PCS5P23Z05B and PCS5P23Z09B Devices
Parameter
V
DD
T
A
C
L
C
IN
Supply Voltage
Operating Temperature (Ambient Temperature)
Load Capacitance
Input Capacitance
Description
Min
3.0
-40
Max
3.6
+85
30
7
Unit
V
°C
pF
pF
Electrical Characteristics for PCS5P23Z05B and PCS5P23Z09B
Parameter
V
IL
V
IH
I
IL
I
IH
V
OL
V
OH
I
DD
Z
o
Description
Input LOW Voltage
1
Input HIGH Voltage
1
Input LOW Current
Input HIGH Current
Output LOW Voltage
2
Output HIGH Voltage
2
Supply Current
Output Impedance
V
IN
= 0V
Test Conditions
Min
2.0
Typ
Max
0.8
50
100
0.4
Unit
V
V
µA
µA
V
V
mA
Ω
V
IN
= V
DD
I
OL
= 8mA
I
OH
= -8mA
Unloaded outputs
2.4
15
23
Note: 1. CLKIN input has a threshold voltage of V
DD
/2
2. Parameter is guaranteed by design and characterization. Not 100% tested in production
Timing-Safe™ Peak EMI Reduction IC
Notice: The information in this document is subject to change without notice.
4 of 14
May 2007
rev 0.2
Switching Characteristics for PCS5P23Z05B and PCS5P23Z09B
Parameter
1/t
1
t
3
t
4
t
5
t
6
t
7
t
J
t
LOCK
PCS5P23Z05B/09B
Description
Output Frequency
Duty Cycle
2
= (t
2
/ t
1
) * 100
Output Rise Time
1, 2
Output Fall Time
1, 2
Output-to-output skew
2
Delay, CLKIN Rising Edge to
CLKOUT Rising Edge
2
Test Conditions
30pF load
Measured at V
DD
/2
Measured between 0.8V and 2.0V
Measured between 2.0V and 0.8V
All outputs equally loaded
Measured at V
DD
/2
Measured at V
DD
/2 on the CLKOUT pins
of the device
Loaded outputs
Stable power supply, valid clock presented
on CLKIN pin
Min
20
40
Typ
50
Max
50
60
2.5
2.5
250
±350
700
200
1.0
Unit
MHz
%
nS
nS
pS
pS
pS
pS
mS
Device-to-Device Skew
2
Cycle-to-cycle jitter
2
PLL Lock Time
2
Note: 1. The parameters are specified with loaded outputs.
2. Parameter is guaranteed by design and characterization. Not 100% tested in production
Timing-Safe™ Peak EMI Reduction IC
Notice: The information in this document is subject to change without notice.
