SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
PDC0703 SERIES
PDC0703100MZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10uH
(d) Tolerance code : K = ±10%, M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
B
C
I
G
I
100
A
PCB Pattern
Unit : mm
A
7.8±0.3
B
7.0±0.3
C
3.5±0.5
G
2.00 Ref.
H
7.50 Ref.
I
3.00 Ref.
3. SCHEMATIC :
4. MATERIALS :
d
a
b
(a) Core : DR Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Terminal : Ag+Cu+Ni+Sn
(d) Ink : Bon Margue
c
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Rated current : Base on temp. rise & L/L0A = 10% Max.
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
e) Resistance to solder heat : 260°C.10 secs
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
PDC0703100MZF
PDC0703120MZF
PDC0703150MZF
PDC0703180MZF
PDC0703220MZF
PDC0703270MZF
PDC0703330MZF
PDC0703390MZF
PDC0703470MZF
PDC0703560KZF
PDC0703680KZF
PDC0703820KZF
PDC0703101KZF
PDC0703121KZF
PDC0703151KZF
PDC0703181KZF
PDC0703221KZF
PDC0703271KZF
PDC0703331KZF
Inductance
( µH )
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±20%
39±20%
47±20%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
RDC
( )
Max.
0.0803
0.0897
0.104
0.111
0.129
0.153
0.170
0.217
0.252
0.282
0.332
0.406
0.481
0.536
0.755
1.022
1.200
1.306
1.495
PDC0703 SERIES
IDC
(A)
Max.
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.49
0.40
0.36
0.31
0.29
0.28
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

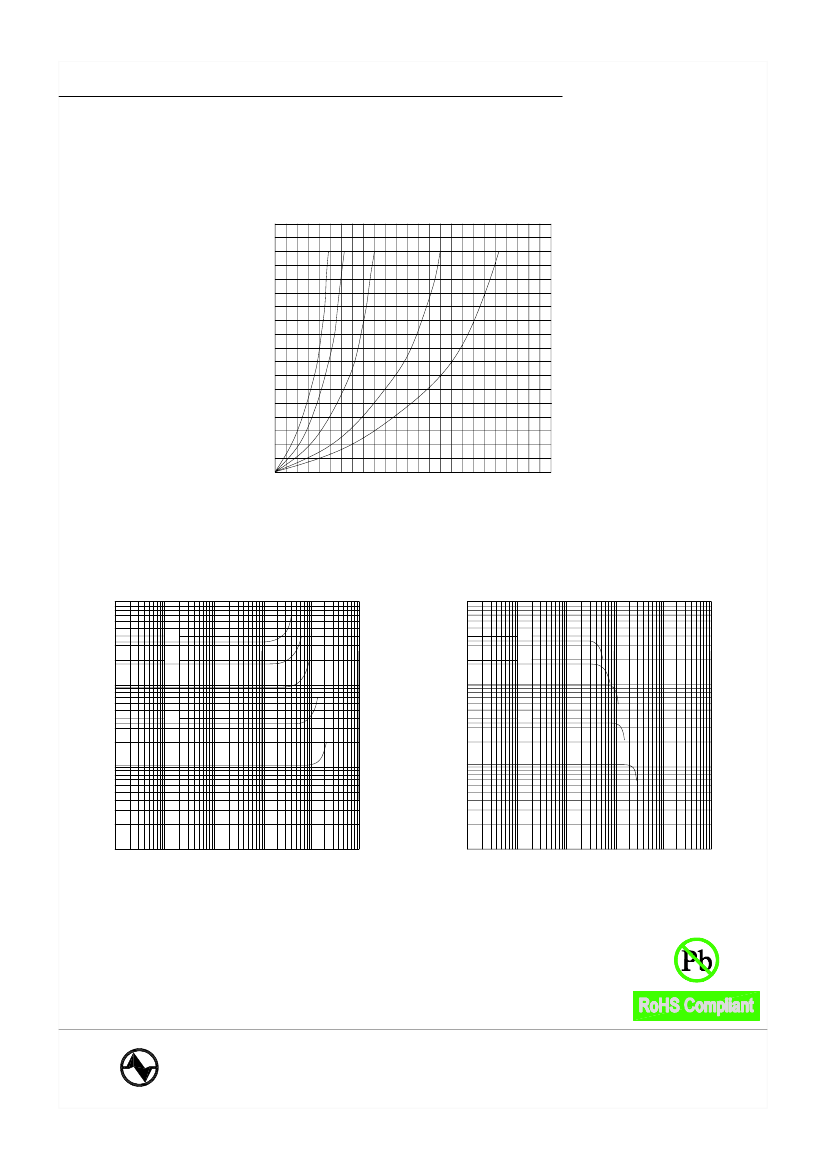

7. CHARACTERISTICS CURVES :
PDC0703 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
t
(°C)
50
40
30
20
10
0 0
1
2
3
4
5
331K
181K
101K
330M
100M
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
10 3
5
3
331K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
10 3
5
3
331K
181K
181K
10 2
101K
10 2
101K
L
(uH)
5
330M
3
L
(uH)
5
330M
3
1
10
5
3
100M
1
10
5
3
100M
10 0
10-3
3 5
10-2 3 5
10-1
3 5
100 3 5
101
3 5
102
100
10 -3
3 5
10-2 3 5
10-1
3 5
100 3 5
101 3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
PDC0703 SERIES
255°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s

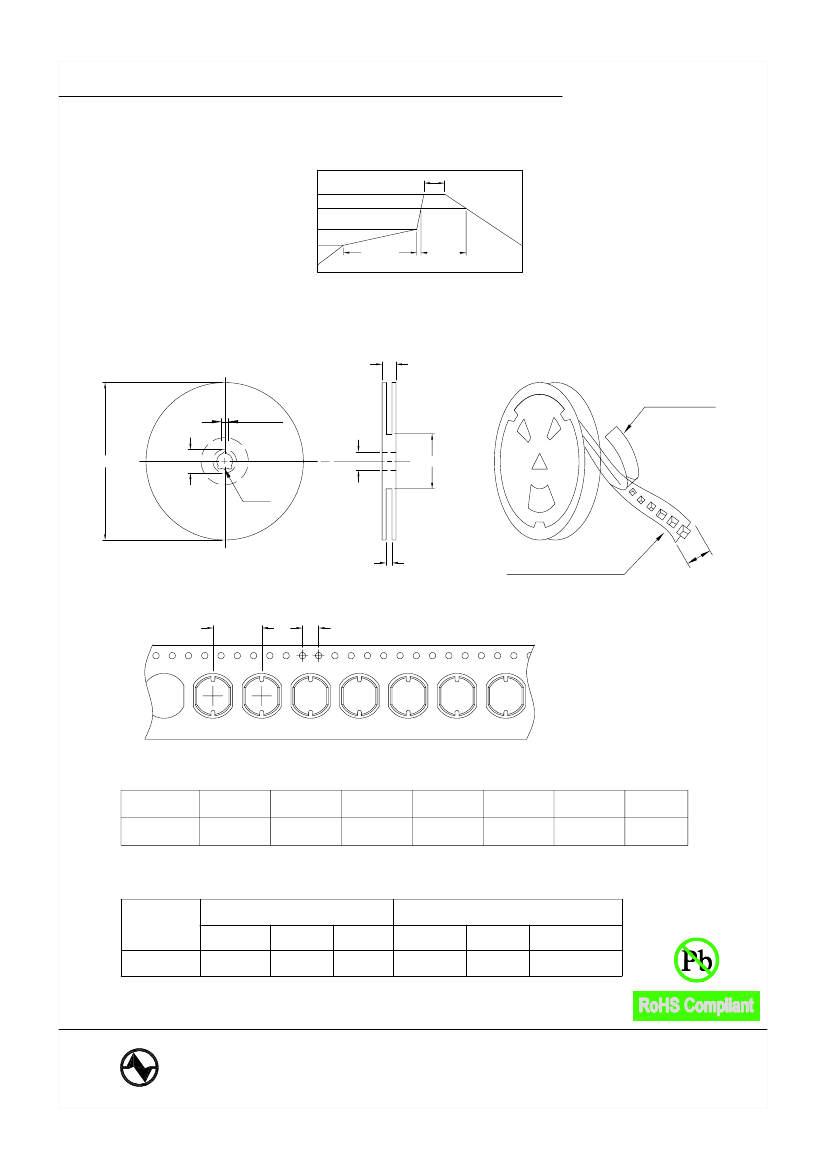

8. PACKAGING INFORMATION :
( 1 ) CONFIGURATION
T
COVER TAPE
2.0±0.5
ØC
ØC
N
A
B
G
D
EMBOSSED CARRIER
* CARRIER TAPE WIDTH : D
P:12 m/m
4 m/m
( 2 ) DIMENSIONS
STYLE
13-16
A
330
B
21±0.8
C
13±0.5
D
16
G
18
+0
N
50
-0
( 3 ) Q'TY & G.W. PER PACKAGE
INNER : REEL
SERIES
PDC0703
Q'TY (PCS)
1000
G.W. (gw)
950
STYLE
13 - 16
OUTER : CARTON
Q'TY (PCS)
6000
G.W. (Kg)
9.2
SIZE (cm)
40 x 40 x 24
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
100
100
100
100
100
100
100
Unit:m/m
T
22.4
01.05.2008
SMD POWER INDUCTORS

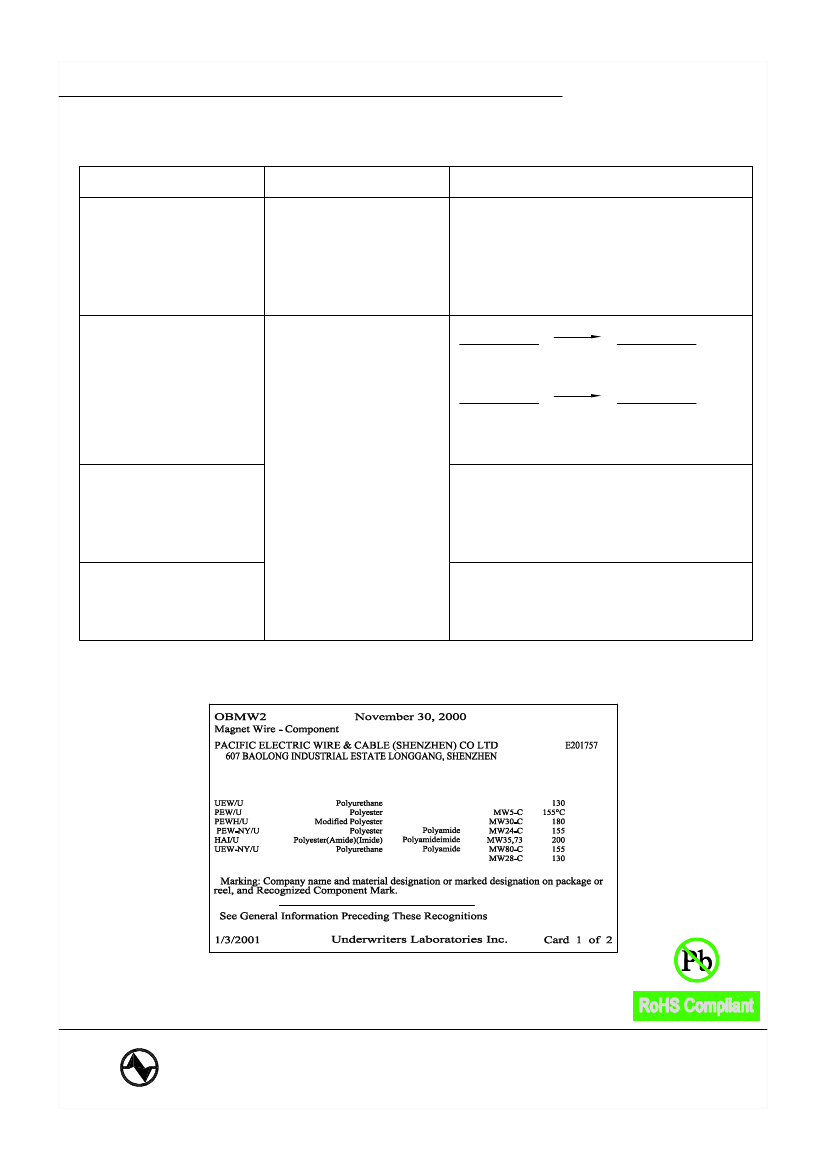

9. RELIABILTY AND TEST CONDITION :
PDC0703 SERIES
TEST ITEM
SOLDERABILITY
SPECIFICATION
MORE THAN 90% OF THE
TERMINAL ELECTRODE
SHALL BE COVERED
WITH FRESH SOLDER.
TEST CONDITION
PREHEAT : 125±25°C FOR 60 SECONDS
SOLDER : 99%Sn/0.3%Ag/0.7%Cu or equivalent
SOLDER TEMP. : 245±5°C
FLUX : ROSIN
DIP TIME : 4±1 SECONDS
THERMAL SHOCK
TEST
INDUCTANCE SHALL
NOT CHANGE MORE
THAN ±20%
ROOM TEMP.
15 MINUTES
-25±2°C
30 MINUTES
( TEMP. CYCLE )
ROOM TEMP.
15 MINUTES
TOTAL : 50 CYCLES
85±2°C
30 MINUTES
HUMIDITY
RESISTANCE TEST
TEMPERATURE : 40±2°C
HUMIDITY : 90 ~ 95%
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS
HIGH TEMP.
RESISTANCE TEST
TEMPERATURE : 85±2°C
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS
10. UL CARD :
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
