PH0810-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> PH0810-15

PH0810-15: DescriptionWireless Power Transistor 15 Watts, 850 - 960 MHz; CategoryDiscrete semiconductor The transistor; File Size84KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric View All

PH0810-15 Overview

Wireless Power Transistor 15 Watts, 850 - 960 MHz

PH0810-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
package instruction	FLANGE MOUNT, R-CDFM-F6
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITH EMITTER BALLASTING RESISTORS
Maximum collector current (IC)	1.8 A
Collector-emitter maximum voltage	24 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-CDFM-F6
Number of components	1
Number of terminals	6
Maximum operating temperature	200 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	43 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON

Preview

Download Datasheet

View All

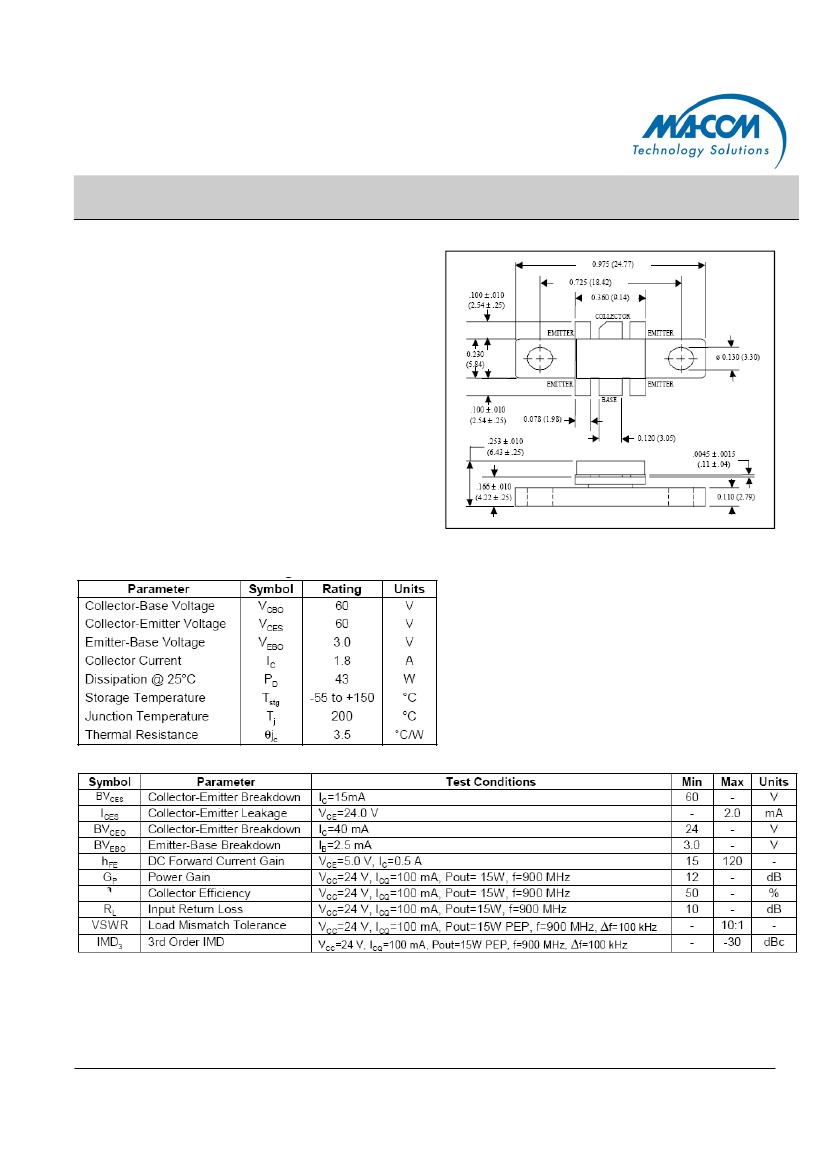

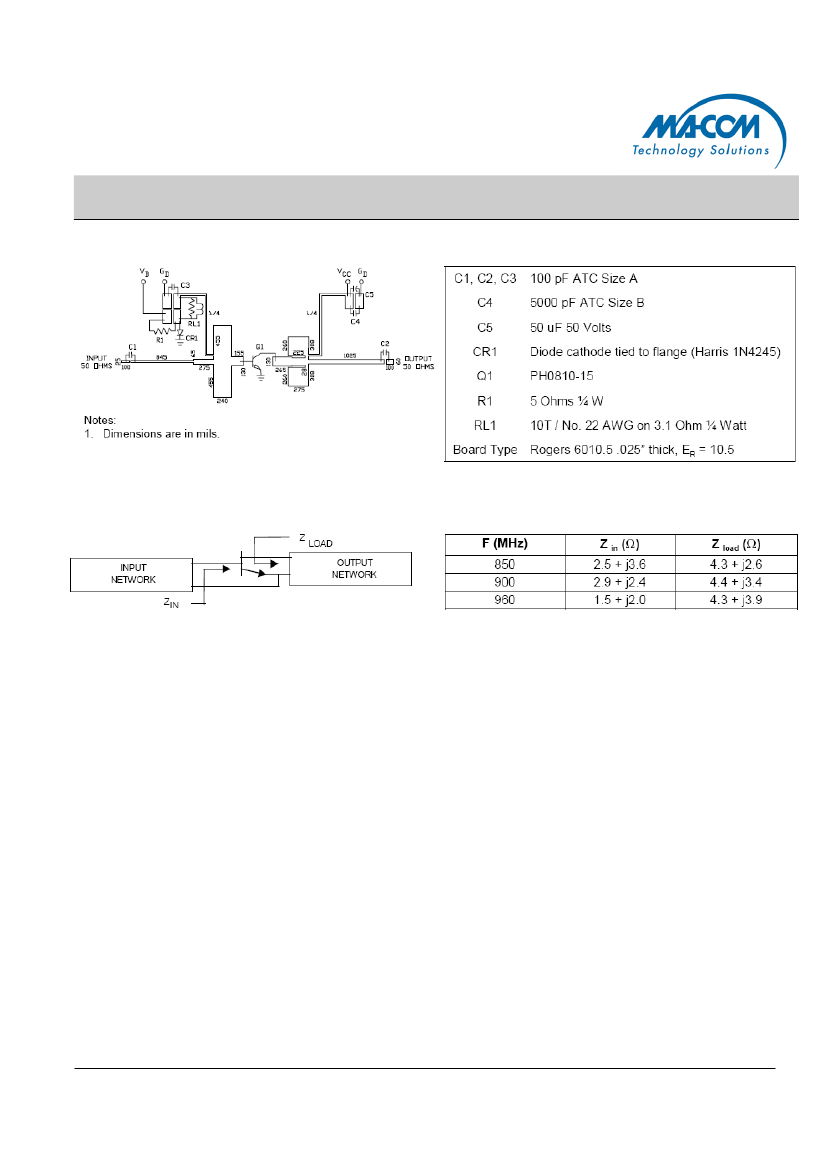

PH0810-15

Wireless Power Transistor

15W, 850-960MHz, 26V

Features

•

Designed for linear amplifier applications

•

Class AB: -30 dBc typ. 3rd IMD at 15 W PEP

•

Common emitter configuration

•

Internal input impedance matching

•

Diffused emitter ballasting

Outline Drawing

M/A-COM Products

Released - Rev. 07.07

Notes: (unless otherwise specified)

1. Tolerances are: inches ± .005” (millimeters ± 0.13mm)

ABSOLUTE MAXIMUM RATING AT 25°C

ELECTRICAL SPECIFICATIONS AT 25°C

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

is considering for development. Performance is based on target specifications, simulated results,

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

and/or prototype measurements. Commitment to develop is not guaranteed.

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Visit www.macomtech.com for additional data sheets and product information.

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
