PGE323TTE36V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PGE323TTE36V

PGE323TTE36V: Descriptionunidirectional esd / transient suppressor; CategoryDiscrete semiconductor diode; File Size80KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PGE323TTE36V Overview

unidirectional esd / transient suppressor

PGE323TTE36V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Minimum breakdown voltage	39 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	36 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin (Sn) - hot dipped
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	3

Preview

Download Datasheet

View All

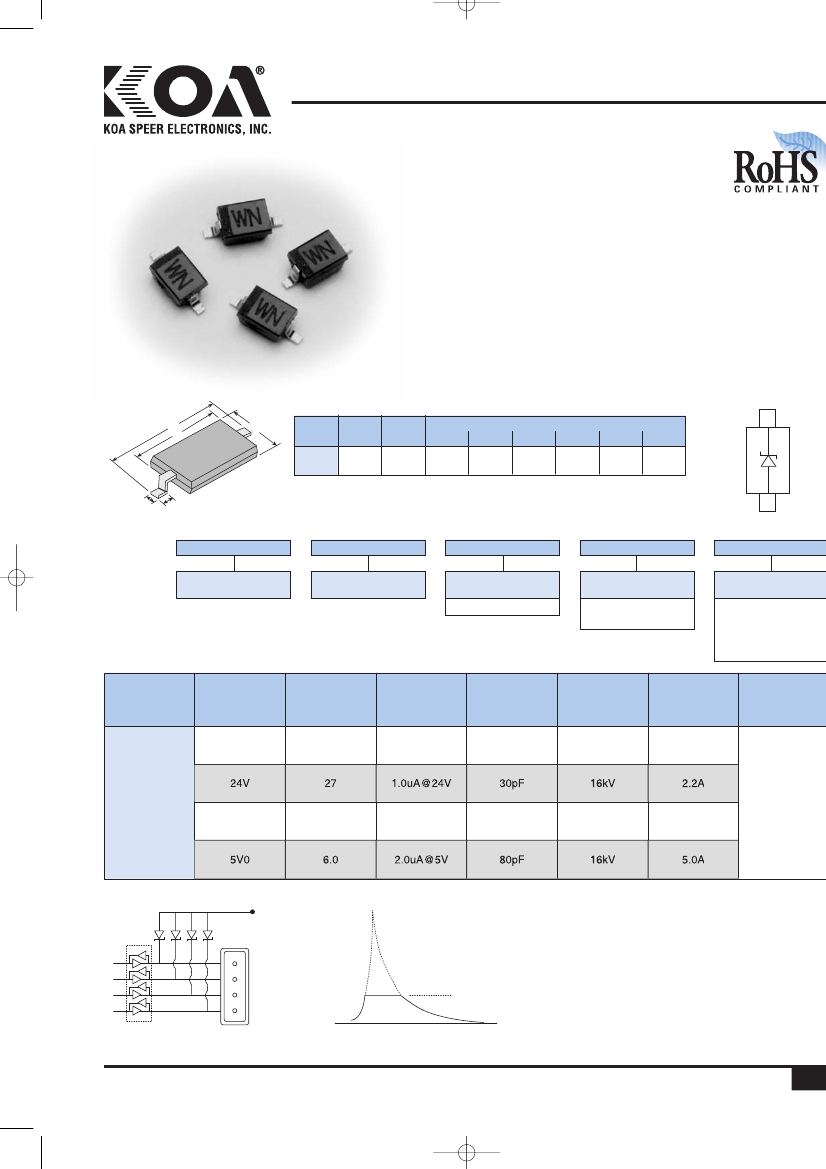

PGE

features

•

(16kV) IEC 61000-4-2 rating

SOD-323 package

Color band denotes cathode end

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

unidirectional esd / transient suppressor

applications

•

ESD suppression

•

Transient suppression

•

Automotive CAN bus

Pins

Dimensions

inches

(mm)

L ±0.2 W ±0.2 c ±0.2 e ±0.1

Pkg Ht

±0.05

.098

(2.5)

.049

(1.25)

.067

(1.7)

.012

(0.3)

.039

(1.0)

dimensions

and construction

circuit

schematic

d ±0.05

.014

(0.35)

Package Pack.

Code Power

323

100mw

ordering information

New Part #

PGE

Type

323

Package

Code

Lead

Plating

T: Sn

Packaging

TE: 7" embossed

plastic tape

36V

Working Voltage

5V0

12V

24V

36V

applications and ratings

Part

Designation

Working

Voltage

Diode

Breakdown

Voltage

= 1 ma (Min)

Leakage

Current

(Max)

1.0uA@36V

1.0uA@24V

Capacitance

@ 1 Mhz

(Typ)

25pF

30pF

Peak ESD

Voltage

Capability

IEC 61000-4-2

16kV

Pulse

Current

8/20us

(Repetitive)

2.2A

Operating

Temperature

36V

24V

PGE

12V

1.0uA@12V

50pF

16kV

2.5A

-55°C

+125°C

5V0

6.0

2.0uA@5V

80pF

16kV

5.0A

application schematic

Gnd.

Transceiver

Connector

(Transient)

clamp

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/24/08

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
