PH1617-30
Wireless Bipolar Power Transistor
30W, 16 -1.7 GHz
Features
•
•
•
•
•
Designed for linear amplifier applications
-30 dBc typ. 3rd IMD at 30 W PEP
Common emitter Class AB operation
Internal input impedance matching
Diffused emitter ballasting
M/A-COM Products
Released - Rev. 07.07

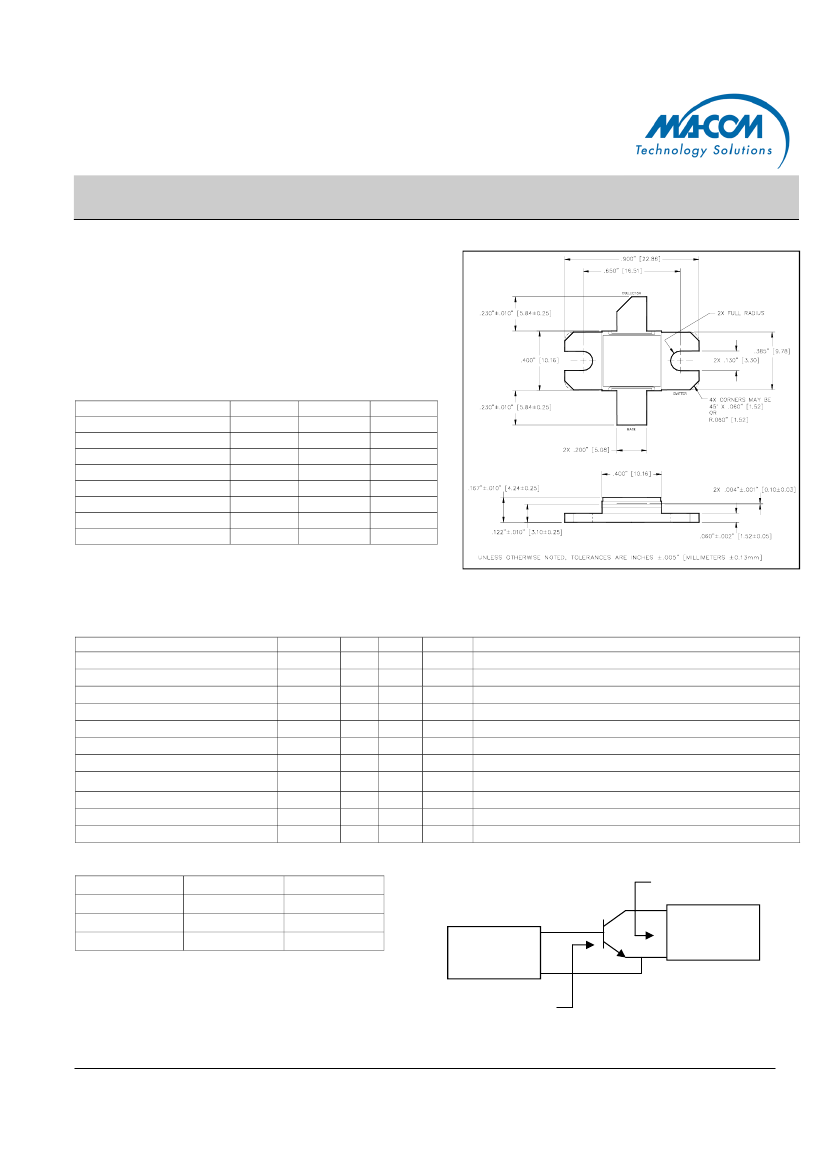

Outline Drawing
ABSOLUTE MAXIMUM RATING AT 25°C
Parameter
Symbol
Rating
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
Thermal Resistance
V
CBO
V
CES
V
EBO
I
C
P
D
T
J
T
STG
θ
JC
60
60
3.0
10
109
200
-55 to + 150
Units
V
V
V
A
W
°C
°C
°C/W
1.6
ELECTRICAL SPECIFICATIONS AT 25°C
Parameter
Symbol
Collector-Emitter Breakdown Voltage
Collector-Emitter Leakage Current
Collector-Base Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
DC Forward Current Gain
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
3rd Order IMD
BV
CES
I
CES
BV
CEO
BV
CER
BV
EBO
h
FE
G
P
ŋ
C
Min
60
-
20
30
3.0
15
10
40
10
-
-
Max
-
4.0
-
-
120
-
-
-
3.0:1
-28
Units
V
mA
V
V
V
-
dB
%
dB
-
dBc
I
C
= 40 mA
V
CE
= 25 V
I
C
= 40 mA
Test Conditions
I
C
= 40 mA, R
BE
=220
Ω
I
B
= 40 mA
V
CE
= 5 V, I
C
= 2 A
V
CC
= 25V, I
CQ
= 200 mA, P
out
= 30 W PEP, F =1.6, 1.65, 1.70 GHz
V
CC
= 25V, I
CQ
= 200 mA, P
out
= 30 W PEP, F =1.6, 1.65, 1.70 GHz
V
CC
= 25V, I
CQ
= 200 mA, P
out
= 30 W PEP, F =1.6, 1.65, 1.70 GHz
V
CC
= 25V, I
CQ
= 200 mA, P
out
= 30 W PEP, F =1.6, 1.65, 1.70 GHz
V
CC
= 25V, I
CQ
= 020 mA, P
out
= 30 W PEP F =1650 MHz,
Δ
F=100kHz
RL
VSWR-T
IMD
3
TYPICAL OPTIMUM DEVICE IMPEDANCES
F (GHz)
1.60
1.65
1.70
Z
IN
(Ω)
2.1+j4.9
3.1+j3.8
2.1+j3.5
Z
LOAD
(Ω)
1.3-j0.7
1.2-j0.8
1.2-j0.9
INPUT
NETWORK
OUTPUT
NETWORK
Z
LOAD
Z
IN
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
PH1617-30
Wireless Bipolar Power Transistor
30W, 16 -1.7 GHz

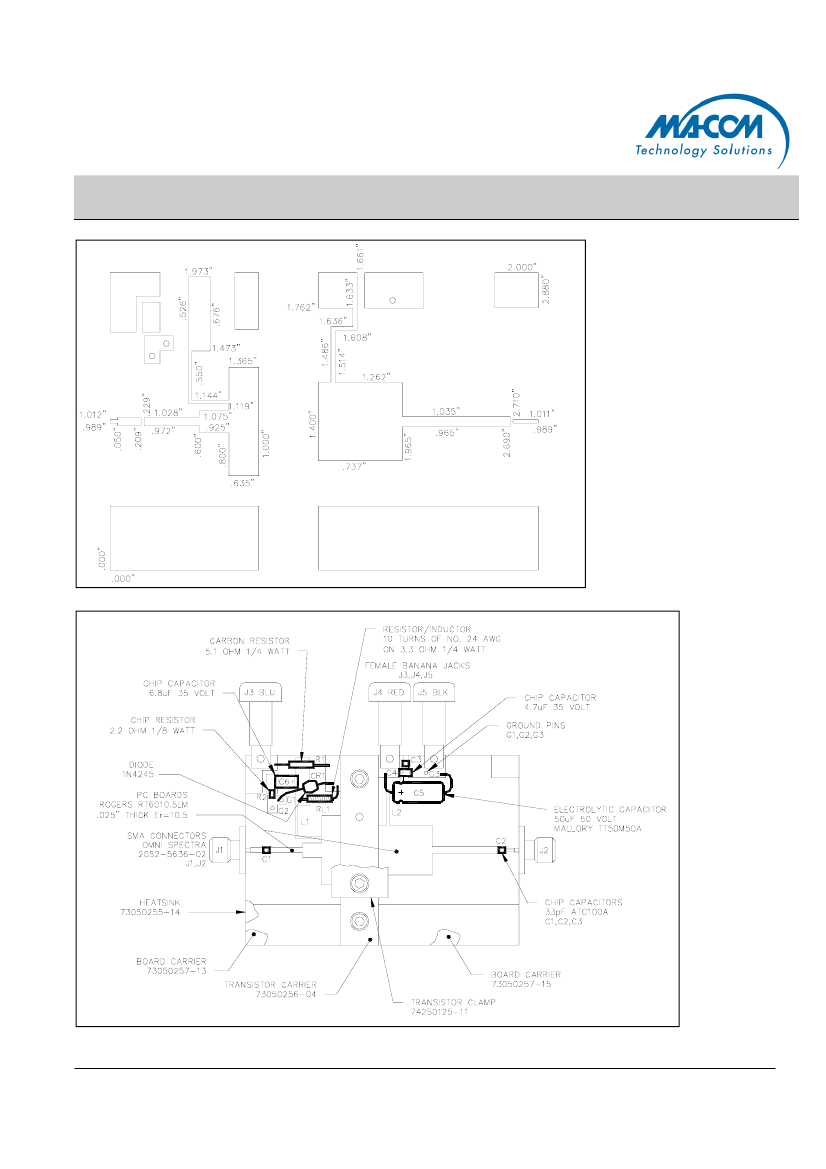

TEST FIXTURE DIMENSIONS
M/A-COM Products
Released - Rev. 07.07
TEST FIXTURE ASSEMBLY
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
+
changes to the product(s) or information contained herein without notice.
PH1617-30
Wireless Bipolar Power Transistor
30W, 16 -1.7 GHz

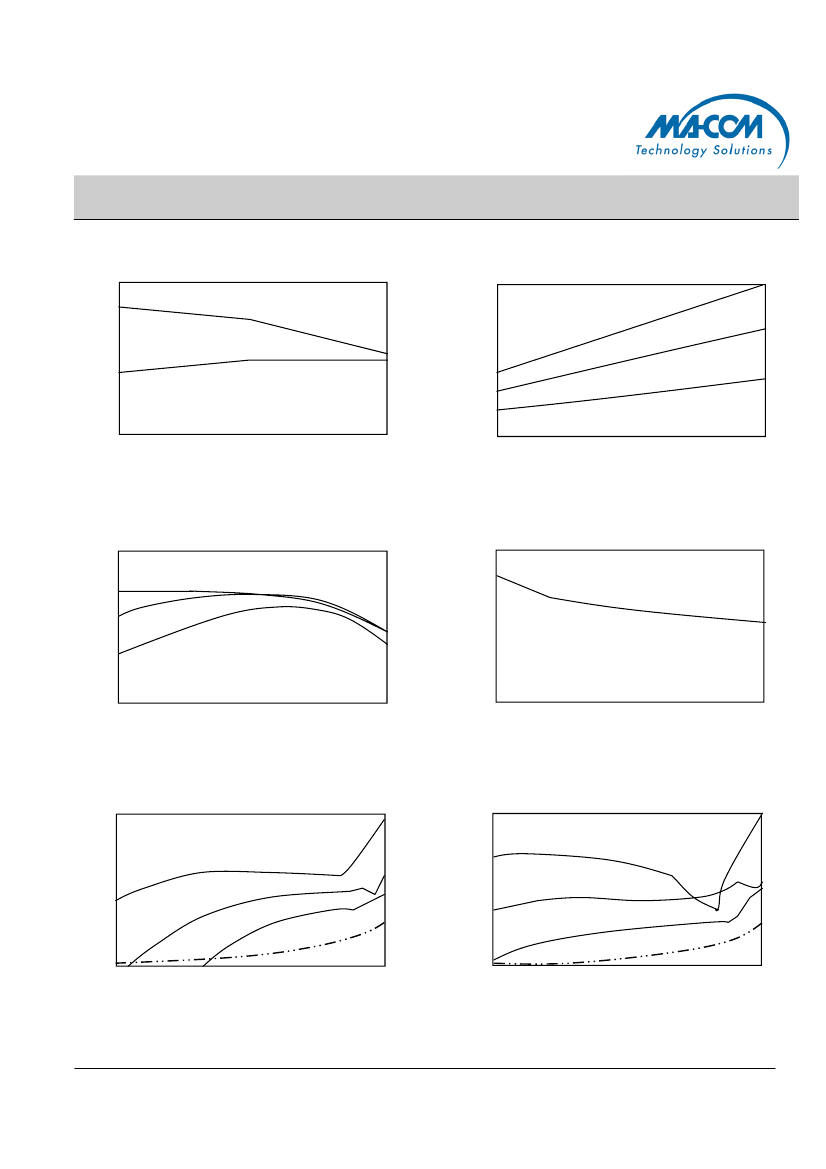

Typical Broadband Performance Curves
GAIN-EFFICIENCY
VS
FREQUENCY
P
out
=30 W V
CC
=25 V I
CQ
=200 mA
Gain
M/A-COM Products
Released - Rev. 07.07
13
12
11
10
9
8
1.60
75
65
40
OUTPUT POWER
VS
COLLECTOR VOLTAGE
I
CC
=200 mA F=1650MHz
30
G
P
(dB)
Efficiency
P
OUT
(W)
55
Eff (%)
45
35
25
1.70
P
IN
=3.0W
P
IN
=1.5 W
20
P
IN
=0.75 W
10
1.65
FREQUENCY (GHz)
0
12
14
16
18
20
22
24
26
COLLECTOR VOLTAGE (V)
15
14
G
P
(dB)
13
12
11
10
30
GAIN
VS
P
OUT
F=1650 MHz V
CC
=25 V
50
40
C
OB
(pF)
30
20
10
0
C
OB VS
COLLECTOR VOLTAGE
F1 = 1.0 MHz
I
CO
=300 mA
I
CO
=200 mA
I
CO
=50 mA
34
38
P
OUT
42
45
5
10
15
V
CB
(V)
20
25
30
V
CC
= 25 V I
CQ
= 200 mA F1=1650.0 MHz F2=1650.1 MHz
IMD
VS
P
OUT
V
CC
= 25 V I
CQ
= 50 mA F1=1650.0 MHz F2=1650.1 MHz
IMD
VS
P
OUT
-15
9
-15
3rd
IMD (dBc)
-30
G
P
(dB)
3rd
6
I
C
(A)
5th
-30
5th
9
I
C
(A)
6
7th
I
C
-45
7th
I
C
3
-45
-60
24
0
28
36
40
P
OUT
(PEP) in dBm
32
44
48
-60
24
28
32
36
40
P
OUT
(PEP) in dBm
44
48
3
3
