9-747947-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9-747947-1

9-747947-1: DescriptionCONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

9-747947-1 Overview

CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE

9-747947-1 Parametric

Parameter Name	Attribute value
Objectid	1846653107
Reach Compliance Code	unknown
YTEOL	0
Other features	AMPLIMITE, SHIELDED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYAMIDE/POLYESTER
MIL compliance	NO
Manufacturer's serial number	747947
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Total number of contacts	25
UL Flammability Code	94V-0

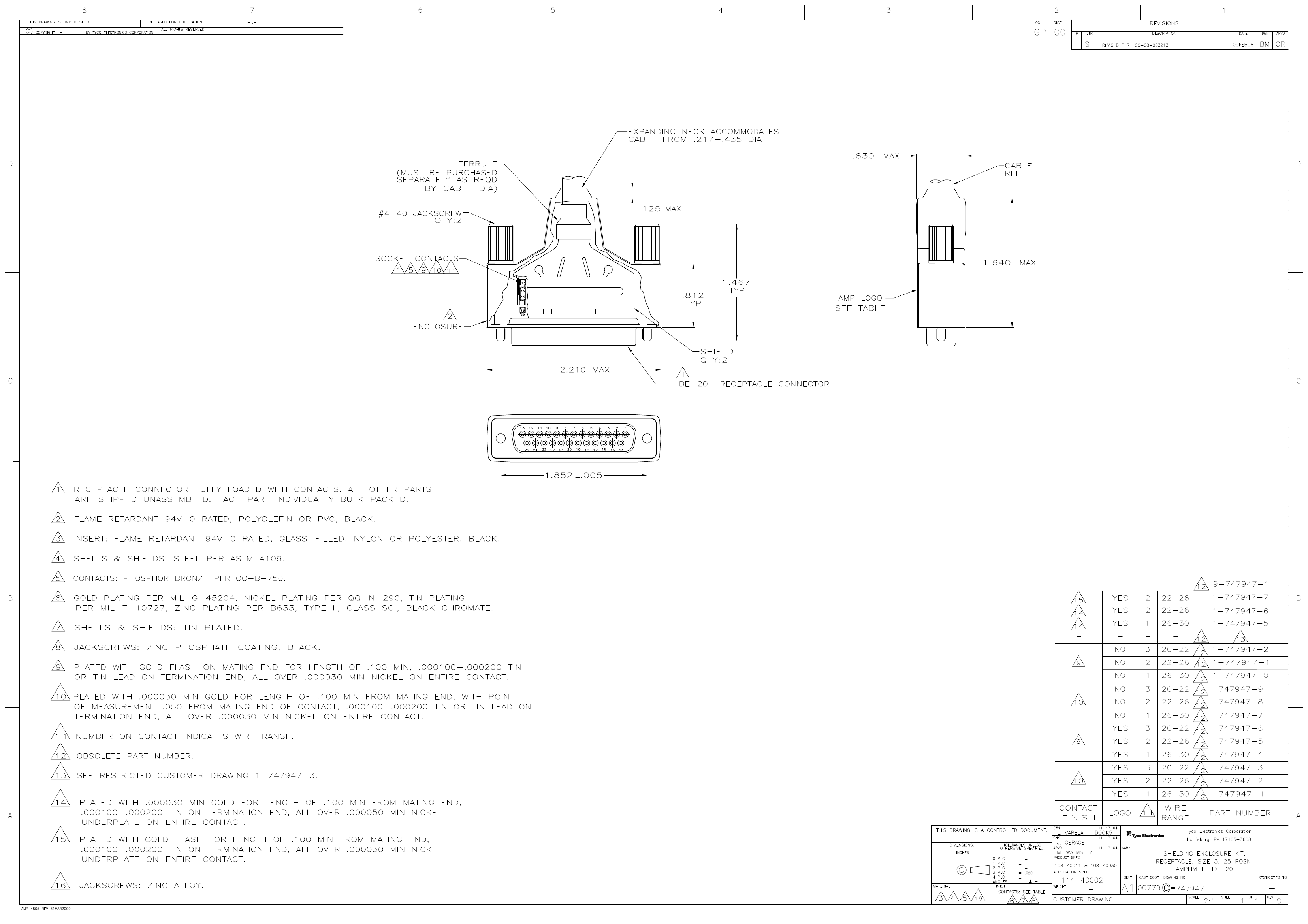

Preview

Download Datasheet

View All

9-747947-1 Related Products

	9-747947-1	1-747947-0	1-747947-2	747947-6	747947-3	747947-7	747947-8	747947-9	1812A500X823GFE
Description	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	CONNECTOR,D-SHELL,CABLE MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,#4-40	CONNECTOR,D-SHELL,CABLE MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,#4-40	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, X7R, 15% TC, 0.082uF, Surface Mount, 1812, CHIP
Objectid	1846653107	1846653074	1846653082	300006485	300006484	1846653095	1846653099	1846653104	8307113412
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	AMPLIMITE, SHIELDED	AMPLIMITE, SHIELDED	AMPLIMITE, SHIELDED	-	-	AMPLIMITE, SHIELDED	AMPLIMITE, SHIELDED	AMPLIMITE, SHIELDED	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	GOLD FLASH OVER NICKEL (30)	GOLD FLASH OVER NICKEL (30)	AU	AU	GOLD (30) OVER NICKEL (30)	GOLD (30) OVER NICKEL (30)	GOLD (30) OVER NICKEL (30)	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-
DIN compliance	NO	NO	NO	-	-	NO	NO	NO	-
empty shell	NO	NO	NO	-	-	NO	NO	NO	-
Filter function	NO	NO	NO	-	-	NO	NO	NO	-
IEC compliance	NO	NO	NO	-	-	NO	NO	NO	-
insulator material	GLASS FILLED POLYAMIDE/POLYESTER	GLASS FILLED POLYAMIDE/POLYESTER	GLASS FILLED POLYAMIDE/POLYESTER	POLYETHYLENE	POLYETHYLENE	GLASS FILLED POLYAMIDE/POLYESTER	GLASS FILLED POLYAMIDE/POLYESTER	GLASS FILLED POLYAMIDE/POLYESTER	-
MIL compliance	NO	NO	NO	-	-	NO	NO	NO	-
Manufacturer's serial number	747947	747947	747947	-	-	747947	747947	747947	-
Mixed contacts	NO	NO	NO	-	-	NO	NO	NO	-
Installation type	CABLE	CABLE	CABLE	-	-	CABLE	CABLE	CABLE	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	-
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	-
Housing size	3/B	3/B	3/B	-	-	3/B	3/B	3/B	-
Total number of contacts	25	25	25	25	25	25	25	25	-
UL Flammability Code	94V-0	94V-0	94V-0	-	-	94V-0	94V-0	94V-0	-
Contact completed and terminated	-	TIN (200)/TIN LEAD OVER NICKEL(30)	TIN (200)/TIN LEAD OVER NICKEL(30)	GOLD	GOLD	TIN (200)/TIN LEAD OVER NICKEL(30)	TIN (200)/TIN LEAD OVER NICKEL(30)	TIN (200)/TIN LEAD OVER NICKEL(30)	-
JESD-609 code	-	e3/e0	e3/e0	-	-	e3/e0	e3/e0	e3/e0	e3
