89177-6013 datasheet, PDF - EEWORLD Datasheet

89177-6013: DescriptionCard Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

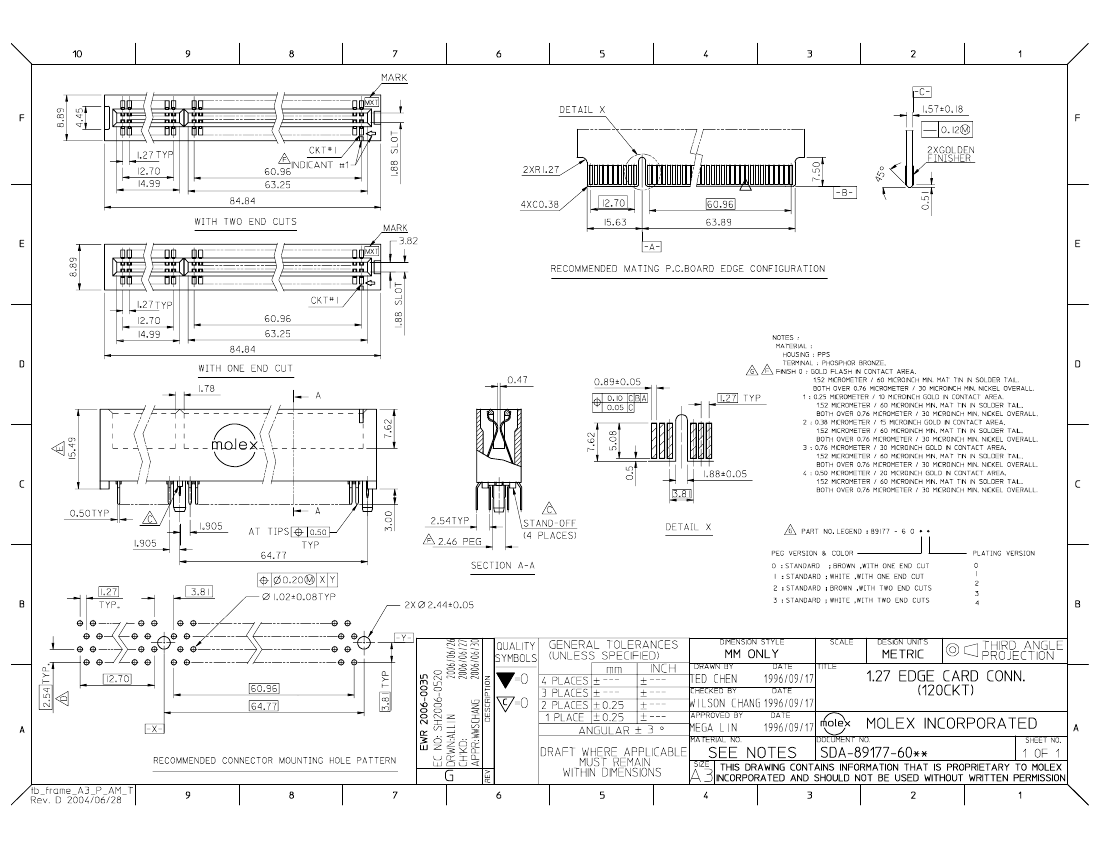

Download Datasheet Parametric View All

89177-6013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89177-6013	-	-	View	Buy Now

Card Edge Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, White Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.35 inch
subject depth	0.61 inch
body length	3.34 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	116.5376 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0
Evacuation force-minimum value	9.7856 N
Base Number Matches	1
