SIGNAL LINE FILTERS
COMMON MODE CHOKES
#
Frequency Ranges 100KHz to 500 MHz
❺
500Vrms Isolation Minimum
❻
Thru-Hole & SMD Packages
!
Ideal for LAN & Telecom Applications
$
Filters Common Mode Noise
&
Provides EMI Supression
ELECTRICAL SPECIFICATIONS AT 25
O
C - OPERATING TEMPERATURE RANGE 0
O
C TO 70
O
C
THRU-HOLE CHOKES
PART
NUMBER
PM-SF01
PM-SF02
PM-SF03
PM-SF04
PM-SF05
PM-SF06
PM-SF07
PM-SF08
PM-SF09
PM-FS10
TURNS
RATIO
(± 5%)
# of CORES
PRIMARY
x
INDUCTANCE
# of LINES (OCL
µ
H
min
)
LEAKAGE
INDUCTANCE
(µH max.)
µ
PRI-SEC
Cw/w
(pf max.)
PRIMARY
DCR
(OHMS max.)
PACKAGE
&
SCHEMATIC
1:1:1:1
1:1:1:1
1:1:1:1
1:1:1:1:1:1
1:1:1:1:1:1
1:1:1:1
1:1:1:1
1:1:1:1
1:1:1:1
1:1
1x4
1x4
1x4
1x6
1x6
2x4
2x4
2x4
1x4
1x2
4.0
8.0
24.0
4.0
24.0
4.0
8.0
24.0
36.0
6.3
.20
.20
.20
.20
.20
.20
.20
.20
.30
4.0
6.0
10.0
15.0
6.0
15.0
6.0
10.0
15.0
25.0
180
.17
.25
.30
.18
.35
.17
.25
.30
.35
.65
1-A
1-A
1-A
2-A
2-A
3-C
3-C
3-C
1-A
7-A
SURFACE MOUNT CHOKES
PART
NUMBER
PM-SF30
PM-SF31
PM-SF32
PM-SF33
PM-SF34
PM-SF35
TURNS
RATIO(S)
(± 5%)
# of CORES
PRIMARY
x
INDUCTANCE
# of LINES (OCL
µ
H
min
)
LEAKAGE
INDUCTANCE
(µH max.)
µ
PRI-SEC
Cw/w
(pf max.)
PRIMARY
DCR
(OHMS max.)
SCHEMATIC
&
PACKAGE
1:1 x 2
1:1 x 3
1:1 x 4
1:1:1:1
1:1:1:1
1:1 x 2
2x2
3x2
4x2
1x4
1x4
2x2
37.0
21.0
36.0
36.0
24.0
100
.20
.20
.20
.30
.20
.30
15.0
15.0
15.0
25.0
15.0
35.0
.30
.35
.35
.25
.30
.60
5-A
5-B
5-C
5-D
4-A
4-B
SELF LEAD SURFACE MOUNT CHOKES
PART
NUMBER
PM-SF50
PM-SF51
TURNS
RATIO(S)
(± 5%)
# of CORES
PRIMARY
x
INDUCTANCE
# of LINES (OCL
µ
H
min
)
LEAKAGE
INDUCTANCE
(µH max.)
µ
PRI-SEC
Cw/w
(pf max.)
PRIMARY
DCR
(OHMS max.)
SCHEMATIC
&
PACKAGE
1:1
1:1
1
1
877
663
N/A
N/A
N/A
N/A
.200
.110
6-A
6-A
Specifications subject to change without notice.
pmsf 09/00
20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630
•
TEL: (949) 452-0511
•
FAX: (949) 452-0512
•
http://www.premiermag.com
1
P
Premier
M
Magnetics Inc.
"INNOVATORS IN MAGNETICS TECHNOLOGY"
SIGNAL LINE FILTERS
COMMON MODE CHOKES
SCHEMATIC
PACKAGE "1"
.500
(12.70)
MAX
.400
(10.16)
MAX

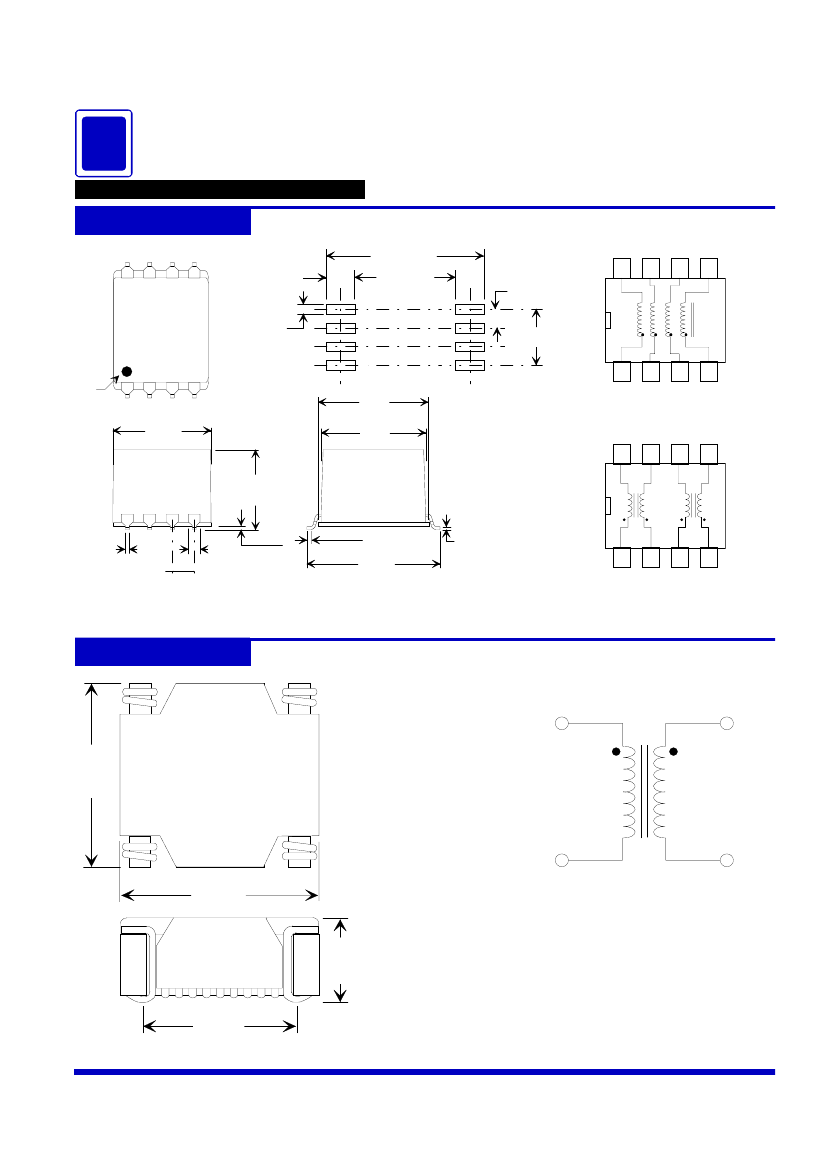

SCHEMATIC "A"
8
7
6
5
PIN#1
DOT
.020
(.51)
TYP
.250
(6.35)
MAX
.120
(3.05)
MIN
.100
(2.54)
.300
(7.62)
.020
DIA
(.51)
1
2
3
4
.300
(7.62)
PACKAGE "2"
PIN#1
DOT
.675
(17.14)
MAX
.400
(12.70)
MAX
SCHEMATIC "A"
12
11
10
9
8
7
.250
(6.35)
MAX
.120
(3.05)
MIN
.100
(2.54)
.020 DIA
(0.51)
1
2
3
4
5
6
.500
(12.70)
.300
(7.62)
PACKAGE "3"
PIN#1
DOT
1.000
(25.40)
MAX
.400
(12.70)
MAX
SCHEMATIC "A"
16
15
14
13
12
11
10
9
.250
(6.35)
MAX
.120
(3.05)
MIN
.100
(2.54)
.020 DIA
(0.51)
1
2
3
4
5
6
7
8
.700
(17.78)
.300
(7.62)
Specifications subject to change without notice.
pmsf 09/00
20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630
•
TEL: (949) 452-0511
•
FAX: (949) 452-0512
•
http://www.premiermag.com
2
P
Premier
M
Magnetics Inc.
"INNOVATORS IN MAGNETICS TECHNOLOGY"
SIGNAL LINE FILTERS
COMMON MODE CHOKES
SCHEMATIC "A"
8
3x.100 (2.54)
PACKAGE "4"
PACKAGE "4"
8
7
6
5
RECOMMENDED PCB LAYOUT
.640 (16.23)
8x.120 (3.05)
.400 (10.16)
7
6
5
1
8
.300 (7.62)
P
PM-SFXX
M
YYWW
PIN#1
DOT
1
2
3
4
.475
(12.07)
MAX
8x.050 (1.27)
4
.475
(12.07)
.400
(10.16)
5
1
2
3
4
SCHEMATIC "B"
8
7
6
5
.340
(8.64)
MAX
.010
(0.25)
TYP
.030
(0.76)
TYP
.100
(2.54)
TYP
.050
(1.27)
TYP
.020 (.51)
.010 (.25)
.050 (1.27)
FLAT
.030 (0.76)
.600
(15.24)
MAX
1
2
3
4
PACKAGE "6"
SCHEMATIC "A"
1
.500
(12.70)
MAX
3
1
3
P
PM-SFXX
M
YYWW
2
4
2
.500
(12.70)
MAX
4
.215
(5.46)
MAX
.330
(8.38)
Specifications subject to change without notice.
pmsf 09/00
20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630
•
TEL: (949) 452-0511
•
FAX: (949) 452-0512
•
http://www.premiermag.com
3
P
Premier
M
Magnetics Inc.
"INNOVATORS IN MAGNETICS TECHNOLOGY"
SIGNAL LINE FILTERS
COMMON MODE CHOKES
SCHEMATIC
PACKAGE "5"
16 15 14 13 12 11 10 9
SCHEMATIC "A"
16
15
14
13
12
11
10
9
P
PM-SFxx
M
YYWW
PIN#1
WHITE DOT
1
2
3
4
5
6
7
8
.280
(7.11)
MAX
.210
(5.33)
MAX
.050
.019 (1.27)
(0.48) TYP
TYP
.010
(0.25)
TYP
.475
(12.10)
MAX
1
2
3
4
5
6
7
8
SCHEMATIC "B"
16
15
14
13
12
11
10
9
.020 (0.51) MIN
.370 (9.40)
.022 (.55)
.004 (.10)
RECOMMENDED PCB LAYOUT
.420 (10.67)
16x.075 (1.91)
.270 (6.86)
7x.050 (1.27)
1
2
3
4
5
6
7
8
SCHEMATIC "C"
16
15
14
13
12
11
10
9
1
16x.025 (.64)
16
.350 (8.89)
8
9
1
2
3
4
5
6
7
8
SCHEMATIC "D"
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
Specifications subject to change without notice.
pmsf 09/00
20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630
•
TEL: (949) 452-0511
•
FAX: (949) 452-0512
•
http://www.premiermag.com
4
P
Premier
M
Magnetics Inc.
"INNOVATORS IN MAGNETICS TECHNOLOGY"
SIGNAL LINE FILTERS
COMMON MODE CHOKES
SCHEMATIC
PACKAGE "7"
SCHEMATIC "A"
0.510
(12.95)
MAX
10
6
0.400
(10.16)
1
5
P
M
1
PM-SFXX
YYWW
5
0.410
(10.41)
MAX
0.300
(7.62)
10
6
0.130
(3.30)
0.510
(12.95)
MAX
Specifications subject to change without notice.
pmsf 09/00
20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630
•
TEL: (949) 452-0511
•
FAX: (949) 452-0512
•
http://www.premiermag.com
5
