70451-9042 datasheet, PDF - EEWORLD Datasheet

70451-9042: DescriptionBoard Connector, 72 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug,; CategoryThe connector The connector; File Size1MB，10 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

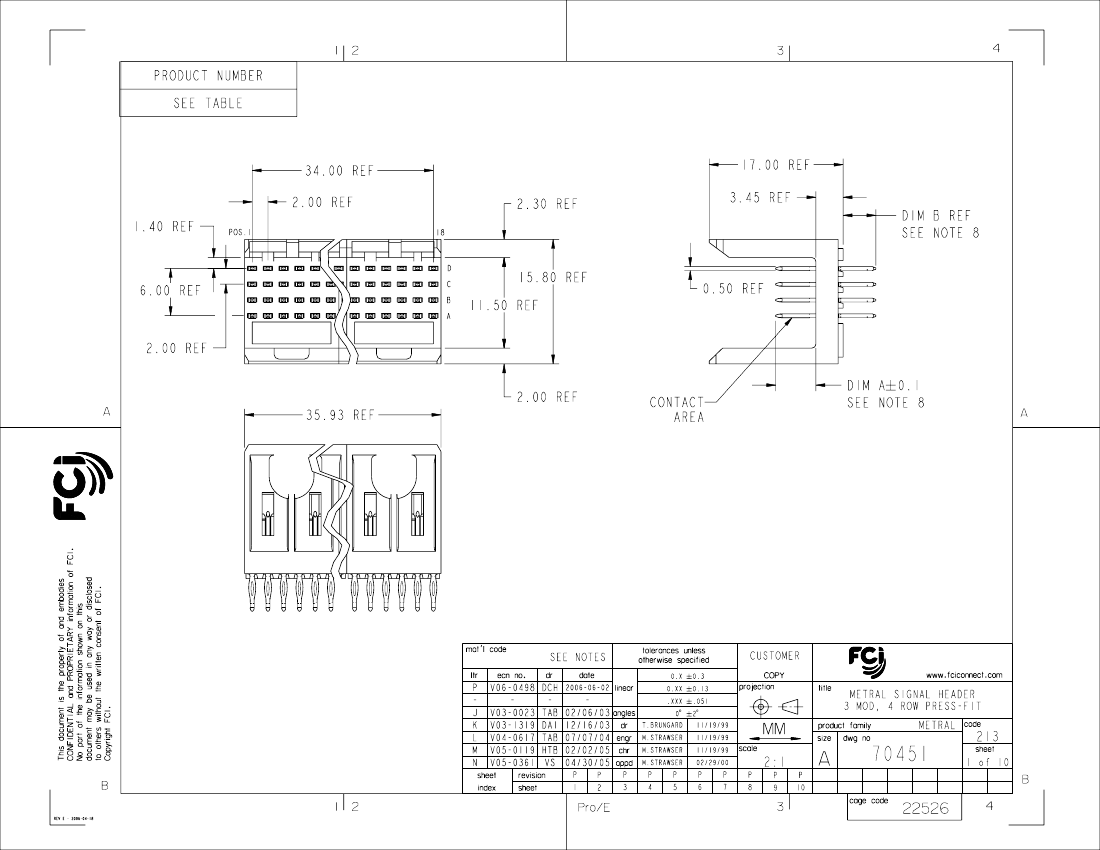

70451-9042 Overview

Board Connector, 72 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	2136420902
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Board mount options	PEG
body width	0.622 inch
subject depth	0.669 inch
body length	1.415 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED

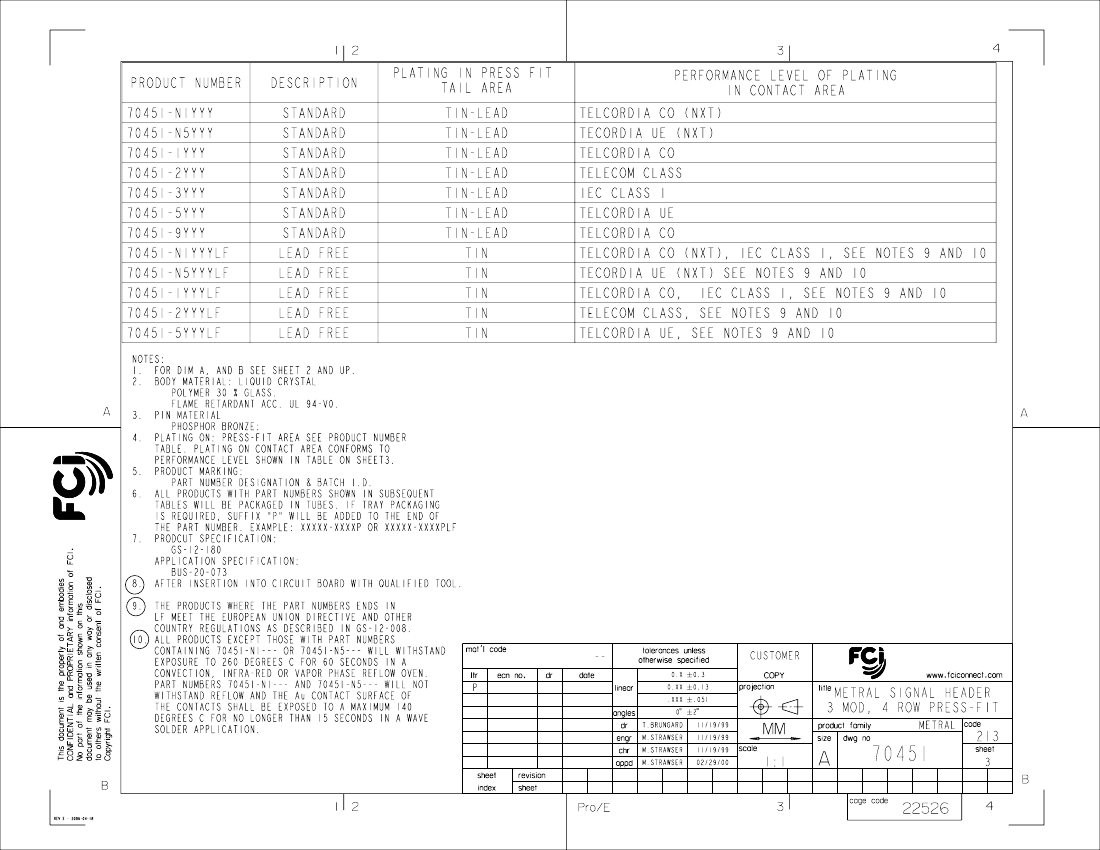

Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE

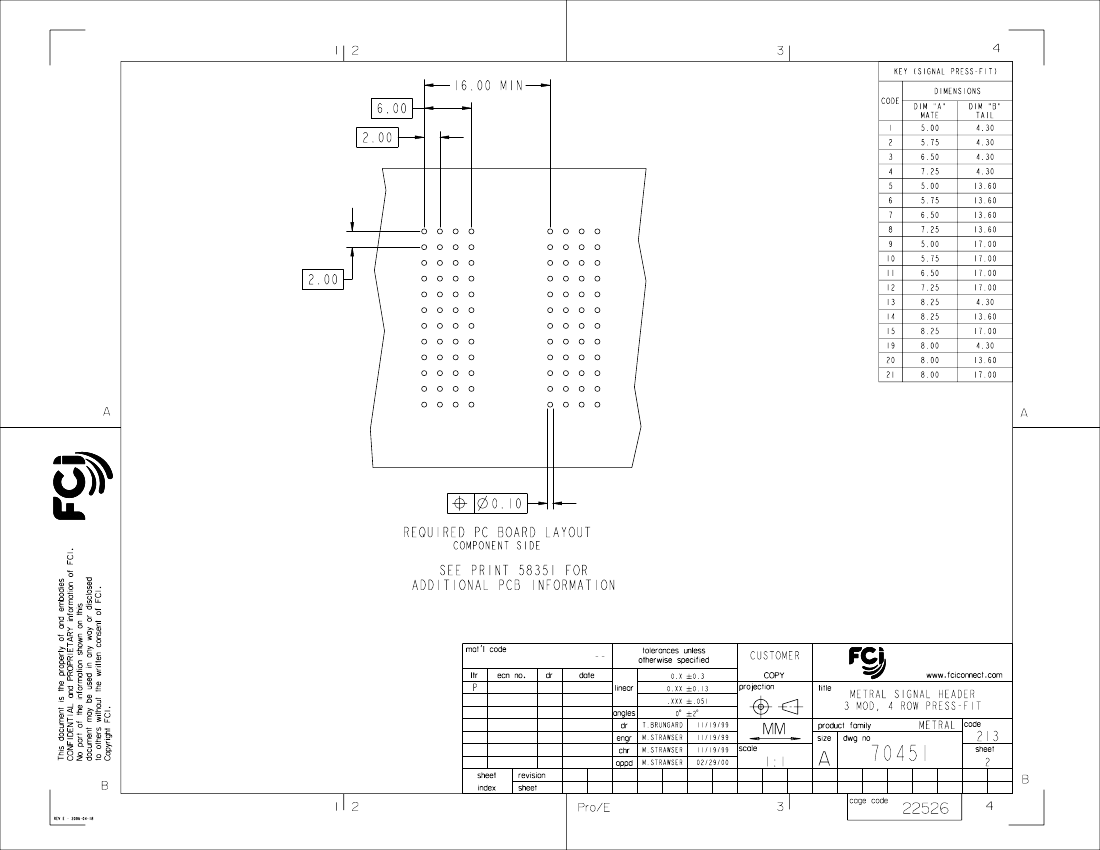

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal pitch	2 mm
Termination type	PRESS FIT

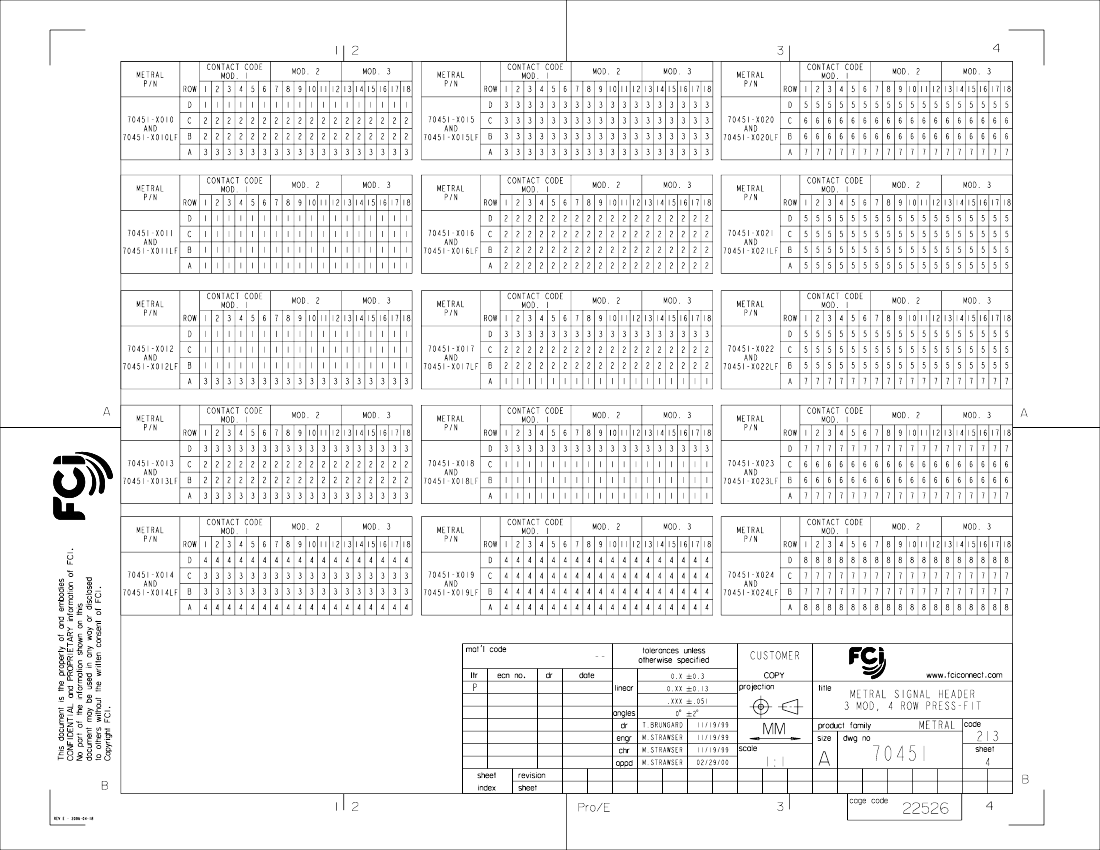

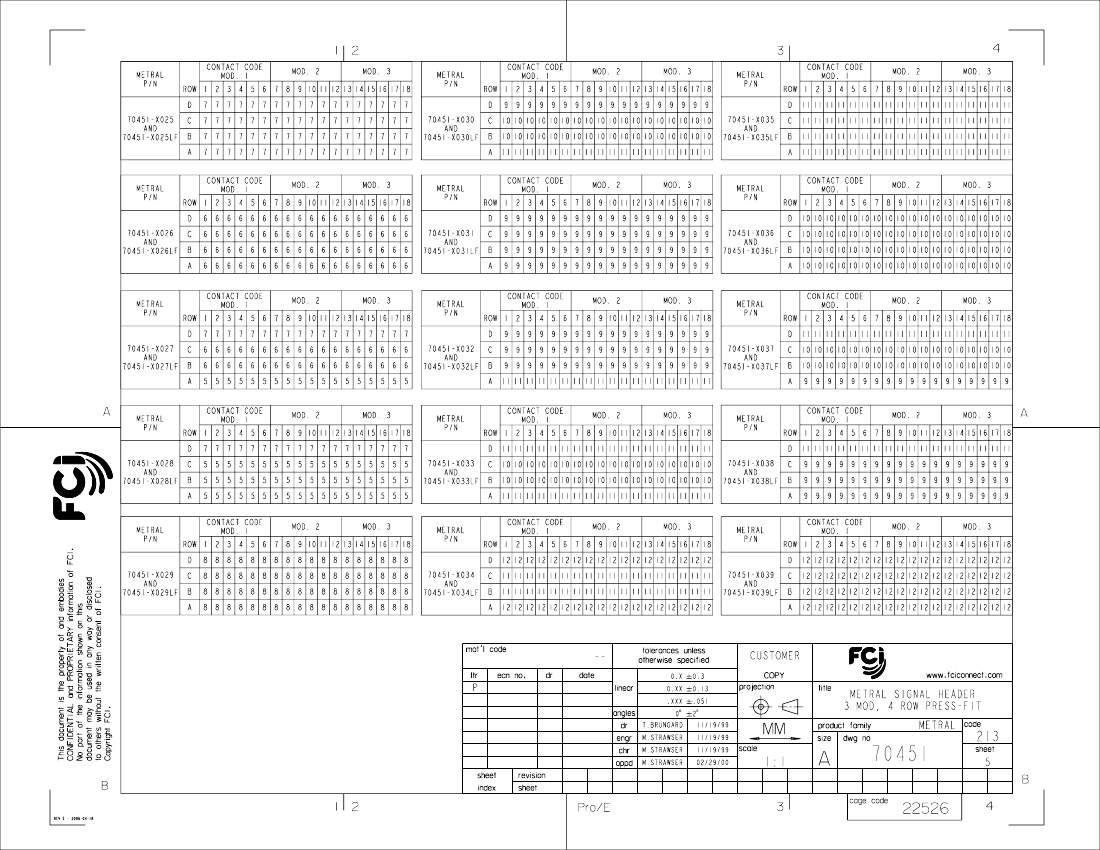

Total number of contacts	72
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

PDM: Rev:P

STATUS:

Released

Printed: May 16, 2009
