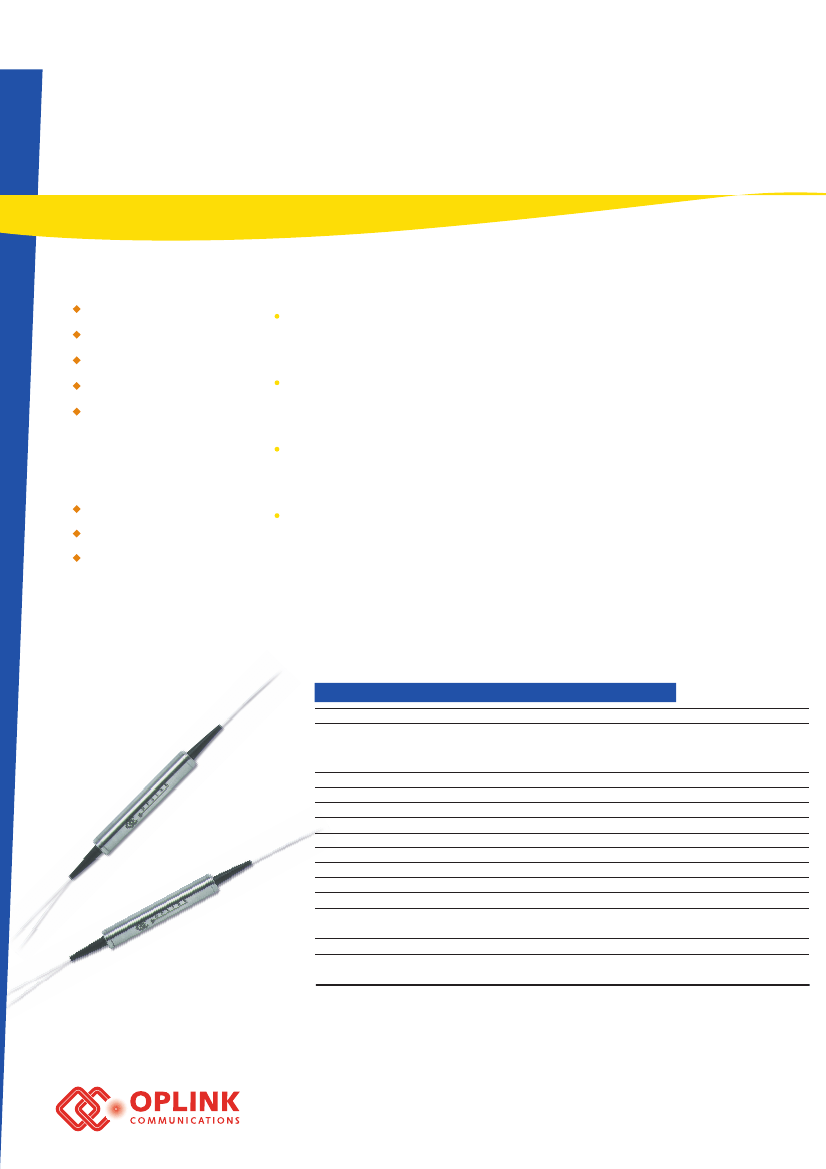

Polarization Maintaining Beam
Combination
PMBC Series
Features
Low Insertion Loss
High Stability & Reliability
Epoxy-Free Optical Path
Compact Size
High-Power Handling
Polarization Maintaining Beam Combination
Oplink’s polarization maintaining beam combiner is perfect for next-generation
amplification systems that require multiple pump sources. These devices feature very
high power handling and low insertion loss due to the epoxy-free optical path. They
are designed to work as pump combiners for EDFA and Raman amplifier systems.
Oplink’s patented packaging technology ensures the highest quality and reliability.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full
function module or subsystem.
Applications
EDFA
Raman Amplifiers
Laboratory R&D
Performance Specifications
PMBC Series
Unit
Wavelength Range
Insertion Loss
Wavelength Dependent Loss (WDL)
Optical Return Loss
Directivity
Extinction Ratio
Direction of Incident Polarization
Operating Power Handeling
Operating Temperature
Storage Temperature
Fiber Type
Input ports
Output port
Fiber Length
Physical Dimension*
P1(with bare fiber) :
P2(with 900 µm loose tube) :
1450 +/- 30
1480 +/- 30
1550 +/- 30
Grade P ≤ 0.5, Grade A ≤ 0.7
< 0.15
> 55
> 45
≥18, typ. 21
Slow Axis
≤ 2000
0 ~ 70
-40 ~ 85
Fujikura Panda, 400 UV buffer
Corning SMF-28
1.0 +/- 0.1
5.5 (Ø) x 34.0 (L)
5.5 (Ø) x 40.0 (L)
nm
dB
dB
dB
dB
dB
mW
°C
°C
m
mm
*
The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
Oplink Communications, Inc.
R3.20070814
Polarization Maintaining Beam Combination
PMBC Series
Mechanical Drawing / Package Dimensions
(dimension in mm)
P1: SMF-28 250µm bare fiber
34.0 mm
1
P2: 900
µ
m loose tube
40.0 mm
1
PORT1
400µm PM
PORT2
400µm PM
Ø5.5 mm
COMM SMF-28
PORT 1
Ø5.5 mm
2
3
2
PORT 2
3
COMM SMF-28
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
PMBC
0
0
Wavelength
1450nm= 1450
1480nm= 1480
1550nm= 1550
Grade
P Grade= P
A Grade= A
Fiber Length
0.5 meter = H
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
Package & Fiber Type
P1+ 250µm bare fiber = 11
P2+ 900µm loose tube = 22
* 1 meter is standard. The lead time for special fiber length will be longer
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
R3.20070814
