1. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM FOR
COMPLIANCE INFORMATION.
2 IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
3
NOTCHES A & C WILL ACCOMODATE
3M POLARIZING KEY: N3518.
3M
TM
THREE-WALL CONDO HEADER, 3000 SERIES
DIM. "A"
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
D
.90
22.7
* STACKED PINS CONSERVE SPACE ON THE CIRCUIT BOARD
ALLOWING HIGHER DENSITY PACKAGING.
* PIN QUANTITY TO 128 GIVES DESIGN FLEXIBILITY WITH
LATCHING.
* "HDI" ALTERNATIVE.
* THREE-WALL FITS IN VME BOARD STACKING CRITERIA.
* ACCEPTS STANDARD IDC SOCKETS.
* MATES WITH STANDARD FLAT CABLE HARNESSES.
* HIGH TERMERATURE INSULATOR SUITABLE FOR "NO LEAD"
SOLDERING OPERATIONS.
* SUITABLE FOR REFLOW SOLDERING USING "PASTE IN HOLE"
TECHNIQUES.
D
-D00X
HEADER WITHOUT LATCH EJECTOR
2
PHYSICAL:
INSULATOR:
MATERIAL:
FLAMMABILITY:
COLOR:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
MARKINGS:
GLASS FILLED POLYESTER (PCT)
UL94V-0
BLACK
COPPER ALLOY
100 " [2.54 m] NICKEL-OVERALL
30 " [0.76 m] AVG. GOLD
200 " [5.08 m] TIN LEAD OR MATTE TIN (SEE ORDERING INFORMATION)
3M LOGO, PART IDENTIFICATION NUMBER AND ORIENTATION TRIANGLE
4 MOUNTING HARDWARE:
FROM SOLDER SIDE OF PC BOARD
USE #4-24 THREAD CUTTING SCREW
(3M PART #3341-5) WITH
.116 [2.95] MOUNTING HOLE.
.424
10.77
.010
0.25
.08
2.0
1.18
30.1
2
ELECTRICAL:
C
C
.37
9.5
CURRENT RATING: 1A (EIA 364-70)
INSULATION RESISTANCE: >1 X 10
9
AT 500 V
DC
WITHSTANDING VOLTAGE: 1,000V
RMS
AT SEA LEVEL
-D20X
HEADER WITH SHORT LATCH EJECTOR
FOR 3M SOCKETS WITHOUT STRAIN RELIEF
2
ENVIRONMENTAL:
TEMPERATURE RATING: -55 C TO 105 C
PROCESS RATING: 260 C, PER J-STD-020C, SINGLE PASS
MOISTURE SENSITIVITY LEVEL: 1 (PER J-STD-020C)
REVISION
DRAWING NUMBER
.573
14.55
.010
0.25
.08
2.0
1.28
32.5
B
.46
11.7
-D30X
HEADER WITH LONG LATCH EJECTOR
FOR 3M SOCKETS WITH STRAIN RELIEF
ORDERING INFORMATION
X3XXXX-DXXXXX
N= HIGH TEMP BLACK (PCT)/(RB PLATING REQ'D)
BLANK= (UB PLATING)
3M PART NUMBER:
(SEE TABLE 1)
PLATING:
RB = 30 " [0.76 m] GOLD AND 200 " [5.08 m] MATTE TIN
(APP. E1 & C1 APPLY)
UB = 30 " [0.76 m] GOLD AND 200 " [5.08 m]
TIN LEAD (APP. E3 & C2 APPLY)
TAIL:
02 = FOR .062 [1.57] THICK BOARD
03 = FOR .094 TO .125 [2.39 TO 3.18] THICK BOARD
DIMENSIONS: INCHES [MM]
[MM] IS REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
78-5100-0773-1
J
REV
DRFT
J
56068
ECO
B
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
A
LATCH/EJECTOR SYSTEM:
0 = NO LATCH/EJECTOR INSTALLED
2 = SHORT ROLL PIN LATCH/EJECTORS
3 = LONG ROLL PIN LATCH/EJECTORS
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
2
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 3-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0773-1
DET.
LISTS
YES
NO
J
3000 SERIES
SHT 1 OF 3
8
7
6
5
4
3
2
1
Imaged: J.4 2/10/2015 8:02 AM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM

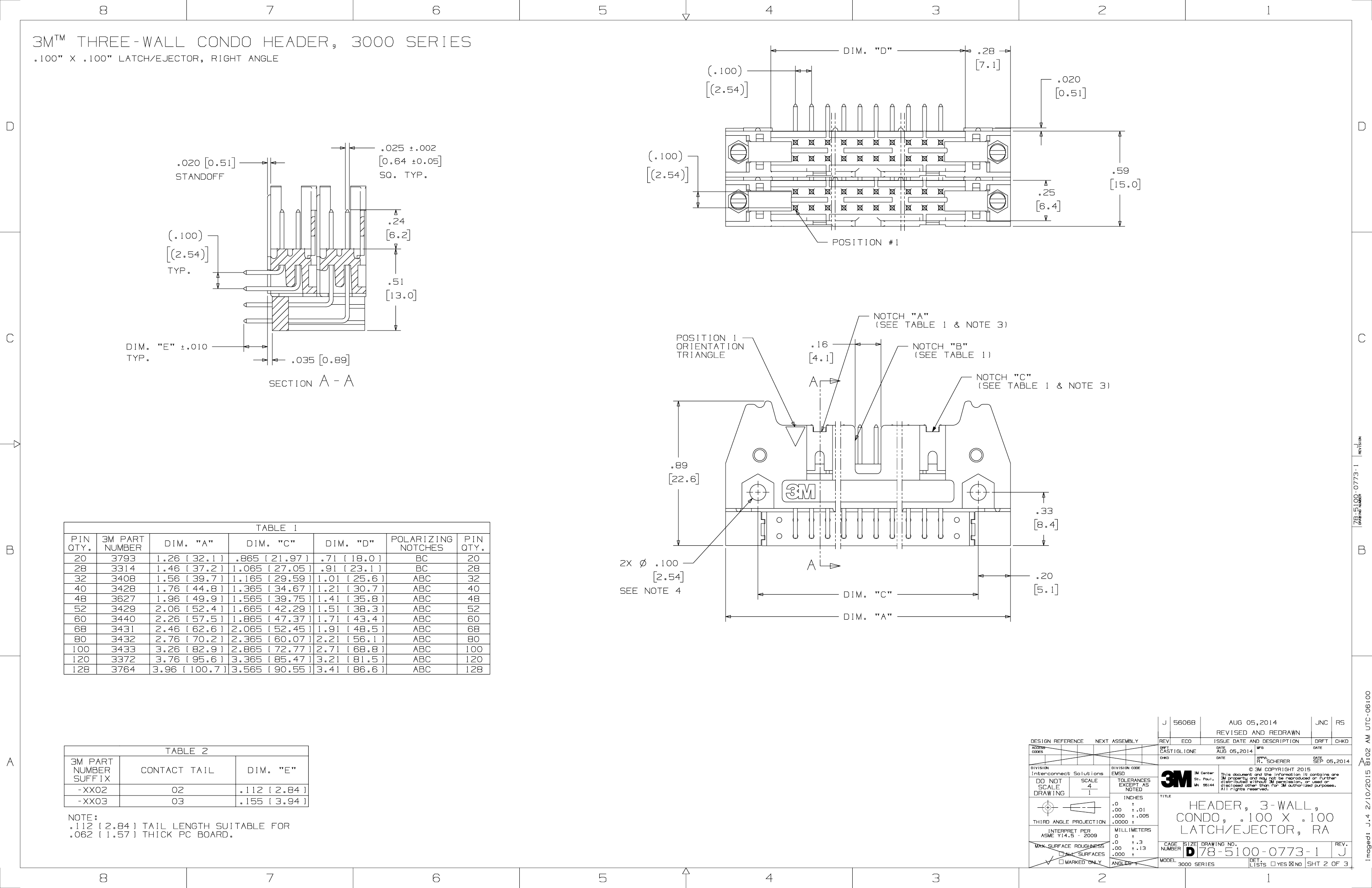

THREE-WALL CONDO HEADER, 3000 SERIES
.100
2.54
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
DIM. "D"
.28
7.1
.020
0.51
D
.025
.020 0.51
STANDOFF
0.64
.002
0.05
D
.100
2.54
.25
6.4
.24
.100
2.54
TYP.
.51
13.0
NOTCH "A"
(SEE TABLE 1 & NOTE 3)
6.2
POSITION #1
.59
15.0
SQ. TYP.
C
DIM. "E"
TYP.
.010
.035 0.89
SECTION
POSITION 1
ORIENTATION
TRIANGLE
.16
4.1
NOTCH "B"
(SEE TABLE 1)
NOTCH "C"
(SEE TABLE 1 & NOTE 3)
C
A-A
A
22.6
.33
TABLE 1
8.4
DIM. "D"
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.41 [35.8]
1.51 [38.3]
1.71 [43.4]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
POLARIZING
NOTCHES
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
PIN
QTY.
20
28
32
40
48
52
60
68
80
100
120
128
PIN
QTY.
20
28
32
40
48
52
60
68
80
100
120
128
3M PART
DIM. "A"
NUMBER
3793
1.26 [32.1]
3314
1.46 [37.2]
3408
1.56 [39.7]
3428
1.76 [44.8]
3627
1.96 [49.9]
3429
2.06 [52.4]
3440
2.26 [57.5]
3431
2.46 [62.6]
3432
2.76 [70.2]
3433
3.26 [82.9]
3372
3.76 [95.6]
3764
3.96 [100.7]
B
DIM. "C"
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.565 [39.75]
1.665 [42.29]
1.865 [47.37]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
2X
.100
2.54
A
DIM. "C"
DIM. "A"
.20
5.1
SEE NOTE 4
78-5100-0773-1
J
56068
ECO
.89
B
DRAWING NUMBER
REVISION
J
AUG 05,2014
REVISED AND REDRAWN
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
JNC
DRFT
DATE
DATE
RS
CHKD
ISSUE DATE AND DESCRIPTION
DATE
MFG
TABLE 2
ACCESS
CODES
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
A
3M PART
NUMBER
SUFFIX
-XX02
-XX03
R. SCHERER
SEP 05,2014
CONTACT TAIL
02
03
DIM. "E"
.112 [2.84]
.155 [3.94]
DIVISION
DIVISION CODE
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
NOTE:
.112 [2.84] TAIL LENGTH SUITABLE FOR
.062 [1.57] THICK PC BOARD.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 3-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0773-1
DET.
LISTS
YES
NO
J
3000 SERIES
SHT 2 OF 3
8
7
6
5
4
3
2
1
Imaged: J.4 2/10/2015 8:02 AM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM
THREE-WALL CONDO HEADER, 3000 SERIES

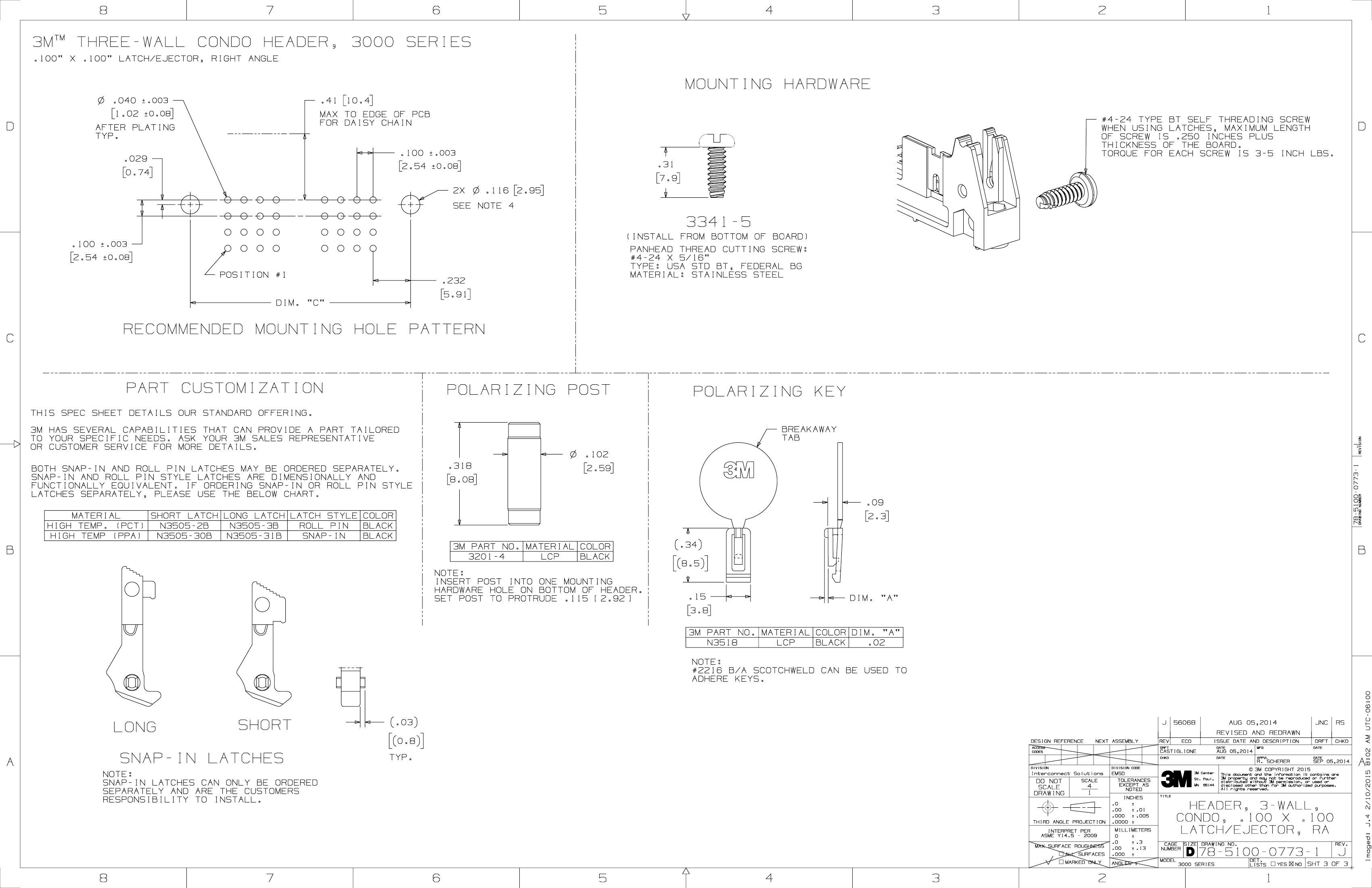

MOUNTING HARDWARE
.040
1.02
.003
0.08
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
.41 10.4
MAX TO EDGE OF PCB
FOR DAISY CHAIN
#4-24 TYPE BT SELF THREADING SCREW
WHEN
USING LATCHES, MAXIMUM LENGTH
OF SCREW IS .250 INCHES PLUS
THICKNESS OF THE BOARD.
TORQUE FOR EACH SCREW IS 3-5 INCH LBS.
.31
7.9
2X
.116 2.95
SEE NOTE 4
D
AFTER PLATING
TYP.
.029
0.74
D
.100
2.54
.003
0.08
3341-5
.100
2.54
(INSTALL FROM BOTTOM OF BOARD)
.003
0.08
POSITION #1
DIM. "C"
.232
5.91
PANHEAD THREAD CUTTING SCREW:
#4-24 X 5/16"
TYPE: USA STD BT, FEDERAL BG
MATERIAL: STAINLESS STEEL
C
RECOMMENDED MOUNTING HOLE PATTERN
C
PART CUSTOMIZATION
THIS SPEC SHEET DETAILS OUR STANDARD OFFERING.
3M HAS SEVERAL CAPABILITIES THAT CAN PROVIDE A PART TAILORED
TO YOUR SPECIFIC NEEDS. ASK YOUR 3M SALES REPRESENTATIVE
OR
CUSTOMER SERVICE FOR MORE DETAILS.
BOTH SNAP-IN AND ROLL PIN LATCHES MAY BE ORDERED SEPARATELY.
SNAP-IN AND ROLL PIN STYLE LATCHES ARE DIMENSIONALLY AND
FUNCTIONALLY EQUIVALENT. IF ORDERING SNAP-IN OR ROLL PIN STYLE
LATCHES SEPARATELY, PLEASE USE THE BELOW CHART.
MATERIAL
SHORT LATCH LONG LATCH LATCH STYLE COLOR
HIGH TEMP. (PCT)
N3505-2B
N3505-3B
ROLL PIN
BLACK
HIGH TEMP (PPA)
N3505-30B
N3505-31B
SNAP-IN
BLACK
POLARIZING POST
POLARIZING KEY
REVISION
DRAWING NUMBER
BREAKAWAY
TAB
.102
.318
8.08
.09
2.3
.34
8.5
2.59
B
3M PART NO. MATERIAL COLOR
3201-4
LCP
BLACK
NOTE:
INSERT POST INTO ONE MOUNTING
HARDWARE HOLE ON BOTTOM OF HEADER.
SET POST TO PROTRUDE .115 [2.92]
.15
3.8
DIM. "A"
3M PART NO. MATERIAL COLOR DIM. "A"
N3518
LCP
BLACK
.02
NOTE:
#2216 B/A SCOTCHWELD CAN BE USED TO
ADHERE KEYS.
Imaged: J.4 2/10/2015 8:02 AM UTC-06:00
LONG
A
SHORT
.03
0.8
DESIGN REFERENCE
ACCESS
CODES
J
NEXT ASSEMBLY
REV
DRFT
56068
ECO
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
SNAP-IN LATCHES
NOTE:
SNAP-IN LATCHES CAN ONLY BE ORDERED
SEPARATELY AND ARE THE CUSTOMERS
RESPONSIBILITY TO INSTALL.
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
TYP.
DIVISION
DIVISION CODE
R. SCHERER
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
SEP 05,2014
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 3-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0773-1
DET.
LISTS
YES
NO
J
3000 SERIES
SHT 3 OF 3
8
7
6
5
4
3
2
1
78-5100-0773-1
J
B
A
Talking
京公网安备 11010802033920号
EEWORLD
