PN0805 , PN3316
&
PN5022
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

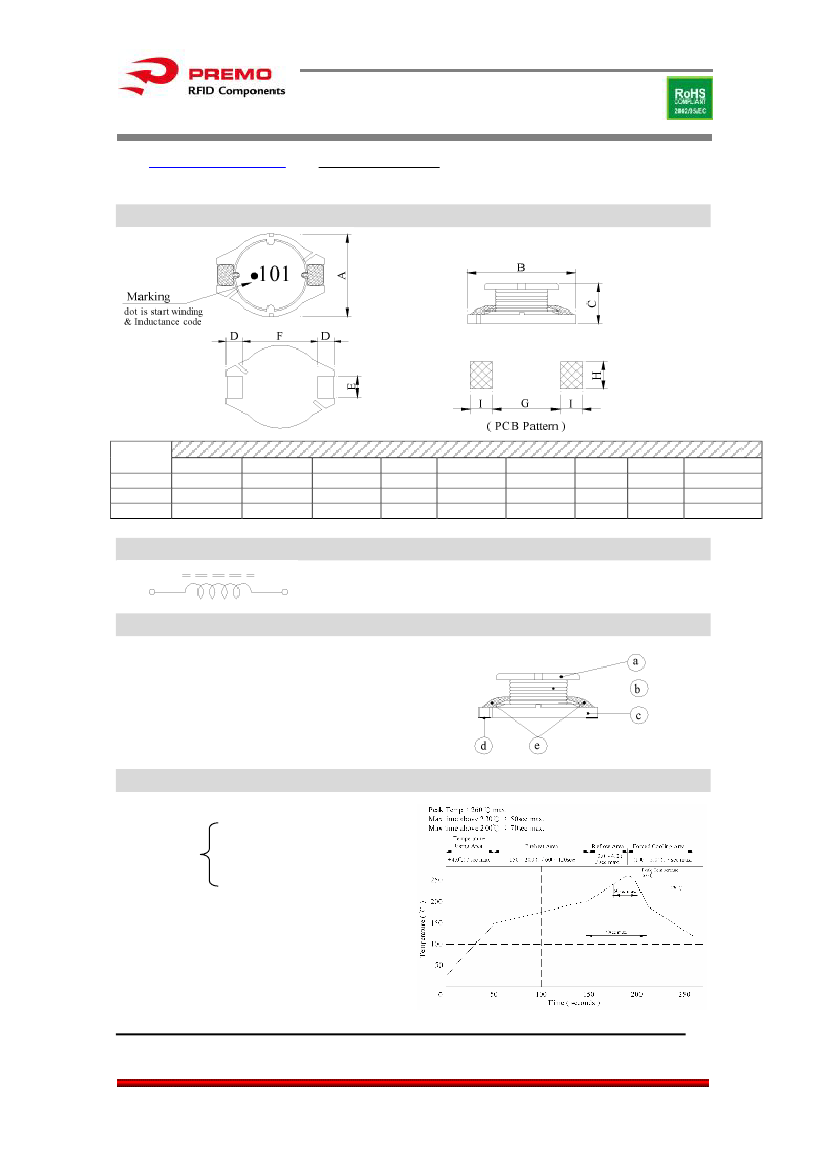

1. Configuration & Dimensions
Series
PN0805
PN3316
PN5022
Dimensions [mm]
A
8.0±0.3
10.0±0.3
14.0±0.5
B
10.5±0.3
12.7±0.3
18.2±0.5
C
5.0±0.3
5.0±0.3
6.6±0.5
D
2.1±0.2
2.4±0.2
2.5±0.2
E
2.0±0.2
2.5±0.2
2.6±0.2
F
6.0±0.3
7.6±0.3
13.4±0.3
G(ref.)
5.7
7.3
12.7
H(ref.)
2.2
2.8
2.9
I(ref.)
2.4
3.0
3.2
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR Core
b.- Wire : Enamelled copper wire (class F)
c.- Base : LCP E4008
d.- Terminal : Cu / Ni / Sn
e.- Adhesive : Epoxy resin
f.- Solder wire : Sn97 / Cu3 solder Alloys
g.- Remark : Lead content 200ppm max. include ferrite
4. General Specification
40ºC max. (PN0805,PN5022)
15ºC typ. (PN3316)
a.- Temp. rise
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp. : -40ºC ~ +105ºC
d.- Resistance to solder heat : 260ºC. 10 secs
1
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PN0805 , PN3316
&
PN5022
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
5. Electrical Characteristics
PN0805
(3.3µH – 330µH)
DWG No.
PN0805 – 3R3M
PN0805 – 4R7M
PN0805 – 6R8M
PN0805 – 100M
PN0805 – 150M
PN0805 – 220M
PN0805 – 330M
PN0805 – 470L
PN0805 – 680L
PN0805 – 101L
PN0805 – 151L
PN0805 – 221L
PN0805 – 331L
Inductance
(µH)
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±15%
68.0±15%
100.0±15%
150.0±15%
220.0±15%
330.0±15%
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
RDC
(Ω)
max.
0.022
0.028
0.040
0.050
0.070
0.100
0.145
0.200
0.270
0.400
0.560
0.860
1.500
Irms
(A)
max.
5.00
4.20
3.40
3.00
2.40
2.00
1.72
1.40
1.20
1.00
0.75
0.62
0.46
Isat
(A)
typ.
5.20
4.00
3.40
2.80
2.30
1.85
1.54
1.28
1.15
0.92
0.75
0.62
0.50
PN3316
(1µH – 10000µH)
DWG No.
PN3316 – 1R0M
PN3316 – 1R5M
PN3316 – 2R2M
PN3316 – 3R3M
PN3316 – 4R7M
PN3316 – 6R8M
PN3316 – 100M
PN3316 – 150M
PN3316 – 220M
PN3316 – 330K
PN3316 – 470K
PN3316 – 680K
PN3316 – 101K
PN3316 – 151K
PN3316 – 221K
PN3316 – 331K
PN3316 – 471K
Inductance
(µH)
1.0±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±10%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz)
typ.
130.0
90.0
65.0
50.0
45.0
35.0
25.0
23.0
18.0
15.0
12.0
10.0
8.0
6.0
5.0
4.0
3.5
RDC
(Ω)
max.
0.007
0.009
0.012
0.015
0.019
0.034
0.045
0.060
0.095
0.120
0.190
0.240
0.330
0.590
0.780
1.150
1.700
Irms
(A)
max.
7.50
6.50
5.50
5.00
4.50
3.40
2.90
2.50
2.00
1.80
1.40
1.20
1.00
0.80
0.70
0.55
0.45
Isat
(A)
max.
9.00
8.00
7.00
6.40
5.40
4.50
3.70
3.00
2.50
2.00
1.60
1.40
1.20
1.00
0.80
0.60
0.50
2
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PN0805 , PN3316
&
PN5022
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PN3316
(1µH – 10000µH)
PN3316 – 681K
PN3316 – 102K
PN3316 – 152K
PN3316 – 222K
PN3316 – 332K
PN3316 – 472K
PN3316 – 682K
PN3316 – 103K
680.0±10%
1000.0.0±10%
1500.0±10%
2200.0±10%
3300.0±10%
4700.0±10%
6800.0±10%
10000.0.0±10%
100
100
100
100
100
100
100
100
3.0
2.0
1.9
1.6
1.2
1.1
0.9
0.7
2.600
3.900
6.300
8.200
14.000
17.000
30.000
39.000
0.35
0.30
0.25
0.20
0.16
0.15
0.11
0.10
0.40
0.30
0.25
0.20
0.17
0.15
0.12
0.10
PN5022
(1µH – 1000µH)
DWG No.
PN5022 – 1R0M
PN5022 – 2R2M
PN5022 – 3R3M
PN5022 – 5R6M
PN5022 – 100M
PN5022 – 150M
PN5022 – 220M
PN5022 – 330M
PN5022 – 470M
PN5022 – 680M
PN5022 – 101K
PN5022 – 151K
PN5022 – 221K
PN5022 – 331K
PN5022 – 471K
PN5022 – 681K
PN5022 – 102K
Inductance
(µH)
1.0±20%
2.2±20%
3.3±20%
5.6±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz)
typ.
100.0
55.0
40.0
30.0
25.0
17.0
13.0
11.0
9.0
8.0
7.0
5.0
4.5
3.5
3.0
2.5
2.0
RDC
(mΩ)
max.
4.0
6.8
9.8
15.0
25.0
35.0
45.0
68.0
95.0
130.0
190.0
270.0
420.0
580.0
820.0
1200.0
1800.0
Irms
(A)
10.00
9.00
7.60
6.40
5.30
4.30
3.60
3.00
2.50
2.10
1.70
1.40
1.10
1.00
0.80
0.70
0.50
Isat
(A)
30.0
22.0
17.0
12.80
10.00
8.00
6.70
5.40
4.60
3.80
3.20
2.60
2.20
1.80
1.50
1.20
1.00
[Inductance tested at 0.1V] [Irms base on temp. rise 40ºC max. (PN0805,PN5022)] [Isat base on
∆L/L0A
= 10 % typ. (PN0805,PN5022)]
3
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PN0805 , PN3316
&
PN5022
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

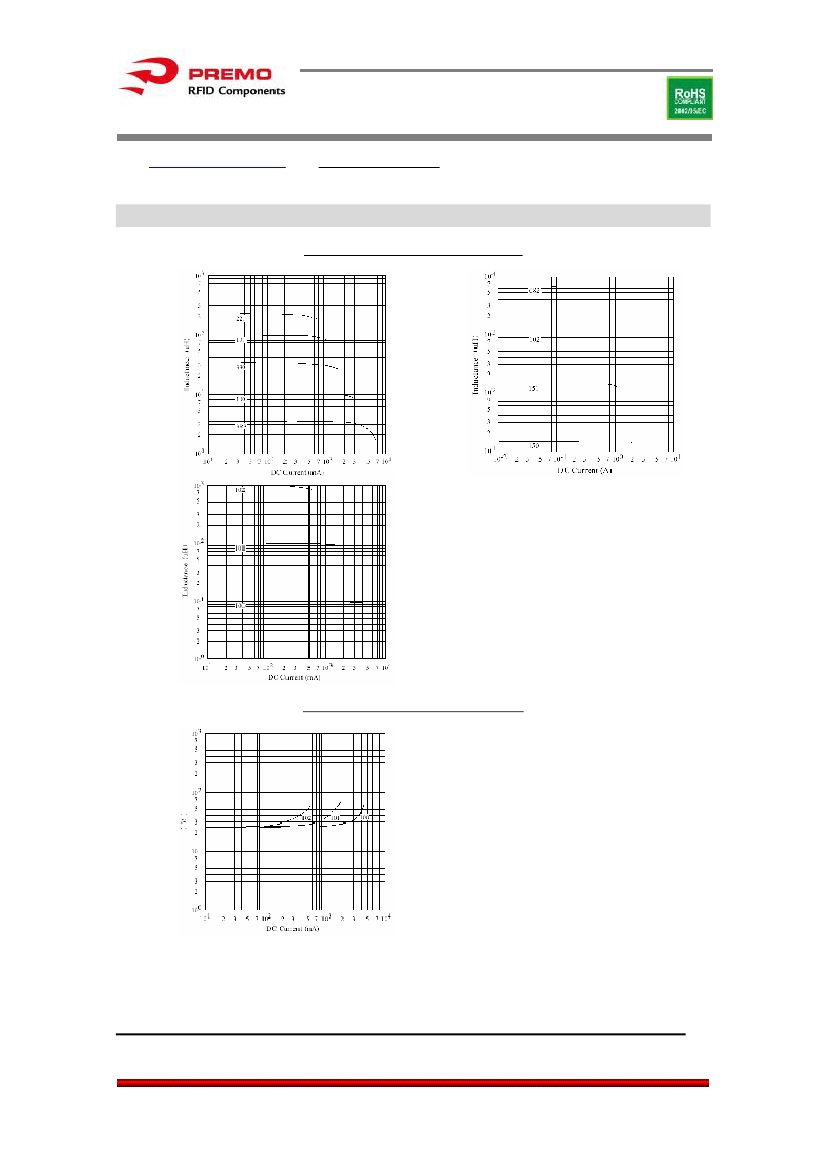

6. Curve
Inductance VS. DC Current Curve
PN0805
PN3316
PN5022
DC Current VS. Temp. Rise Curve
PN5022
4
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PN0805 , PN3316
&
PN5022
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

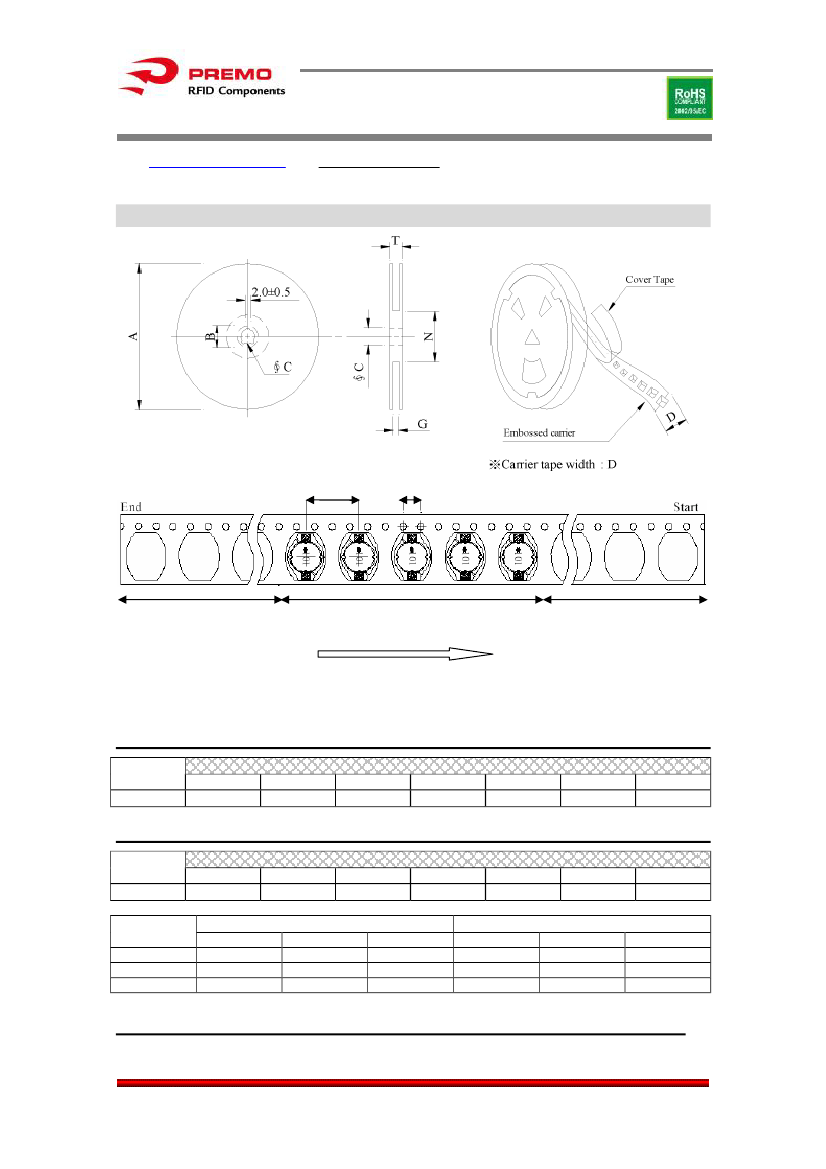

7. Packaging Information
P
4mm
Leader
no component
200 mm min.
Components
Trailer
no component
400 mm min.
User direction of feed
(PN0805
à
P = 12mm) (PN3316
à
P = 16mm) (PN5022
à
P = 20mm)
PN0805 & PN3316
Style
13 – 24
Dimensions [mm]
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
50
-0
T
30.4
PN5022
Style
13 – 32
Dimensions [mm]
A
330
B
21±0.8
C
13±0.5
D
32
G
34
+0
N
100
-0
T
38.4
Series
PN0805
PN3316
PN5022
Inner : Reel
Q’TY(pcs)
800
600
250
G.W.(gw)
880
1,100
1,250
Style
13 – 24
13 – 24
13 – 32
Q’TY(pcs)
3,200
2,400
1,000
Outer : Carton
G.W.(Kg)
4.5
6.6
6.8
Size(cm)
40 x 40 x 24
40 x 40 x 24
40 x 40 x 24
5
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
