PNN5022A
&
PNN5022B
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

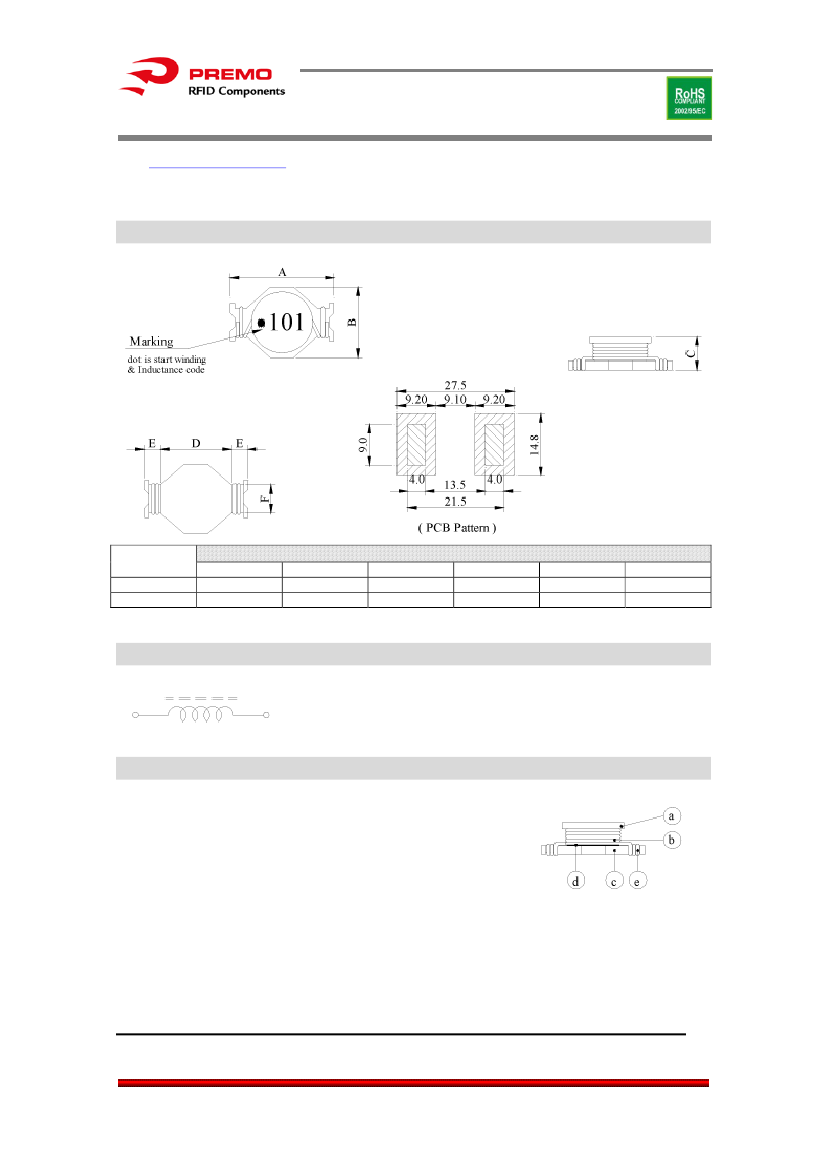

1. Configuration & Dimensions
Series
PNN5022A
PNN5022B
Dimensions [mm]
A
22.0±0.3
22.0±0.3
B
15.0±0.3
15.0±0.3
C
6.8±0.5
7.0±0.4
D(typ.)
15.0
15.0
E(typ.)
2.3
2.3
F(typ.)
8.0
8.0
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR Core
b.- Wire : Enamelled copper wire (class F)
c.- Base : Hitachi phenolic CP-J-8700
d.- Adhesive : Epoxy resin
e.- Terminal : Cu / Sn
f.- Remark : Lead content 200ppm max. include ferrite
1
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.

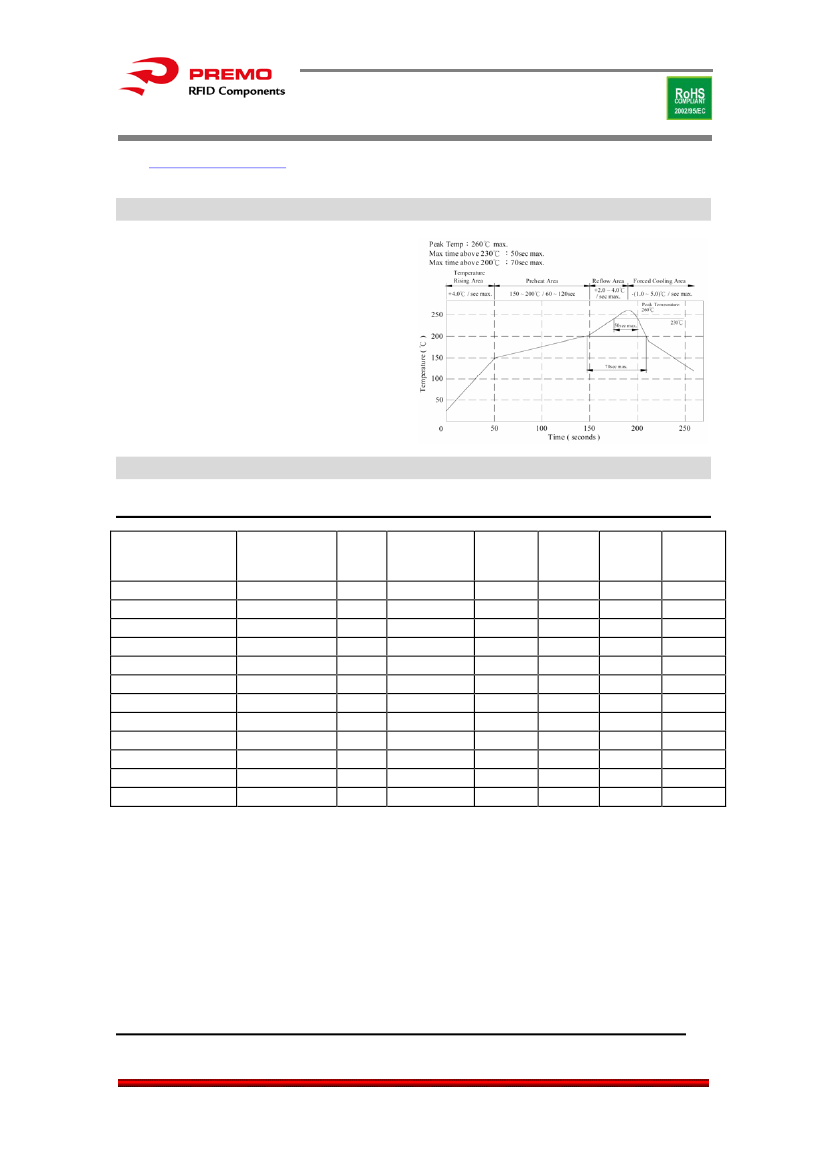

PNN5022A
&
PNN5022B
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
4. General Specification
a.- Temp. rise : 40ºC max.
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp. : -40ºC ~ +105ºC
d.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PNN5022A
(120μH – 1000μH)
DWG No.
PNN5022A – 121K
PNN5022A – 151K
PNN5022A – 181K
PNN5022A – 221K
PNN5022A – 271K
PNN5022A – 331K
PNN5022A – 391K
PNN5022A – 471K
PNN5022A – 561K
PNN5022A – 681K
PNN5022A – 821K
PNN5022A – 102K
Inductance
(μH)
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
1000±10%
Q
ref.
20
19
17
19
22
20
21
25
23
25
25
25
Test Freq.
L,Q
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz)
nom.
5.00
4.87
4.65
3.97
3.37
3.15
3.00
2.55
2.40
2.50
1.97
1.60
RDC
(mΩ)
max.
230
250
300
380
470
560
680
850
1000
1100
1400
1800
Irms
(A)
max.
1.60
1.50
1.30
1.20
1.10
1.00
0.90
0.82
0.78
0.72
0.64
0.56
Ipk
(A)
typ.
3.0
2.6
2.5
2.4
2.2
1.9
1.7
1.4
1.3
1.2
1.1
1.0
2
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN5022A
&
PNN5022B
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

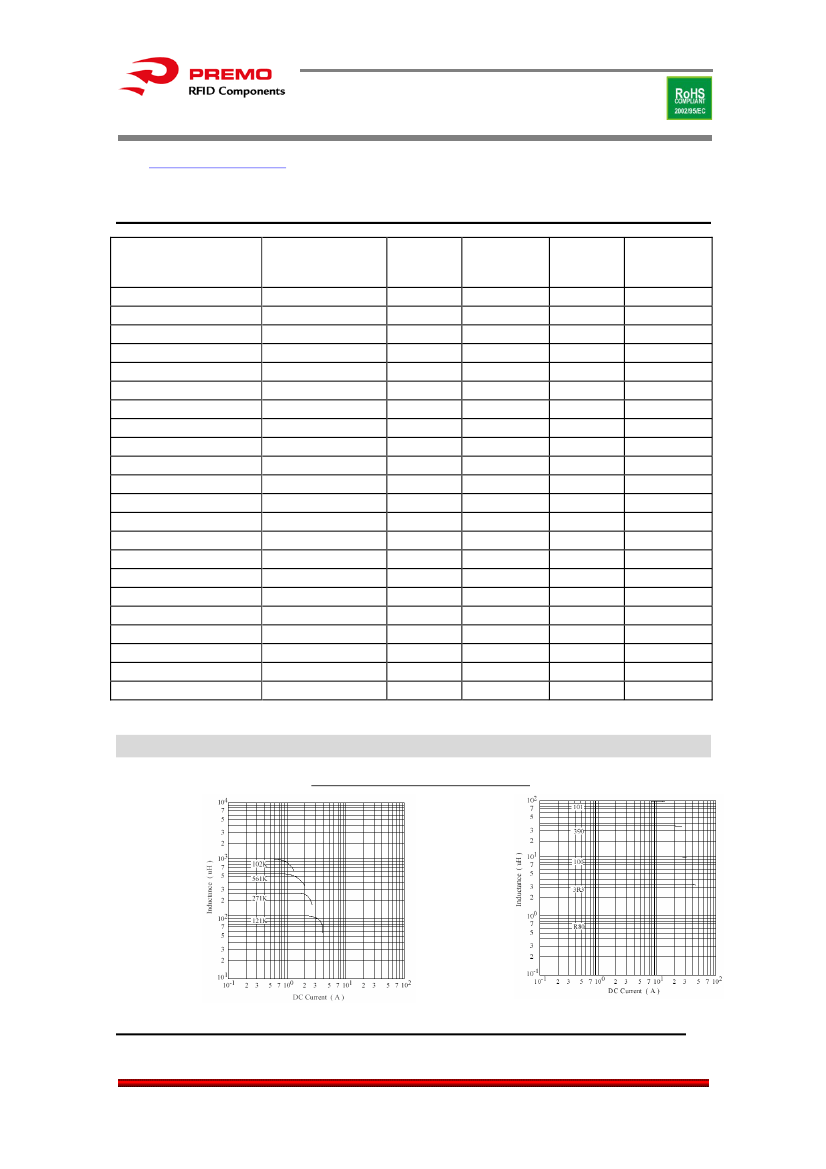

PNN5022B
(0.8μH – 100μH)
DWG No.
PNN5022B – R80M
PNN5022B – 1R2M
PNN5022B – 1R8M
PNN5022B – 2R7M
PNN5022B – 3R3M
PNN5022B – 4R7M
PNN5022B – 5R6M
PNN5022B – 6R8M
PNN5022B – 8R2M
PNN5022B – 100M
PNN5022B – 120L
PNN5022B – 150L
PNN5022B – 180L
PNN5022B – 220L
PNN5022B – 270L
PNN5022B – 330L
PNN5022B – 390K
PNN5022B – 470K
PNN5022B – 560K
PNN5022B – 680K
PNN5022B – 820K
PNN5022B – 101K
Inductance
(μH)
0.80±20%
1.20±20%
1.80±20%
2.70±20%
3.30±20%
4.70±20%
5.60±20%
6.80±20%
8.20±20%
10.00±20%
12.00±15%
15.00±15%
18.00±15%
22.00±15%
27.00±15%
33.00±15%
39.00±10%
47.00±10%
56.00±10%
68.00±10%
82.00±10%
100.00±10%
Test Freq.
L,Q
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
RDC
(mΩ)
±20%
2.3
3.2
4.5
7.0
7.8
8.8
12.4
14.2
15.5
17.2
23.6
28.8
33.0
39.4
43.5
58.4
65.0
91.2
96.5
112.0
144.0
168.0
Irms
(A)
max.
16.0
15.0
13.0
10.0
9.0
8.5
7.8
7.5
7.0
6.5
5.5
5.0
4.6
4.0
3.8
3.4
3.2
2.8
2.6
2.4
2.2
2.0
Isat
(A)
typ.
35.0
30.0
25.0
20.0
17.0
15.0
14.0
12.0
11.0
10.0
9.5
9.0
8.0
6.5
6.0
5.5
5.2
5.0
4.5
4.0
3.5
3.0
[L,Q tested at 0.1V] [Irms base on temp. rise 40ºC max.] [Ipk base on
∆L/L0A
= 10% typ.]
6. Curve
Inductance VS. DC Current Curve
PNN5022A
PNN5022B
3
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN5022A
&
PNN5022B
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
DC Current VS. Temp. Rise Curve
PNN5022A
PNN5022B

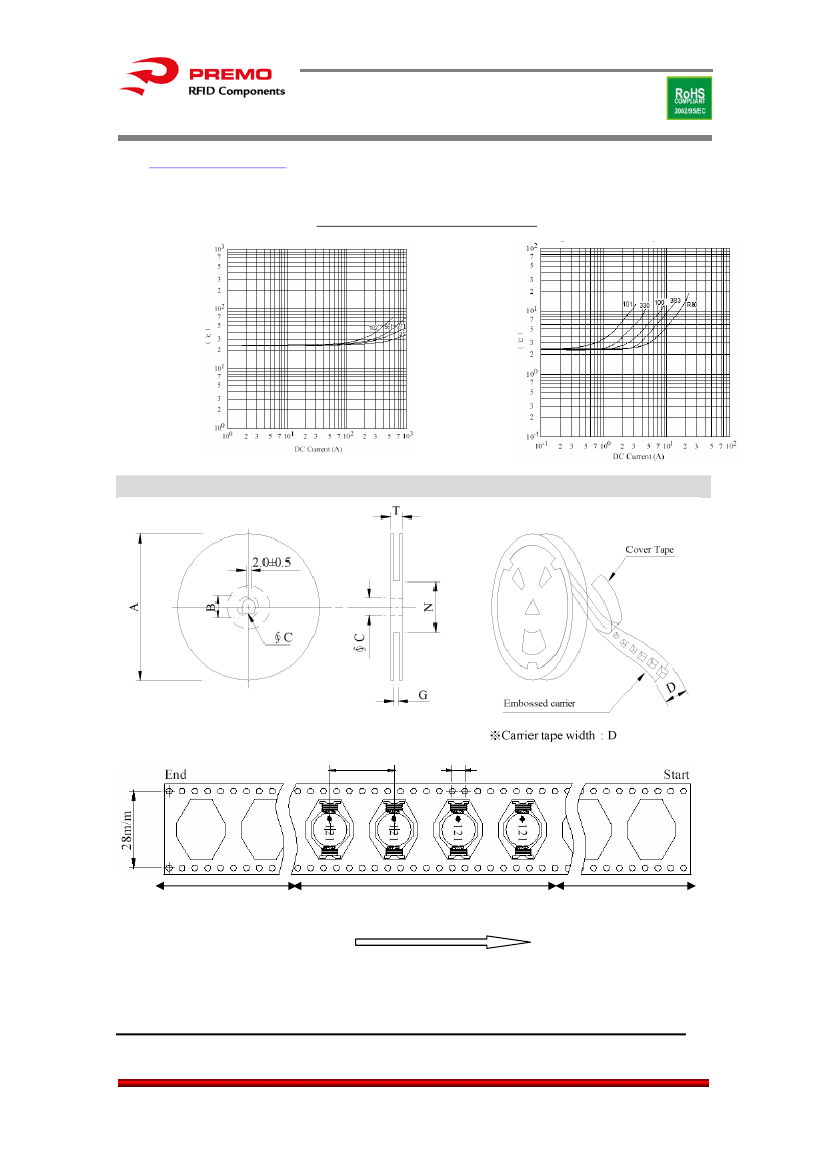

7. Packaging Information
P: 20mm
4mm
Leader
no component
200 mm min.
Components
Trailer
no component
400 mm min.
User direction of feed
4
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN5022A
&
PNN5022B
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
Style
13 – 32
Dimensions [mm]
A
330
B
21±0.8
C
13±0.5
D
32
G
34
+0
N
100
-0
T
38.4
Series
PNN5022A
PNN5022B
Inner : Reel
Q’TY(pcs)
250
250
G.W.(gw)
1,250
1,250
Style
13 – 32
13 – 32
Q’TY(pcs)
1,000
1,000
Outer : Carton
G.W.(Kg)
6.8
6.8
Size(cm)
40 x 40 x 24
40 x 40 x 24
8. Labelling
9. Reliability Test
Test item
Specification
More than 90% of the
terminal electrode
shall be covered
with fresh solder
Test condition
Preheat : 150±25% for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5ºC
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
(Temp. cycle)
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
Temperature : 40±2ºC
Humidity : 90 ~ 95%
Applied current : Per specifications
Time : 500 hours
Temperature : 105±2ºC
Applied current : Per specifications
Time : 500 hours
-25±2ºC
30 minutes
85±2ºC
30 minutes
Humidity
Resistance test
High temp.
Resistance test
5
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
