LFSPXO067367CUTT datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO067367CUTT

LFSPXO067367CUTT: DescriptionCMOS Output Clock Oscillator, 50MHz Nom; CategoryPassive components oscillator; File Size211KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO067367CUTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO067367CUTT	-	-	View	Buy Now

LFSPXO067367CUTT Overview

CMOS Output Clock Oscillator, 50MHz Nom

LFSPXO067367CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.2mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

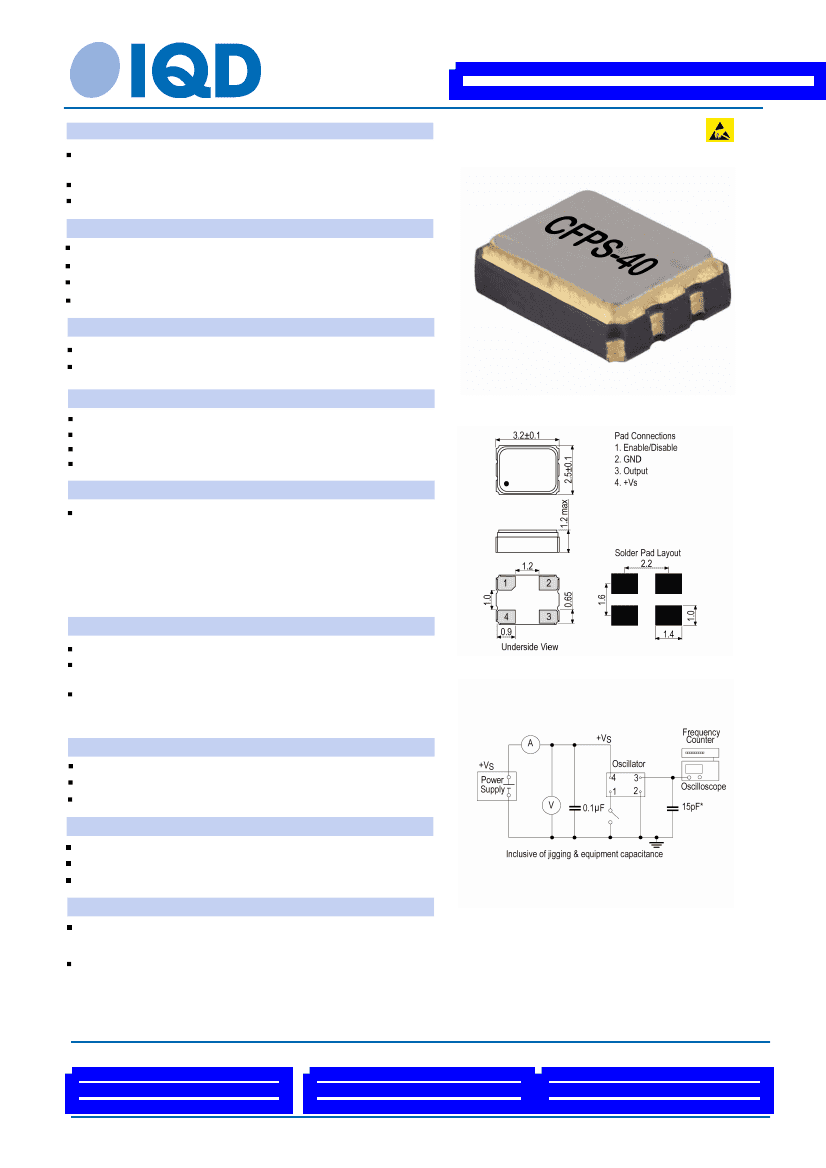

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO067367Cutt

Description

Surface mount 3.2 x 2.5mm crystal oscillator in a hermetically

sealed ceramic package with a seam sealed metal lid.

Model

CFPS-40

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

50.0MHz

±50.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

20.000mA

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Start-Up Time: 10ms max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

Maximum Process Temperature: 260°C (10secs max)

RoHS Terminations

NiAu

RoHS Reflow Temp

260degC 10s

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 14 Jan 19 11:06 using Part Data Sheet V1.00015
