8T26A/BEA datasheet, PDF - EEWORLD Datasheet

8T26A/BEA: DescriptionBus Transceiver, 8T Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16; Categorylogic logic; File Size181KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

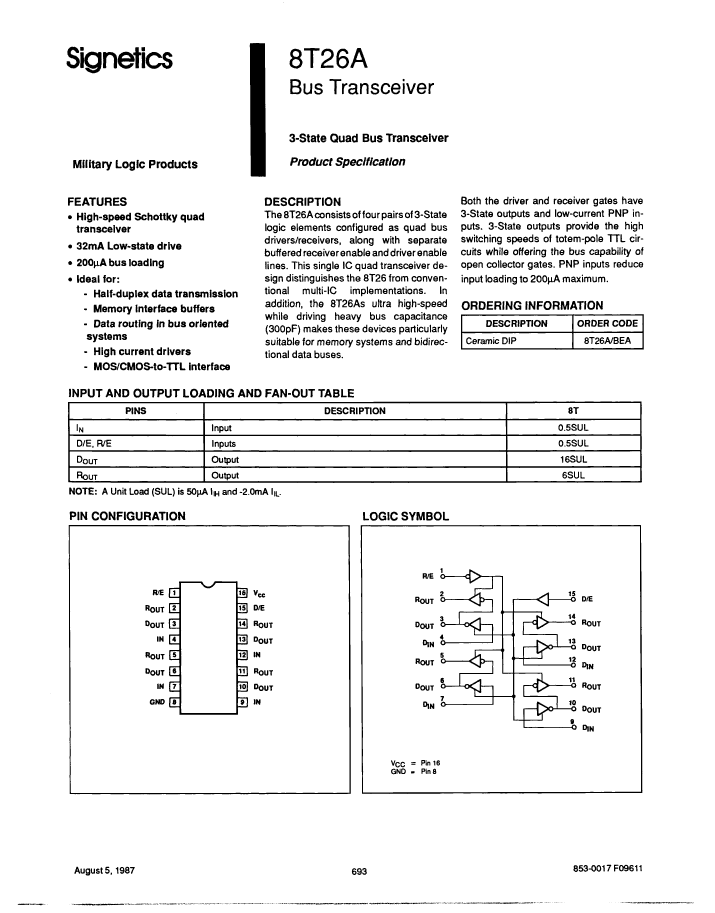

8T26A/BEA Overview

Bus Transceiver, 8T Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP16

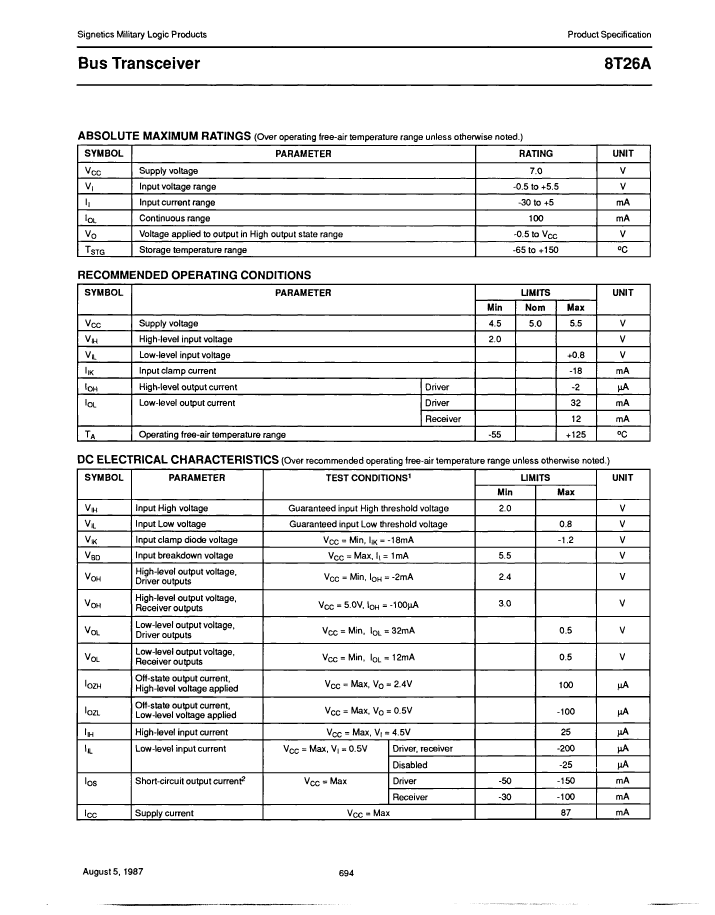

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	WITH DESIGNATED SEND AND RECEIVE
series	8T
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	87 mA

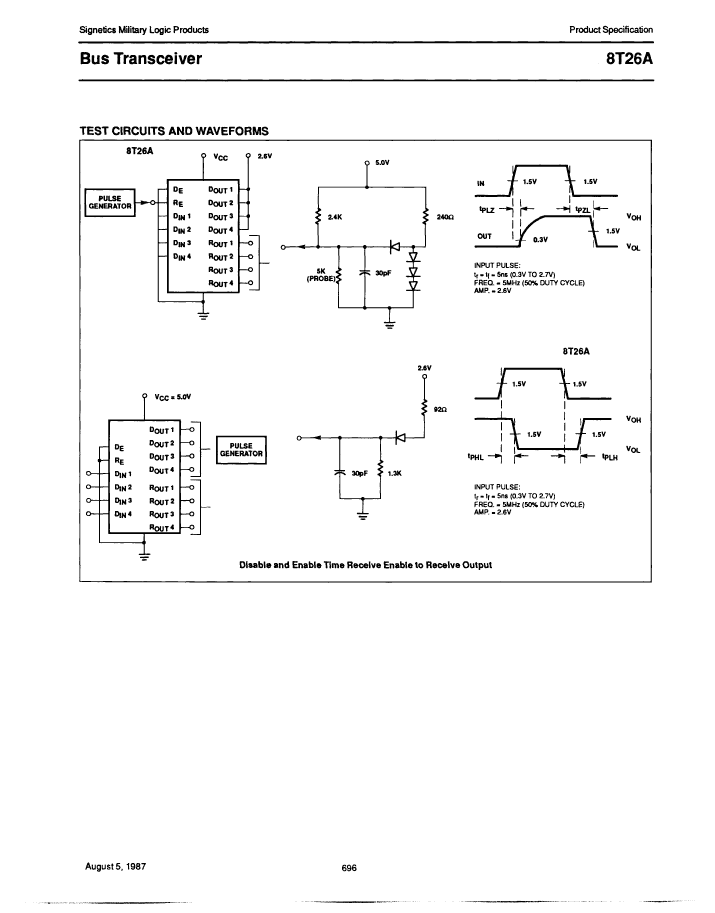

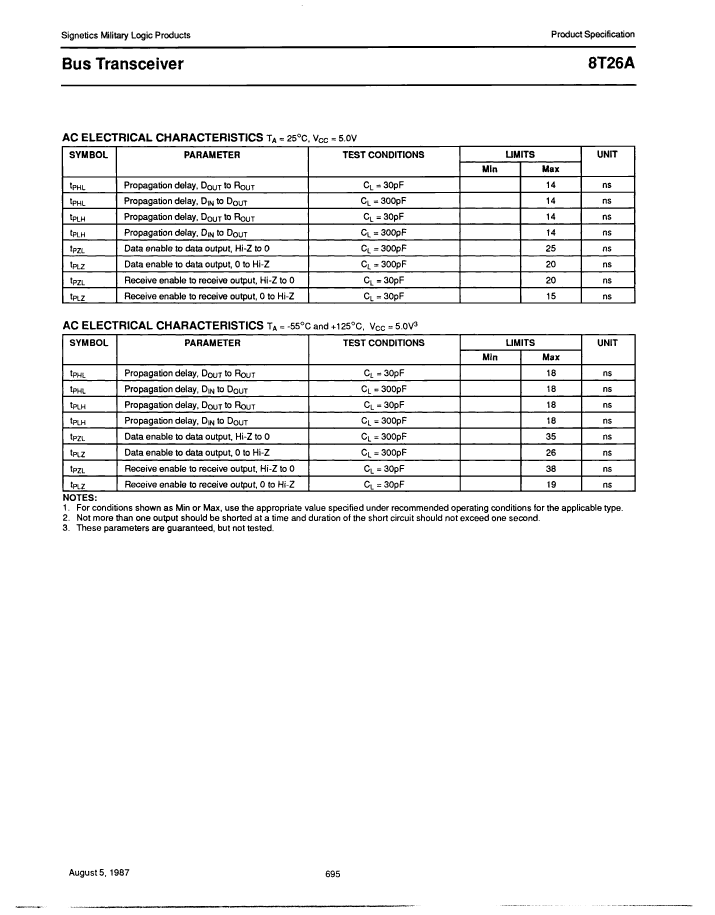

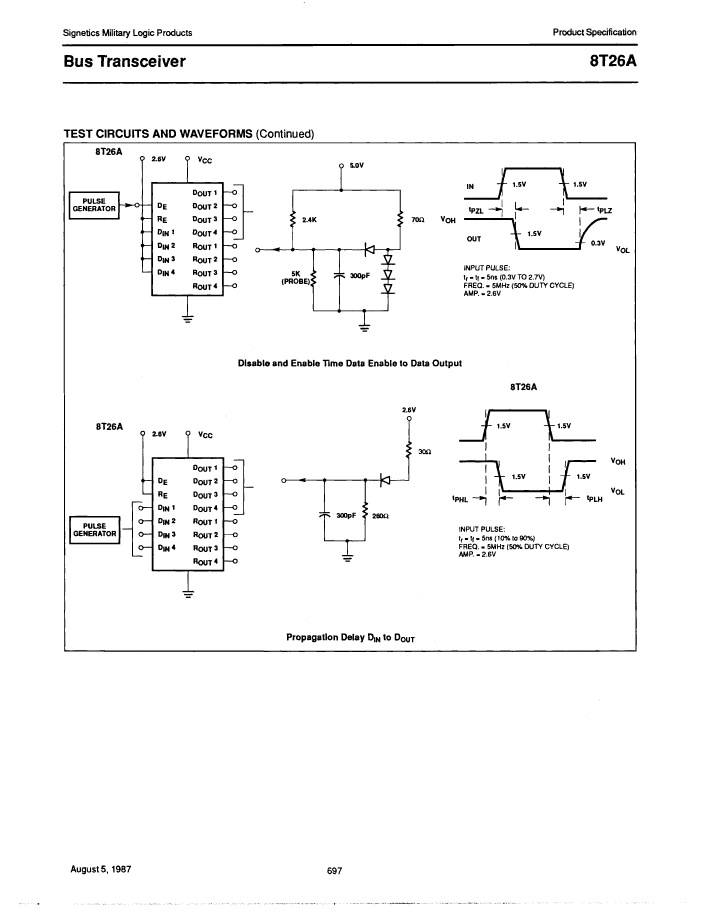

propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1
