PS0603
&
PS0604
SMD
Power
Inductors
Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com

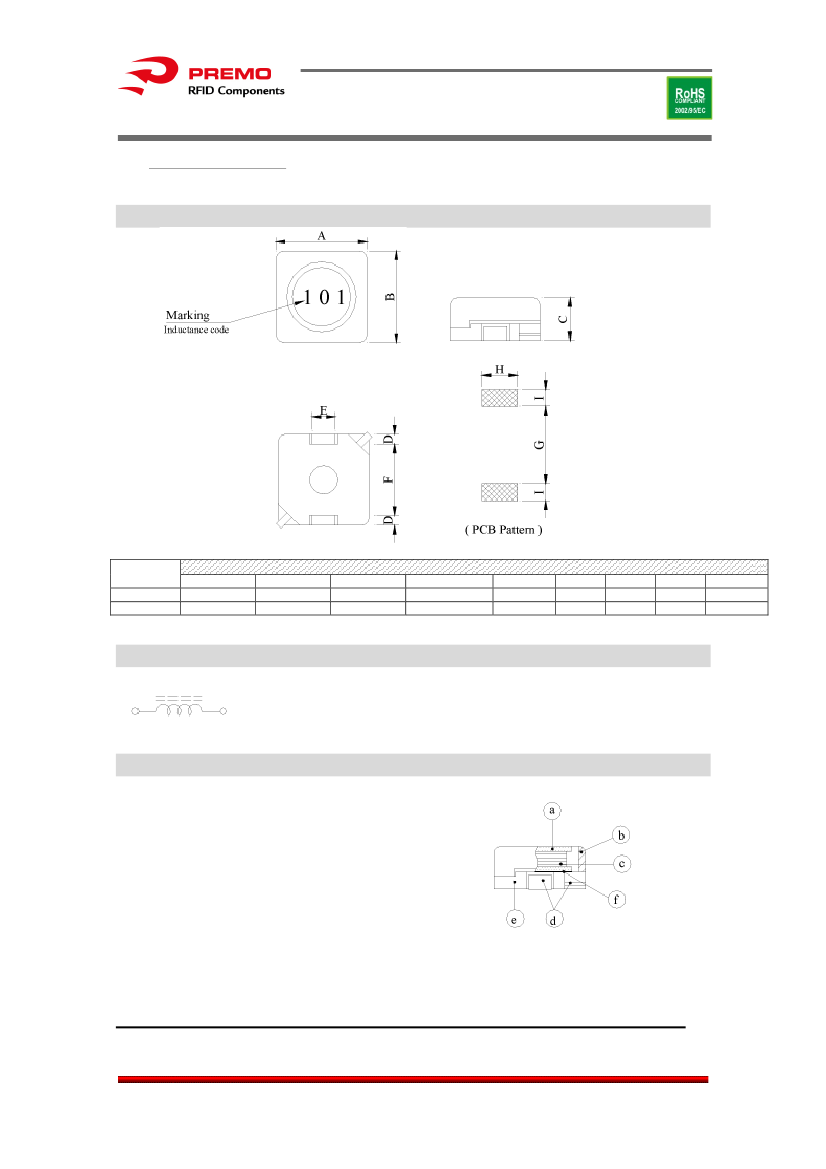

1. Configuration & Dimensions
Series
PS0603
PS0604
Dimensions [mm]
A
6.5±0.30
6.5±0.30
B
6.5±0.30
6.5±0.30
C
3.1±0.30
4.6±0.30
D
0.8(+0.2/-0.3)
0.8(+0.2/-0.3)
E
1.6±0.2
1.6±0.2
F(typ.)
5.0
5.0
G(ref.)
4.3
4.3
H(ref.)
2.5
2.5
I(ref.)
1.5
1.5
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR core
b.- Core : Ferrite RI core
c.- Wire : Enamelled copper wire (class F)
d.- Base : LCP E4008
e.- Adhesive : Epoxy resin
f.- Terminal : Cu / Ni / Sn
1
SMD
Power
Inductors
P R E M O
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0603
&
PS0604
SMD
Power
Inductors
Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com

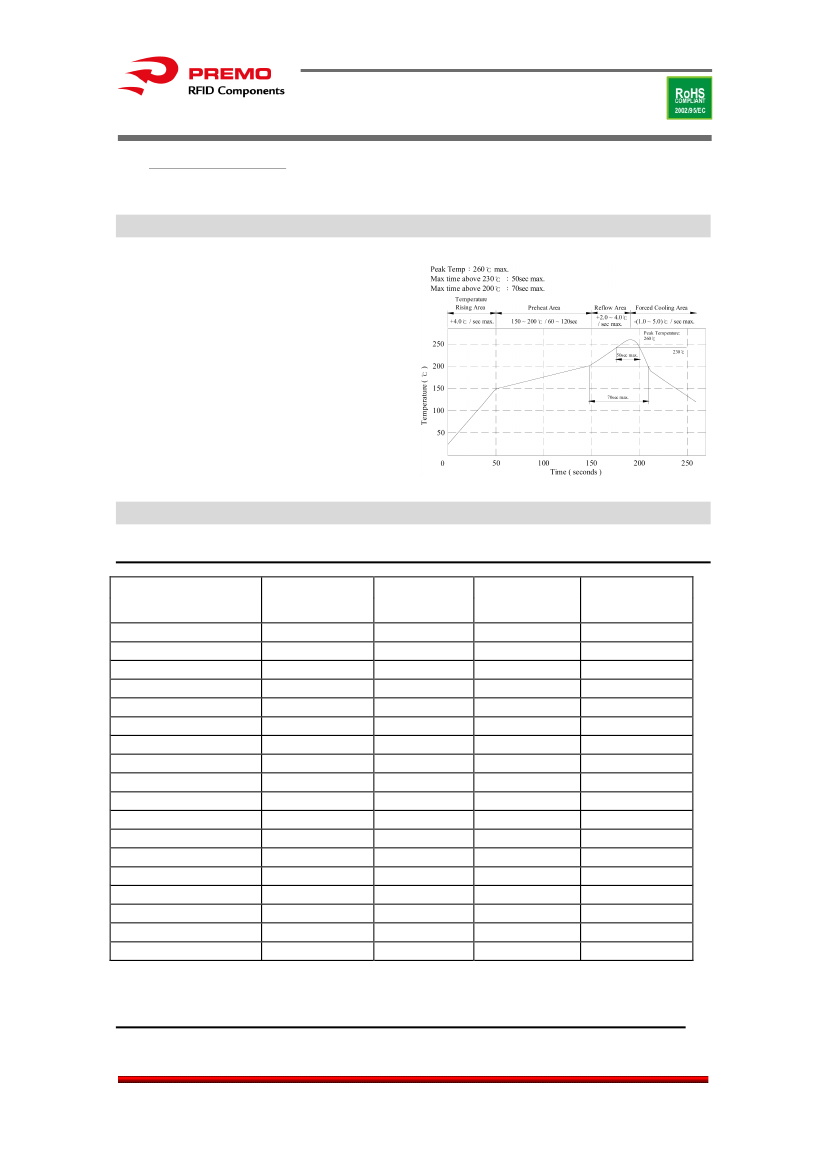

4. General Specification
a.- Temp. rise : 40ºC max.
b.- Rated current : Base on temp. rise
&
∆L/L0A
= 10% max.
c.- Storage temp. : -40ºC ~ +125ºC
d.- Operating temp. : -40ºC ~ +105ºC
e.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PS0603
(1.5µH
–
1000µH)
DWG No.
PS0603 – 1R5M
PS0603 – 2R5M
PS0603 – 3R3M
PS0603 – 4R7M
PS0603 – 6R8M
PS0603 – 100M
PS0603 – 150M
PS0603 – 220M
PS0603 – 330K
PS0603 – 470K
PS0603 – 680K
PS0603 – 101K
PS0603 – 151K
PS0603 – 221K
PS0603 – 331K
PS0603 – 471K
PS0603 – 681K
PS0603 – 102K
Inductance
(µH)
1.5±20%
2.5±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±10%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Test Freq.
L
(KHz)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RDC
(Ω)
max.
0.032
0.040
0.055
0.070
0.100
0.120
0.180
0.270
0.430
0.550
0.900
1.500
1.900
2.700
4.200
6.700
10.500
14.000
IDC
(A)
max.
2.20
2.00
1.80
1.60
1.20
1.10
0.90
0.70
0.60
0.50
0.40
0.30
0.25
0.20
0.18
0.15
0.12
0.10
2
SMD
Power
Inductors
P R E M O
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0603
&
PS0604
SMD
Power
Inductors
Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com
PS0604
(1.5µH
–
1000µH)
DWG No.
PS0604 – 1R5M
PS0604 – 2R5M
PS0604 – 3R3M
PS0604 – 4R7M
PS0604 – 6R8M
PS0604 – 100M
PS0604 – 150M
PS0604 – 220M
PS0604 – 330K
PS0604 – 470K
PS0604 – 680K
PS0604 – 101K
PS0604 – 151K
PS0604 – 221K
PS0604 – 331K
PS0604 – 471K
PS0604 – 681K
PS0604 – 102K
Inductance
(µH)
1.5±20%
2.5±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±10%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Test Freq.
L
(KHz)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RDC
(Ω)
max.
0.028
0.035
0.050
0.060
0.070
0.120
0.130
0.190
0.250
0.360
0.520
0.650
1.000
1.700
2.100
3.300
4.800
6.100
IDC
(A)
max.
2.80
2.50
2.30
2.00
1.60
1.30
1.10
0.90
0.70
0.60
0.50
0.40
0.30
0.25
0.20
0.18
0.15
0.12

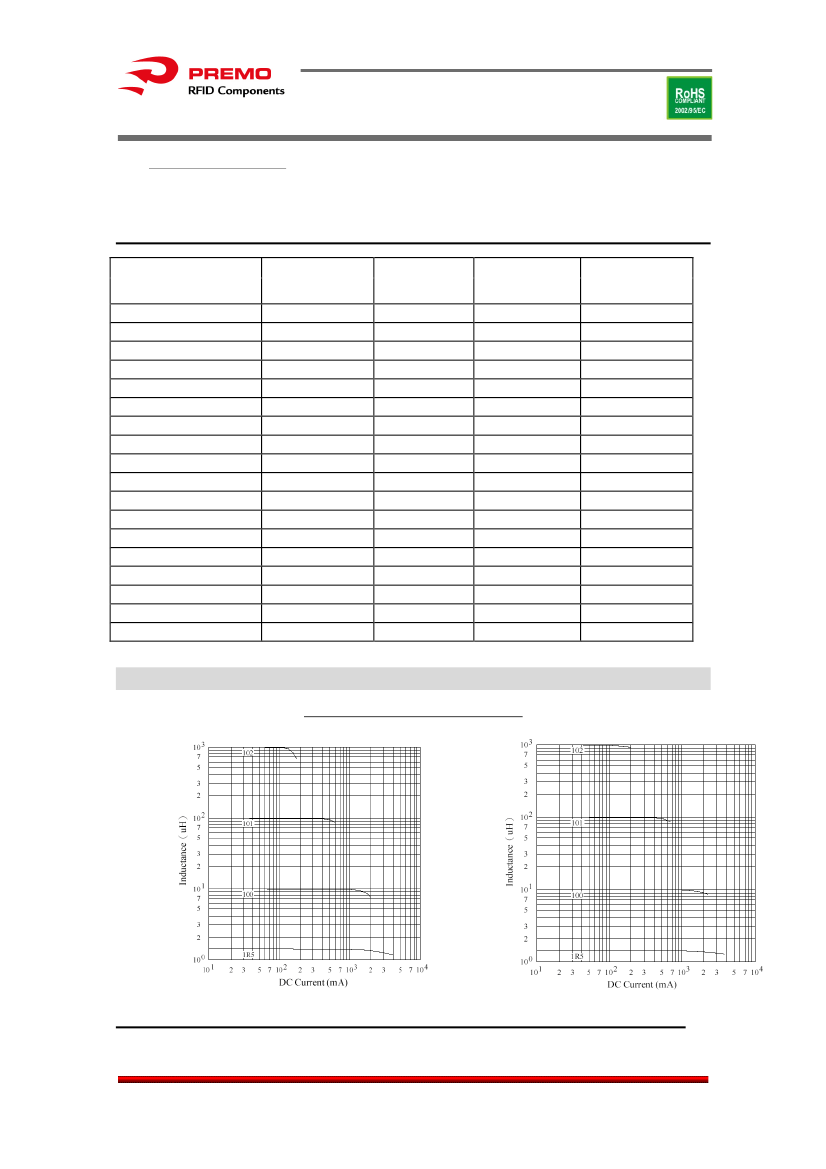

6. Curve
Inductance VS. DC Current Curve
PS0603
PS0604
3
SMD
Power
Inductors
P R E M O
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0603
&
PS0604
SMD
Power
Inductors
Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com
7. Packaging Information
P : 12mm
4mm
Leader
no component
200 mm min.
Components
Trailer
no component
400 mm min.
User direction of feed
Style
13 – 16
Dimensions [mm]
A
330
B
21±0.8
C
13
D
16
G
18
+0
N
50
-0
T
22.4
Series
PS0603
PS0604
Inner : Reel
Q’TY(pcs)
1,000
1,000
G.W.(gw)
860
1,000
Style
13 – 16
13 – 16
Q’TY(pcs)
6,000
6,000
Outer : Carton
G.W.(Kg)
9.5
10.5
Size(cm)
40 x 40 x 24
40 x 40 x 24
4
SMD
Power
Inductors
P R E M O
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0603
&
PS0604
SMD
Power
Inductors
Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com
8. Labelling
9. Reliability Test
Test item
Specification
More than 90% of the
terminal electrode
shall be covered
with fresh solder
Test condition
Preheat : 150±25% for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5ºC
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
(Temp. cycle)
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
Temperature : 40±2ºC
Humidity : 90 ~ 95%
Applied current : Per specifications
Time : 500 hours
Temperature : 105±2ºC
Applied current : Per specifications
Time : 500 hours
-25±2ºC
30 minutes
85±2ºC
30 minutes
Humidity
Resistance test
High temp.
Resistance test
10. Edition Control
5
SMD
Power
Inductors
P R E M O
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
