PS1608
&
PS4530
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

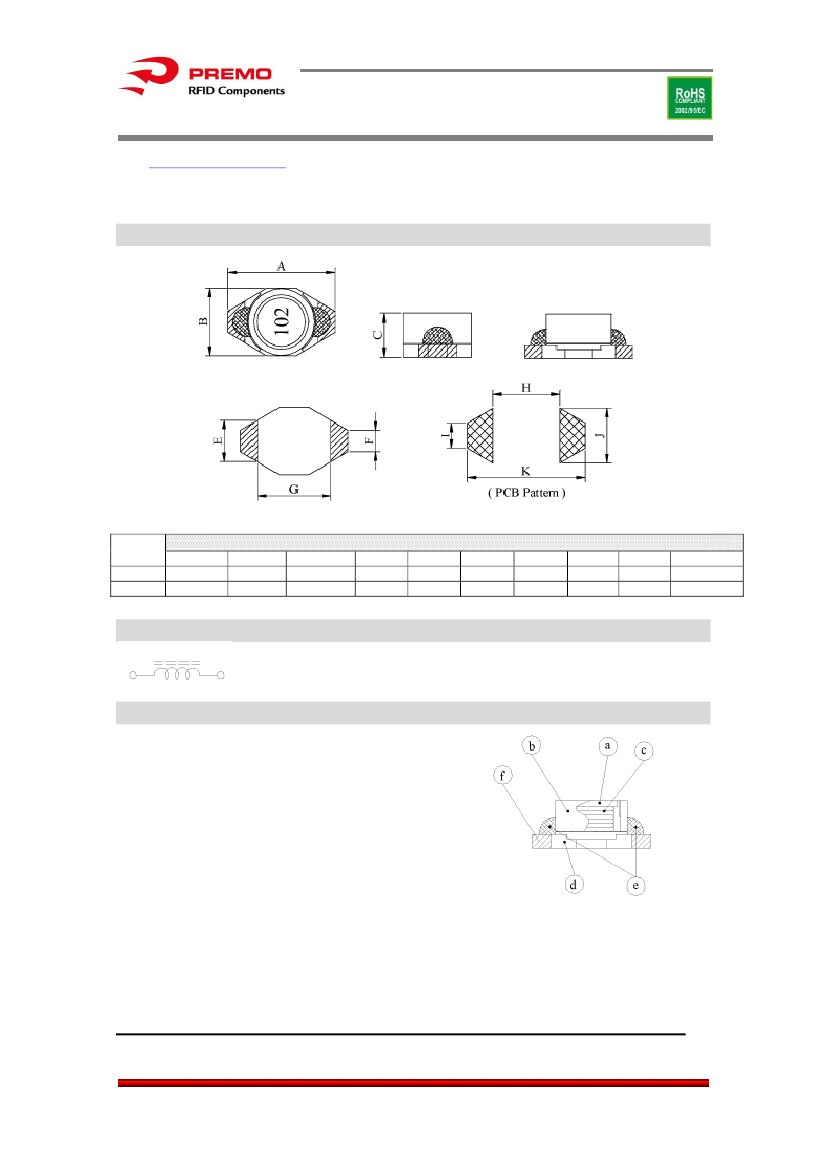

1. Configuration & Dimensions
Series
PS1608
PS4530
Dimensions [mm]
A
6.50±0.2
6.50±0.2
B(max.)
4.40
4.40
C
2.90±0.15
3.05 max.
E(ref.)
2.50
2.50
F(ref.)
1.24
1.24
G(ref.)
4.45
4.45
H(ref.)
4.10
4.10
I(ref.)
1.60
1.60
J(ref.)
3.00
3.00
K(ref.)
7.00
7.00
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR core
b.- Core : Ferrite RI core
c.- Wire : Enamelled copper wire (class F)
d.- Base : Ceramic
e.- Adhesive : Epoxy resin
f.- Terminal : Mo / Mn / Ni / Au
g.- Remark : Lead content 200ppm max. include ferrite
1
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS1608
&
PS4530
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

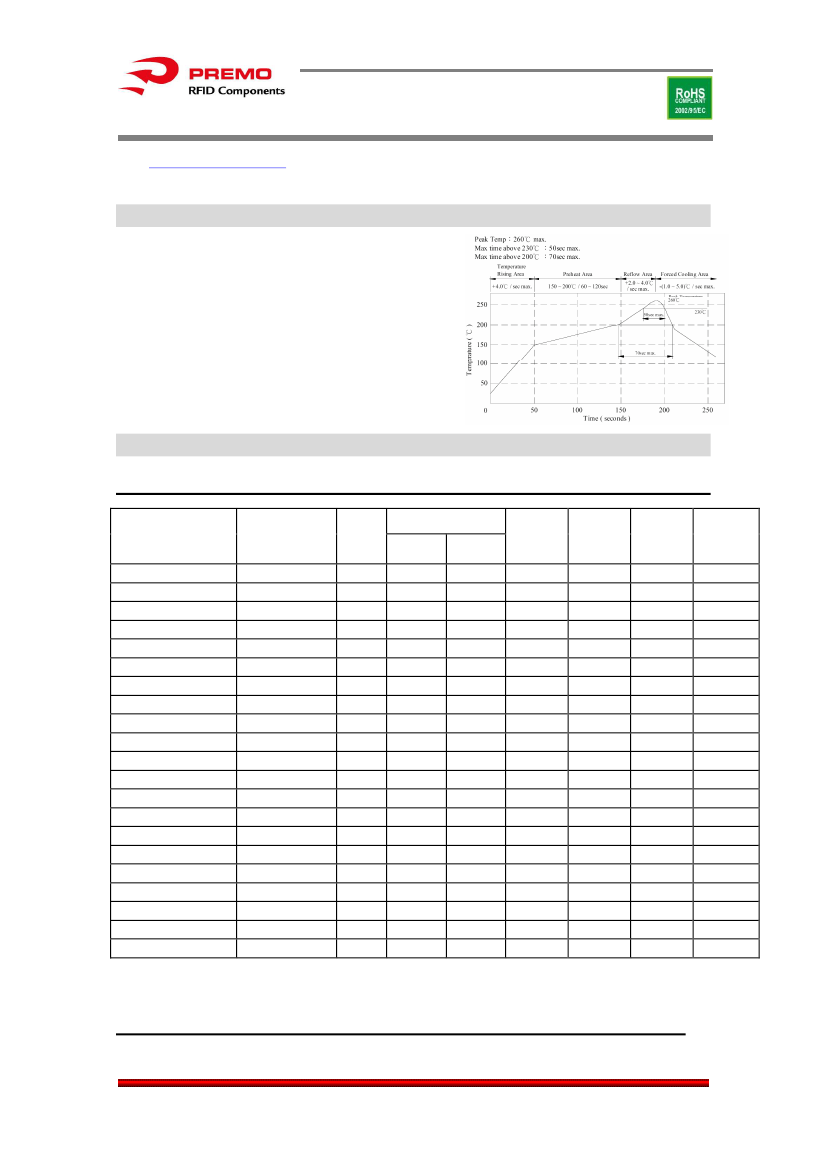

4. General Specification
a.- Temp. rise : 30ºC max.
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp. : -40ºC ~ +105ºC
d.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PS1608
(1µH – 10000µH)
Test Freq.
DWG No.
PS1608 – 1R0M
PS1608 – 1R5M
PS1608 – 2R2M
PS1608 – 3R3M
PS1608 – 4R7M
PS1608 – 6R8M
PS1608 – 100M
PS1608 – 150M
PS1608 – 220M
PS1608 – 330M
PS1608 – 470M
PS1608 – 680M
PS1608 – 101M
PS1608 – 151M
PS1608 – 221M
PS1608 – 331M
PS1608 – 471M
PS1608 – 681M
PS1608 – 102M
PS1608 – 152M
PS1608 – 222M
Inductance
(µH)
µ
1.0±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±20%
150.0±20%
220.0±20%
330.0±20%
470.0±20%
680.0±20%
1000.0±20%
1500.0±20%
2200.0±20%
Q
min.
10
20
25
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
50
50
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
(KHz)
500
500
500
200
200
200
200
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz)
nom.
250
125
120
120
105
50
38
33
25
20
20
15
10
9
6
5
4
3
2
2
2
RDC
(Ω)
Ω
max.
0.040
0.045
0.050
0.055
0.060
0.065
0.075
0.090
0.110
0.190
0.230
0.290
0.480
0.590
0.770
1.400
1.800
2.200
3.400
4.200
8.500
Irms
(A)
max.
3.000
2.800
1.800
1.600
1.400
1.200
1.000
0.800
0.700
0.600
0.500
0.400
0.300
0.260
0.220
0.200
0.190
0.180
0.150
0.120
0.100
Isat
(A)
typ.
1.200
0.920
0.800
0.620
0.500
0.400
0.320
0.260
0.240
0.160
0.140
0.120
0.100
0.080
0.070
0.050
0.045
0.040
0.028
0.024
0.020
2
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS1608
&
PS4530
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PS1608
(1µH – 10000µH)
PS1608 – 332M
PS1608 – 472M
PS1608 – 682M
PS1608 – 103M
3300.0±20%
4700.0±20%
6800.0±20%
10000.0±20%
50
50
50
50
100
100
100
100
100
100
100
100
1
1
1
0.8
11.000
13.900
25.000
32.800
0.080
0.060
0.040
0.020
0.018
0.014
0.012
0.010
PS4530
(1000µH – 10000µH)
DWG No.
Inductance
(µH)
µ
1000±20%
1500±20%
2200±20%
3300±20%
4700±20%
6800±20%
10000±20%
Q
min.
50
50
50
50
50
50
50
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
Insulation
(M )
Core - Winding
> 10
> 10
> 10
> 10
> 10
> 10
> 10
SRF
(MHz)
typ.
2.0
1.0
1.0
1.0
1.0
0.9
0.8
RDC
( )
max.
9
11
19
24
30
56
74
IDC
(mA)
max.
100
80
50
40
30
20
10
PS4530 – 102M
PS4530 – 152M
PS4530 – 222M
PS4530 – 332M
PS4530 – 472M
PS4530 – 682M
PS4530 – 103M
[Inductance tested at 0.1V] [Irms base on temp. rise 30ºC] [Isat base on
∆L/L0A
= 10 %] [Electrical Specifications at 25ºC]

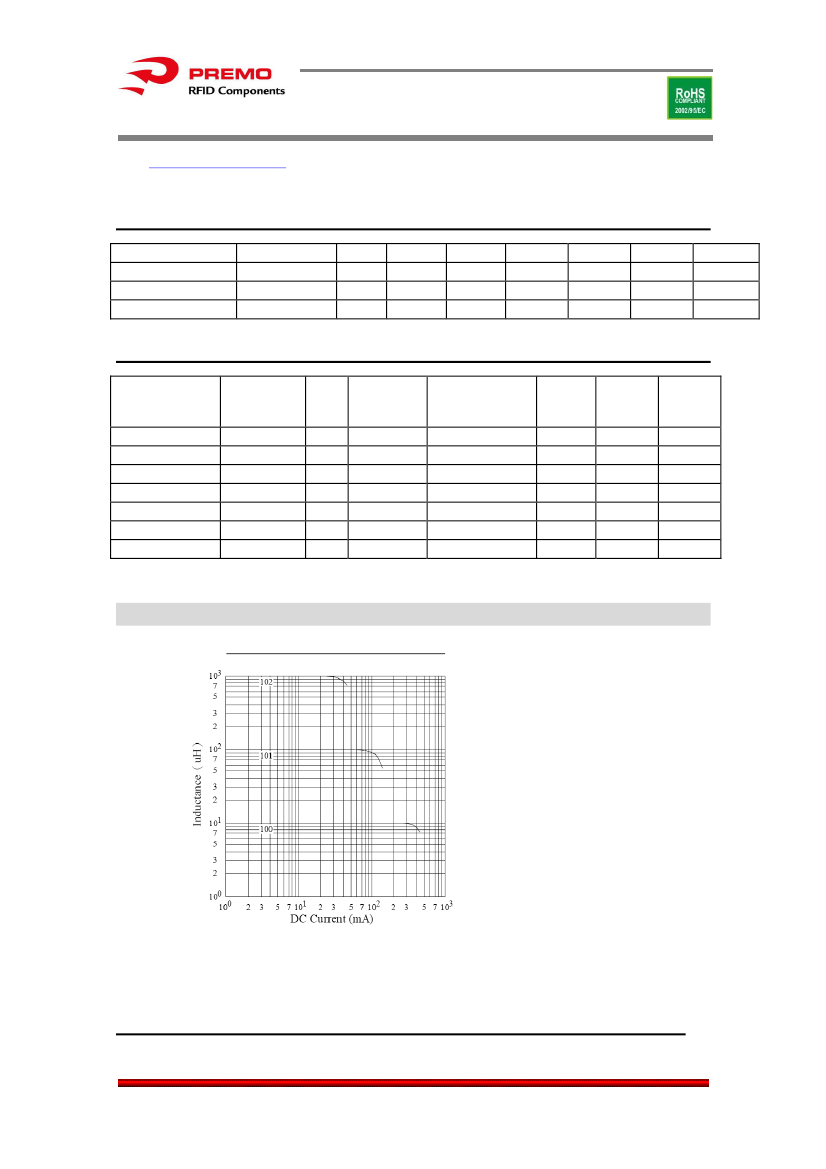

6. Curve
Inductance VS. DC Current Curve
PS1608
3
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS1608
&
PS4530
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

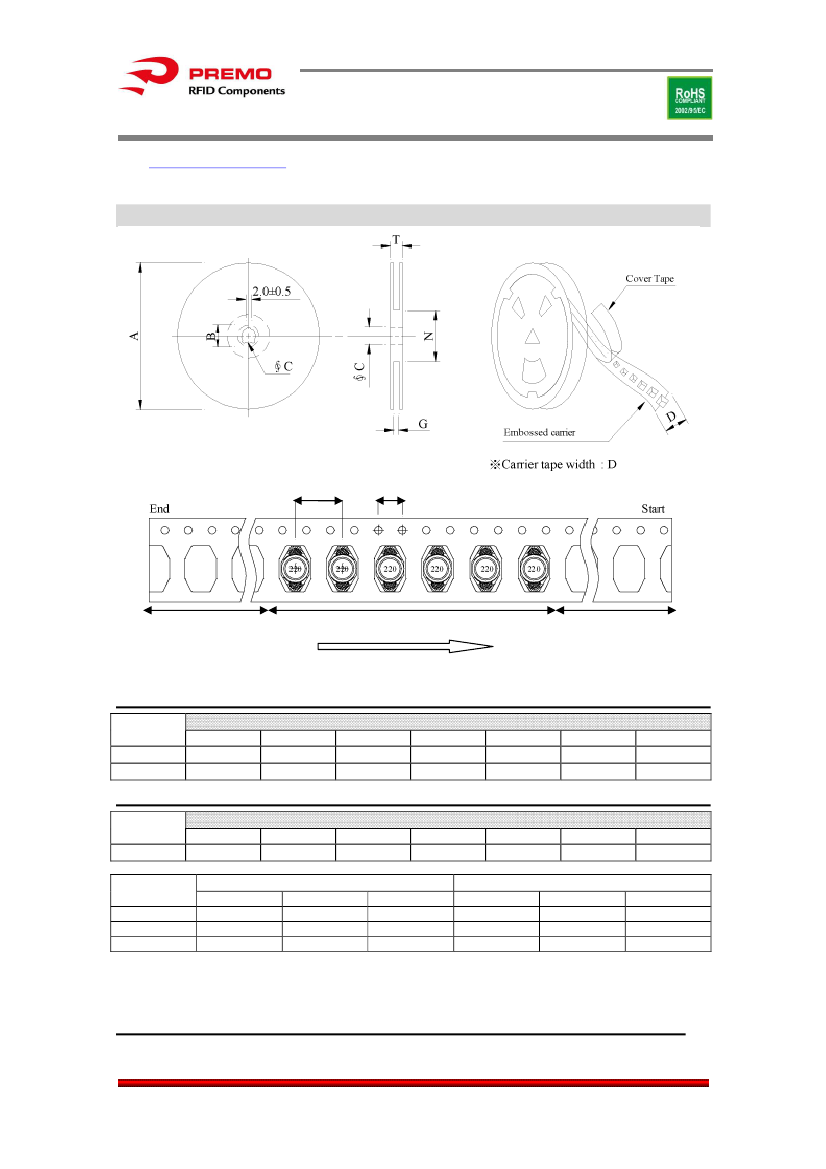

7. Packaging Information
P: 8mm
4mm
Leader
no component
160 mm min.
Components
Trailer
no component
400 mm min.
User direction of feed
PS1608
Style
07 – 12
13 – 12
Dimensions [mm]
A
178
330
B
21±0.8
21±0.8
C
13
13±0.5
D
12
12
G
14
+0
14
+0
N
50
-0
50
-0
T
16.5
18.4
PS4530
Style
07 – 12
Dimensions [mm]
A
178
B
21±0.8
C
13
D
12
G
14
+0
N
50
-0
T
16.5
Series
PS1608
PS1608
PS4530
Inner : Reel
Q’TY(pcs)
600
2,500
600
G.W.(gw)
250
1,050
250
Style
07 – 12
13 – 12
07 – 12
Q’TY(pcs)
24,000
20,000
24,000
Outer : Carton
G.W.(Kg)
10.5
8.5
8.0
Size(cm)
42 x 41 x 24
40 x 40 x 24
42 x 41 x 24
4
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS1608
&
PS4530
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

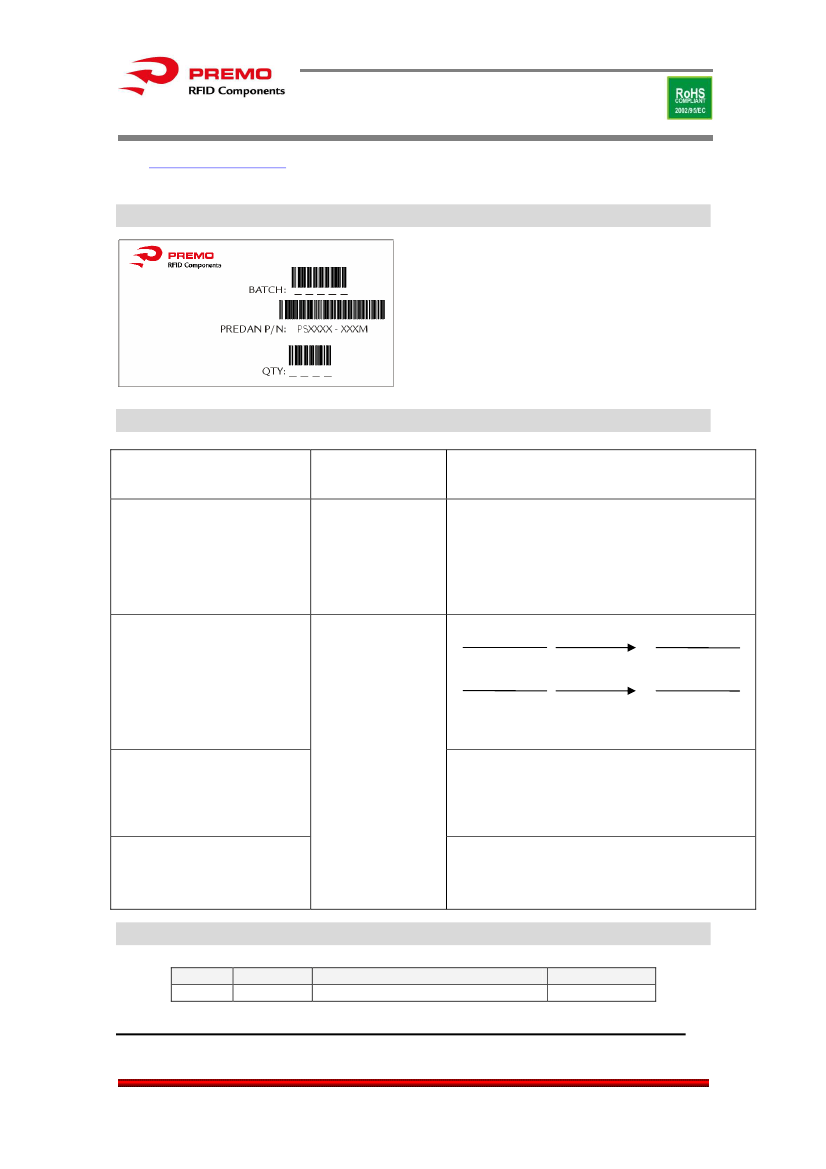

8. Labelling
9. Reliability Test
Test item
Specification
More than 90% of the
terminal electrode
shall be covered
with fresh solder
Test condition
Preheat : 150±25% for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5ºC (PS1608)
260±5ºC (PS4530)
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
(Temp. cycle)
Inductance shall
not change more
than ±30%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-25±2ºC
30 minutes
85±2ºC
30 minutes
Humidity
Resistance test
Temperature : 40±2ºC
Humidity : 90 ~ 95%
Applied current : Per specifications
Time : 500 hours
High temp.
Resistance test
Temperature : 105±2ºC
Applied current : Per specifications
Time : 500 hours
10. Edition Control
Edition
1
st
Date
31/08/06
Change description
Update Specification
Made by
Pablo Pozo
5
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
