Datasheet> All Categories > Thermal management products> Heat resisting bracing> 531002B02500G

Preview

531002B02500G: DescriptionHeat Sink, 13.4ohm, Extruded, U, Radial, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size205KB，3 Pages; ManufacturerBoyd Corporation; Environmental Compliance

Download Datasheet Parametric View All

531002B02500G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	531002B02500G	-	-	View	Buy Now

531002B02500G Overview

Heat Sink, 13.4ohm, Extruded, U, Radial, Aluminum, Anodized, ROHS COMPLIANT

531002B02500G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Boyd Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Main material	ALUMINUM
color	BLACK
structure	EXTRUDED
fin direction	RADIAL
Surface layer	ANODIZED
high	25.4 mm
length	34.92 mm
contour	U
Thermal resistance	13.4 Ω
Heat Resistant Support Device Type	HEAT SINK
width	12.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5/17/12

531002B02500G - Board level heatsinks

Tel (toll-free): +1-855-32-AAVID

Register

Log in

Search

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

»

Board Level Products

531002B02500G

TO-220, TO-220-single gauge (0.020")

Qty in stock:

Enter QTY:

View Price

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

32,899

»

Help Page

Check Stock

Enter a part number for

pricing and availability.

go!

Extruded heat sink with radial fins and notched base and solderable pins

This non-electronic component is functionally unaffected by the normal soldering or reflow

processes used for semiconductor circuits. The heat resistance time or heat resistance

temperature is not applicable for the component.

Cross Reference: 6098B

Height: 25.40

Mount Orientation: Vertical

Finish: Black Anodize

RoHS: compliant

Download PCN

Thermal Resistance: 13.40

»

Product Return Policy

»

Terms & Conditions

»

Privacy Policy

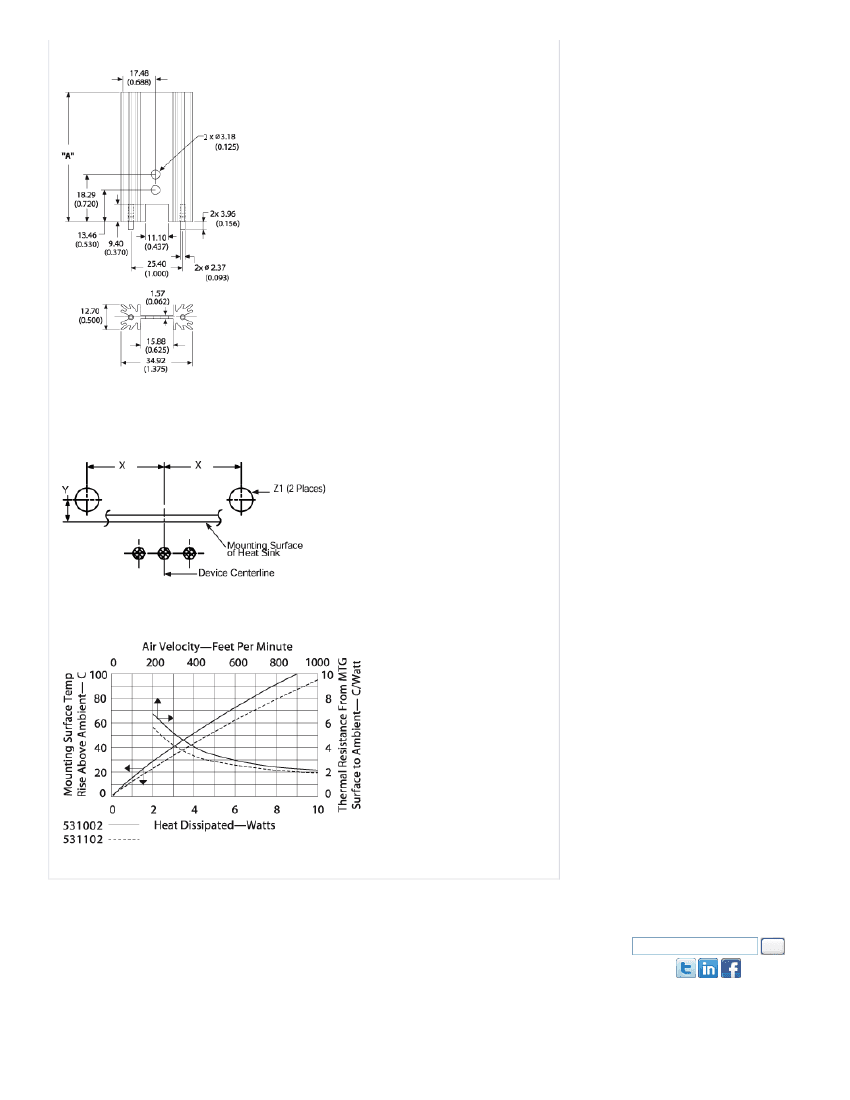

Additional Drawing Dimensions:

A Dim: 25.4

https://www.aavid.com/products/standard/531002b02500g

1/3
