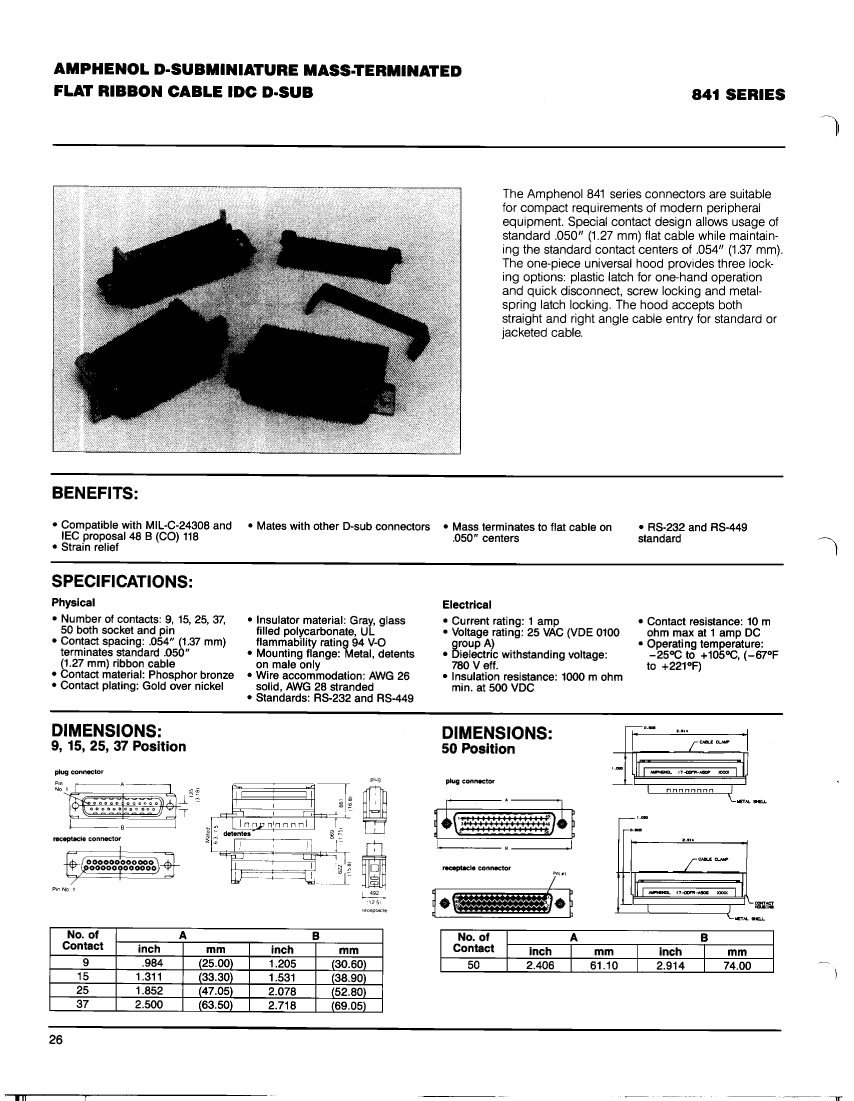

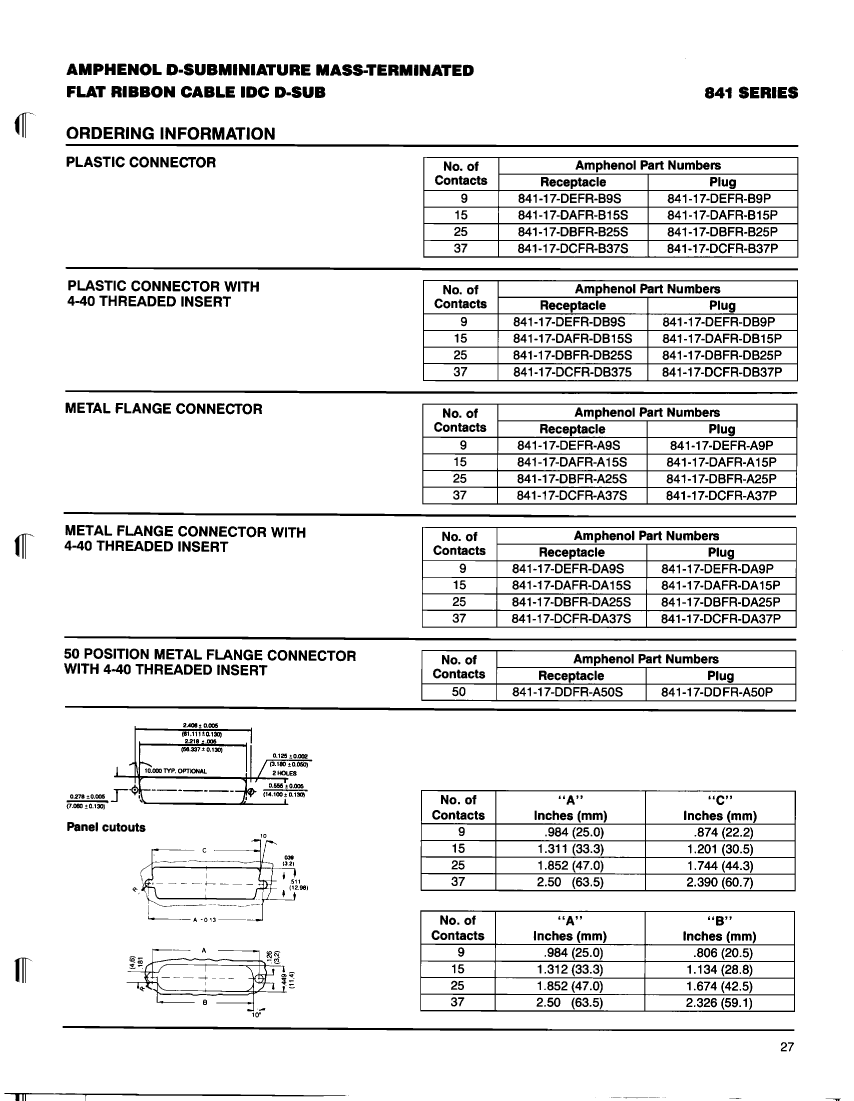

841-17-DBFR-DB25S datasheet, PDF

841-17-DBFR-DB25S: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size236KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

841-17-DBFR-DB25S Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle,

Parameter Name	Attribute value
Objectid	1442127639
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.43
Other features	LATCHED
body width	0.492 inch
subject depth	0.622 inch
body length	2.078 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	780VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYCARBONATE
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	TIN
Housing size	3/B
Termination type	IDC
Total number of contacts	25
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
