8609-232-61-13-758-000-E2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8609-232-61-13-758-000-E2

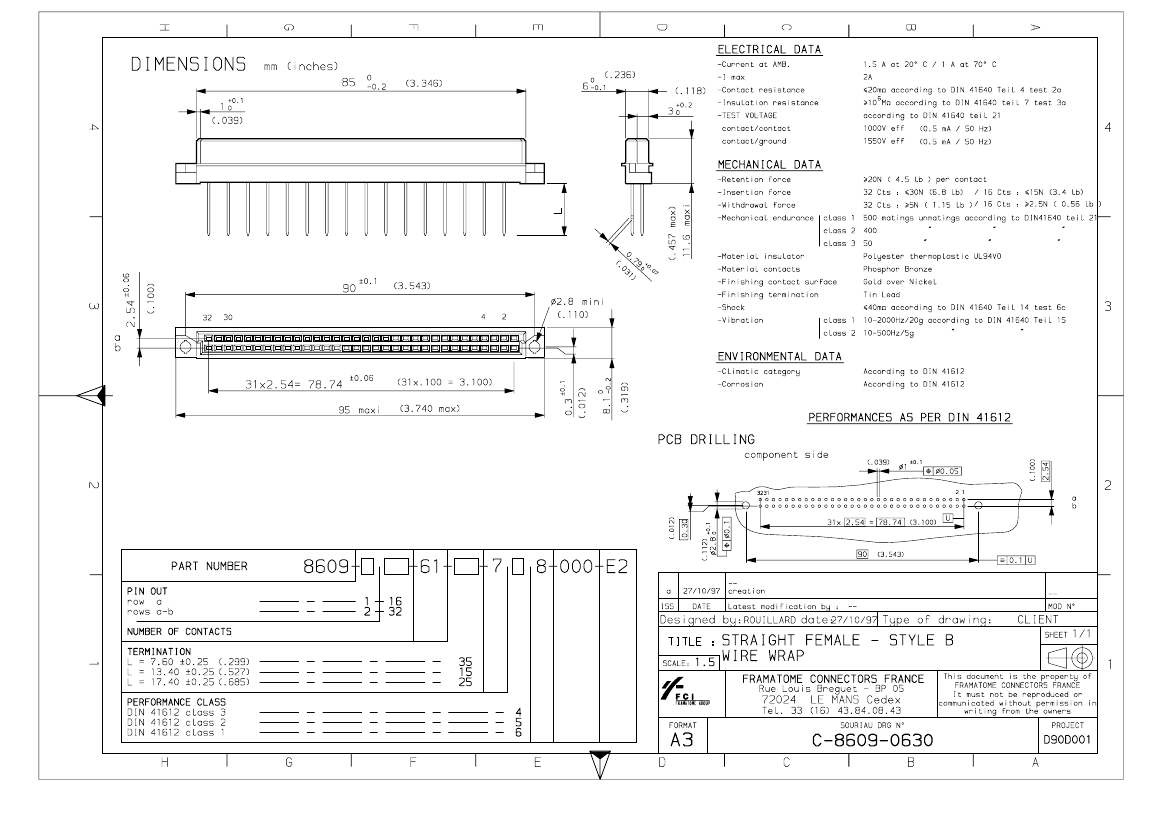

8609-232-61-13-758-000-E2: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-232-61-13-758-000-E2 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal,

8609-232-61-13-758-000-E2 Parametric

Parameter Name	Attribute value
Objectid	1600591197
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.7
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	WIRE WRAP
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Sep 30, 2005

8609-232-61-13-758-000-E2 Related Products

	8609-232-61-13-758-000-E2	8609-232-61-25-758-000-E2	8609-232-61-15-748-000-E2	8609-232-61-15-758-000-E2	8609-232-61-15-768-000-E2	8609-232-61-25-748-000-E2	8609-232-61-25-768-000-E2	8609-232-61-13-748-000-E2	8609-232-61-13-768-000-E2
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	32	32	32	32	32	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	8609	8609	8609	8609	-	8609	8609	8609	8609
body width	-	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	-	-
subject depth	-	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	0.457 inch	-	-
body length	-	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch	3.74 inch	-	-
Body/casing type	-	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	-
Contact to complete cooperation	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	-
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-
Insulator color	-	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	-	-
insulator material	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	-
Plug contact pitch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-
Match contact row spacing	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-
Loaded row name	-	A,B	A,B	A,B	A,B	A,B	A,B	-	-
PCB row number	-	2	2	2	2	2	2	-	-
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
PCB contact row spacing	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-
Plating thickness	-	16u inch	10u inch	16u inch	30u inch	10u inch	30u inch	-	-
Guideline	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Terminal length	-	0.675 inch	0.518 inch	0.518 inch	0.518 inch	0.675 inch	0.675 inch	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-
