RXU Series
Basic pressure sensors

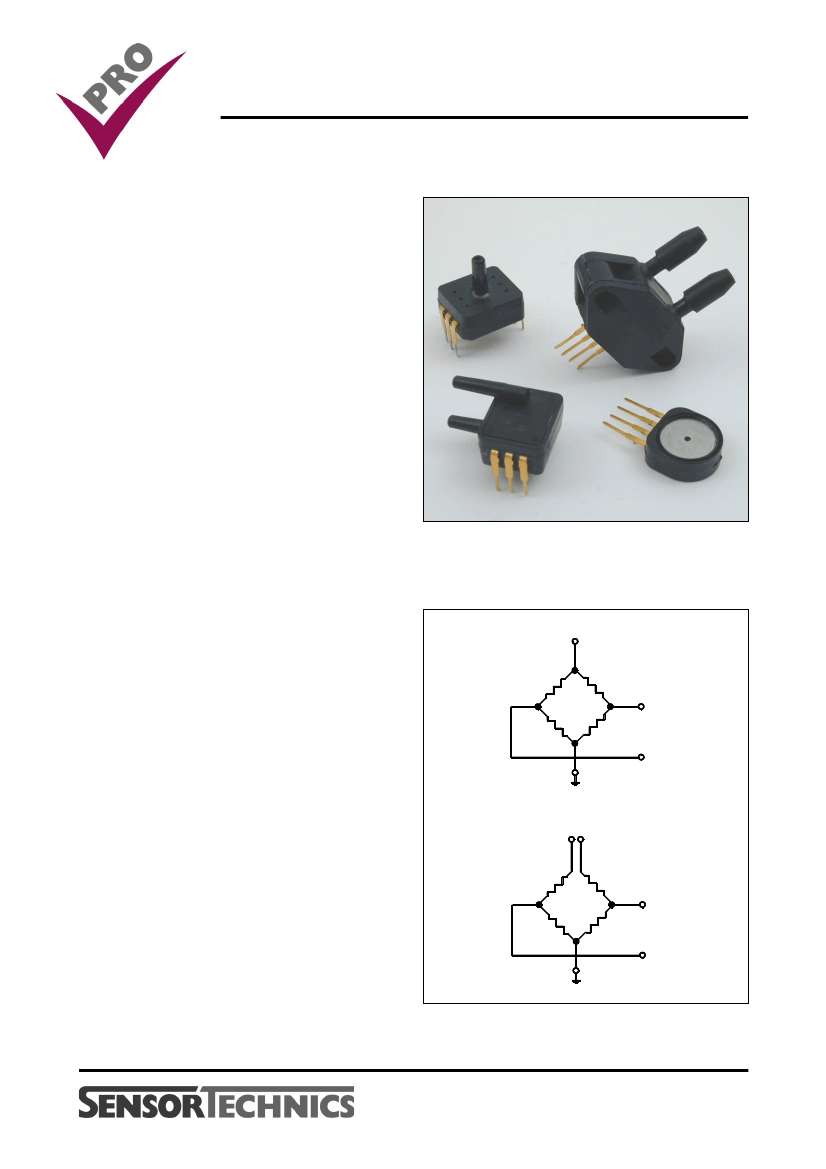

FEATURES
· 0...25 mbar to 0...10 bar,
0...10 inch H
2
O to 0...150 psi,
differential, gage or absolute pressure
· High impedance bridge
· Low power consumption for battery
operation
· Sensortechnics PRO services
MEDIA COMPATIBILITY
To be used with non-corrosive, non-ionic working
fluids such as clean dry air, dry gases and the like.
SPECIFICATIONS
Maximum ratings
Supply voltage, V
S
Temperature ranges
Operating
Storage
Humidity limits (non-condensing)
Lead temperature (soldering 4 sec.)
Common-mode pressure
RXUM025D4/RXUH010D4
all others
12 V
DC
-40 to +85°C
-55 to +125°C
0 to 100 %RH
250°C
EQUIVALENT CIRCUIT
Button or
"N" package
+Vs
+
Output
-
50 psi
150 psi
DIP Package
+Vs
-
Output
+
E / 11707 / A
1/7
www.sensortechnics.com
RXU Series
Basic pressure sensors
PRESSURE SENSOR CHARACTERISTICS
(V
s
= 5.0 ± 0.01 V, T
A
= 25 °C, common-mode pressure = 0 psig, pressure applied to
P1
for Button, N and A2
housings, pressure applied to
P2
for G2 and D4 housings)
Part number
RXUM025...
RXUM050...
RXUM100...
RXUM250...
RXUB001...
RXUB002...
RXUB005...
RXUB010...
RXUH010...
RXUP001...
RXUP005...
RXUP015...
RXUP030...
RXUP100...
RXUP150...
Operating pressure
0...25 mbar
0...50 mbar
0...100 mbar
0...250 mbar
0...1 bar
0...2 bar
0...5 bar
0...10 bar
0..10 inch H
2
O
0...1 psi
0...5 psi
0...15 psi
0...30 psi
0...100 psi
0...150 psi
Proof pressure
500 mbar
1.4 bar
1.4 bar
1.4 bar
2 bar
4 bar
10 bar
14 bar
7 p si
2 0 p si
2 0 p si
3 0 p si
6 0 p si
1 5 0 p si
2 0 0 p si
8
Full-scale span
1
Min.
Typ.
Max.
20 mV
10.9 mV
21.8 mV
36.3 mV
72.5 mV
72.5 mV
72.5 mV
72.5 mV
20 mV
15 mV
50 mV
75 mV
75 mV
100 mV
75 mV
45 mV
14.5 mV
29 mV
54.0 mV
105 mV
105 mV
105 mV
105 mV
45 mV
20 mV
75 mV
110 mV
110 mV
150 mV
110 mV
80 mV
18.1 mV
36.2 mV
72.5 mV
145 mV
145 mV
145 mV
145 mV
80 mV
25 mV
100 mV
150 mV
150 mV
200 mV
150 mV
Specification notes:
1.
Span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure.
2.
Hysteresis is the maximum output difference at any point within the operating pressure range for increasing and decreasing
pressure. Linearity is the maximum deviation of measure output at constant temperature (25°C) from "Best Straight Line"
determined by three points, offset, full scale pressure and half full scale pressure.
3.
Maximum difference in output at any pressure with the operating pressure range and temperature within 0°C to +70°C after:
a) 100 temperature cycles, 0°C to +70°C
b) 1.0 million pressure cycles, 0 psi to full scale span
4.
Slope of the best straight line from 0°C and 70°C. For operation outside this temperature, contact Sensortechnics for more
specific applications information.
5.
Response time for a 0 to full-scale span pressure step change.
6.
Long term stability over a one year period .
7.
This parameter is not 100 % tested. It is guaranteed by process design and tested on a sample basis only.
8.
If the proof pressure is exceeded, even momentarily, the package may leak or burst, or the pressure sensing die may fracture.
Note: The proof pressure for the forward gage of all devices in the D4-package is the specified value or 100 psi, whatever is less.
9.
The zero pressure offset is 0 mV Min, 20 mV Typ and 35 mV Max for part nos. RXU...G2 and RXU...D4.
E / 11707 / A
2/7
www.sensortechnics.com
RXU Series
Basic pressure sensors
PERFORMANCE CHARACTERISTICS
(V
s
= 5.0 ± 0.01 V, T
A
= 25 °C, common-mode pressure = 0 psig, pressure applied to
P1
for Button, N and A2
housings, pressure applied to
P2
for G2 and D4 housings)
25 mbar/10 inch H
2
O devices
Characteristics
Zero pressure offset
Temperature effects
(0 to 70 °C)
4,7
Offset
Span
Bridge impedance
Min.
-35
Typ.
-20
±4
-2300
+750
±0.2
±0.5
±0.1
4.0
4.0
0.1
2
Max.
0
Unit
mV
µV/V/°C
ppm/°C
Combined linearity and hysteresis
2
Repeatability
3
Long term stability of offset and span
6
Input impedance
Output impedance
Response time
5
Position sensitivity
±1.0
%FSS
mV
kΩ
ms
µV/V/g
All other devices
Characteristics
Zero pressure offset
9
Temperature effects
(0 to 70 °C)
4,7
Offset
Span
Bridge impedance
Min.
-35
-2550
+690
Typ.
-20
±4
-2150
+750
±0.2
±0.5
±0.1
4.1
4.1
0.1
Max.
0
-1900
+810
±0.5
Unit
mV
µV/V/°C
ppm/°C
%FSS
mV
kΩ
ms
Combined linearity and hysteresis
2
Repeatability
3
Long term stability of offset and span
6
Input impedance
Output impedance
Response time
5
E / 11707 / A
3/7
www.sensortechnics.com
