74HC573NB datasheet, PDF - EEWORLD Datasheet

74HC573NB: DescriptionIC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20, Bus Driver/Transceiver; Categorylogic logic; File Size118KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

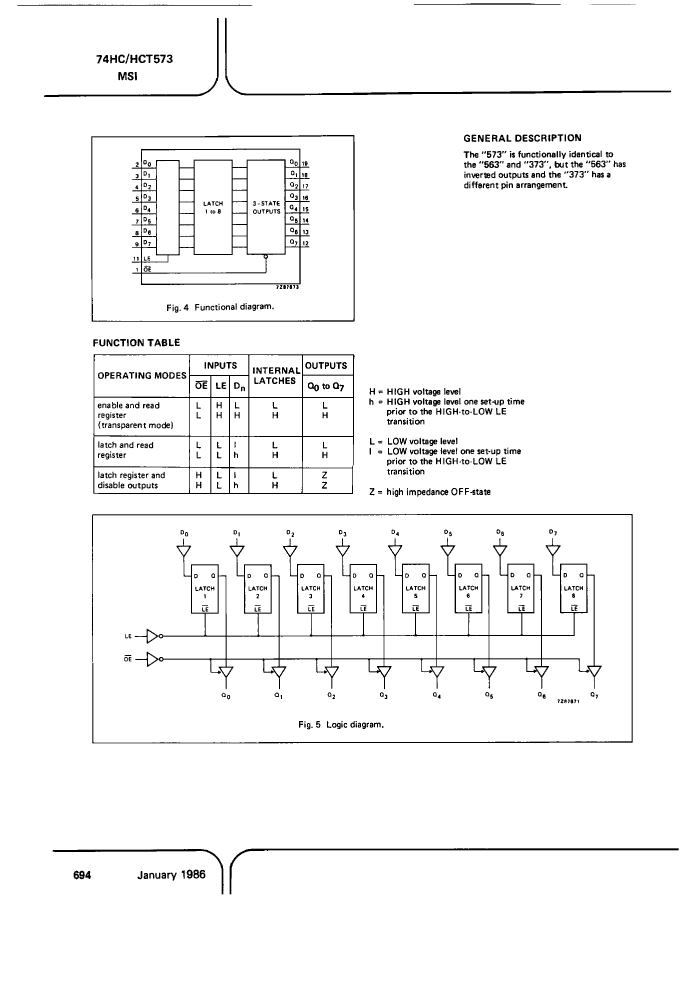

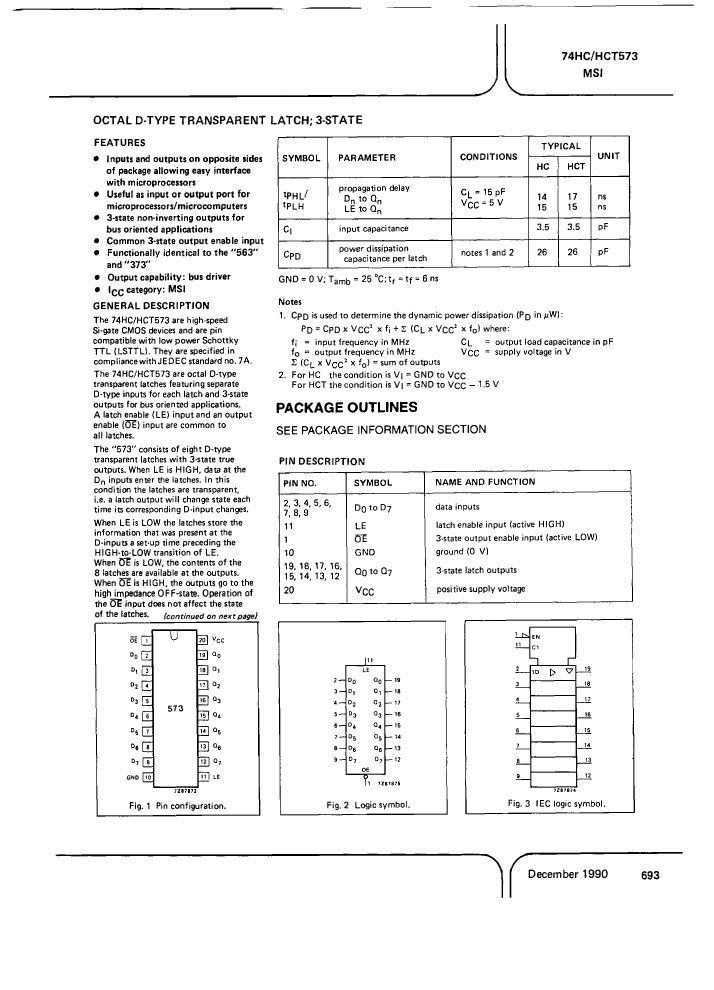

74HC573NB Overview

IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20, Bus Driver/Transceiver

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 373
series	HC/UH
JESD-30 code	R-PDIP-T20
length	26.73 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

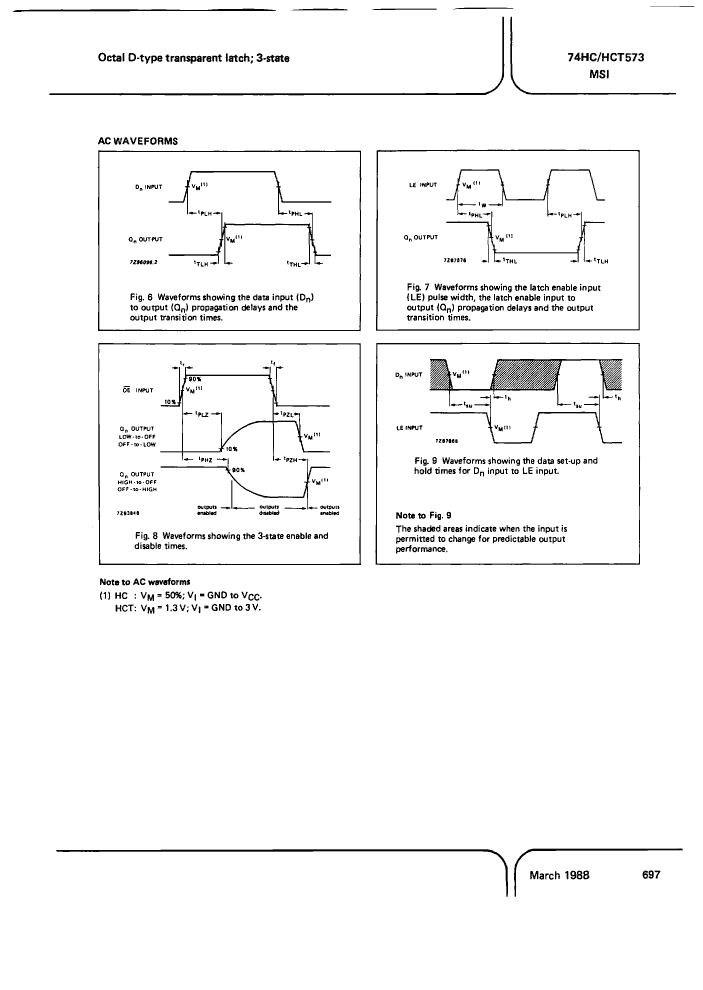

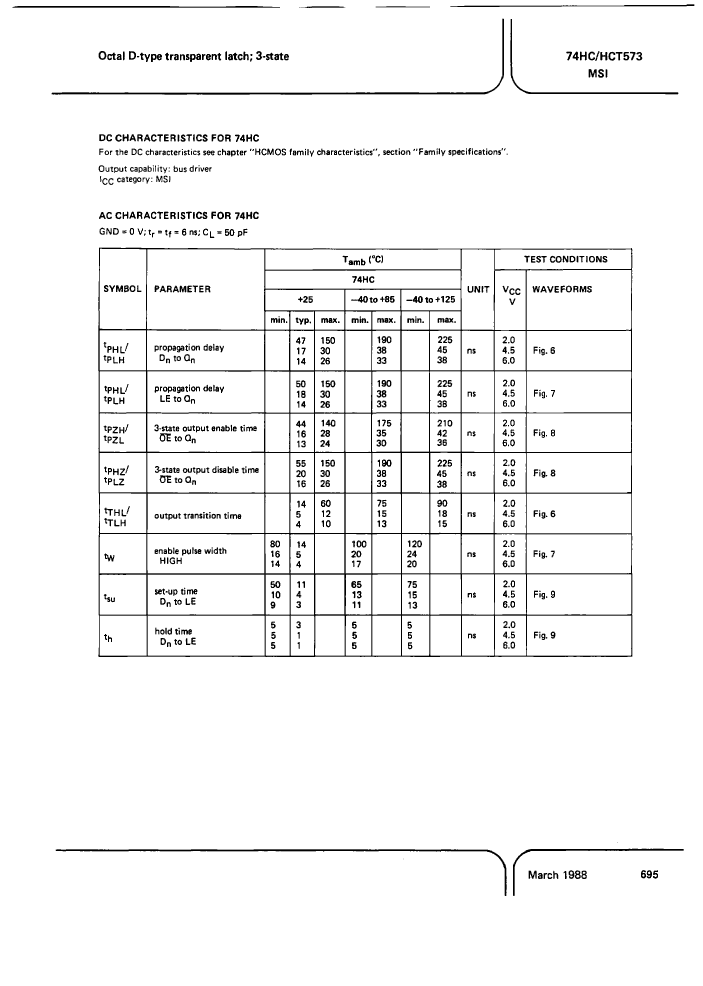

propagation delay (tpd)	45 ns
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

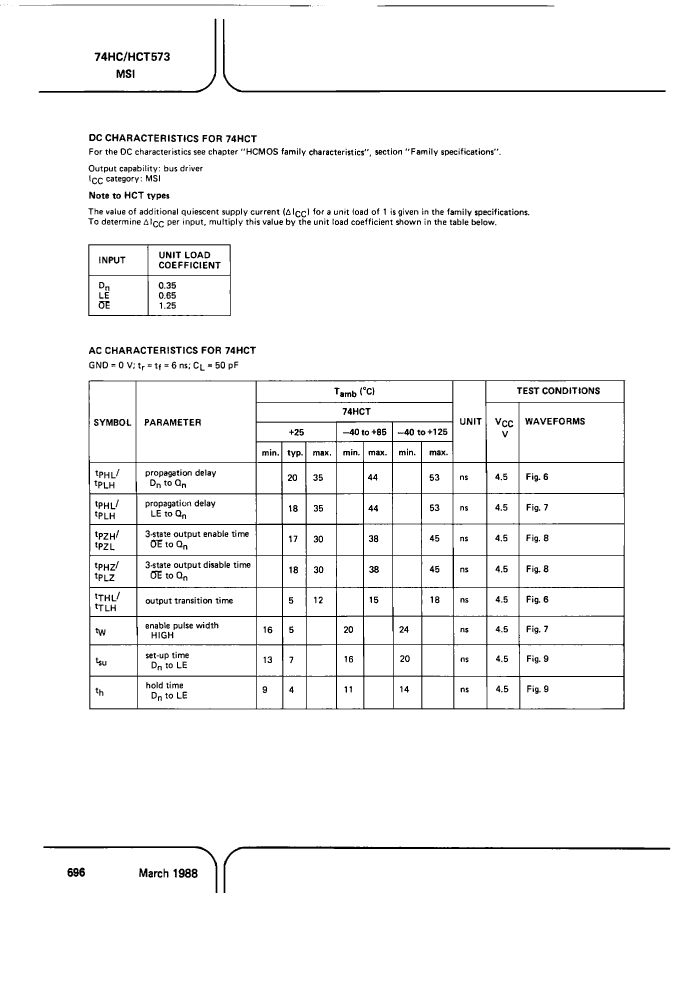

	74HC573NB	74HCT573NB
Description	IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20, Bus Driver/Transceiver	HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20
Maker	NXP	NXP
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Other features	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373
series	HC/UH	HCT
JESD-30 code	R-PDIP-T20	R-PDIP-T20
length	26.73 mm	26.73 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	45 ns	53 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	4.2 mm
Maximum supply voltage (Vsup)	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
