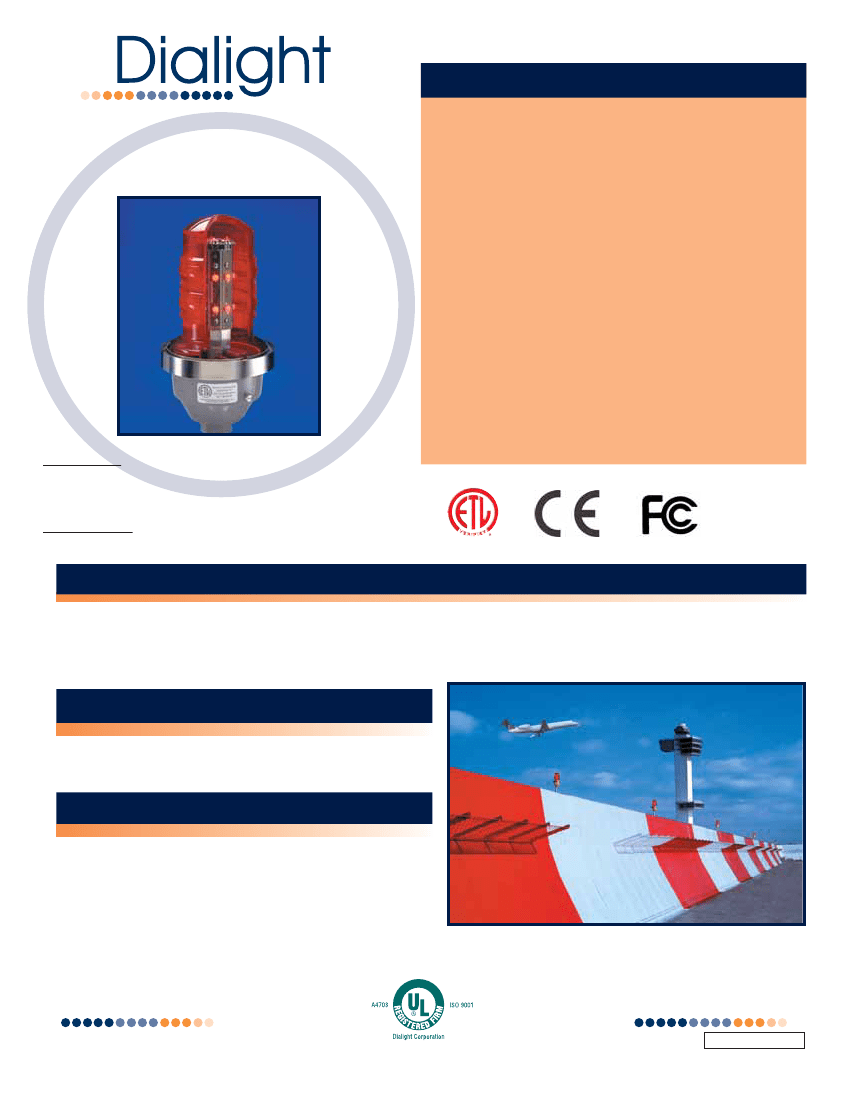

FEATURES / BENEFITS
860 SERIES
LED OBSTRUCTION LIGHT
Available as a single or dual unit
Available in 12VDC, 24VDC, 48VDC, 120VAC,
and 220VAC versions (50 or 60HZ)
Earth grounding provisions provided
Unique optically designed lens to enhance LED
operation and provide 360
o
visibility
State-of-the-art high-flux LED technology
Lasts years longer than an incandescent
Weather/corrosion resistant lamp assembly and
housing
Self-contained wiring compartment eliminates
additional boxes
Threaded 1” and 3/4” bottom hub for mounting
Can be operated steady or flashed
(controller not supplied)
5 year warranty
Resistant to shock and vibration
IP 65 / IP 66 / NEMA 4X rated
Certified to:
FAA AC NO: 150/5345-43F
Canadian Aviation Regulation CAR 621.19
(Transport Canada)
US PATENT# 6,425,678
Compliant to:
ICAO
(Annex 14 - Fourth Edition, July 2004 )
APPLICATION
The Dialight 860 series is the FAA type L810 red LED obstruction light. Designed for steady burning, this fixture is
used to mark any obstacle that may present hazards to aircraft navigation. The US patent office has issued patent
number 6,425,678 B1 for this series.
OPERATING CONDITIONS
Temperature: -67
o
F to +131
o
F (-55
o
C to +55
o
C)
FINISH
Cast Aluminum
Stainless Steel Hardware
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 665541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
MDTF860X001_N

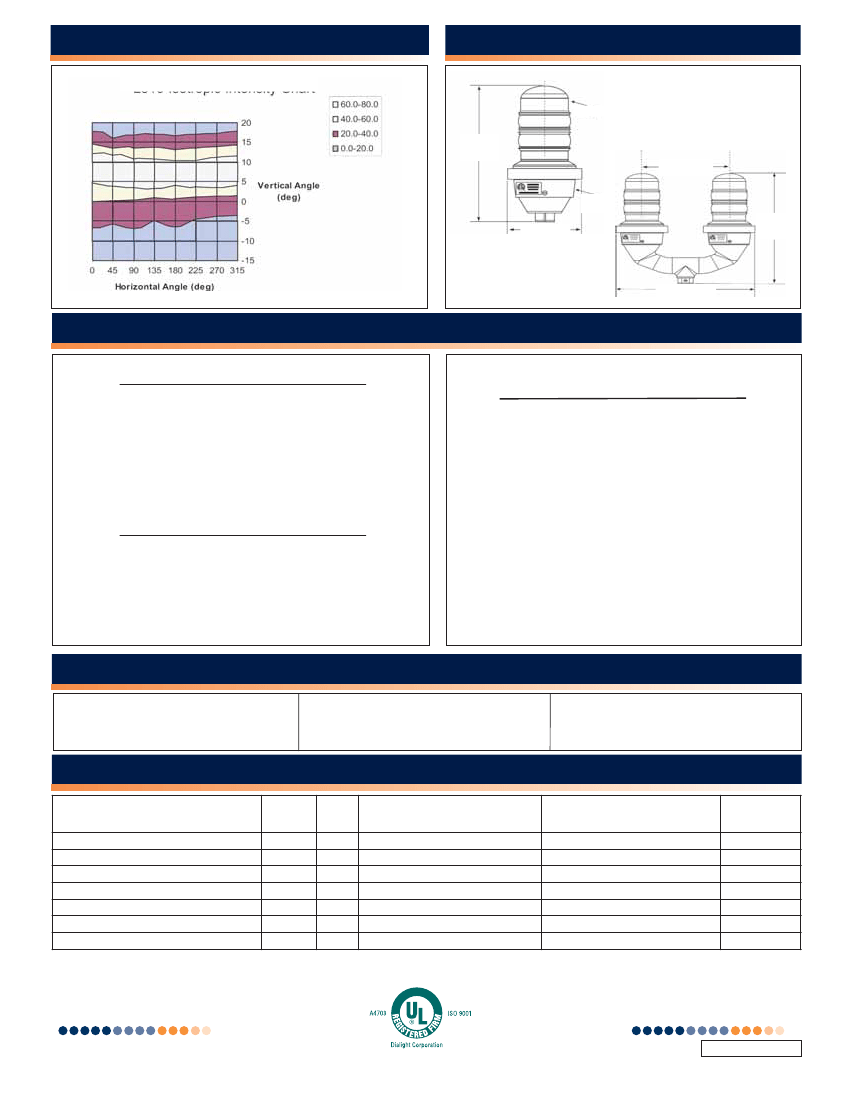

PHOTOMETRIC DATA
L810 Isotropic Intensity Chart
MECHANICAL DIMENSIONS
Lens Assembly
283.1mm
(11.14”)
REF
247.7mm (9.75”)
REF
Wire
Housing
147mm (5.79”)
REF
359.2mm
(14.14”)
REF
394.6mm (15.54”)
REF
ORDERING INFORMATION
Single Units
Part Number
Volts
120 VAC
120 VAC
220 VAC
12 VDC
12 VDC
24 VDC
24 VDC
48 VDC
860-1R01-001*
860-6R01-001**
860-1R02- 001
860-1R03-001*
860-3R03-001 (Low wattage)
860-1R05-001*
860-6R05-001**
860-1R04-001*
Dual Units
Part Number
Volts
120 V AC
120 V AC
220 V AC
12 VDC
12 VDC
24 VDC
24 VDC
48 VDC
860-1R01-002*
860-6R01-002**
860- 1R02-002
860-1R03-002*
860-3R03-002 (Low wattage)
860-1R05-002*
860-6R05-002**
860-1R04-002*
Replacement Light Assemblies
Part Number
Volts
860-1R01
860-6R01**
860-1R02
860-1R03
860-3R03 (Low wattage)
860-1R05
860-6R05**
860-1R04
120 VAC
120 VAC
220 VAC
12 VDC
12 VDC
24 VDC
24 VDC
48 VDC
* FAA approved
** Canadian Spec
WEIGHTS & MEASUREMENTS
PART NUMBER
Single Unit
Dual Unit
APPROX. SHIPPING WEIGHT
7.14 lbs
16.06 lbs
CONTAINER DIMENSIONS
16” x 9” x 8”
22” x 17” x 9”
ELECTRICAL SPECIFICATIONS
PF
.3
.17
-
-
-
-
-
VA
46.5
72
-
-
-
-
-
OPERATING VOLTAGE
Min
Typ
Max
92
120
132
198
220
264
198
220
264
10
12
14
10
12
14
21
24
27
43
48
53
WATTS (W)
Min
Typ
Max
10
14.5
17.5
11
14.5
17.5
12
14
17
20
24.5
29
7.0
7.50
8.8
17
22
29
11
13.5
16
AMPS
120mA
120mA
-
2.0 A
.62 A
920mA
275mA
120VAC UNITS
220VAC UNITS (60Hz)
220VAC UNITS (50Hz)
12VDC UNITS (STANDARD)
12VDC UNITS (LOW WATTAGE)
24VDC UNITS
48VDC UNITS
