Part Number

Search

860-1R02-003

Description
Single Color LED Display Cluster, Red
CategoryLED optoelectronic/LED    photoelectric
File Size90KB,2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Download Datasheet Parametric Compare View All

860-1R02-003 Overview

Single Color LED Display Cluster, Red

860-1R02-003 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDIALIGHT
Reach Compliance Codecompliant
colorRED
ConfigurationSINGLE
JESD-609 codee0
Number of functions1
Maximum operating temperature55 °C
Minimum operating temperature-55 °C
Optoelectronic device typesSINGLE COLOR LED DISPLAY CLUSTER
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1

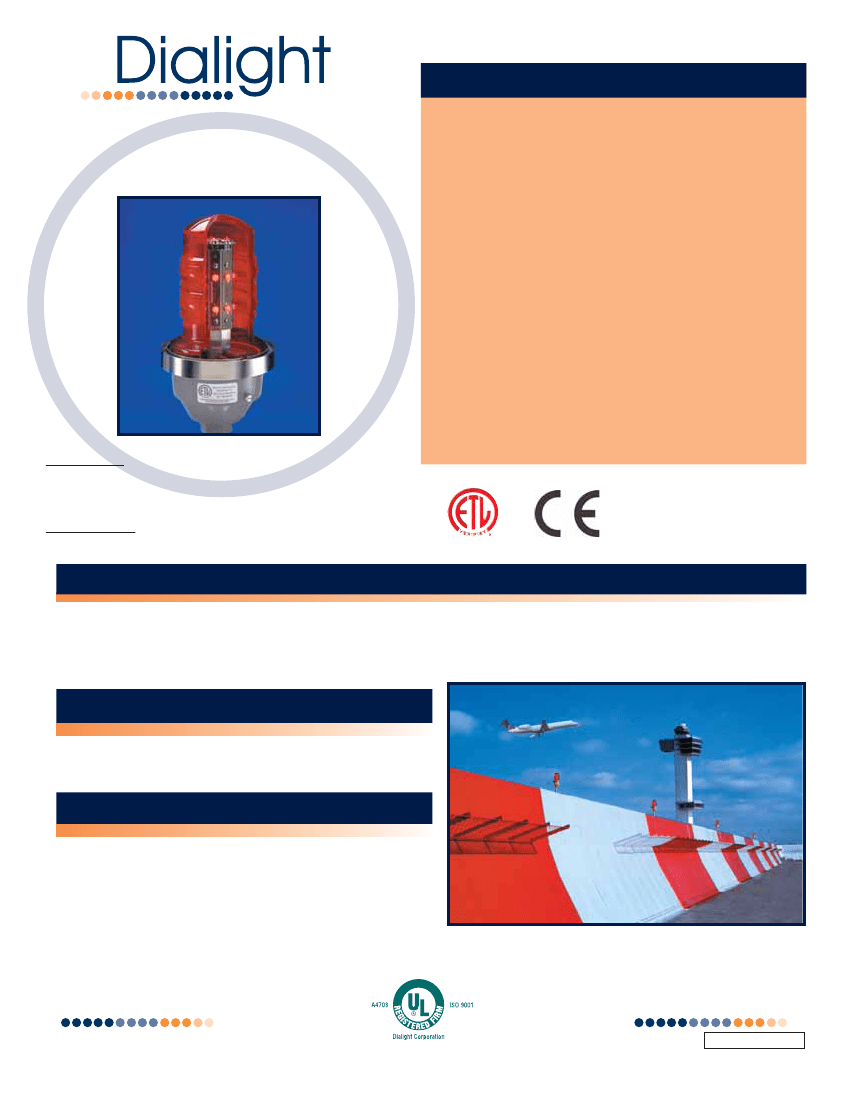

FEATURES / BENEFITS
860 SERIES
LED OBSTRUCTION LIGHT
Available as a single or dual unit
Available in 12VDC, 24VDC, 48VDC, 120VAC,
and 220VAC versions (50 or 60HZ)
Earth grounding provisions provided
Unique optically designed lens to enhance LED
operation and provide 360
o
visibility
State-of-the-art high-flux LED technology
Lasts years longer than an incandescent
Weather/corrosion resistant lamp assembly and
housing
Self-contained wiring compartment eliminates
additional boxes
Threaded 1” and 3/4” bottom hub for mounting
Can be operated steady or flashed
(controller not supplied)
5 year warranty
Resistant to shock and vibration
IP 66 / NEMA 4X rated
Certified to:
FAA AC NO: 150/5345-43F
Canadian Aviation Regulation CAR 621.9
(Transport Canada)
US PATENT# 6,425,678
Compliant to:
ICAO
(Annex 14 - Fourth Edition, July 2004 )
APPLICATION
The Dialight 860 series is the FAA type L810 red LED obstruction light. Designed for steady burning, this fixture is
used to mark any obstacle that may present hazards to aircraft navigation. The US patent office has issued patent
number 6,425,678 B1 for this series.
OPERATING CONDITIONS
Temperature: -67
o
F to +131
o
F (-55
o
C to +55
o
C)
FINISH
Cast Aluminum
Stainless Steel Hardware
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 665541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com

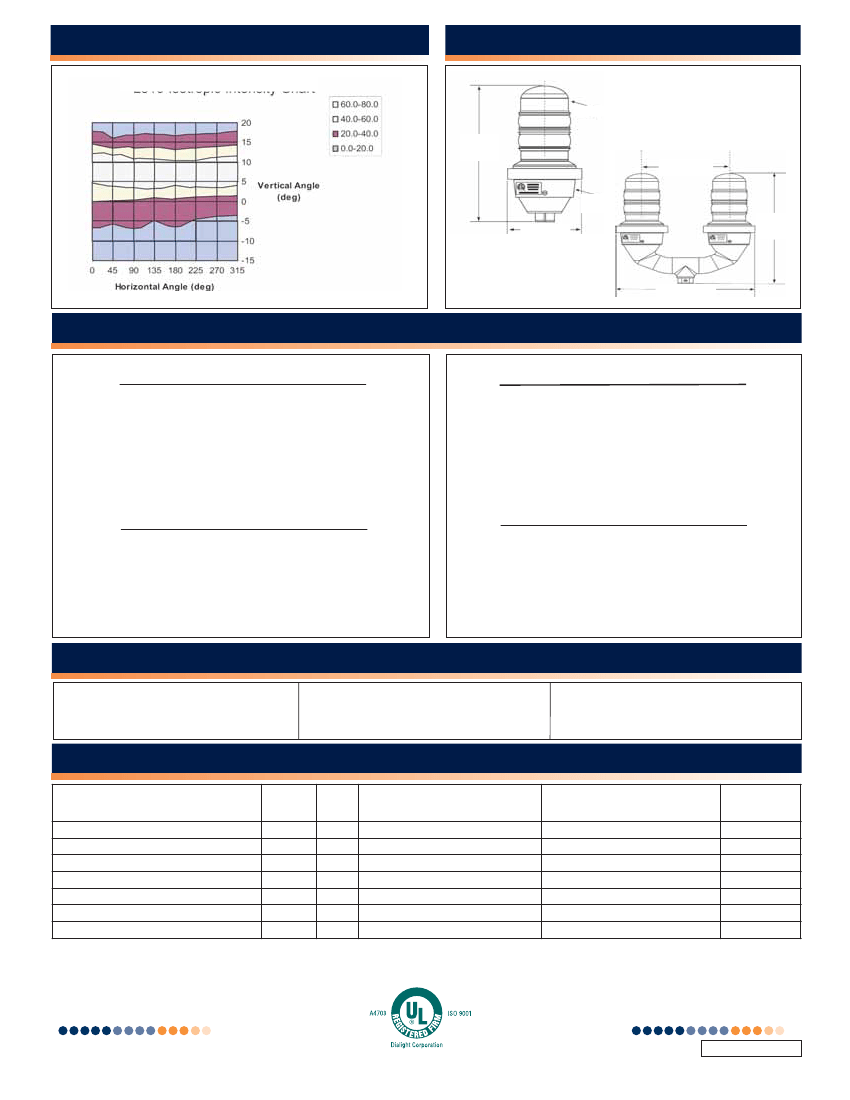

MDTF860X001_M
