R1200/R1200F SERIES
HIGH VOLTAGE RECTIGIERS
REVERSE VOLTAGE
- 1200
to
5000
Volts
FORWARD CURRENT
- 0.2 /0.5Amperes
DO- 41
DO-15
FEATURES
●
High voltage
●
High current capability
●
Low leakage current
●
High surge capability
●
Low cost
1.0(25.4)
MIN.
.034(0.9)
DIA
.028(0.7)
1.0(25.4)
MIN.
.034(0.9)
.028(0.7)
DIA
.205(5.2)
MAX
.300(7.6)
.230(5.8)
.107(2.7)
DIA
.080(2.0)
.140(3.6)
.104(2.6) DIA.
1.0(25.4)
MIN
MECHANICAL DATA
●Case:
Molded plastic use UL-94-O regognized
Flame Retardant Epoxy
●
Terminal: Axial leads solderable per
MIL-STD202,Method 208
●Polarity:
Color band denotes cathode
●Mounting
position: Any
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
R1200
R1200F
1200
R1500
R1500F
1500
500
R1800
R1800F
1800
R2000
R2000F
2000
R2500
R2500F
2500
R3000
жR4000
жR5000
CHARACTERISTICS
Maximum Peak Reverse Voltage
Maximum Average Rectified Current
@Half-Wave Resistive Load 60H
Z
T
A
=50
℃
Maximum Forward Peak Surge Current
@8.3ms Superimposed IFM(Surge)
Maximum Reverse Current
@ PRV@25℃ T
A
I
R
Maximum Forward Voltage
@ 25℃TA IF=0.5/0.2 Apk VFM
Maximum Reverse Recovery Time ( Note 1)
R3000F
жR4000F жR5000F
3000
200
4000
5000
UNIT
Vpk
mA
30
Apk
5.0
2
3
_
500
4.5
uAdc
Vpk
5
_
ns
500
-65 to +150
℃
Operating and storage Temperature
NOTES:1.Reverse recovery test conditions: IF=0.5A, IR=1A, Irr=0.25A
2.ж Package DO-15
~ 43 ~

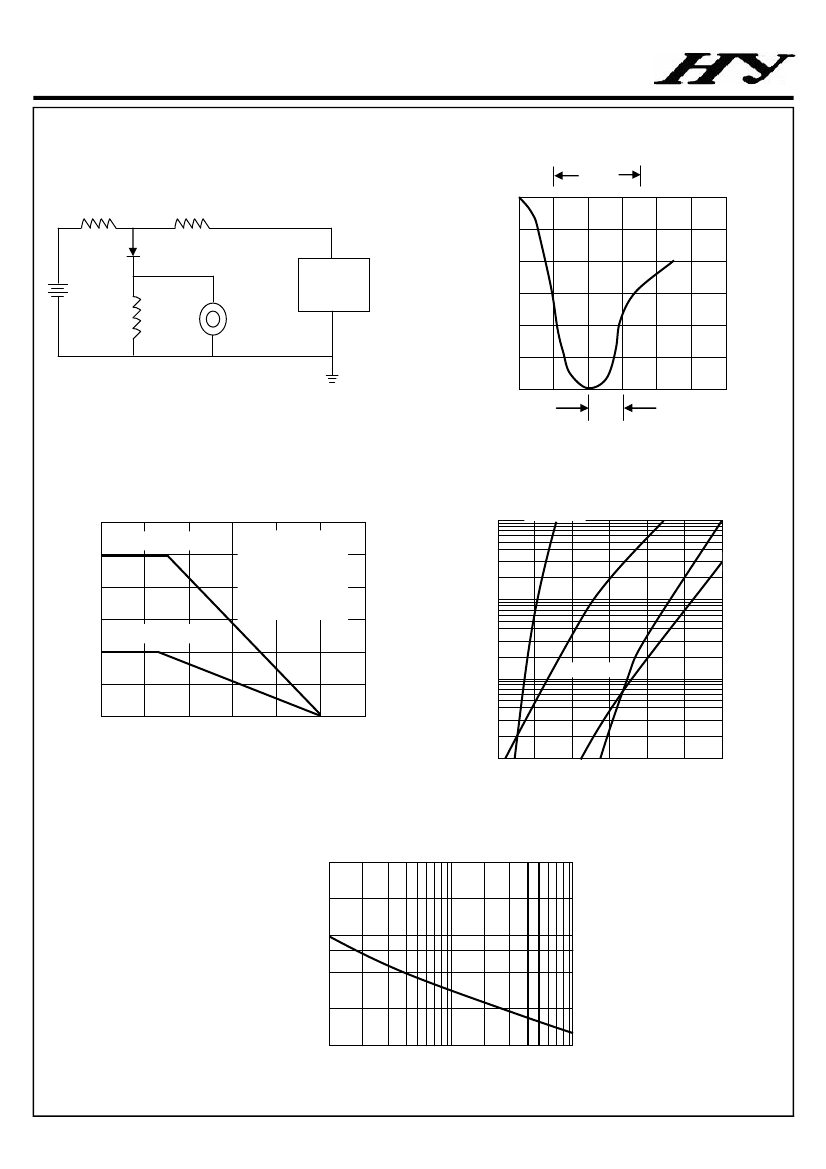

RATING AND CHARACTERISTIC CURVES
R1200/R1200F SERIES
FIG.1-REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50Ω
10Ω
NONINDUCTIVE NONINDUCTIVE
TRR
+0.5A
（-）
(+)
25 VDC
(APPROX)
1Ω
NON-
INDUCTIVE
D.U.T
PULSE
GENERATOR
（NOTE
2）
（+）
0
-0.25A
(-)
OSCILLOSCOPE
（NOTE
1）
NOTES: 1. Rise Time=7ns max,Input impedance=
1 megohm,22pF
2. Rise Time=10ns max,Source Impedance=
50 oh ms.
-1.0A
1CM
SET TIME BASE
FOR 50/1000ns/cm
FIG. 2
–
FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
0.6
R1200-R2000
FLG.3
–TYPICAL
INSTANTANEOUS FORWARD CHARACTERISTICS
R1200-5000
R1200-2000F
R2500-5000
10
SINGLE PHASE
HALF WAVE
60H
Z
RESISTIVE OR
INDUCTIVE LOAD
0.375”LEAD LENGTH
0.5
0.4
0.3
R2500-R5000
INSTANTANEOUS FORWARD CURRENT,
AMPERES
R2500-5000F
1.0
0.5
0.2
0.1
0
25
50
75
100
125
150
175
0.1
T
J
= 25°C
AMBIENT TEMPERATURE (℃)
0.01
1.0
2.0
3.0
4.0
5.0
6.0
7.0
INSTANTANEOUS FORWARD VOLTAGE.VOLTS
FIG.4-PEAK FORWARD SURGE CURRENT
FORWARD SURGE CURRENT,AMPERES pk
(HALF-SINE WAVE)
50
40
30
20
10
0
1
2
4
10
20
40
100
NUMBER OF CYCLES AT 60Hz
~ 44 ~
