85513-0013

Description
Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack
CategoryThe connector    The connector
File Size120KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

85513-0013 Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack

85513-0013 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionModular Connectors / Ethernet Connectors
Other featuresLOW PROFILE, TOP ENTRY
Board mount optionsSOLDER HOLDING FLANGE
body width0.594 inch
subject depth0.5 inch
body length0.6 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedTIN (75) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialPOLYAMIDE46
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness50u inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE46
Terminal length
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

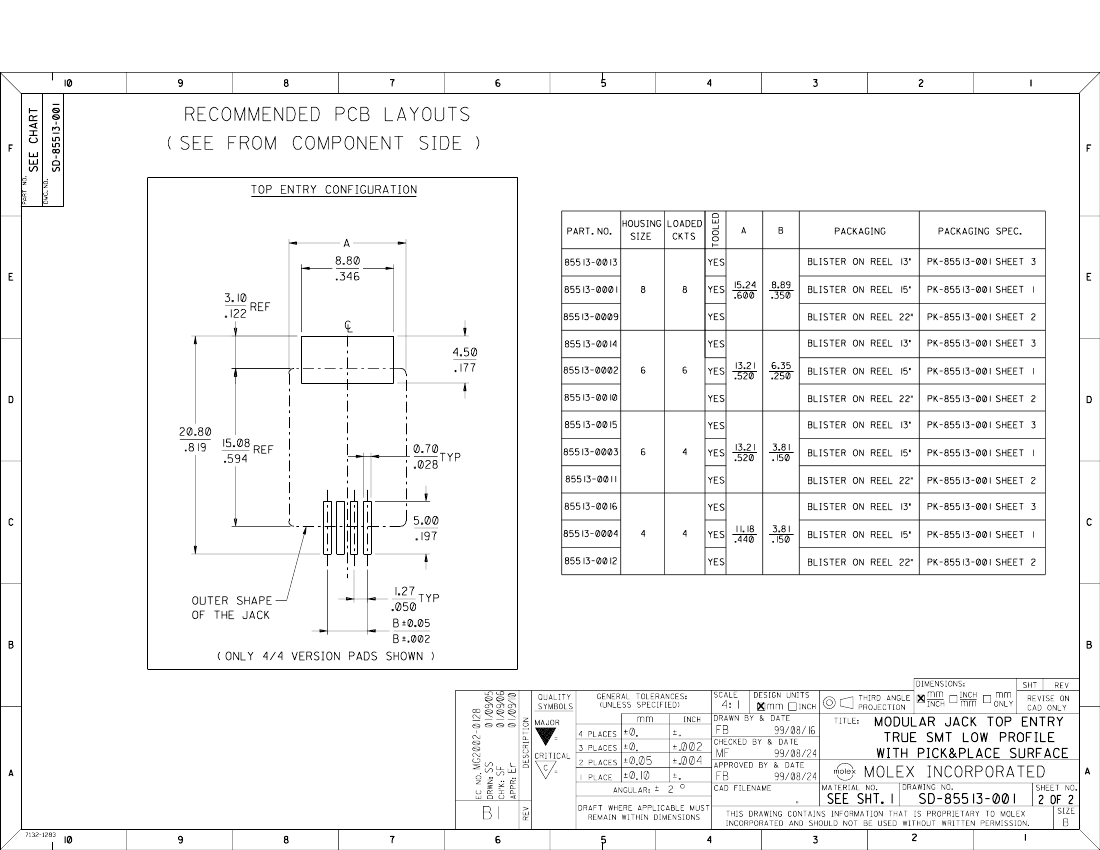

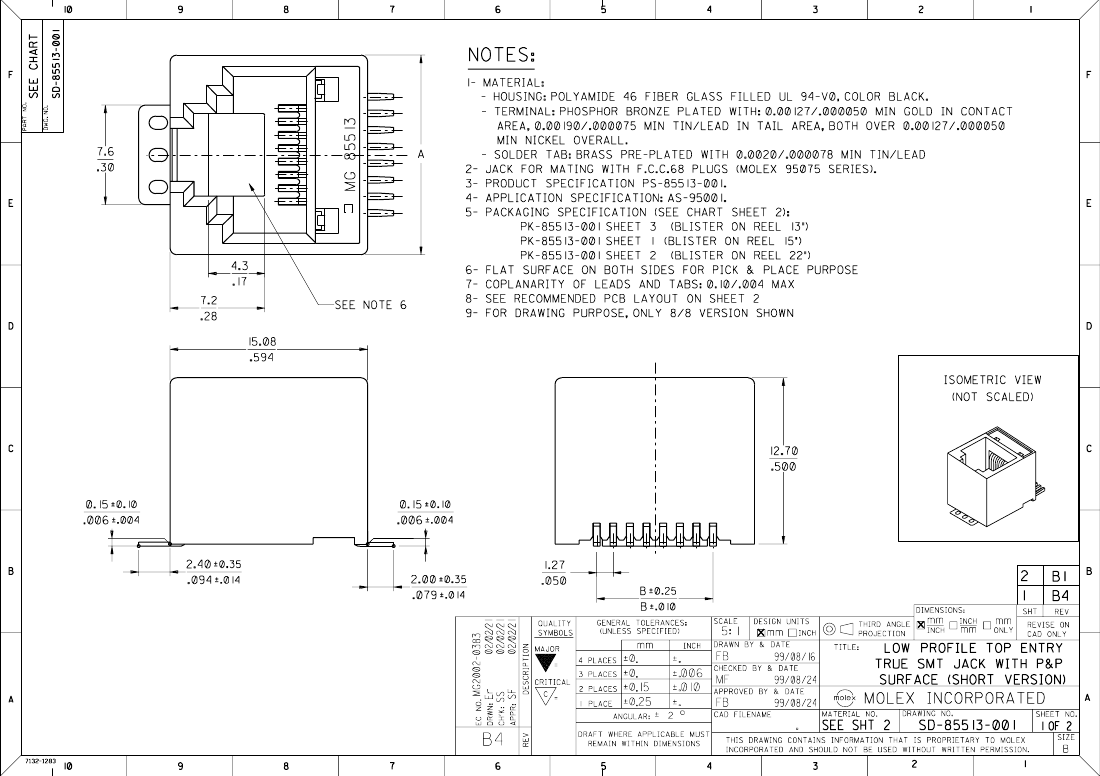

Preview

Download Datasheet

85513-0013 Related Products

85513-0013 85513-0014 85513-0002 85513-0003 85513-0004 85513-0011 85513-0012 85513-0015 85513-0016
Description Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack, Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack, Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack, Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack, Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack, Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking Mech, Jack
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Molex Molex Molex Molex Molex Molex Molex Molex Molex
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY LOW PROFILE, TOP ENTRY
Board mount options SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE SOLDER HOLDING FLANGE
body width 0.594 inch 0.594 inch 0.594 inch 0.594 inch 0.594 inch 0.594 inch 0.594 inch 0.594 inch 0.594 inch
subject depth 0.5 inch 0.5 inch 0.5 inch 0.5 inch 0.5 inch 0.5 inch 0.5 inch 0.5 inch 0.5 inch
body length 0.6 inch 0.52 inch 0.52 inch 0.52 inch 0.44 inch 0.52 inch 0.44 inch 0.52 inch 0.44 inch
Body/casing type JACK JACK JACK JACK JACK JACK JACK JACK JACK
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL
Contact completed and terminated TIN (75) OVER NICKEL Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier TIN (75) OVER NICKEL TIN (75) OVER NICKEL TIN (75) OVER NICKEL TIN (75) OVER NICKEL TIN (75) OVER NICKEL TIN (75) OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR TELCOM, MODULAR
DIN compliance NO NO NO NO NO NO NO NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
empty shell NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO
Insulation resistance 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3
MIL compliance NO NO NO NO NO NO NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO
Installation option 1 LOCKING LOCKING MECH LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of ports 1 1 1 1 1 1 1 1 1
Maximum operating temperature 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 50u inch 50u inch 50u inch 50u inch 50u inch 50u inch 50u inch 50u inch 50u inch
Rated current (signal) 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A
Guideline UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Shell material POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46 POLYAMIDE46
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 8 6 6 4 4 4 4 4 4
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
