5962-8683003XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8683003XA

5962-8683003XA: DescriptionEEPROM, 8KX8, 300ns, Parallel, NMOS, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28; Categorystorage storage; File Size1MB，35 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric Compare View All

5962-8683003XA Overview

EEPROM, 8KX8, 300ns, Parallel, NMOS, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28

5962-8683003XA Parametric

Parameter Name	Attribute value
Maker	Defense Logistics Agency
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	300 ns
JESD-30 code	R-XDIP-T28
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

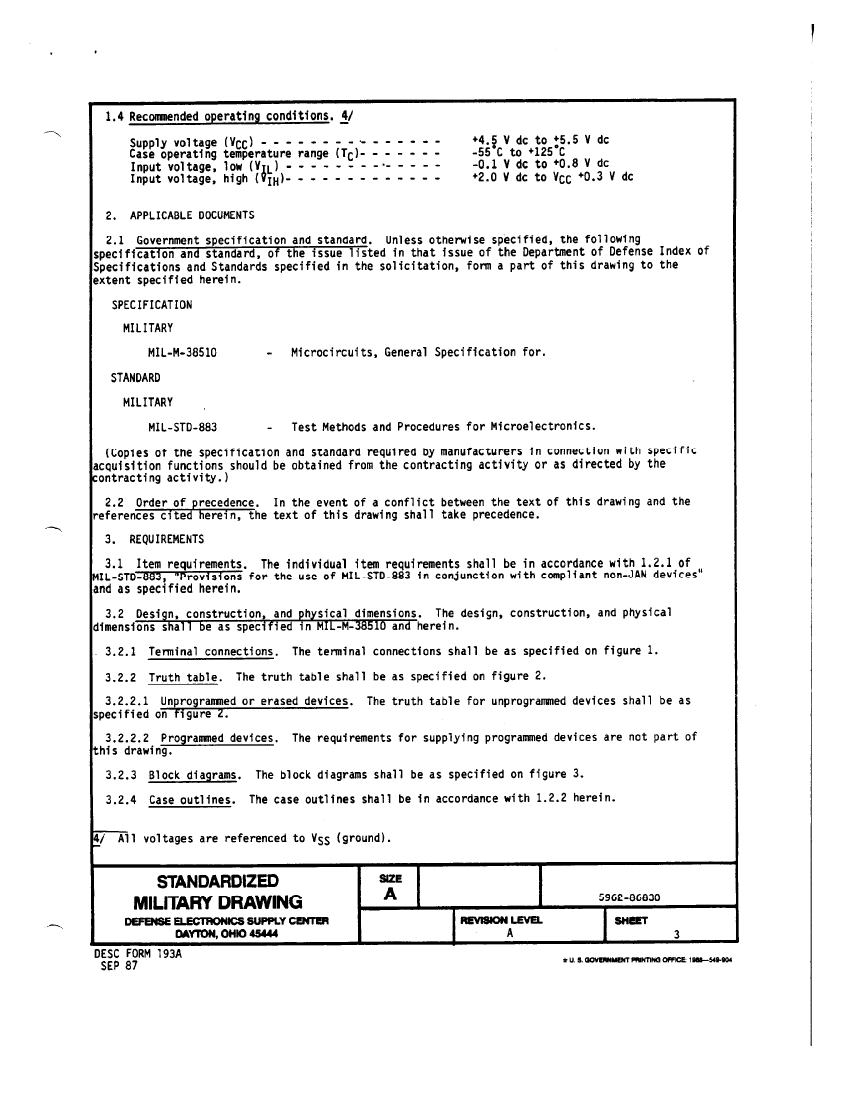

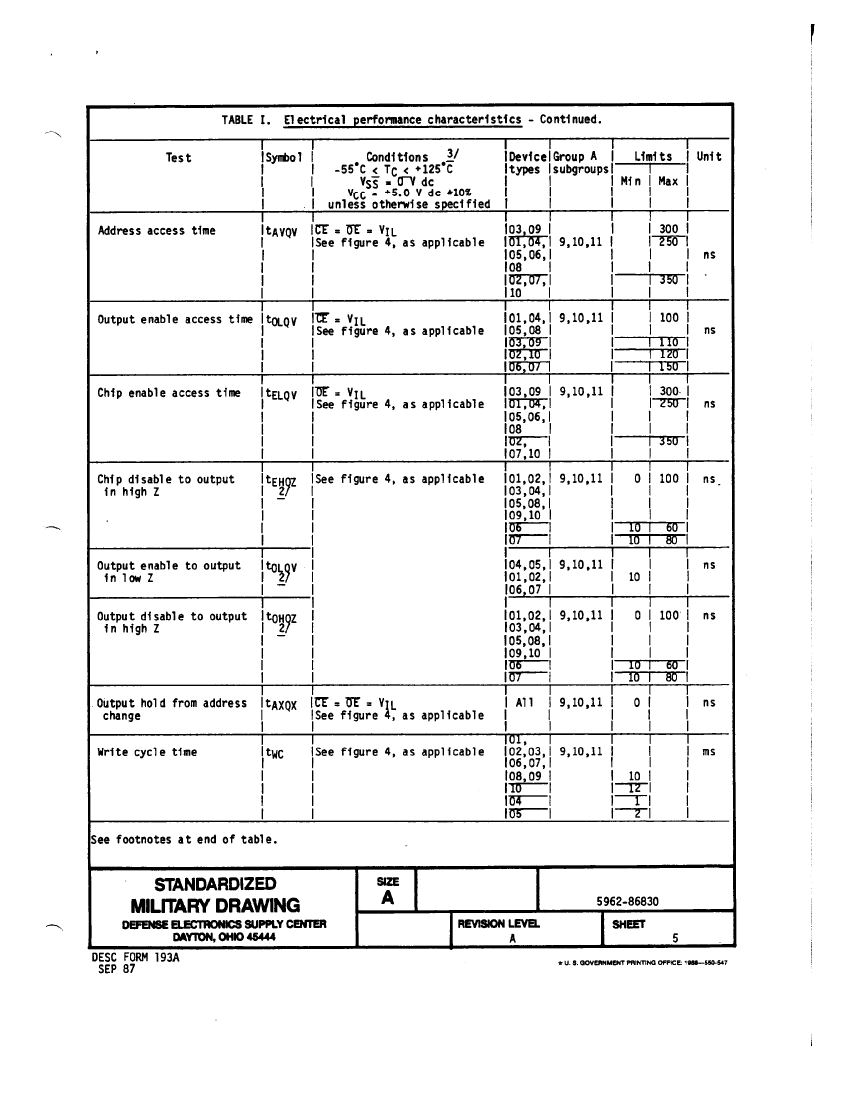

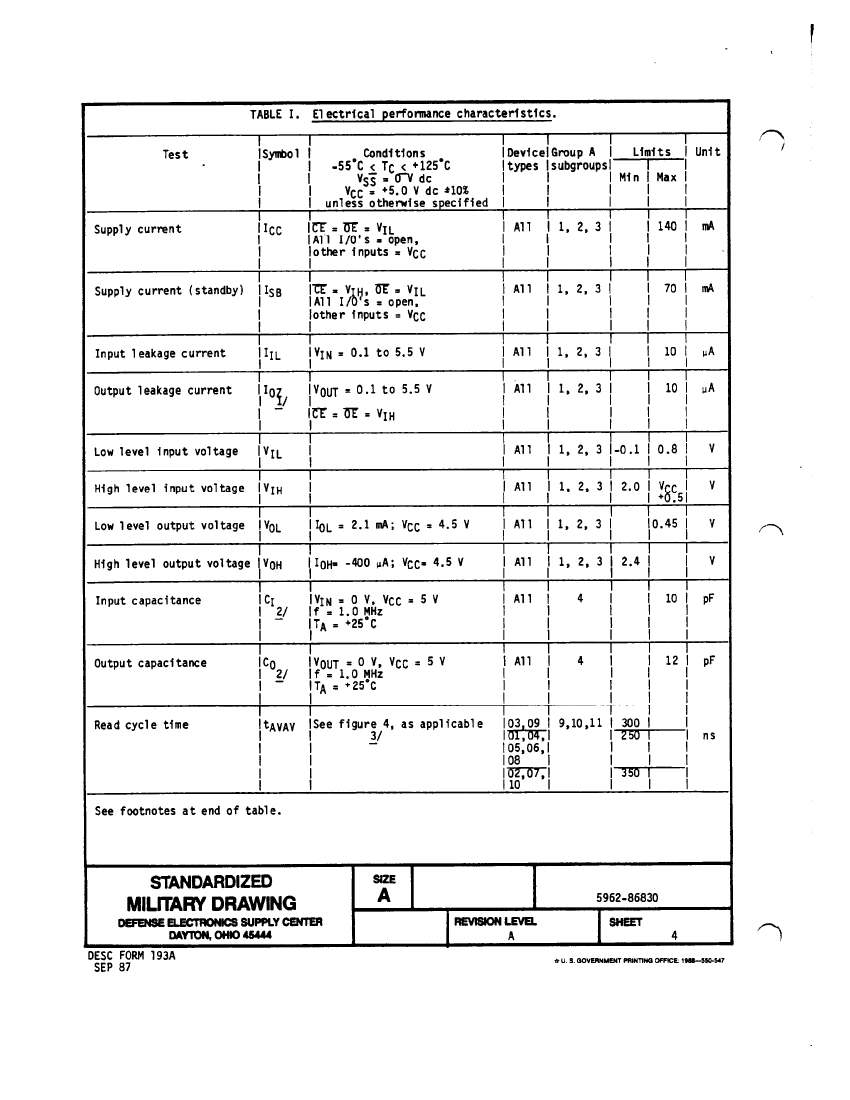

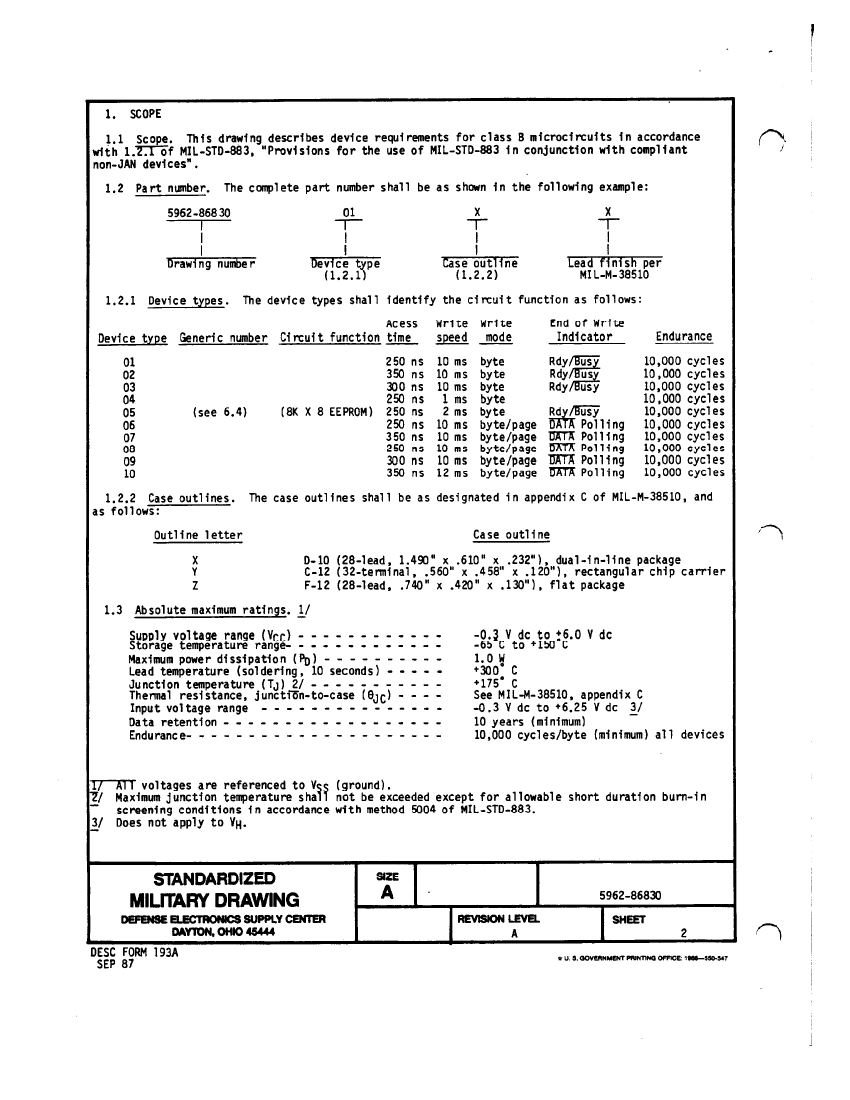

Preview

Download Datasheet

View All

5962-8683003XA Related Products

	5962-8683003XA	5962-8683006YA	5962-8683007XA	5962-8683004YA
Description	EEPROM, 8KX8, 300ns, Parallel, NMOS, 1.490 X 0.610 INCH, 0.232 INCH HEIGHT, DIP-28	EEPROM, 8KX8, 250ns, Parallel, MOS, CQCC32	EEPROM, 8KX8, 350ns, Parallel, MOS, CDIP28	EEPROM, 8KX8, 250ns, Parallel, NMOS, 0.560 X 0.458 INCH, 0.120 INCH HEIGHT, LCC-32
package instruction	DIP,	QCCN, LCC32,.45X.55	DIP, DIP28,.6	QCCN,
Reach Compliance Code	unknown	unknow	unknown	unknown
Maximum access time	300 ns	250 ns	350 ns	250 ns
JESD-30 code	R-XDIP-T28	R-XQCC-N32	R-XDIP-T28	R-XQCC-N32
memory density	65536 bit	65536 bi	65536 bit	65536 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of terminals	28	32	28	32
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	8KX8	8KX8	8KX8	8KX8
Package body material	UNSPECIFIED	CERAMIC	CERAMIC	UNSPECIFIED
encapsulated code	DIP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	NMOS	MOS	MOS	NMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	1 ms
Base Number Matches	1	1	1	1
Maker	Defense Logistics Agency	-	Defense Logistics Agency	Defense Logistics Agency
