TECHNICAL DATA SHEET
BNC
75Ω
ATTENUATOR
PLUG / JACK
71AS103-K40N4

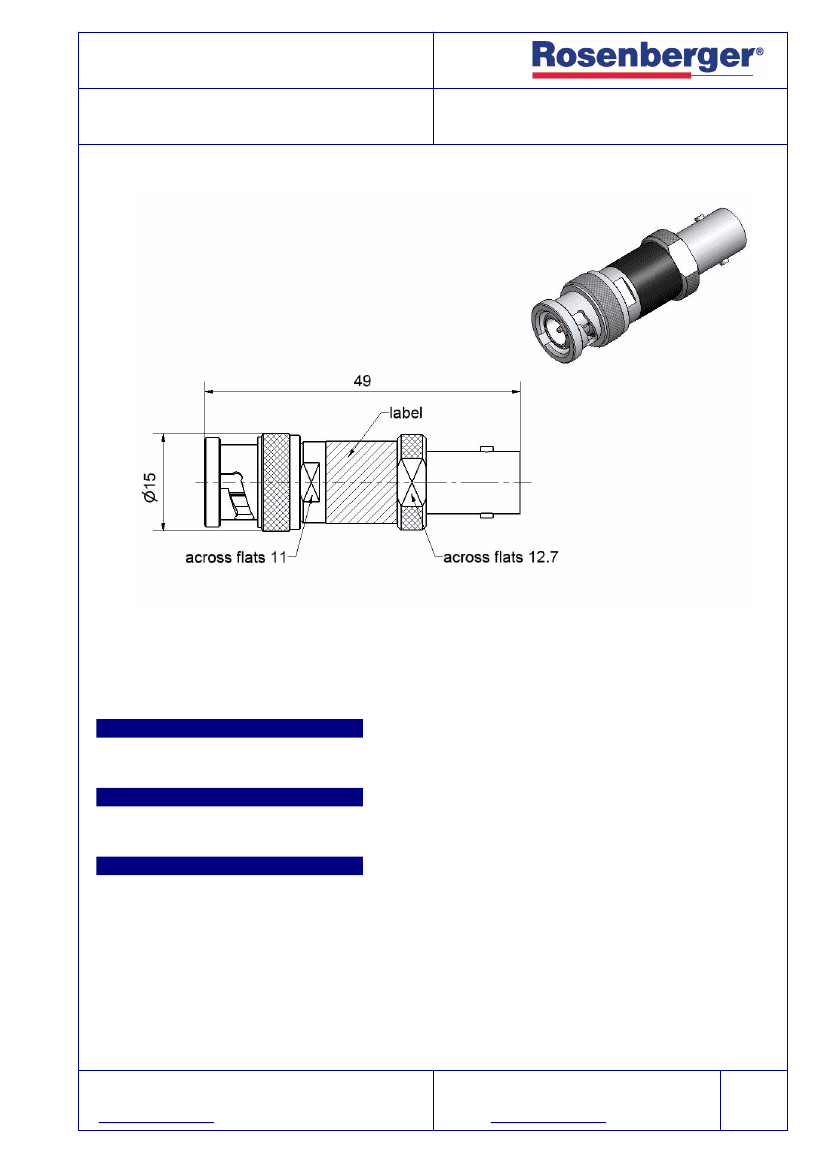

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
N/A
Material and plating
Connector parts
Center contact - plug
Center contact - jack
Outer contact
Coupling nut
Dielectric
Substrate
Material
Brass
Beryllium copper
Brass
Brass
PTFE
Al
2
O
3
Plating
Gold, min. 0.8 µm,
Gold, min. 0.8 µm,
Flash white bronze
Flash white bronze
over
over
over
over
nickel
nickel
silver(e.g. Optargen®)
silver(e.g. Optargen®)
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
BNC
75Ω
Impedance
Frequency
Return loss
Attenuation
Center contact resistance
Outer contact resistance
Power handling
ATTENUATOR
PLUG / JACK
71AS103-K40N4
75
Ω
DC to 2 GHz
≥
23 dB, DC to 1 GHz
≥
19 dB, 1 GHz to 2 GHz
40 dB
±
1.1 dB
≤
1.5 mΩ
≤
1 mΩ
3 W to 25°C
derated linearity to 0 Watts at 125°C
Electrical data
Mechanical data
Mating cycles
Center contact captivation
min. 500
≥
27 N
Environmental data
Temperature range
-65°C to +165°C
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
24.4 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Kerstin Herzog
Date
10/03/05
Approved
Frank Weiß
Date
14/11/05
Rev.
b00
Engineering change number
05-0566
Name
Kerstin Herzog
Date
14/11/05
