RADIAL CHOKE COIL
1. PART NO. EXPRESSION :
RCS1008 SERIES
RCS1008100MZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10uH
(d) Tolerance code : K = ±10%, M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free

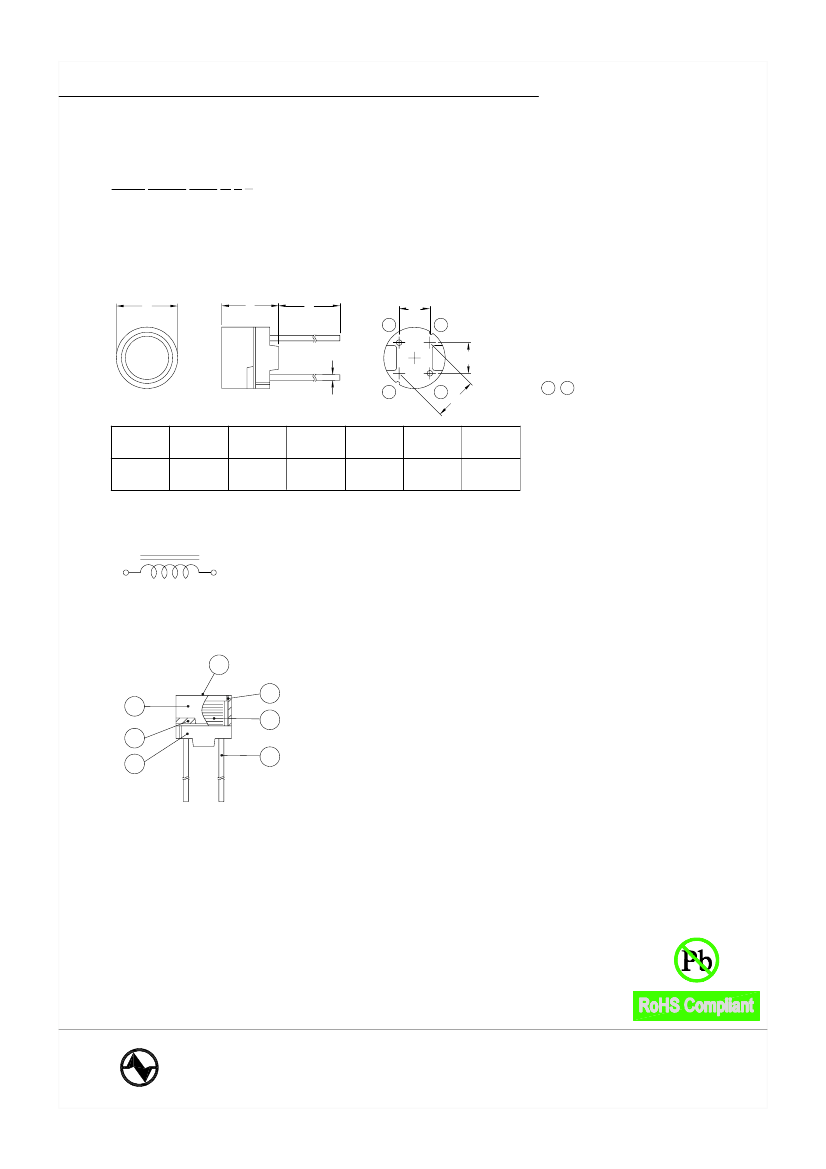

2. CONFIGURATION & DIMENSIONS :
A
B
C
F1
2
3
F2
ØW
F3
10.00±0.5
3. SCHEMATIC :
4. MATERIALS :
g
c
b
d
f
a
e
(a) Core : DR Ferrite Core
(b) Core : RI Ferrite Core
(c) Sleeve : Phenolic
(d) Wire : Enamelled Copper Wire
(e) Lead : Tinned Copper Wire
(f) Adhesive : Epoxy
(g) Ink : Bon Margue
5. GENERAL SPECIFICATION :
a) The inductance drop at rated is 10% max.
b) Temp. rise : 40°C max. at rated current
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
101
1
4
A
B
8.00±0.5
C
15.00±3.0
F1
4.00±0.5
F2
5.00±0.5
F3
6.40±0.5
Cut off Pin
1
,
3
Unit:m/m
ØW
0.80±0.10
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
RADIAL CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Part No.
RCS1008100MZF
RCS1008120MZF
RCS1008150MZF
RCS1008180MZF
RCS1008220MZF
RCS1008270MZF
RCS1008330MZF
RCS1008390MZF
RCS1008470MZF
RCS1008560KZF
RCS1008680KZF
RCS1008820KZF
RCS1008101KZF
RCS1008121KZF
RCS1008151KZF
RCS1008181KZF
RCS1008221KZF
RCS1008271KZF
RCS1008331KZF
RCS1008391KZF
RCS1008471KZF
RCS1008561KZF
RCS1008681KZF
RCS1008821KZF
RCS1008102KZF
Inductance
( µH )
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±20%
39±20%
47±20%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
1000±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
RCS1008 SERIES
RDC
( )
Max.
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.12
0.14
0.15
0.16
0.18
0.20
0.24
0.35
0.40
0.54
0.76
0.86
0.93
1.23
1.34
1.53
2.10
2.30
IDC
(A)
Max.
2.80
2.50
2.30
2.10
2.00
1.76
1.60
1.38
1.28
1.20
1.00
0.96
0.92
0.80
0.73
0.64
0.61
0.56
0.50
0.44
0.41
0.38
0.34
0.32
0.28
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
260°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
RADIAL CHOKE COIL

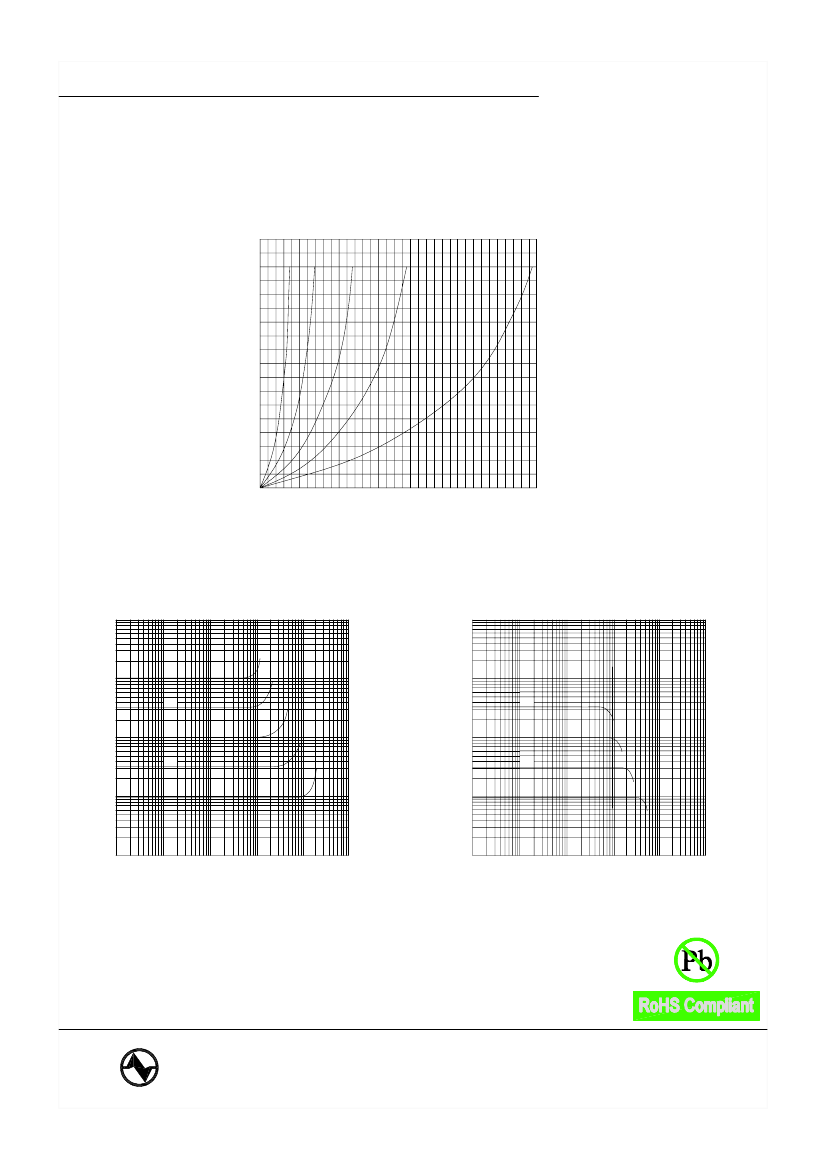

7. CHARACTERISTICS CURVES :
RCS1008 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
102K
331K
101K
330K
100K
t
(°C)
40
30
20
10
0 0
1
2
3
4
5
6
7
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
102K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
102K
331K
331K
L
(uH)
102
5
3
1
10
5
3
100
10-3
101K
L
(uH)
102
5
3
101K
330K
330K
100K
1
10
5
3
100
10-3
100K
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
RADIAL CHOKE COIL

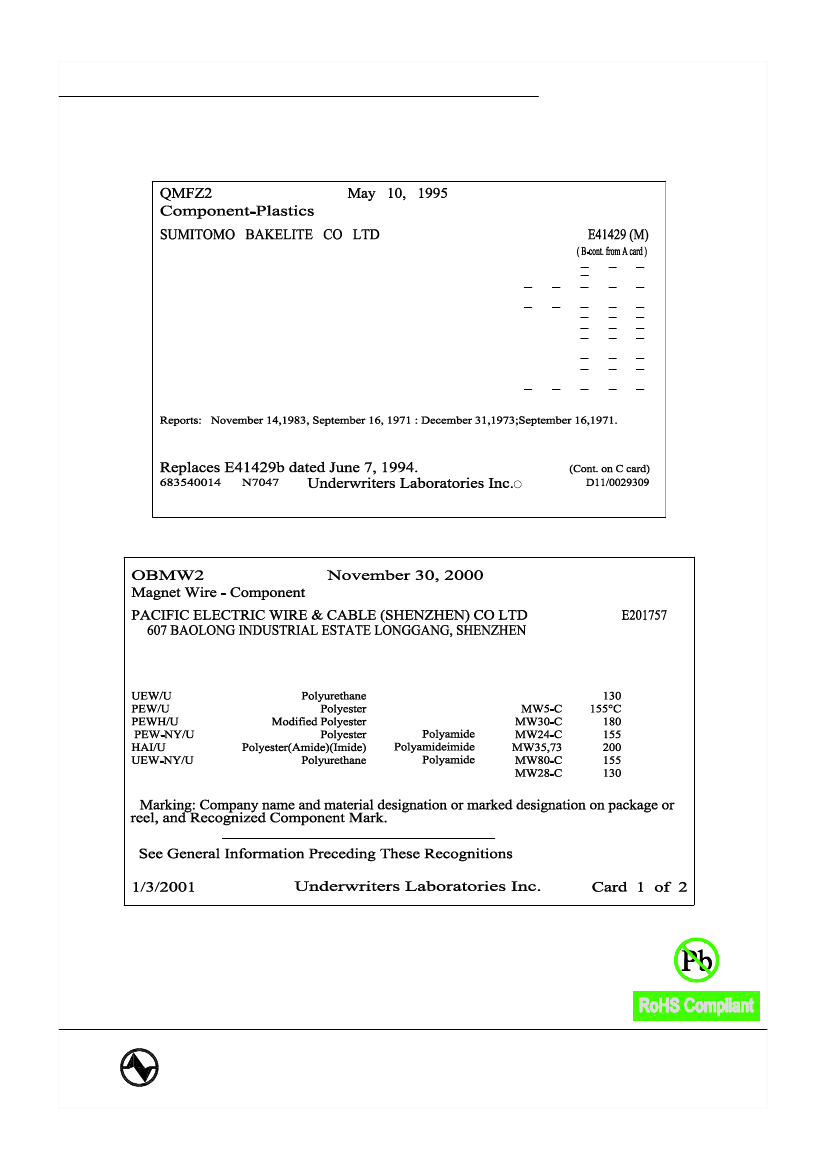

8. UL CARD :
RCS1008 SERIES
AM - 3130A
AM-1120,
AM112
AM-1130,
AM-113
ALL
BK
BK
BK,GN
ALL
ALL
BK
BK
0.99
3.0
0.99
0.40
0.75
1.1
1.5
3.0
1.1
1.5
3.0
0.74
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
94V-0
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
0
0
3
2
5
0
AM-1140,
AM-1130,
AM-3131,
AM-3000,
AM-300
0
0
0
0
1
1
0
2
1
1
1
0
0
0
0
0
5
5
0
0
R
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
