U-9953-6-1K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> U-9953-6-1K

U-9953-6-1K: Description5725 MHz - 6725 MHz RF/MICROWAVE UP CONVERTER; CategoryWireless rf/communication Radio frequency and microwave; File Size613KB，4 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

U-9953-6-1K Overview

5725 MHz - 6725 MHz RF/MICROWAVE UP CONVERTER

U-9953-6-1K Parametric

Parameter Name	Attribute value
Maker	MITEQ Inc
Reach Compliance Code	unknown
Other features	BNC-F; SMA-F
Characteristic impedance	75 Ω
structure	COAXIAL
Downconversion gain - minimum	44 dB
LO tunable	NO
maximum noise index	14 dB
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum RF input frequency	6725 MHz
Minimum RF input frequency	5725 MHz
RF output maximum frequency	6725 MHz
RF output frequency - minimum	5725 MHz
RF/Microwave Device Types	UP CONVERTER
Upconversion gain - minimum	31 dB
Base Number Matches	1

Preview

Download Datasheet

View All

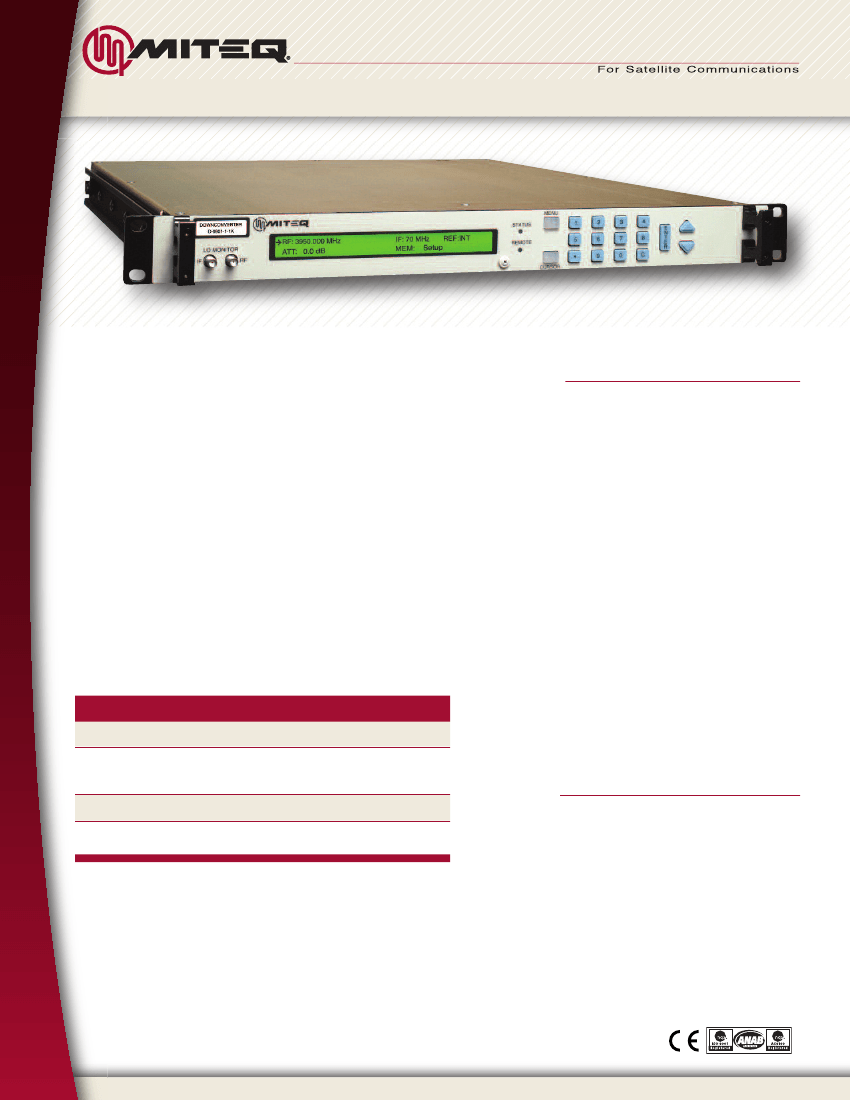

9900 Series Frequency Converters

The MITEQ frequency converters are designed for advanced

satellite communication systems and are available for a wide

variety of frequency plans. Phase noise, amplitude flatness

and spurious outputs have been optimized to provide the user

with a transparent frequency conversion for all video and data

applications.

A strong feature set of monitor and control functions supports

powerful local and remote control. Among the features are

control of frequency, attenuation and 64 memory locations for

each converter where various setups can be stored and

recalled.

A continuously updated log of time-stamped records of activity

is also provided.

Features

• Supports expandable NSU 1:N Switchover

Series (D-323)

• Amplitude slope adjust

• Three monitor and control ports:

1. RS485/RS422 remote interface (J6A)

changes to RS232 with Option 17C

2. RS485/RS422 control interface (J7) is

provided for use with NSU redundancy

system (D-323) or as an alternative

interface

3. 10/100Base-T Ethernet interface (J6B)

• RF, IF and LO monitor ports

• Automatic switching to external 5/10 MHz

reference and electronic adjust of internal

reference frequency

• Low intermodulation distortion

• Better than IESS-308/309 compliant phase

noise

• 64 programmable memory locations

• 30 dB level control

• External alarm input via contact closure

• Date and time-stamped event log

• CE Mark

RF Frequency (GHz)

Model Numbers

Upconverters

5.725 - 6.725

U-9953-6-1K

13.75 -14.8

U-9956-6-1K

NEW

17.3 -18.4

U-9957-2-1K

Downconverters

3.4 - 4.2

10.7 - 12.75

D-9901-1-1K

D-9908-6-1K

NEW

Options

•

Higher stability reference

Remote RS232

140 MHz IF frequency

50 ohm IF impedance

Type “N” RF connector

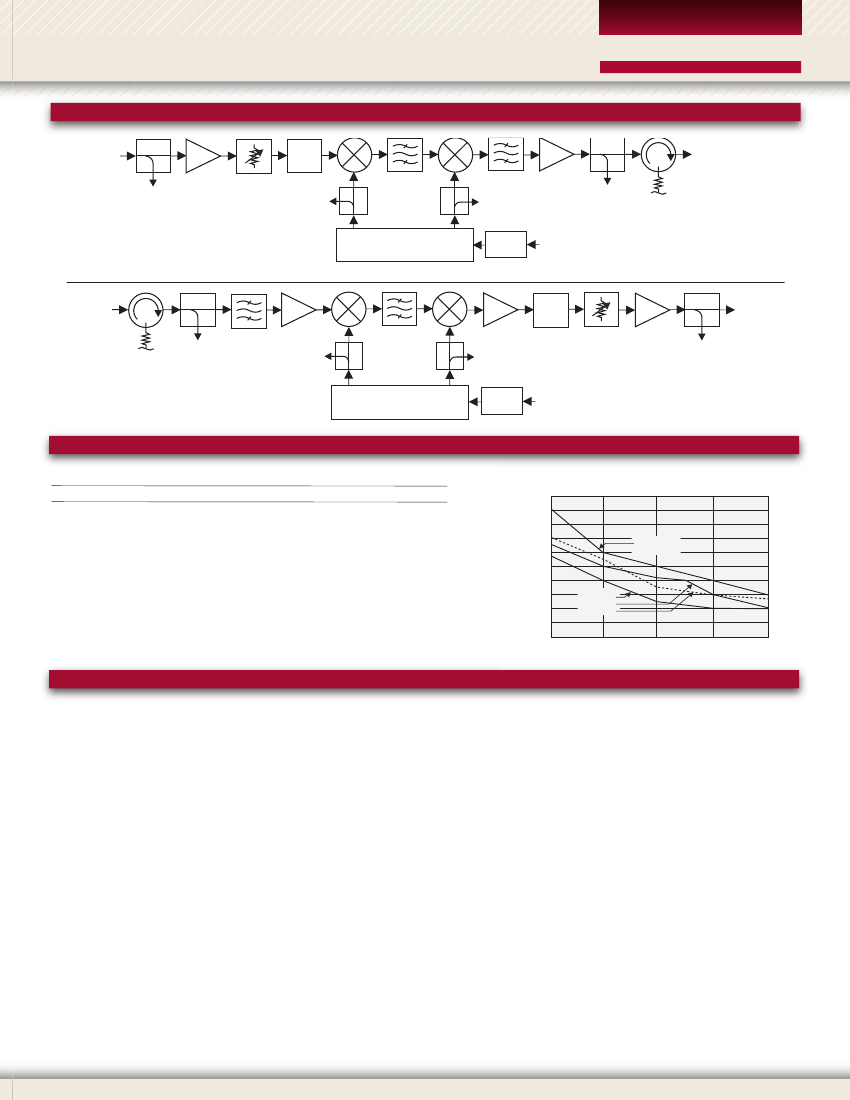

9900 Series Frequency Converters

For Satellite Communications

General Specifications

Primary Power Requirements

Voltage .......................................................................... 90-250 VAC

Frequency ..................................................................... 47-63 Hz

Consumption ................................................................. 25 W typical

Physical

Weight ........................................................................... 12 pounds nominal

Chassis dimensions ...................................................... 19" x 1.75" panel height x 20" maximum

Connectors

RF.............................................................................. SMA female (N female, Option NRF)

RF monitor................................................................. SMA female

IF ............................................................................... BNC female

IF monitor .................................................................. BNC female

LO monitors ............................................................... SMA female

Alarm ......................................................................... DE-9P

External reference ..................................................... BNC female

Remote interface ....................................................... DE-9S for RS485, RS422 and RS232,

RJ-45 female for Ethernet

Primary power input .................................................. IEC-320

Auxiliary control interface .......................................... DE-9S

Environmental

Operating

Ambient temperature ................................................. 0 to 50°C

Relative humidity ....................................................... Up to 95% at 30°C

Atmospheric pressure ............................................... Up to 10,000 feet

Nonoperating

Ambient temperature ................................................. -50 to +70°C

Relative humidity ....................................................... Up to 95% at 40°C

Atmospheric pressure ............................................... Up to 40,000 feet

Shock and vibration ................................................... Normal handling by commercial carriers

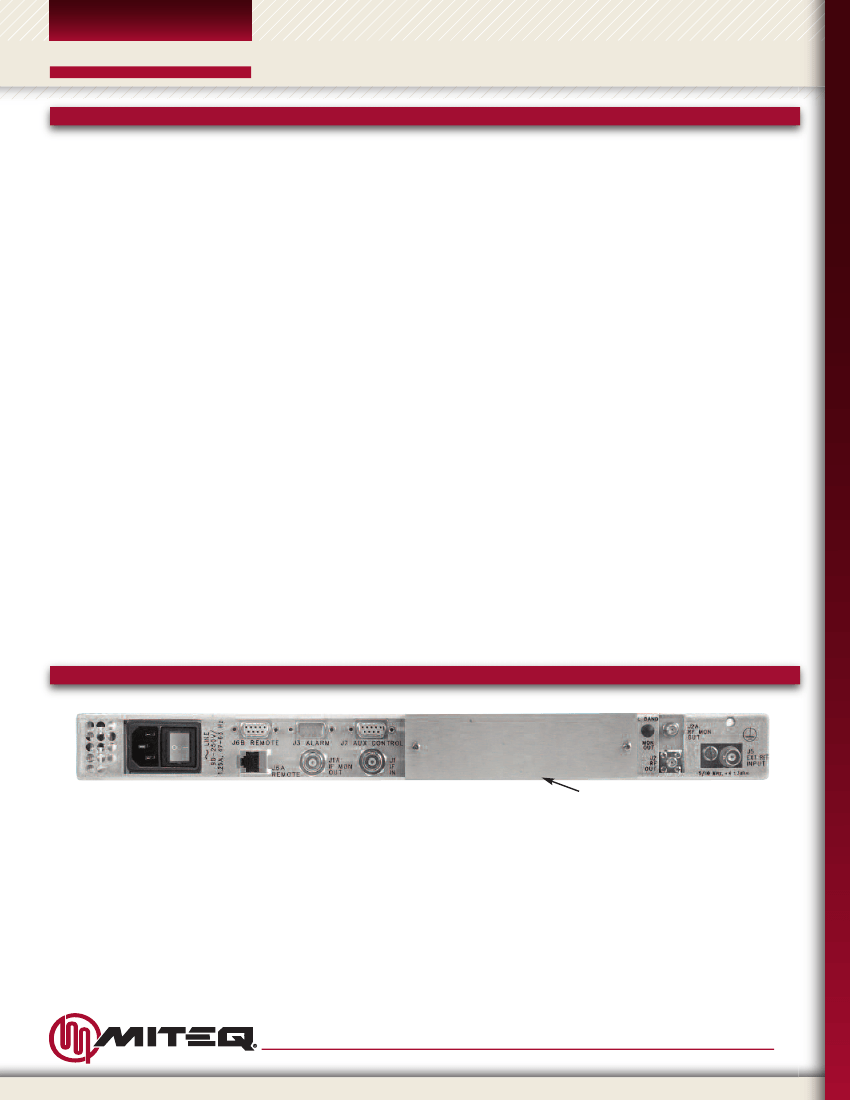

Typical Rear Panel View

RSM Switch Module Location

(see D-323 for more information)

D-326E /11-10

100 Davids Drive, Hauppauge, NY 11788

TEL.: +1-631-436-7400 • FAX: +1-631-436-7431

www.miteq.com

Specifications are subject to change without notification.

U-9953-6-1K Related Products

	U-9953-6-1K	U-9956-6-1K	D-9901-1-1K	U-9957-2-1K
Description	5725 MHz - 6725 MHz RF/MICROWAVE UP CONVERTER	Up Converter, 13750MHz Min, 14800MHz Max	3400 MHz - 4200 MHz RF/MICROWAVE DOWN CONVERTER	RF/MICROWAVE UP CONVERTER
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	BNC-F; SMA-F	BNC-F; SMA-F	BNC-F; SMA-F	BNC-F; SMA-F
Characteristic impedance	75 Ω	75 Ω	50 Ω	75 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Downconversion gain - minimum	44 dB	44 dB	44 dB	44 dB
LO tunable	NO	NO	NO	NO
maximum noise index	14 dB	14 dB	11 dB	14 dB
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C
Maximum RF input frequency	6725 MHz	14800 MHz	4200 MHz	18400 MHz
Minimum RF input frequency	5725 MHz	13750 MHz	3400 MHz	17300 MHz
RF/Microwave Device Types	UP CONVERTER	UP CONVERTER	DOWN CONVERTER	UP CONVERTER
Upconversion gain - minimum	31 dB	31 dB	31 dB	31 dB
RF output maximum frequency	6725 MHz	14800 MHz	4200 MHz	-
RF output frequency - minimum	5725 MHz	13750 MHz	3400 MHz	-
Base Number Matches	1	1	1	-
