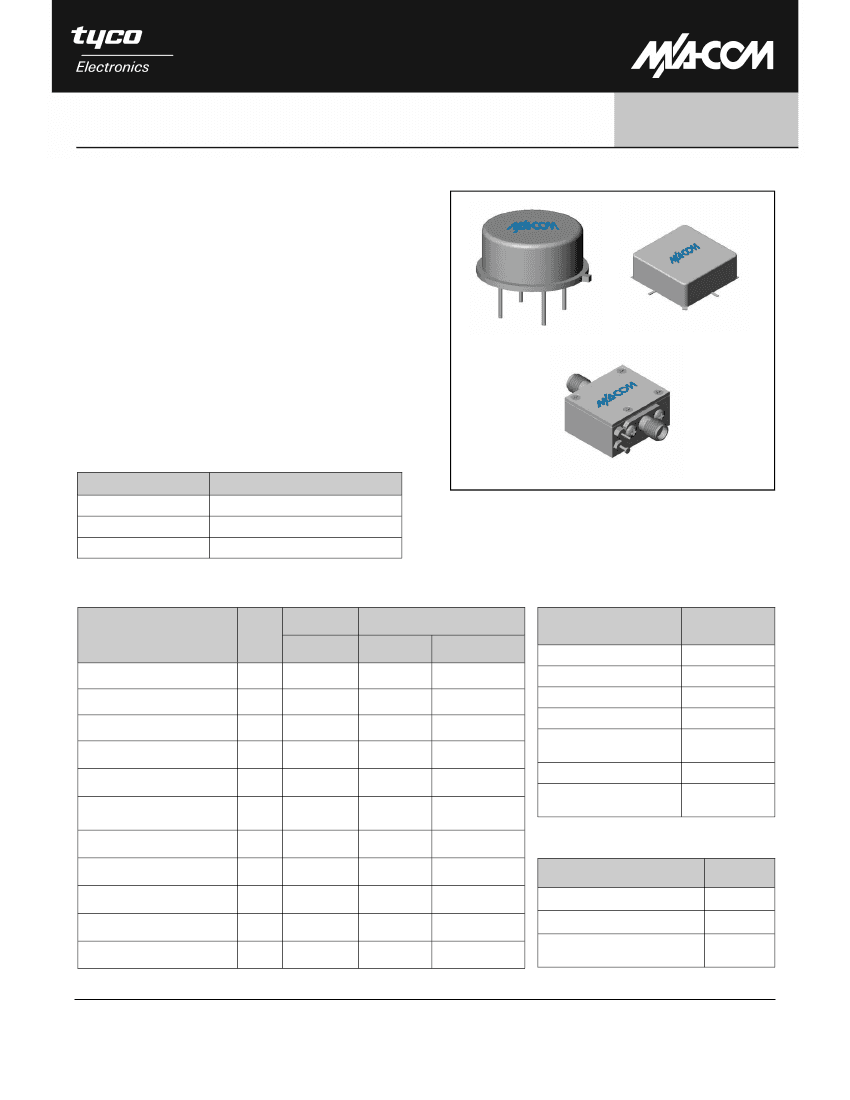

Cascadable Amplifier
100 to 2600 MHz
Features
•
•
•
•
AVAILABLE IN SURFACE MOUNT
ULTRA-WIDE BANDWIDTH 100-2600 MHz
HIGH GAIN-TWO STAGES 15 dB (TYP.)
MEDIUM OUTPUT LEVEL +14 dBm,
2000-2600 MHz (TYP.)
A36-2/ SMA36-2
V2
Product Image
Description
The A36-2 RF amplifier is a discrete hybrid design, which uses
thin film manufacturing processes for consistent performance
and high reliability.
This 2 stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband
frequency range. An active DC biasing network insures
temperature-stable performance.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available
Ordering Information
Part Number
A36-2
SMA36-2
CA36-2
Package
TO-8
Surface Mount
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω, V
CC
= +15 V
DC
Ω
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Guaranteed
0º to 50ºC
10-2600
14.0
±0.8
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
10-2700
15.0
±0.5
28
7.0
14.0
+30
+32
+37
1.9:1 / 1.9:1
15
2.1:1 / 2.1:1
17
2.3:1 / 2.3:1
18
7.5
12.5
8.0
12.0
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+17 V
10 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
10-2600
13.0
±1.2
Peak Power (3 sec max.)
“S” Series Burn-In
Temperature (case)
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
45ºC/W
0.426 W
+19ºC
* Over temperature performance limits for part number CA36-2, guaranteed from 0
o
C to +50
o
C only.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
Cascadable Amplifier
100 to 2600 MHz

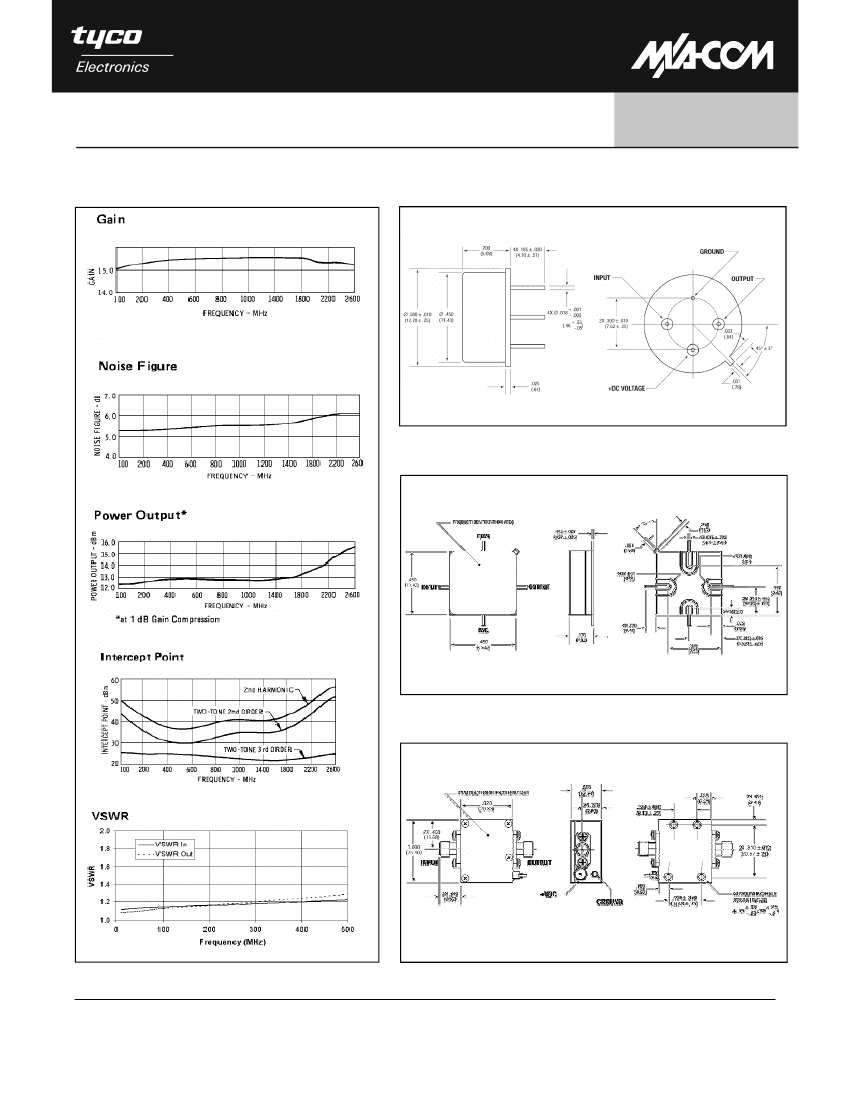

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
A36-2/ SMA36-2
V2
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
