RF354024 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> RF354024

RF354024: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 24VDC (COIL), 400mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size189KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

RF354024 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 24VDC (COIL), 400mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

RF354024 Parametric

Parameter Name	Attribute value
Processing package description	ROHS COMPLIANT
state	Active
Relay type	POWER/SIGNAL RELAY
width	13.2 mm
high	16 mm
length or diameter	29 mm
Maximum DC coil current	0.0170 A
coil_input_supply_type	DC
DC coil operating voltage	16.8 V
coil_power__mw_	400
DC coil release voltage	2.4 V
Coil resistance	1440 ohm
coil_voltage_nom	24 V
Maximum DC coil voltage	24 V
contact_ac_max_power_rating_r_load	4000VA@400VAC
contact_ac_max_rating_r_load	16A@400VAC
Maximum AC contact current	16 A
Maximum DC contact current	16 A
contact_output_supply_type	AC/DC
Maximum AC contact voltage	400 V
dielectric_strength_between_coil_and_contacts	4000 Vrms
dielectric_strength_between_open_contacts	1000 Vrms
Electrical life	15000 Cycle(s)
end_contact_material	Silver Nickel
input_switching_control_type	Random
Manufacturer Series	RF
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	11 ms
cking_method	TRAY
Dimensions	29mm X 13.2mm X 16mm
eference_standard	UL; VDE
Relay action	MOMENTARY
elay_form	1 FORM A
Relay function	SPST
release time	7 ms
Terminal type	SOLDER
weigh	20 g
dditional_feature	QUICK CONNECT TERMINALS ALSO AVAILABLE

Preview

Download Datasheet

View All

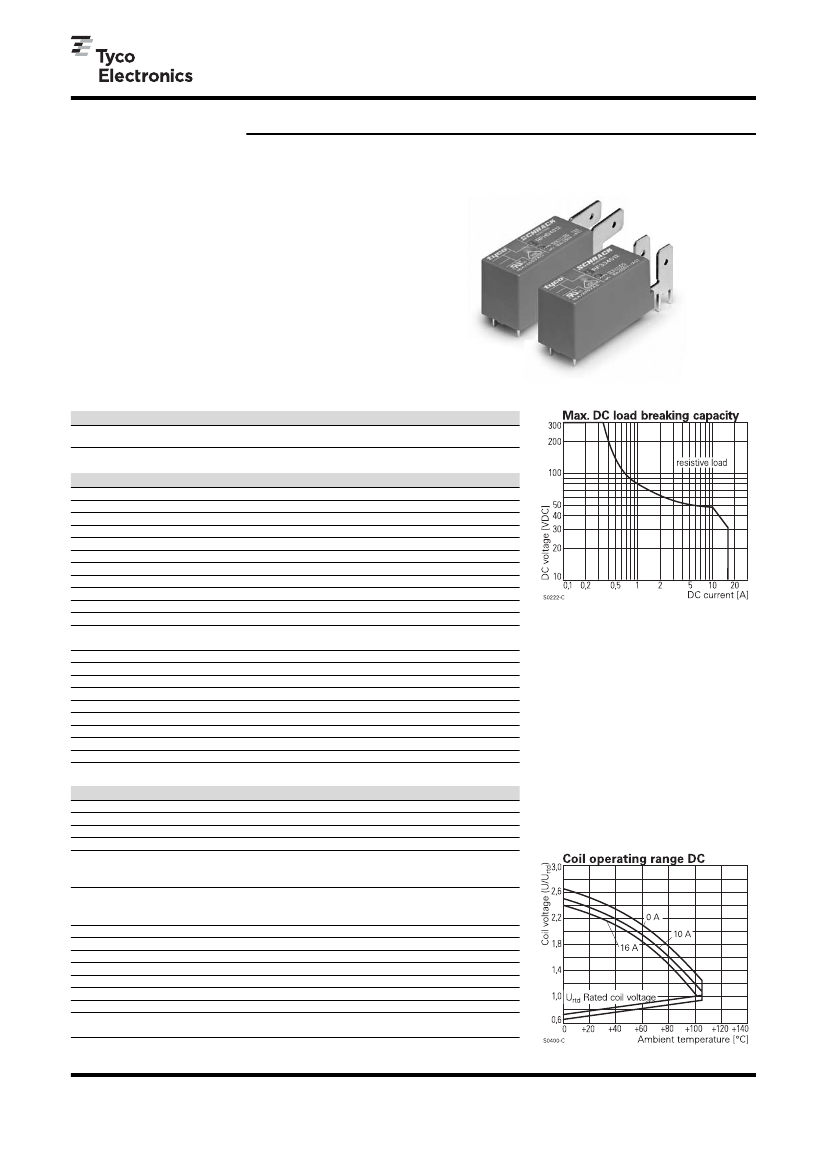

General Purpose Relays

SCHRACK

Power Relay RF

1 pole 16 A, 1 NO or 1 NC contact

Switching capacity 4000 VA

Coil power 400 mW

Reinforced insulation (EN 61810, 60335, 60730)

Ambient temperature up to 105°C

Quick connect terminals for load side

WG version: Materials in accordance to IEC 60335-1

RoHS compliant (Directive 2002/95/EC)

Applications

Oven control, electric heating, power supplies, air conditioning,

microwares, hobs

F0273-AI

Approvals

REG.-Nr.

A652,

on request

E214025

Technical data approved types

Contact data

Contact configuration

Contact set

Type of interruption

Rated current

Rated voltage / max.switching voltage AC

Maximum breaking capacity AC

Limiting making capacity, max 4 s, duty factor 10%

Contact material

Minimum contact load

Mechanical endurance

Rated frequency of operation with / without load

Contact ratings

Type

Load

RF33, RFH3

11 A, 250 VAC, 85°C, EN61810-1

RF33, RFH3

16 A, 250 VAC, 85°C, EN61810-1

RF33, RFH3

20 A, 250 VAC, 85°C, EN61810-1

RF33, RFH3

25 A, 250 VAC, 70°C, EN61810-1

RFH3

11 A, 250 VAC, 105°C, EN61810-1

RFH3

16 A, 250 VAC, 105°C, EN61810-1

RFH3

18, 5 A, 250 VAC, 105°C, EN61810-1

RFH3

10 A, 400 VAC, 105°C, EN61810-1

1NO or 1NC

single contact

micro disconnection

16 A

240/400 VAC

4000 VA

25 A

AgNi90/10

12VAC / 500mA

10x10

cycles

6 / 1200 min

-1

Cycles

2.5x10

1x10

2.5x10

1.5x10

2.5x10

5x10

2x10

1.5x10

Coil data

Rated coil voltage DC coil

Coil power DC coil

Operative range

Coil insulation system according UL1446

5...60 VDC

typ. 400 mW

Class F

Coil versions, DC-coil

Coil

Rated

Operate

Release

Coil

Rated coil

code

voltage

resistance

power

VDC

Ohm

005

3.5

0.5

62+10%

403

006

4.2

0.6

90+10%

400

009

6.3

0.9

203+10%

399

012

8.4

1.2

360+10%

400

024

16.8

2.4

1440+10%

400

048

33.6

4.8

5520+10%

417

060

42.0

6.0

8570+10%

420

All figures are given for coil without preenergization, at ambient temperature +23°C

Other coil voltages on request

Datasheet

Rev. GK1

Issued 2007/11

www.tycoelectronics.com

www.schrackrelays.com

Dimensions are in mm unless

otherwise specified and are

shown for reference purposes

only.

Product specification

according to IEC 61810-1.

Product data, technical para-

meters, test conditions and

processing information

only to be used together

with the 'Definitions' at

schrackrelays.com in the

‘Schrack’ section.

Specifications subject to

change.
