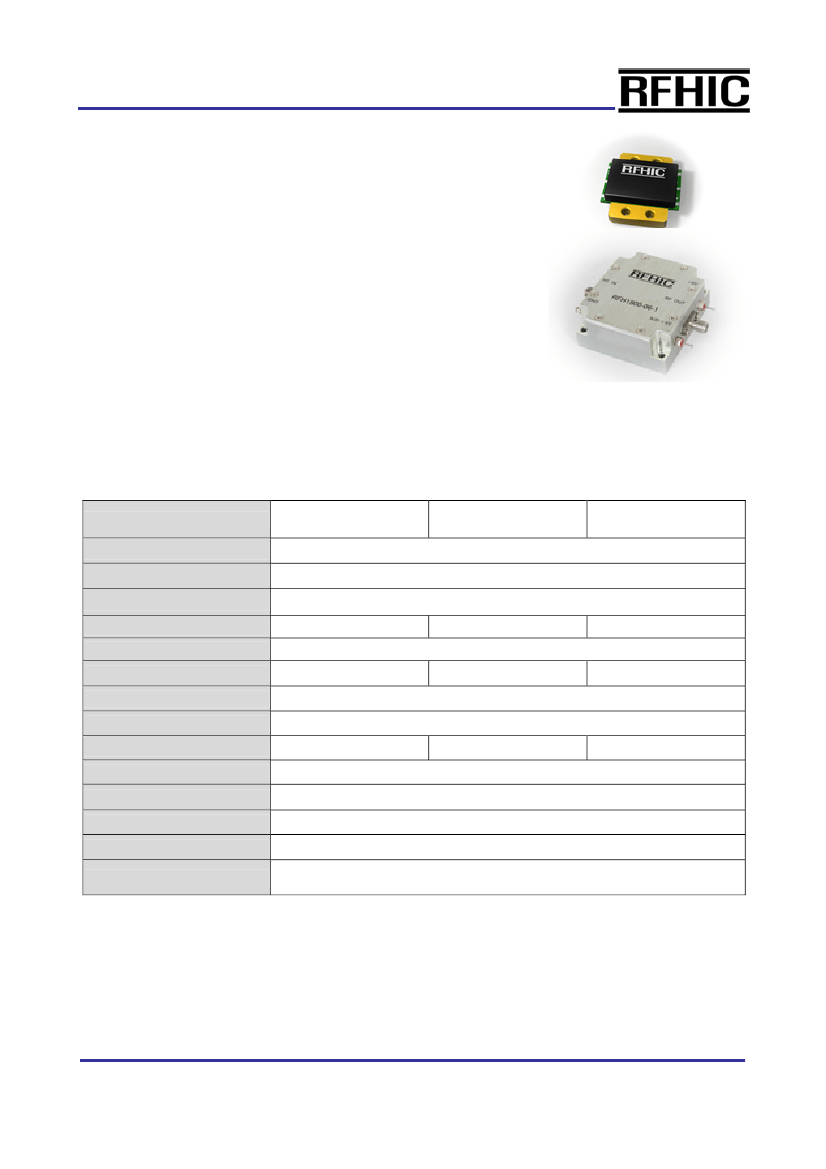

Power Amplifier
Product Features
• Small size by using simple matching circuit board
• High Efficiency
• Single Supply Voltage
• High Linearity, 10W Power
• Heat sink 99.9% copper, gold plate
• High Productivity
• Low Manufacturing Cost
• GaAs MESFET
RFM0902-10
Application
•
GSM Repeater
•
RF Sub-Systems
•
Base Station
Package : DP-36
Description
The power amplifier module is designed for base stations and cell extenders
as cellular and GSM , IMT-2000, ISM, MMDS frequency systems.
GaAs MESFET is used and attached on a copper sub carrier. It is connected by
using bias and in/out matching circuit method with gold wire bonding.
The bias and matching circuit are designed much simpler than other circuits for silicon IC’s, LDMOS because
GaAs MESFET is operated by low supply voltage whereas others are operated by high supply voltage.
For better thermal conductivity, enhanced mode PCB was used in the 99.9% copper gold plate heat sink.
This simplicity results cost competitiveness and performance enhancement.
Specifications
PARAMETER
Frequency Range (MHz)
Small Signal Gain (dB)
Gain Flatness (Max.)
Gain Variation Over Temp
VSWR (Input)
Output P1dB
CDMA Power (1 FA)
Vcc / Idc (CDMA Only)
OIP3 @ tone / 27 dBm
Noise Figure (Typ.)
Shut Down (On/Off)
In/Out Connectors
49 dBm
37 dBm
Min
Typ
890 ~ 915
16
± 0.5dB @ 50MHz BW
± 0.5dB
2:1
38 dBm
32 dBm
9V / 1.2A
50 dBm
5 dB
＋5V
@ 25㎂ / 0V
SMA Female (50
Ω)
-20°C ~ +70°C
± 1.0dB
Max
Dimensions in mm
Operating Temp Range
Dimensions (W×L×H)
Functional Diagram
29.0 × 30.2 × 9.0 [mm] (RFM)
48.0 × 54.2 × 22.0 [mm] (RFH)
NOTE
* CDMA : 1.23MHz symbol rate ; Forward Link ; 9 Channels, Multi tone Available
@ ±750KHz offset in 30KHz resolution bandwidth
@ ±1.98MHz offset in 30KHz resolution bandwidth
* RFM : Internally Matched Module
* RFH : Housing Type
: RF Connector
: SMA Female
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.3

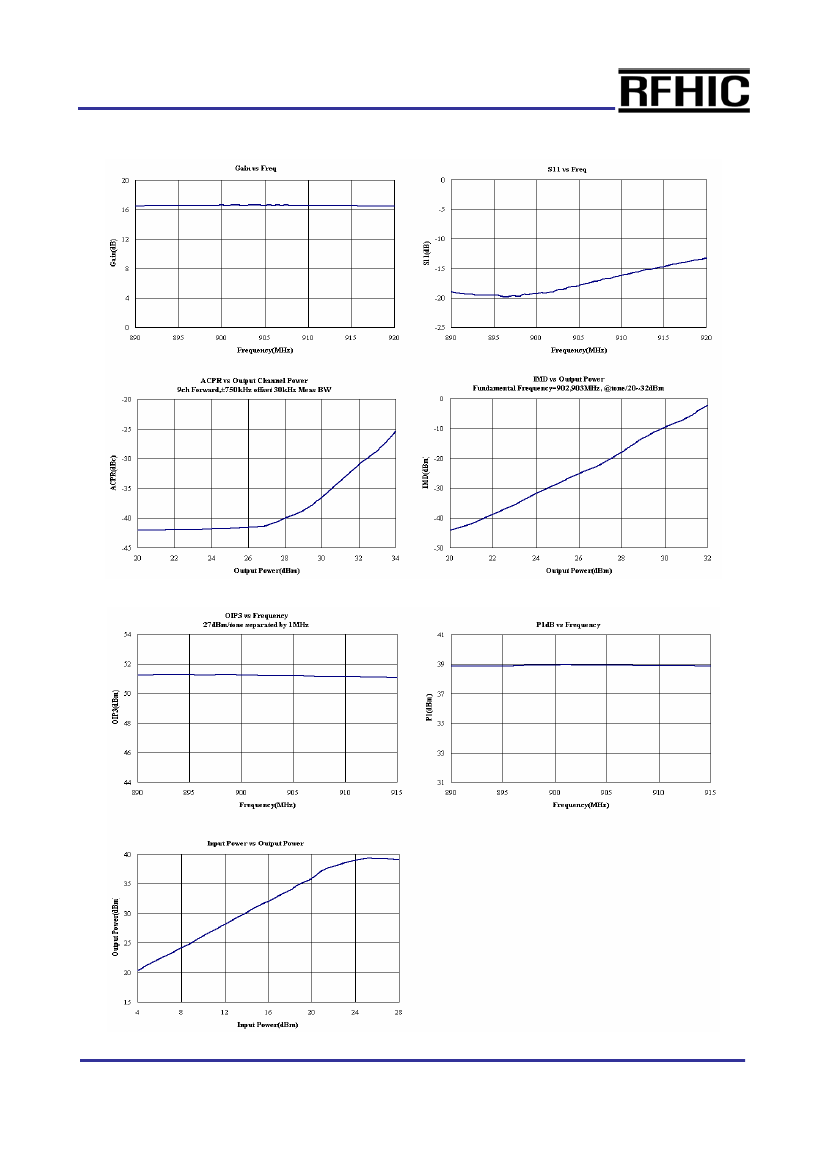

Power Amplifier

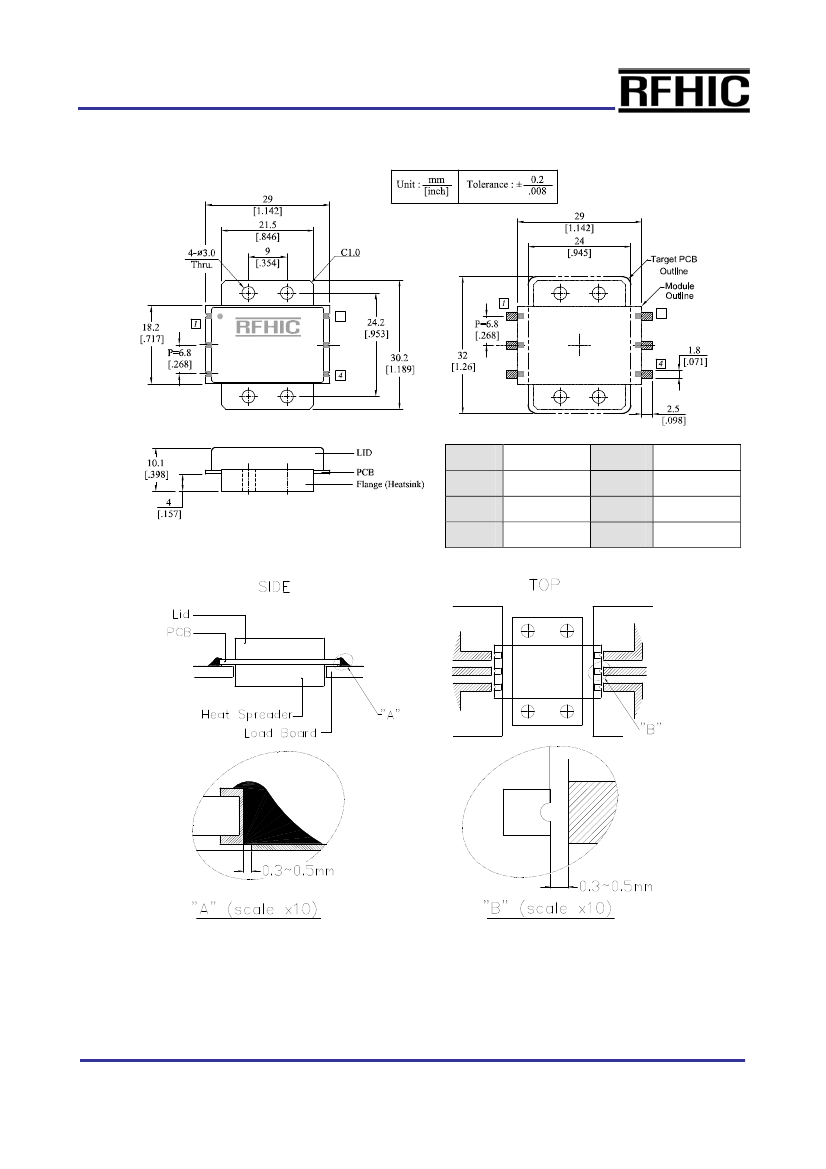

Package Dimensions
(Type: DP-36)
RFM0902-10
Pin NO
1
2
3
Function
GND
RF IN
GND
Pin NO
6
5
4
Installation Guideline
★
It can be easily removed with solder wick and other removable material.
RFHIC Corporation (RFHIC) reserves the right to make changes to any products herein or to discontinue any product at any time without notice. RFHIC do not
assume any liability for the suitability of its products for any particular purpose, and disclaims any and all liability, including without limitation consequential or
incidental damages. The product specifications herein expressed have been carefully checked and are assumed to be reliable. However, RFHIC disclaims liability for
inaccuracies and strongly recommends buyers to verify that the information they are using is current before placing purchase orders. RFHIC products are not
intended for use in life support equipment or application where malfunction of the product can be expected to result in personal injury or death. Buyer uses or sells
such products for any such unintended or unauthorized application, buyer shall indemnify, protect and hold RFHIC and its directors, officers, stockholders,
employees, representatives and distributors harmless against any and all claims arising out of such use. RFHIC’s liability under or arising out of damages, claims of
whatsoever kind and nature which RFHIC products could cause shall be limited in amount to the net purchase price of the products sold to buyer by RFHIC
.
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.3
9
9
Function
Vcc
RF OUT
E/N
