7872RPFS datasheet, PDF - EEWORLD Datasheet

7872RPFS: DescriptionA/D Converter, 14-Bit, 1 Func, CMOS, CDFP16; CategoryAnalog mixed-signal IC converter; File Size607KB，9 Pages; ManufacturerSpace Electronics Inc.

Download Datasheet Parametric Compare View All

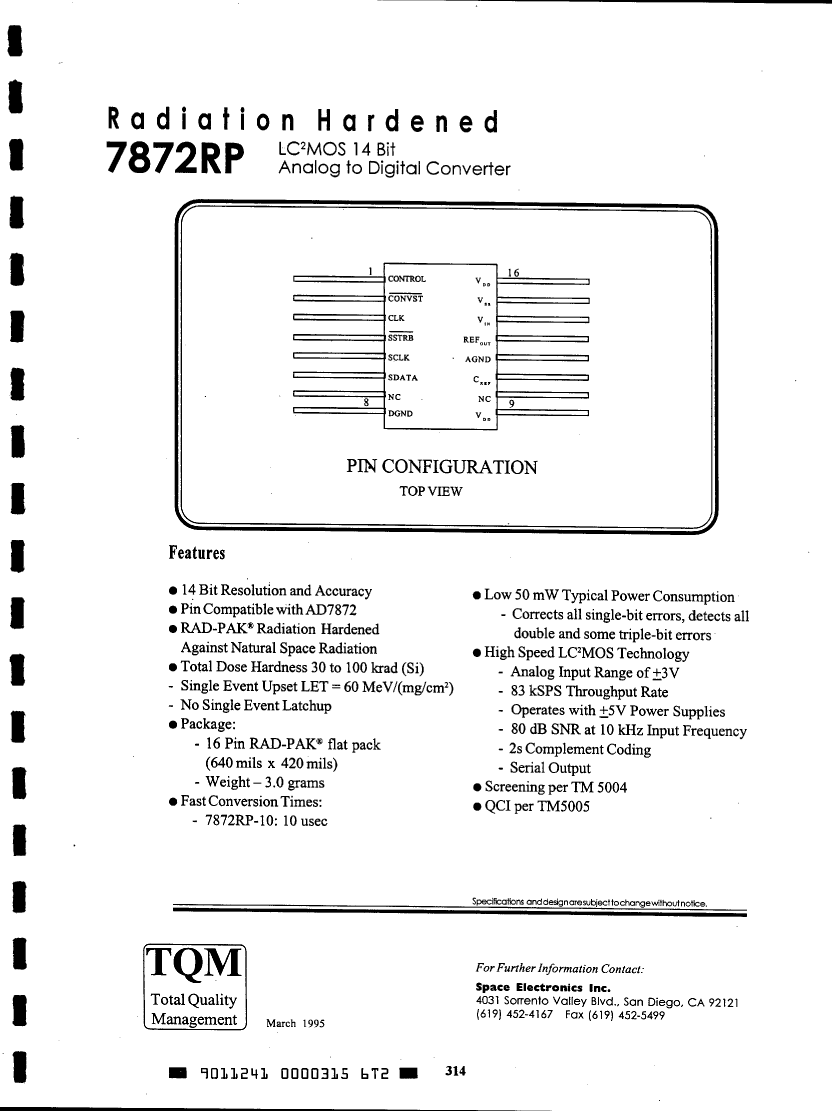

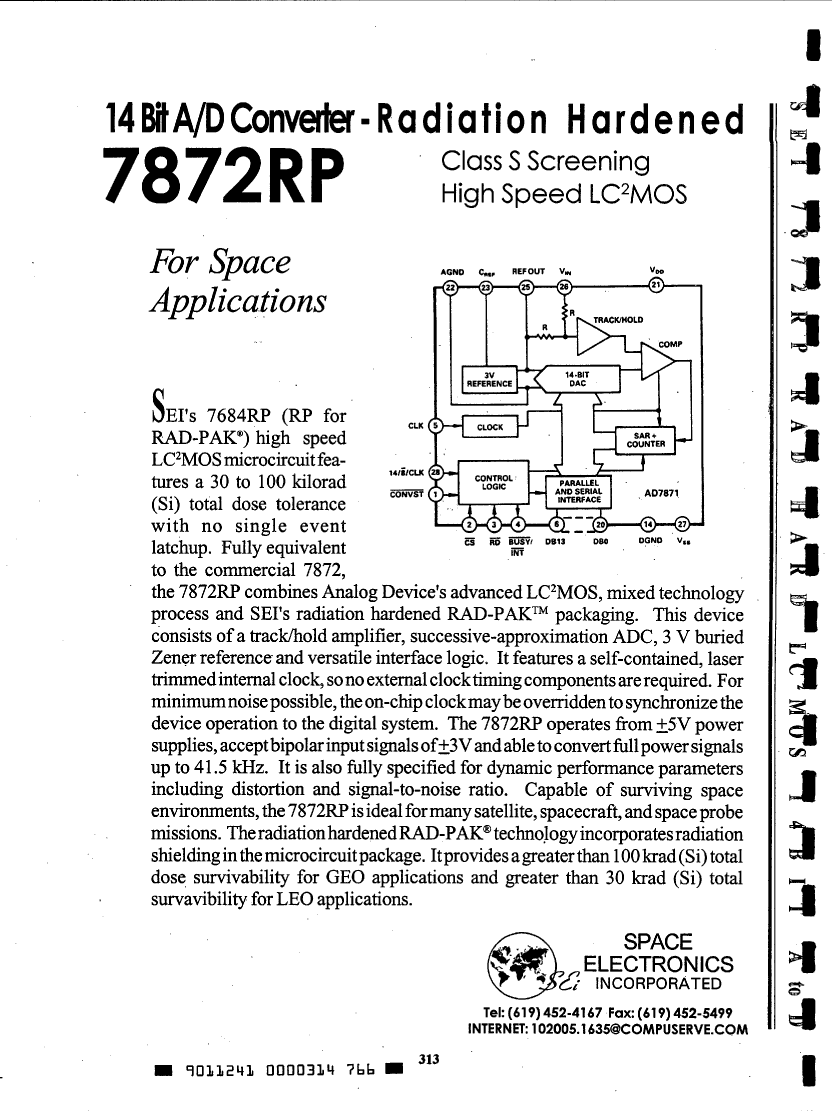

7872RPFS Overview

A/D Converter, 14-Bit, 1 Func, CMOS, CDFP16

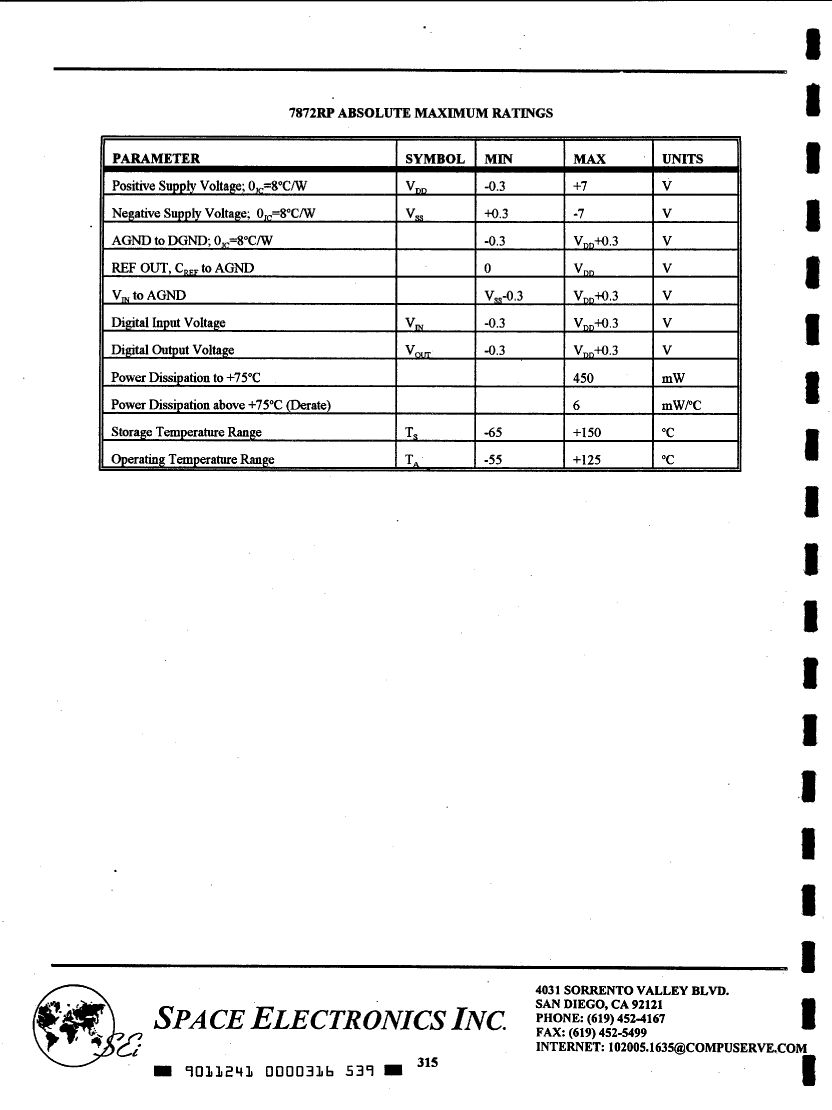

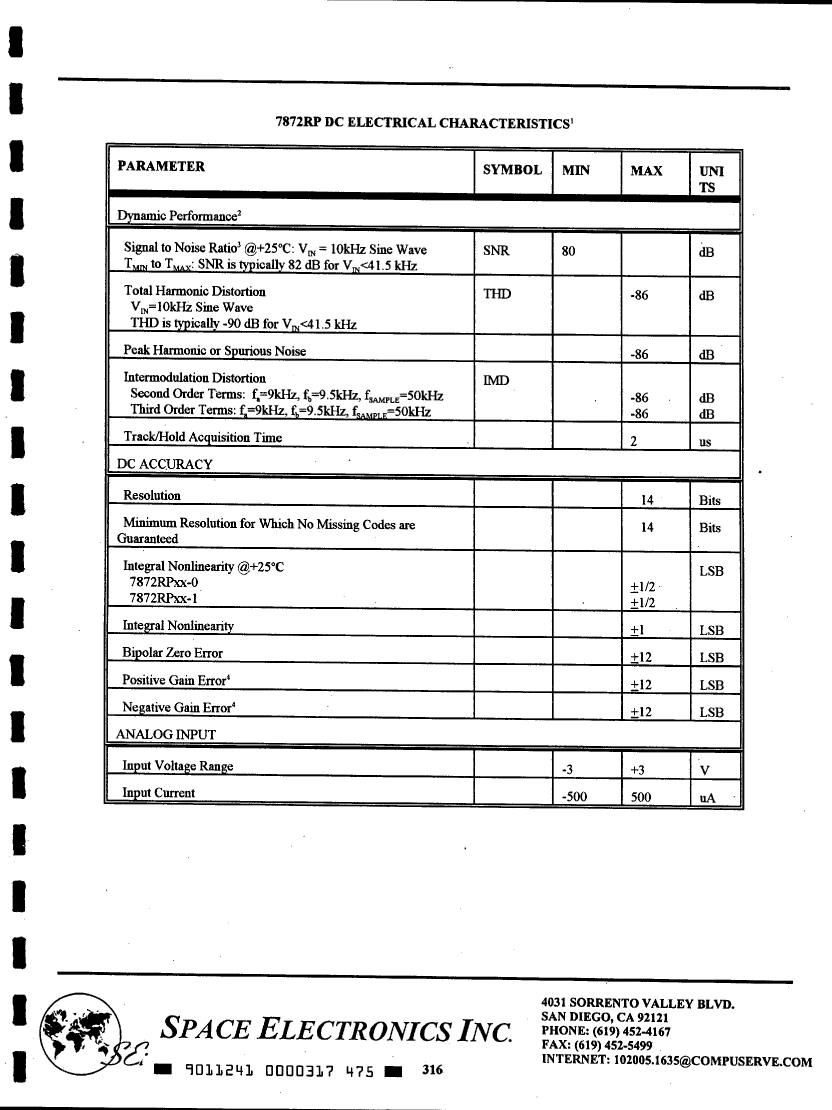

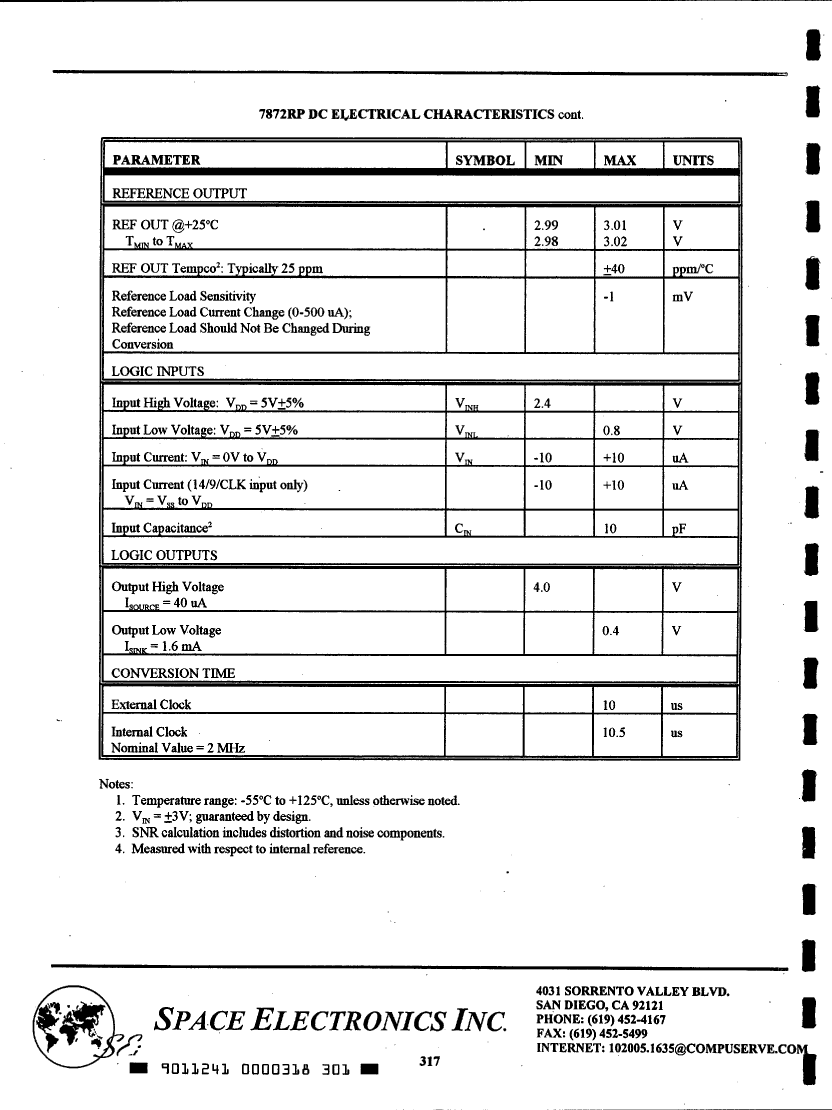

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Space Electronics Inc.
package instruction	DFP, FL16,.25
Reach Compliance Code	unknown
Maximum analog input voltage	3 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Maximum linear error (EL)	0.0061%
Nominal negative supply voltage	-5 V
Number of digits	14
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, 2\'S COMPLEMENT BINARY
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.25
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	+-5 V
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	7872RPFS	7872RPFE
Description	A/D Converter, 14-Bit, 1 Func, CMOS, CDFP16	A/D Converter, 14-Bit, 1 Func, CMOS, CDFP16
Is it Rohs certified?	incompatible	incompatible
Maker	Space Electronics Inc.	Space Electronics Inc.
package instruction	DFP, FL16,.25	DFP, FL16,.25
Reach Compliance Code	unknown	unknown
Maximum analog input voltage	3 V	3 V
Converter type	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-XDFP-F16	R-XDFP-F16
JESD-609 code	e0	e0
Maximum linear error (EL)	0.0061%	0.0061%
Nominal negative supply voltage	-5 V	-5 V
Number of digits	14	14
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output bit code	BINARY, 2\'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY
Package body material	CERAMIC	CERAMIC
encapsulated code	DFP	DFP
Encapsulate equivalent code	FL16,.25	FL16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
power supply	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
