Model 970-1036
Vishay Spectrol
Industrial Sensor for Harsh Environment
(Throttle Position/Through Hole)
FEATURES
•
Fully “sealed” robust package
•
Electrical connection: AMP superseal 1.5 series integrated
connector
•
Through hole D drive
•
Mountable on both faces
•
Reference index indent
•
Return spring option
•
Standard electrical resistance (and custom options)
The Model 970 has been specifically developed to operate and maintain high functional performance under harsh environmental
conditions. These include: extremes of temperature, continuous vibration, chemical exposure and water immersion. This
universal device is fully sealed to ingress protection IP67 providing high mechanical durability and long electrical life. This
industrial sensor is suitable for a different variety of applications within the automotive, medical and robotic industries.
ELECTRICAL SPECIFICIATONS
PARAMETER
Standard Resistance
Resistance Tolerance
Linearity (Absolute)
Electrical Angle
Output Smoothness
Maximum Voltage
Temperature Coefficient of Resistance
5 kΩ, ± 20 °C
± 30 %
±2%
Standard version 200°
continuous rotation version 346°
0.5 %
30.0 V
DC
600 ppm/°C
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation (Options)
Stop Strength
Fixed Torque (Recommended)
Spring Torque
Mounting Pitch
190° with mechanical stops
190 with mechanical stops and return spring
360 continuous
680 mNm minimum
2 to 3 Nm
Minimum return 20 Nmm
Maximum wind-up 115 Nmm
41 mm
ORDERING INFORMATION/DESCRIPTION
970 - 1036
MODEL
0000
VERSION
0000 Without spring return
0001 With spring return
0002 Continuous rotation
BO100
PACKAGING
Box of 100 pieces
SAP PART NUMBERING GUIDELINES
970
MODEL
1036
STYLE
0000
CONFIGURATION
B30
PACKAGING
www.vishay.com
148
For technical questions, contact: sfer@vishay.com
Document Number: 57001
Revision: 20-Mar-07
Model 970-1036
Industrial Sensor for Harsh Environment
(Throttle Position/Through Hole)

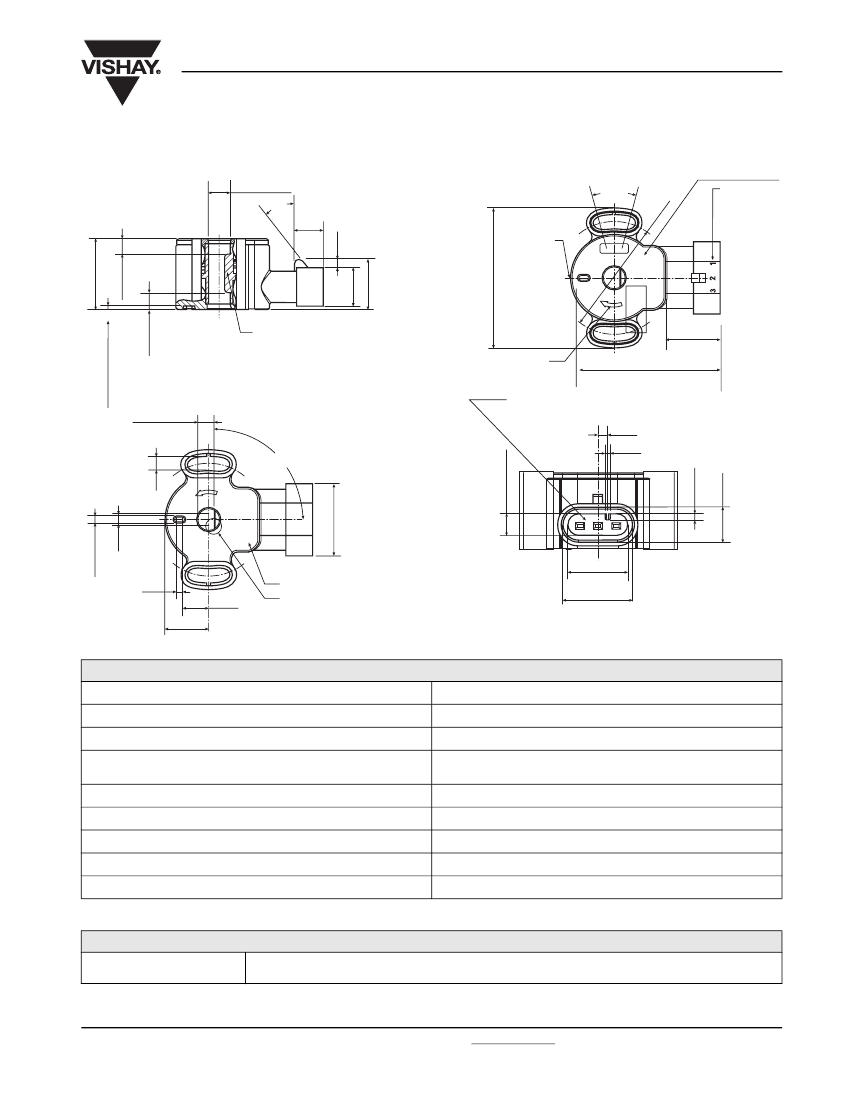

DIMENSIONS
in inches (millimeters)
MOUNTING FACE
Ø 8.00 - 8.05
40°
10.7
LABEL PART NO
DATA CODE
30°
Ø
41
.00
Vishay Spectrol
PIN IDE
NUMBER
5.1 - 5.55
25.3
3.0
5.42 - 5.92
1.2
INDEX SLOT ON
BOTH FACES
SECTION A - A
“D” DRIVE FEATURE
DIRECTION OF
ROTATION (D.O.R)
55.3
13.8
17.9
50.8
20.3
+ 0.00
6.14
- 0.07
(“D” DRIVE)
ANGLE “A”
PROVIDES MATING HALF TO
AMP SUPERSEAL 1.5 SERIES
CONNECTOR
± 0.05
3.00
1.20
2.00
25.8
7.00
+ 0.20
4.4
2.20 ± 0.05
4.0
19.00
2.0
10.0
16.0
MOUNTING FACE “A”
SEE DETAIL Z
22.80
ENVIRONMENTAL SPECIFICATIONS
PARAMETER
Vibration
Shock
Rotational Life
Load Life
Temperature Range
Sealing
Humidity
Salt Spray
15 g thru 2000 Hz
50 g
5 000 000 full cycles
10 000 000 dither cycles (second rotation)
900 h
- 40 °C to + 130 °C
IP67
96 % at 40 °C (500 h)
5 % solution at 40 °C (300 h)
MARKING
Unit Identification
Manufacturer’s name and model number, resistance value, tolerance, data code and terminal identification
Document Number: 57001
Revision: 20-Mar-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
149
10.80
