53552-2009 datasheet, PDF - EEWORLD Datasheet

53552-2009: DescriptionBoard Stacking Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug; CategoryThe connector The connector; File Size152KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

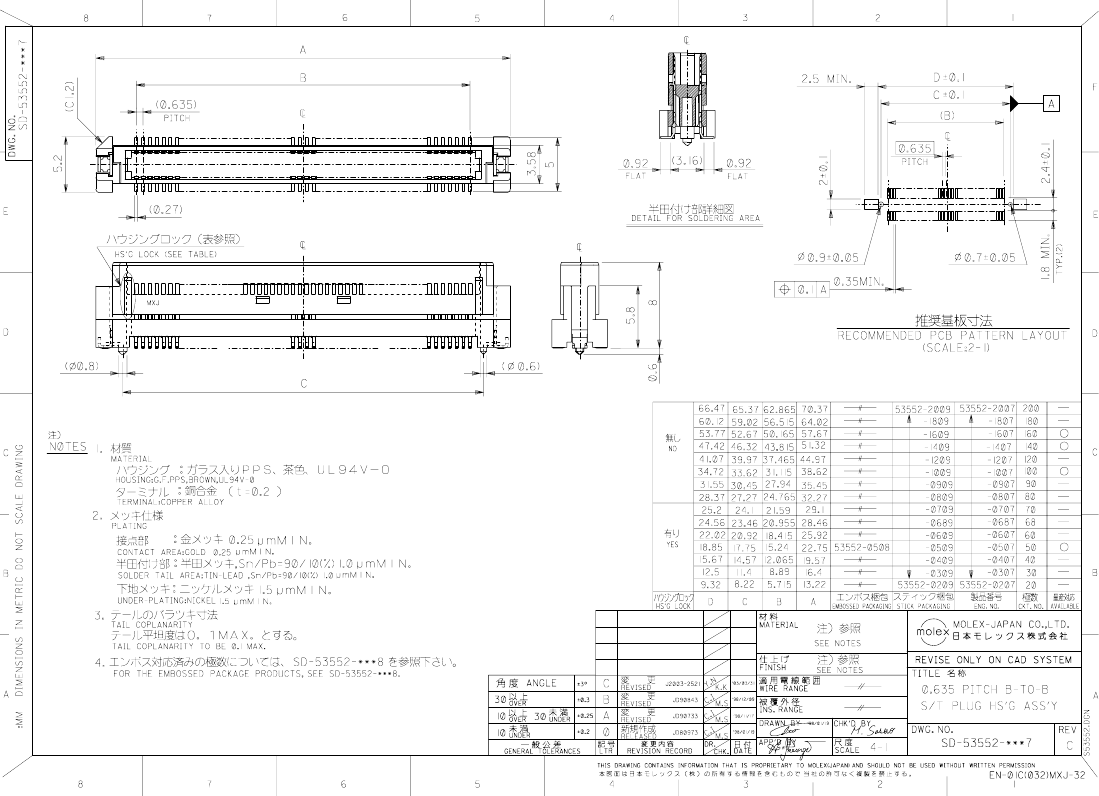

Download Datasheet Parametric View All

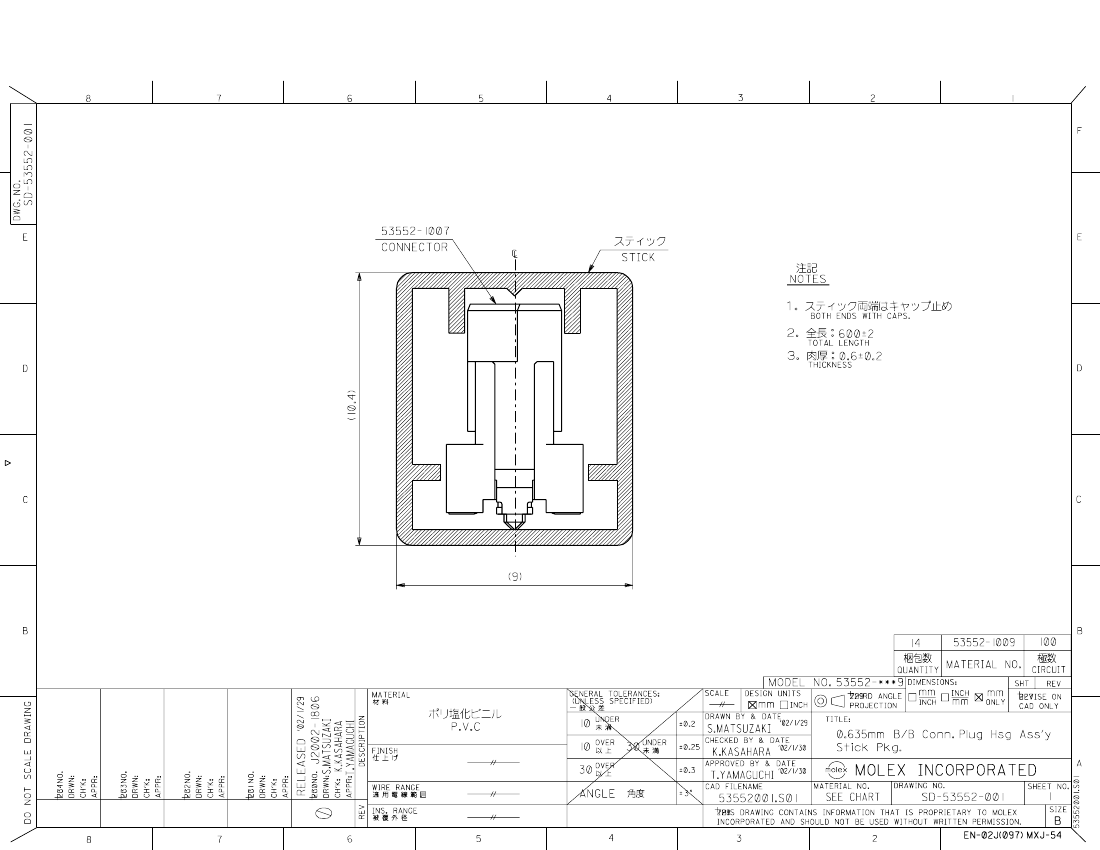

53552-2009 Overview

Board Stacking Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	W/O HOUSING LOCK & STICK PKG.
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.315 inch
body length	2.77 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7228 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	53552
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1
