803-44-080-61-002-100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-44-080-61-002-100

803-44-080-61-002-100: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size300KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-44-080-61-002-100 Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, Socket, ROHS COMPLIANT

803-44-080-61-002-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	80
Base Number Matches	1

Preview

Download Datasheet

View All

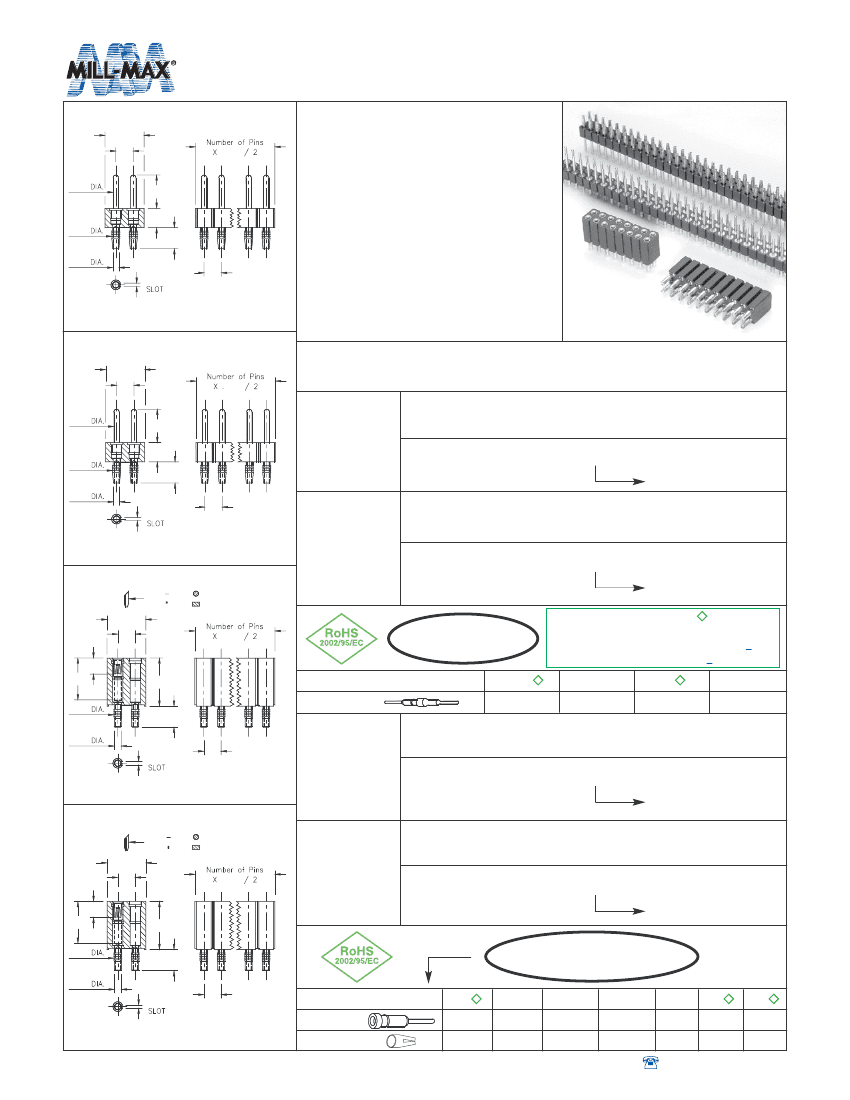

INTERCONNECTS

Solderless Press-Fit

Double Row

●

5,08

2,54

Series 802, 803

The unique compliant tail pins

conform to 1,02

0,76 finished

hole without stressing inner layers.

Pin headers are offered in two tail

lengths for 1,52 - 2,54 ( M-M# 5601)

and 2,29 - 3,3 (M-M# 5602) thick

panels. (See page 178 for details)

Sockets use Hi-Rel, six-finger

clips which accept 0,76 dia. pins

and also 0,64 square pins .

(M-M# 4614 or 4615). (See page

147 for details)

0,76

●

4,85

2,79

1,14

2,64

0,89

0,46

2,54

●

Fig. 1

5,08

2,54

Ordering Information

4,85

2,79

0,76

Fig. 1

3,63

2,54

Compliant Tail Pin Header

for 1,52 - 2,54 thick boards

802-XX-0 _ _-61-001000

Specify # of pins

02-64

Compliant Tail Pin Header

for 2,29 - 3,3 thick boards

802-XX-0 _ _-62-001000

Specify # of pins

02-64

1,14

0,89

0,46

Fig. 2

0,64

5,08

2,54

0,94

0,64

Fig. 2

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

2,24

6,1

7,01

For RoHS compliance, select



plating code.

For the gold option (XX=10) also change

part number from 802-XX-0XX-6X-001000

to 802-10-0XX-6X-001100

5,08µm Sn/Pb



5,08µm Sn



0,25µm Au

1,14

Pin Plating

2,64

1,02

2,54

0,46

Fig. 3

Compliant Tail Socket

for 1,52 - 2,54 thick boards

803-XX-_ _ _-61-001000

Specify # of pins

002-100

Compliant Tail Socket

for 2,29 - 3,3 thick boards

803-XX-_ _ _-62-001000

Specify # of pins

002-100

0,64

5,08

2,54

0,94

0,64

2,54

Fig. 4

2,24

6,1

7,01

1,14

3,63

1,02

0,46

2,54

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=



0,76µm Au

10µ” Au

0,76µm Au



Fig. 4

Sleeve (Pin)

Contact (Clip)

0,25µm Au

200µ” Sn/Pb

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ” Sn

5,08µm Sn 5,08µm Sn

5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

w w w. m i l l - m a x . c o m



516-922-6000
