SOT143LF-01-A001-FG datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> SOT143LF-01-A001-FG

SOT143LF-01-A001-FG: DescriptionArray/Network Resistor, Divider, 0.25W, 100V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0512, SOT, ROHS COMPLIANT; CategoryPassive components The resistor; File Size231KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

SOT143LF-01-A001-FG Overview

Array/Network Resistor, Divider, 0.25W, 100V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0512, SOT, ROHS COMPLIANT

SOT143LF-01-A001-FG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SOT, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Component power consumption	0.1 W
The first element resistor	500 Ω
JESD-609 code	e3
Manufacturer's serial number	SOT143
Installation features	SURFACE MOUNT
Network Type	DIVIDER
Number of components	3
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	50000 Ω
size code	0512
surface mount	YES
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	2 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	GULL WING
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

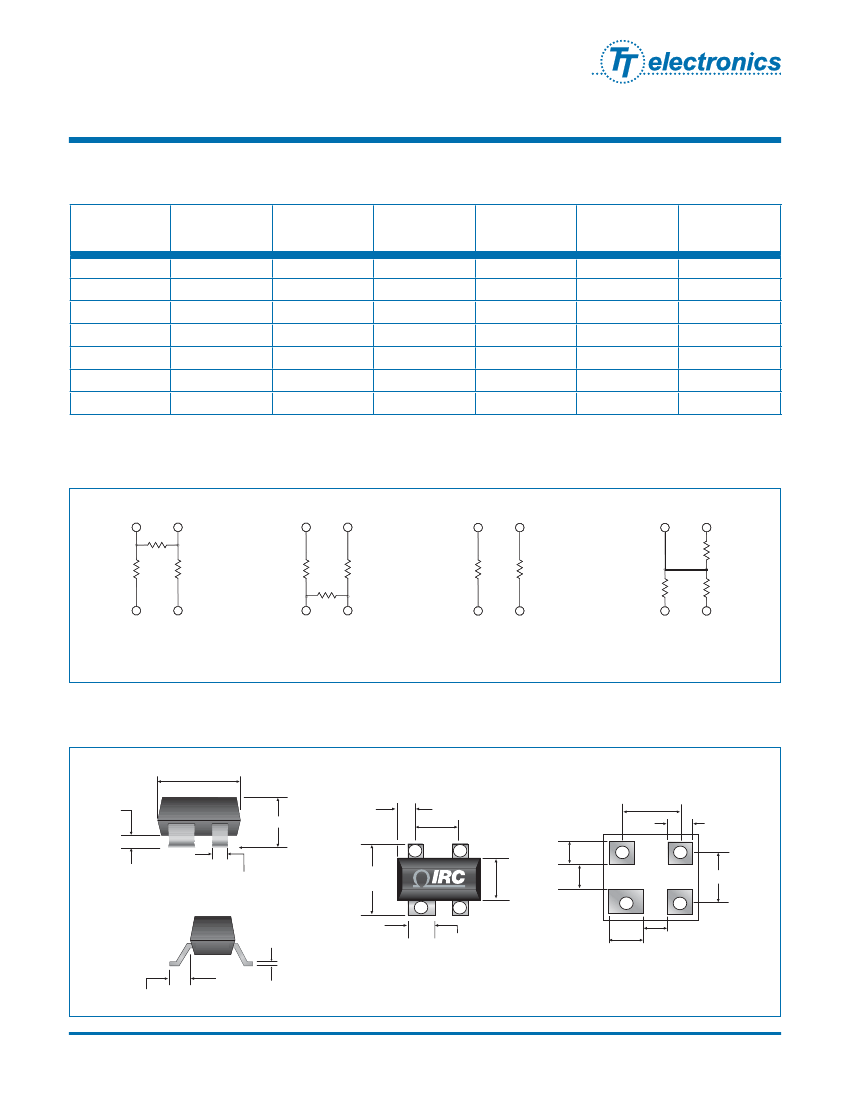

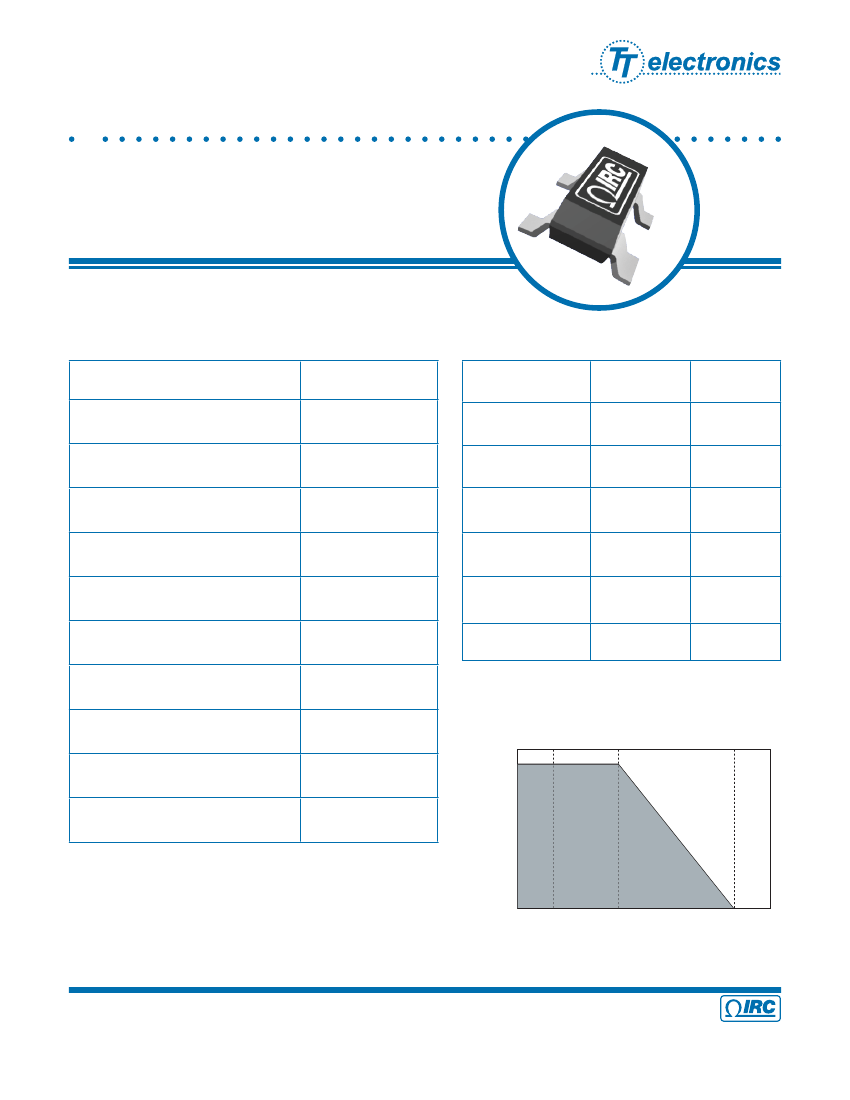

SOT143 Surface Mount

Resistor Networks

SOT143 Series

•

Ratio tolerances to ±0.05%

Standard and custom circuits available

Extremely small industry standard package

RoHS compliant and Sn/Pb terminations available

Electrical Data

Characteristic

Absolute Tolerance

Value

To ±0.1%

Environmental Data

Test Per

MIL-PRF-83401

Thermal Shock

Power

Conditioning

High Temperature

Exposure

Short-time

Overload

Low Temperature

Storage

Life

Typical Delta R

±0.02%

±0.03%

Max Delta R

±0.1%

Ratio Tolerance

To ±0.05%

Absolute TCR

To ±25ppm/°C

±0.03%

±0.05%

Tracking TCR

To ±2ppm/°C

±0.02%

±0.05%

Package Power Rating (70°C)

250mW

±0.03%

±0.05%

±2%

Element Power Rating (70°C)

Rated Operating Voltage

________________

(not to exceed

√

Power x Resistance)

Operating Temperating Range

100mW

100V

Power Derating Curve

-55°C to +125°C

100

Noise

<-30dB

Substrate Material

Silicon

% Of Rated Power

25°

70°

125°

Temperature in °C

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

SOT143 Series Issue November 2009 Sheet 1 of 4

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
