7-6447142-4 datasheet, PDF - EEWORLD Datasheet

7-6447142-4: Description10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE; CategoryThe connector The connector; File Size155KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

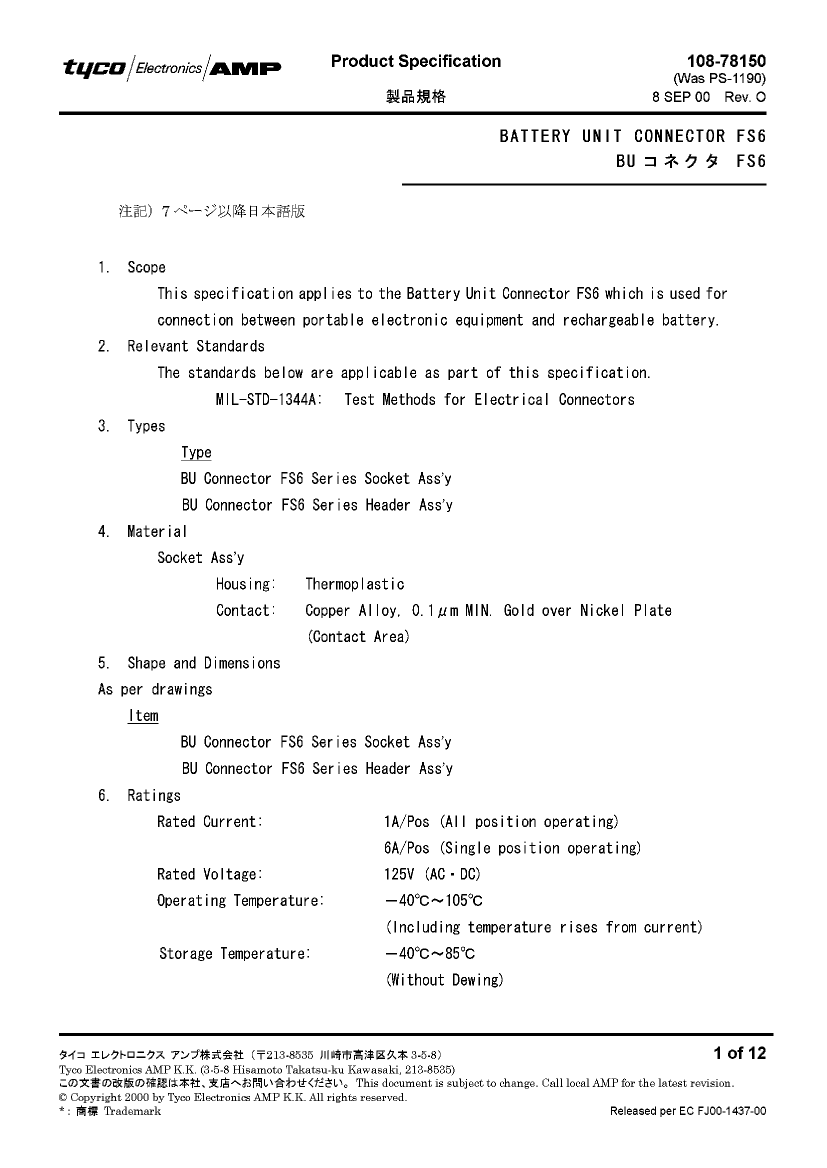

7-6447142-4 Overview

10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
Board mount options	PEG
body width	0.216 inch
subject depth	0.264 inch
body length	1.26 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR

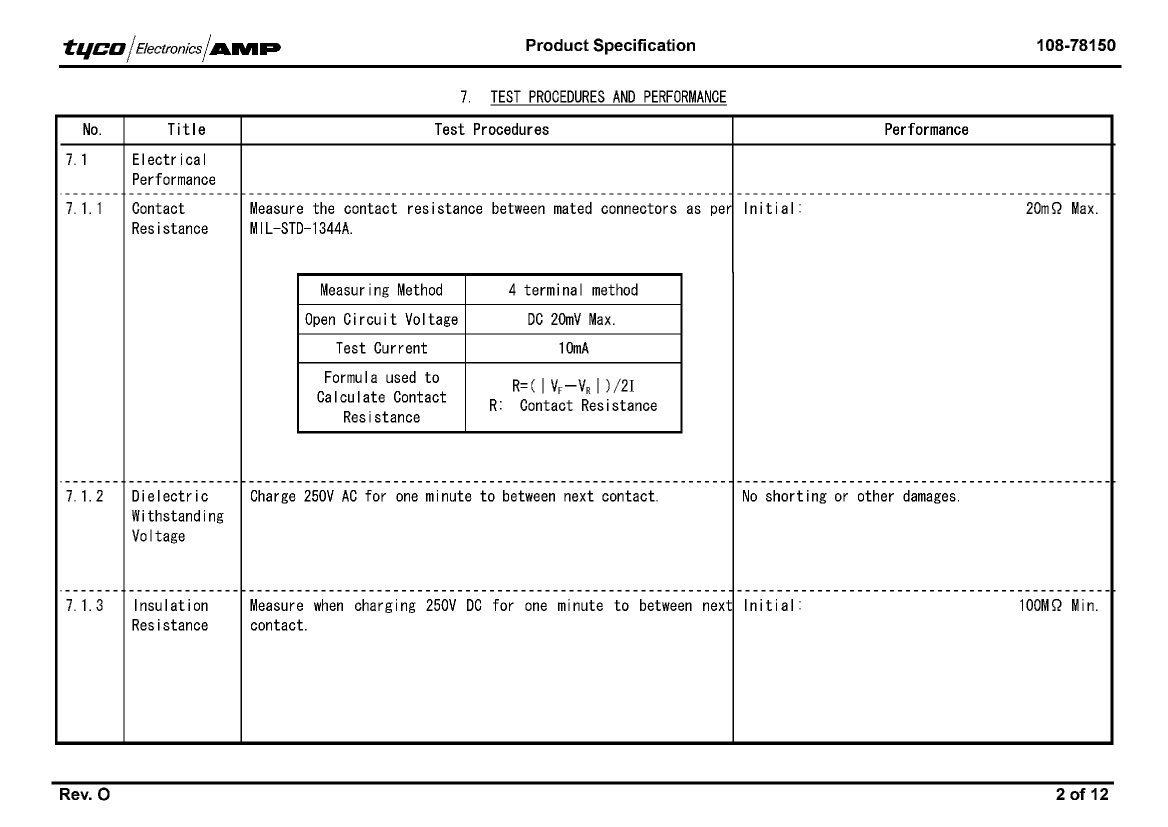

Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	2000 Cycles
Filter function	NO
IEC compliance	NO

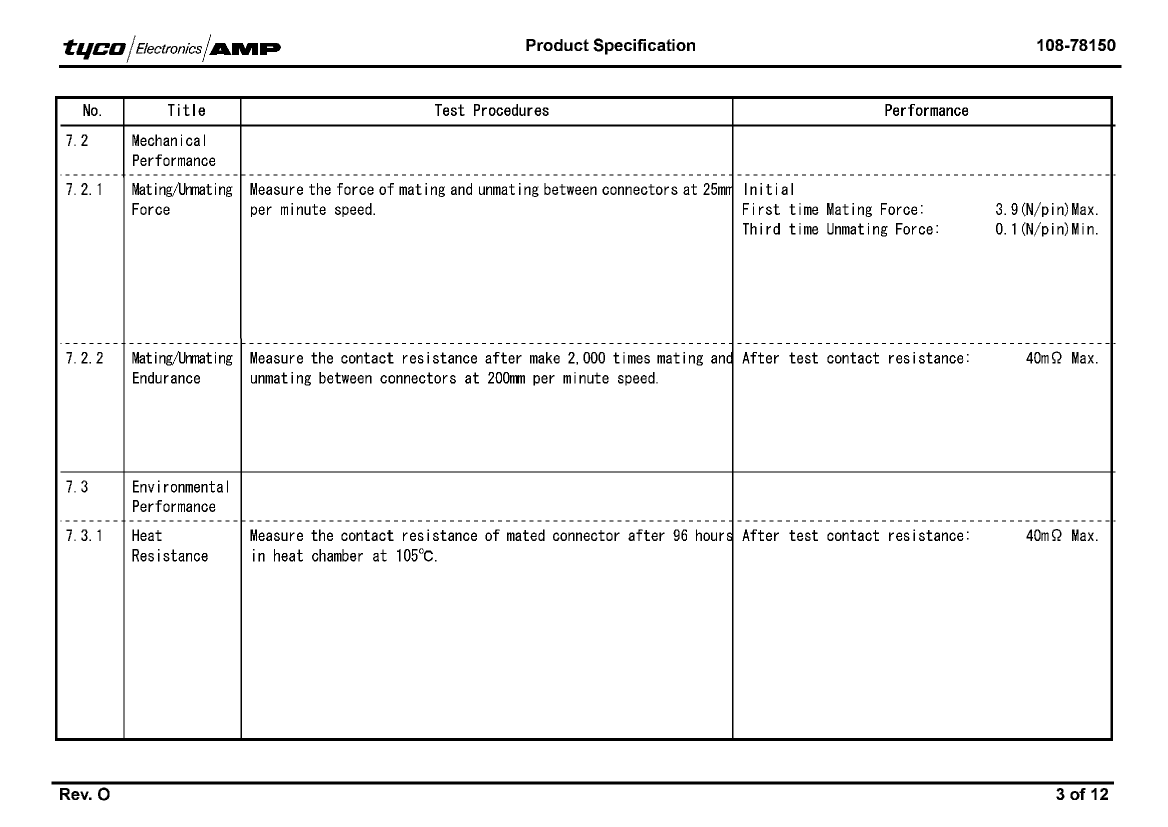

maximum insertion force	3.892 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	6447142
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1

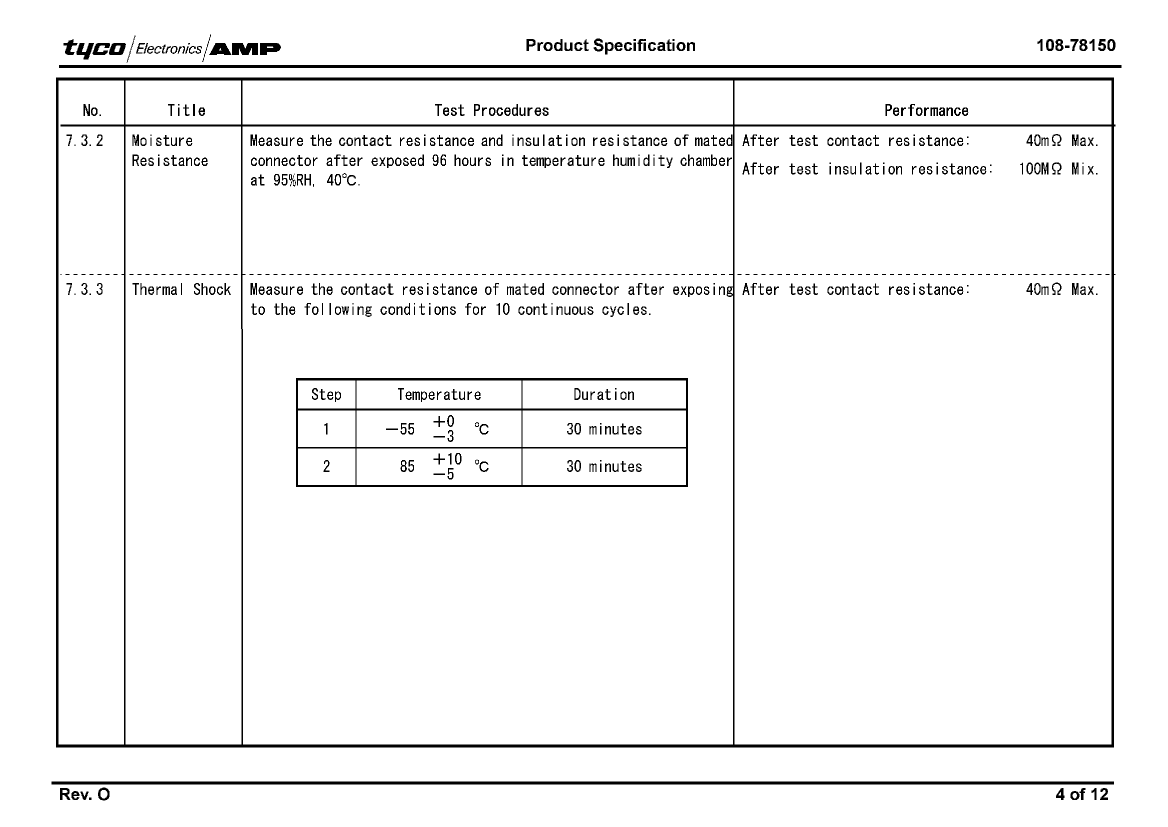

Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	4u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	2.5 mm

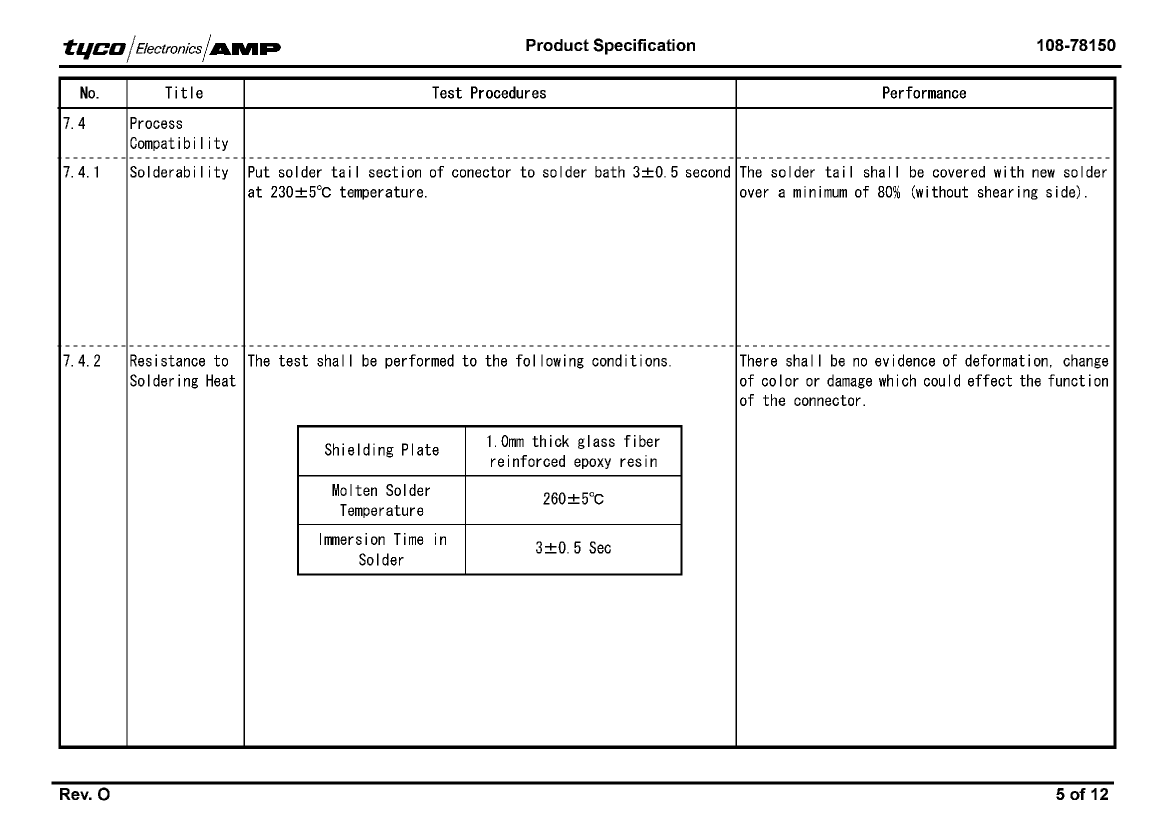

Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.1112 N
Base Number Matches	1

	7-6447142-4	7-6447142-2	7-6447142-3
Description	10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE	8 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE	PCB CONNECTOR, SOCKET, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	unknown
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	PCB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY
DIN compliance	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	6447142	6447142	6447142
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	1	1	1
Contact point gender	FEMALE	FEMALE	-
Filter function	NO	NO	-
Mixed contacts	NO	NO	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	-
Number of rows loaded	1	1	-
Terminal pitch	2.5 mm	2.5 mm	-
Termination type	SOLDER	SOLDER	-
Total number of contacts	10	8	-
