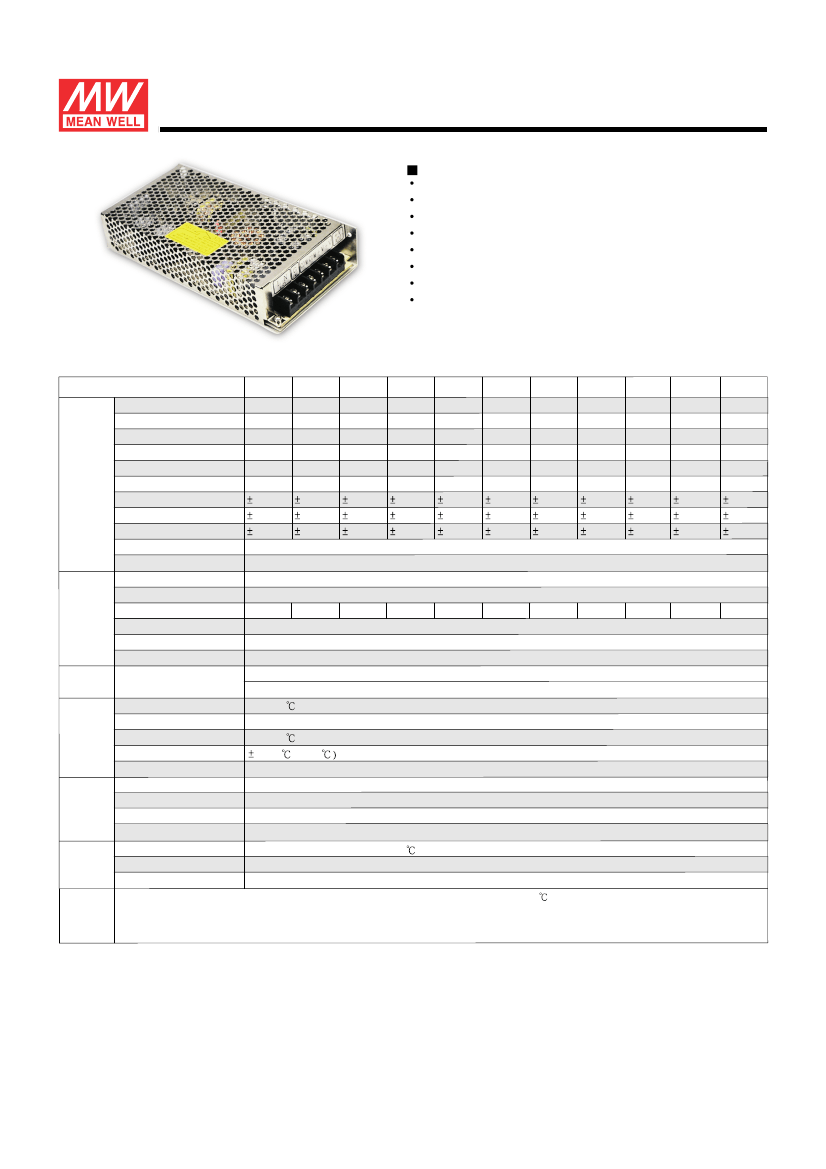

100W Single Output Switching Power Supply

S-100

series

Features :

AC input range selectable by switch

Protections: Short circuit / Overload

Cooling by free air convection

100% full load burn-in test

Fixed switching frequency at 25KHz

Low cost

High reliability

1 year warranty

SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

OUTPUT

VOLTAGE ADJ. RANGE

VOLTAGE TOLERANCE

Note.3

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

INPUT

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

PROTECTION OVERLOAD

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

SAFETY & WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC

MTBF

OTHERS

DIMENSION

PACKING

NOTE

S-100-3

20A

0 ~ 20A

60W

S-100-5

20A

0 ~ 20A

100W

S-100-7.5 S-100-10

7.5V

13.6A

102W

10V

10A

100W

S-100-12

12V

8.5A

0 ~ 8.5A

102W

S-100-15

15V

6.7A

0 ~ 6.7A

100.5W

S-100-18

18V

5.6A

0 ~ 5.6A

100.8W

S-100-24

24V

4.5A

0 ~ 4.5A

108W

S-100-27 S-100-36

27V

3.7A

0 ~ 3.7A

99.9W

36V

2.7A

0 ~ 2.7A

97.2W

S-100-48

48V

0 ~ 2A

96W

0 ~ 13.6A 0 ~ 10A

RIPPLE & NOISE (max.)

Note.2

100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p

2.85 ~ 3.3V 4.75 ~ 5.5V 6.75 ~ 8.25V 9 ~ 11V

2.0%

1.0%

0.5%

0.3%

10.8 ~ 13.2V 13.5 ~ 16.5V 16.2 ~ 19.8V 21.6 ~ 26.4V 26 ~ 32V 32.4 ~ 39.6V 43.2 ~ 52.8V

1.0%

0.3%

0.2%

200ms, 80ms at full load

24ms at full load

85 ~ 132VAC/180 ~ 264VAC selected by switch

47 ~ 63Hz

70%

78%

80%

81%

82%

84%

1.9A/115VAC

0.96A/230VAC

COLD START 27A/115VAC

54A/230VAC

<1mA / 240VAC

105 ~ 150% rated output power (130 ~ 180% of rated output power for S-100-5, S-100-36 ; 150 ~ 200% of rated output power for S-100-7.5 )

Protection type : Shut down o/p voltage, re-power on to recover

-10 ~ +60

-20 ~ +85

(Refer to output load derating curve)

, 10 ~ 95% RH

20 ~ 90% RH non-condensing

0.03%/ (0 ~ 50

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Design refer to UL1012

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC

O/P-FG:0.5KVAC

255 ~ 370VDC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to FCC Part15 J Conduction Class B

322.4K hrs min. MIL-HDBK-217F (25

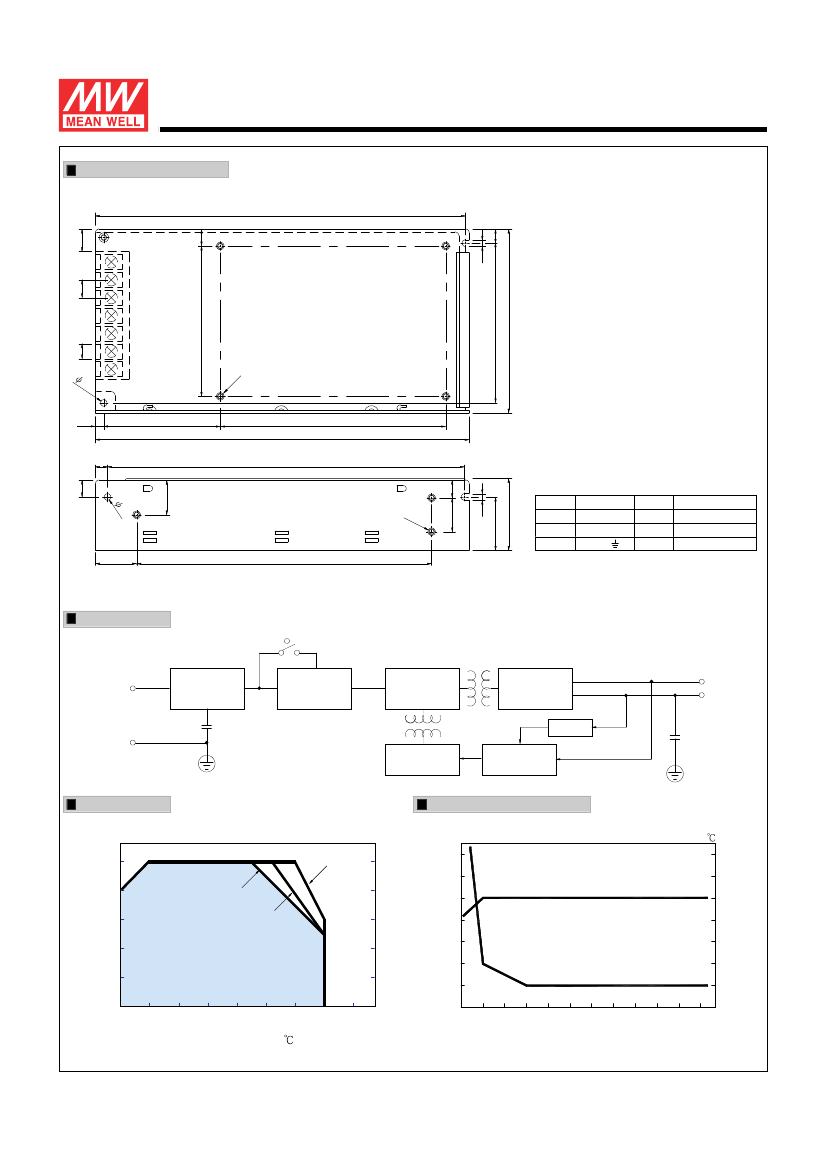

199*98*38mm (L*W*H)

0.62Kg; 20pcs/13.6Kg/0.8CUFT

)

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

File Name:S-100-SPEC 2008-04-10
