865737S064TLF datasheet, PDF - EEWORLD Datasheet

865737S064TLF: DescriptionD Subminiature Connector, 37 Contact(s), Female, IDC Terminal, LEAD FREE; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

865737S064TLF Overview

D Subminiature Connector, 37 Contact(s), Female, IDC Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8657
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Housing size	4/C
Termination type	IDC
Total number of contacts	37
Base Number Matches	1

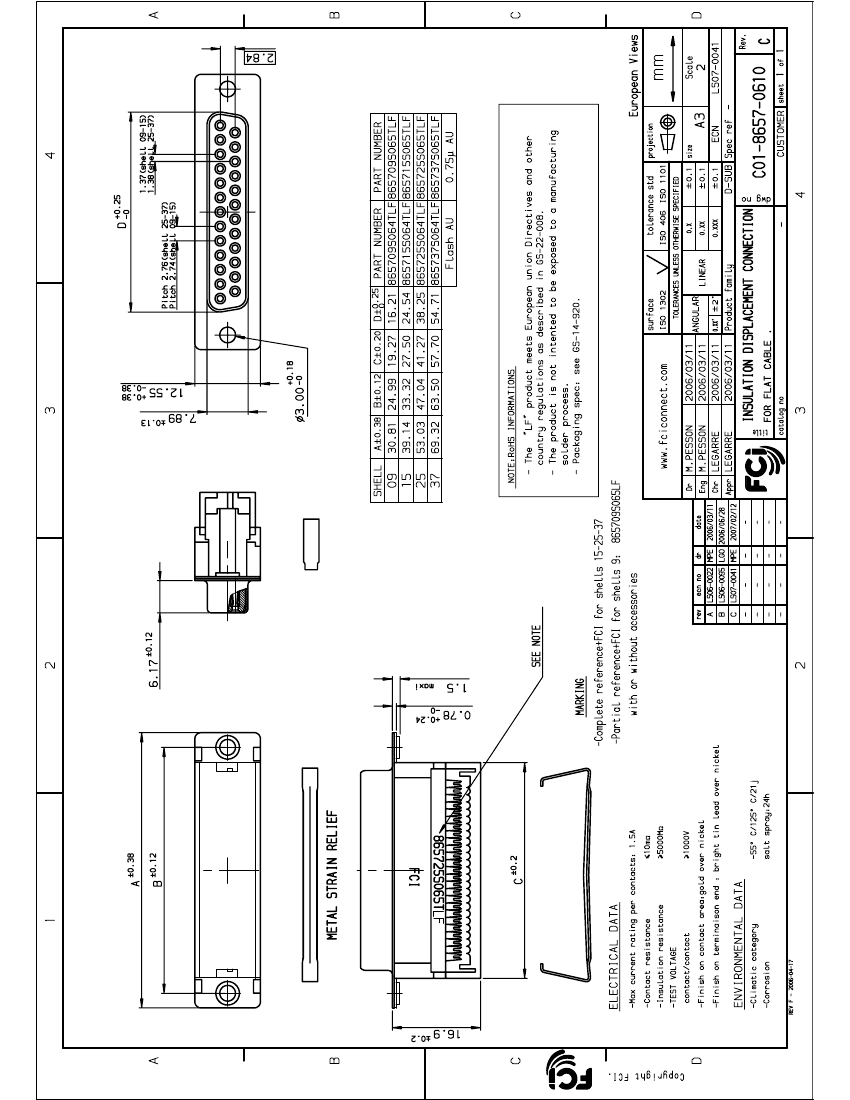

PDM: Rev:C

STATUS:

Released

Printed: Feb 27, 2007

.

	865737S064TLF	865709S064TLF	865715S064TLF	865725S064TLF
Description	D Subminiature Connector, 37 Contact(s), Female, IDC Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, IDC Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, IDC Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, IDC Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	8657	8657	8657	8657
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	4/C	1/E	2/A	3/B
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	37	9	15	25
Base Number Matches	1	1	1	1
