69771-002 datasheet, PDF - EEWORLD Datasheet

69771-002: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size278KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

69771-002 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	69771
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

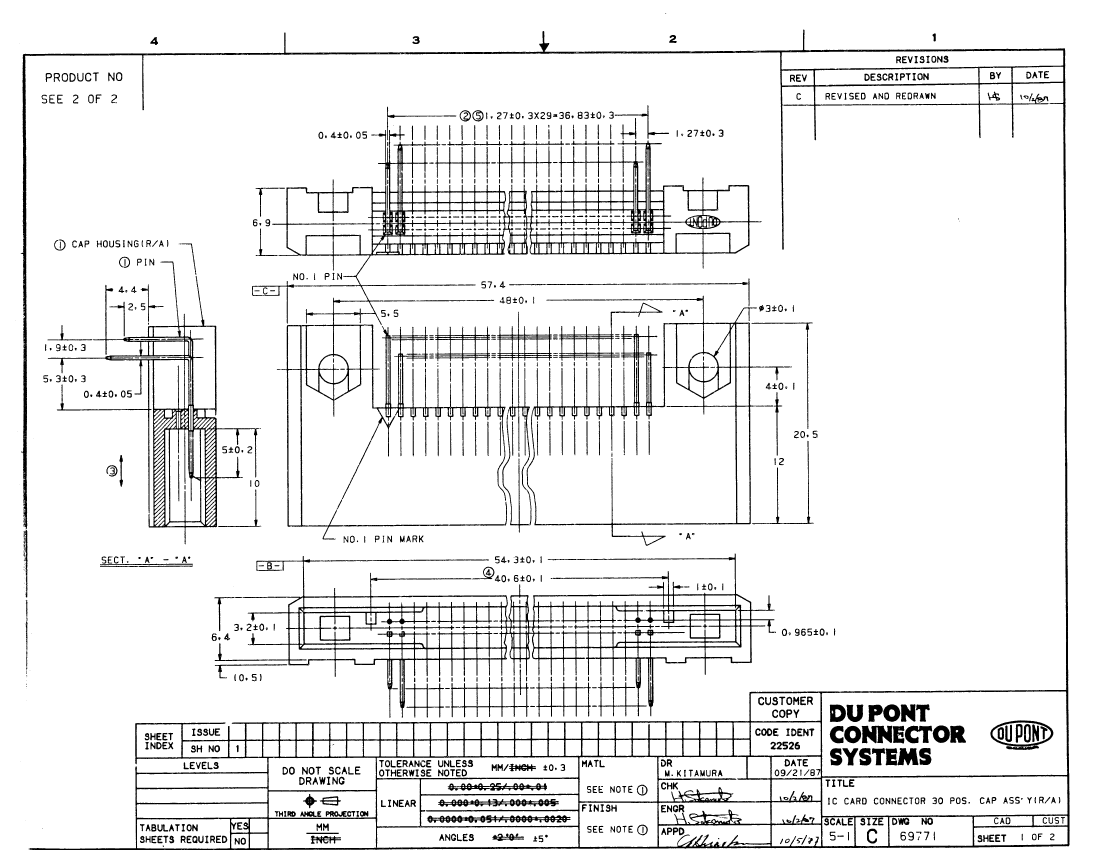

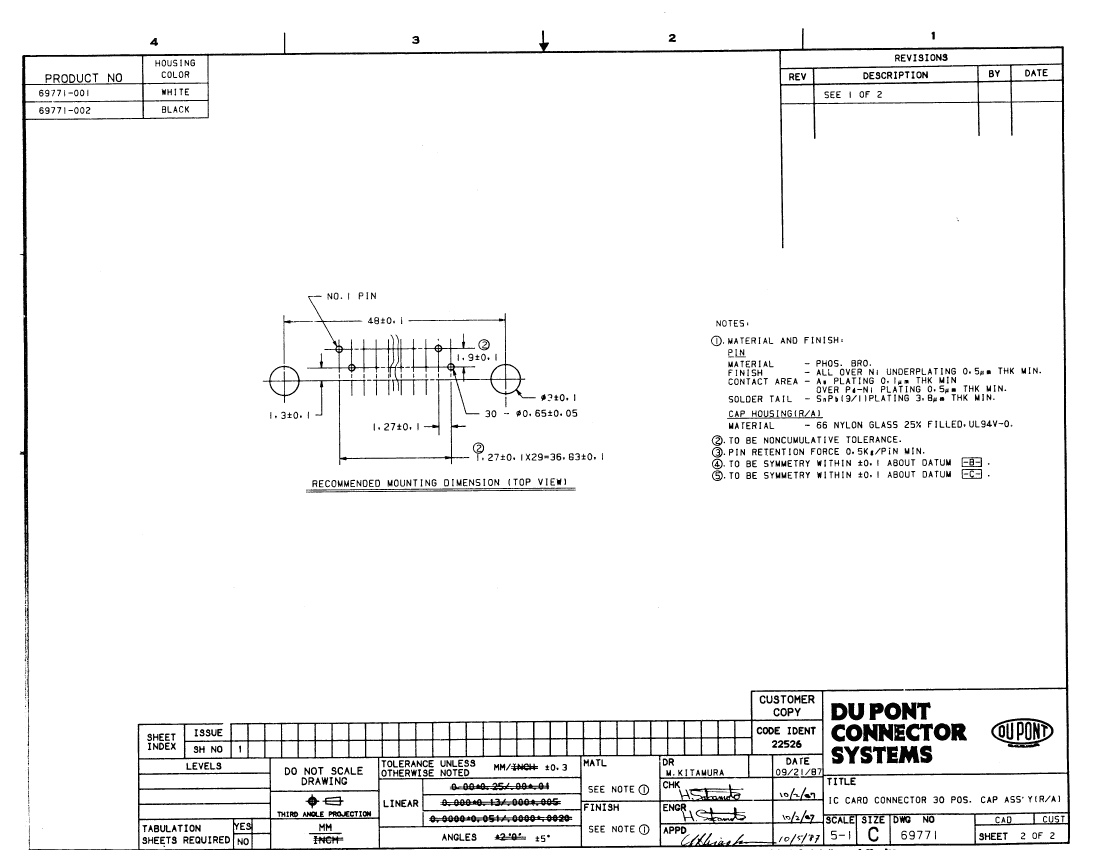

PDM: Rev:D

STATUS:

Released

Printed: Nov 13, 2007

.

	69771-002	69771-001
Description	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	69771	69771
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	30	30
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
