SB320 THRU SB3100
Features
· Plastic Package has Underwriters Laboratory
Flammability Classification 94V-0
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high efficiency
· High current capability, Low forward voltage drop
· High surge capability
· For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
· High temperature soldering guaranteed :
250℃/10 seconds at terminals,
0.375" (9.5mm) lead length, 5lbs. (2.3Kg) tension
CURRENT 3.0Amperes
VOLTAGE 20 to 100 Volts
DO-201AD
0.210(5.3)
0.188(4.8)
DIA.
1.0(25.4)
MIN.
0.375(9.5)
0.285(7.2)
Mechanical Data
· Case : JEDEC DO-201AD molded plastic body
· Terminals : Plated axial leads, solderable per
MIL-STD-750, Method 2026
· Polarity : Color band denotes cathode end
· Mounting Position : Any
· Weight : 0.041 ounce, 1.15 gram
0.042(1.1)
0.037(0.9)
DIA.
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
(Ratings at 25℃ ambient temperature unless otherwise specified, single phase, half wave, resistive or inductive
load. For capacitive load, derate by 20%)
Symbols
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking Voltage
Maximum average forward rectified current
0.375"(9.5mm) lead length(see Fig. 1)
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load
(JEDEC method)
Maximum instantaneous forward voltage
at 3.0A (Note 1)
Maximum instantaneous reverse
current at rated DC blocking
voltage (Note1)
Typical junction capacitance (Note 3)
Typical thermal resistance (Note 2)
Operating junction temperature range
Storage temperature range
T
A
=25℃
T
A
=100℃
I
R
C
J
Rθ
JA
Rθ
JL
T
J
T
STG
-55 to +125
-55 to +150
20
250
40.0
10.0
-55 to +150
V
RRM
V
RMS
V
DC
I(
AV
)
SB320
20
14
20
SB330
SB340
40
28
40
SB350
50
35
50
3.0
SB360
SB380 SB3100 Units
80
56
80
100
70
100
Volts
Volts
Volts
Amps
30
21
30
60
42
60
I
FSM
80.0
Amps
V
F
0.55
3.0
0.58
0.85
Volts
10
160
mA
P
F
℃/W
℃
℃
Notes:
(1) Pulse test: 300μS pulse width, 1% duty cycle
(2) Thermal resistance from junction to lead vrtical P.C.B. mounted, 0.5"(12.7mm) lead length
with 2.5X2.5"(63.5X63.5mm) copper pads
(3) Measured 1MHz and reverse voltage of 4.0 volts

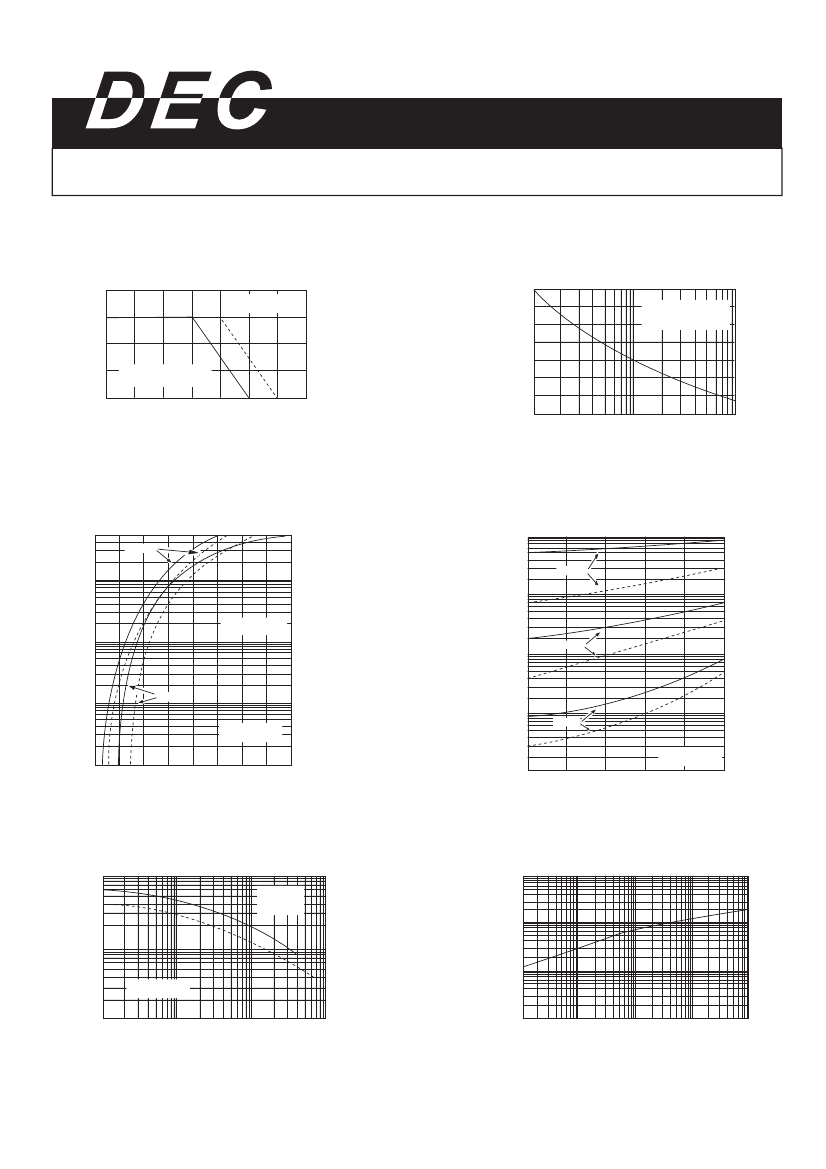

RATINGS AND CHARACTERISTIC CURVES SB320 THRU SB3100
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
50
──
SB320-SB340
- - - SB350-SB3100
T
J
=T
J
MAX
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
FIG.1-FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
4.0
3.0
40
PEAK FORWARD SURGE
CURRENT(AMPERES)
30
20
10
0
1
10
2.0
1.0
0
RESISTIVE OR INDUCTIVE LOAD
0.375" (9.5MM) LEAD LENGTH
0
20
50
75
100
125
150
175
LEAD TEMPERATURE (℃)
100
NUMBER OF CYCLES AT 60Hz
FIG.3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
50
T
J
=125℃
FIG.4-TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT (AMPERES)
INSTANTANEOUS REVERSE CURRENT MILL (AMPERES)
T
J
=125℃
10
1
PULSE WIDTH=300
1% DUTY CYCLE
㎲
1
T
J
=75℃
0.1
0.1
T
J
=25℃
0.01
──
SB320-SB340
- - - SB350-SB3100
T
J
=25℃
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.001
──
SB320-SB340
- - - SB350-SB3100
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG.5-TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE(pF)
T
J
=25℃
f=1.0MHz
Vsig=50mVp-p
FIG.6-TYPICAL TRANSIENT THERMAL IMPEDANCE
100
TRANSIENT THERMAL IMPEDANCE,℃/ W
10
100
1
──
SB320-SB340
- - - SB350-SB3100
10
0.1
1
10
100
REVERSE VOLTAGE. VOLTS
0.1
0.01
0.1
1
T, PULSE DURATION, sec.
10
100
